ACSS ACSS/AW ACSS/TW Conductor

APPLICATIONS

ACSS & ACSS/AW is used for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength; it sags less under emergency electrical loadings than ACSR/AW; it is self-damping if prestretched during installation; and its final sags are not affected by long term creep of aluminum. The advantages make ACSS/AW especially useful in reconductoring applications requiring increased current with existing tensions and clearances, new line applications where structures can be economized because of reduced conductor sag, new line applications requiring high emergency loadings, and lines where aeolian vibration is a problem.

ACSS/AW offers strength characteristics similar to ACSS, along with slightly greater ampacity and resistance to corrosion due to aluminum-cladding of the steel core wires

ACSS/TW is designed for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength, it sags less under emergency electrical loadings than 0 ACSR/TW, excellent self-damping properties, and its final sags are not affected by long-term creep of aluminum.

CONSTRUCTION

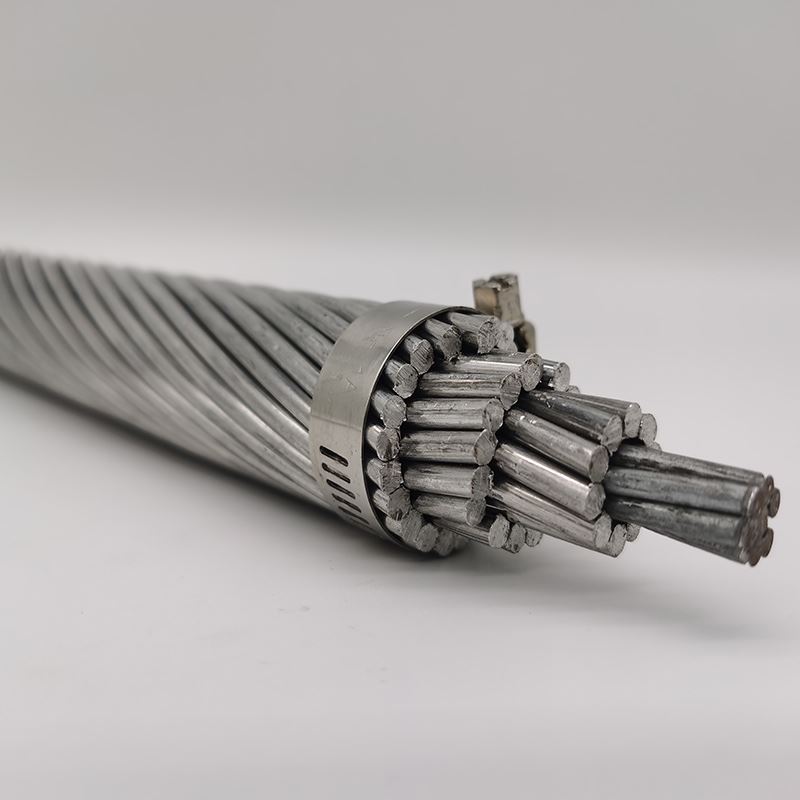

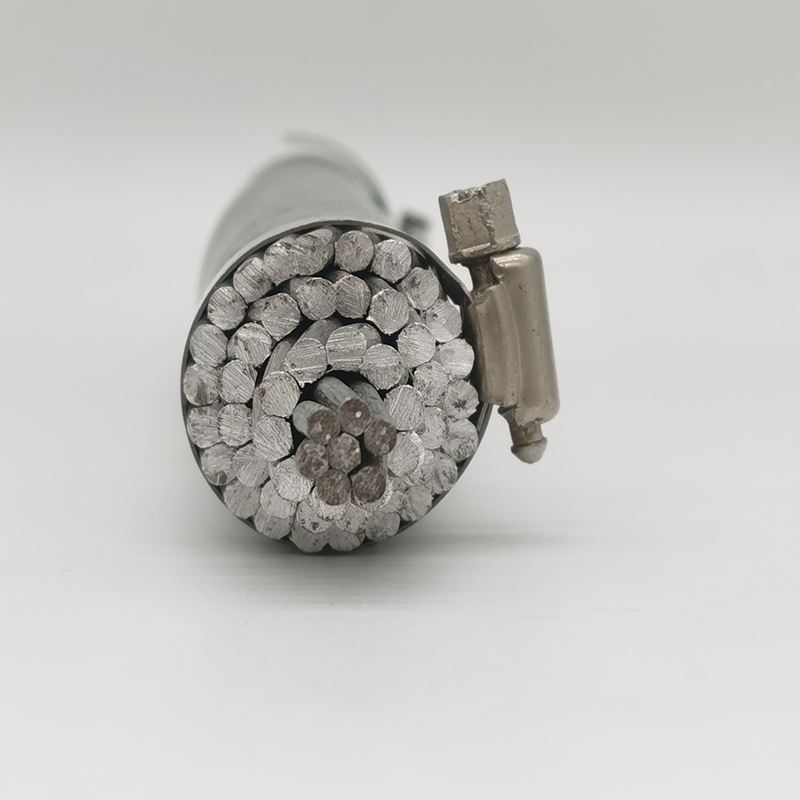

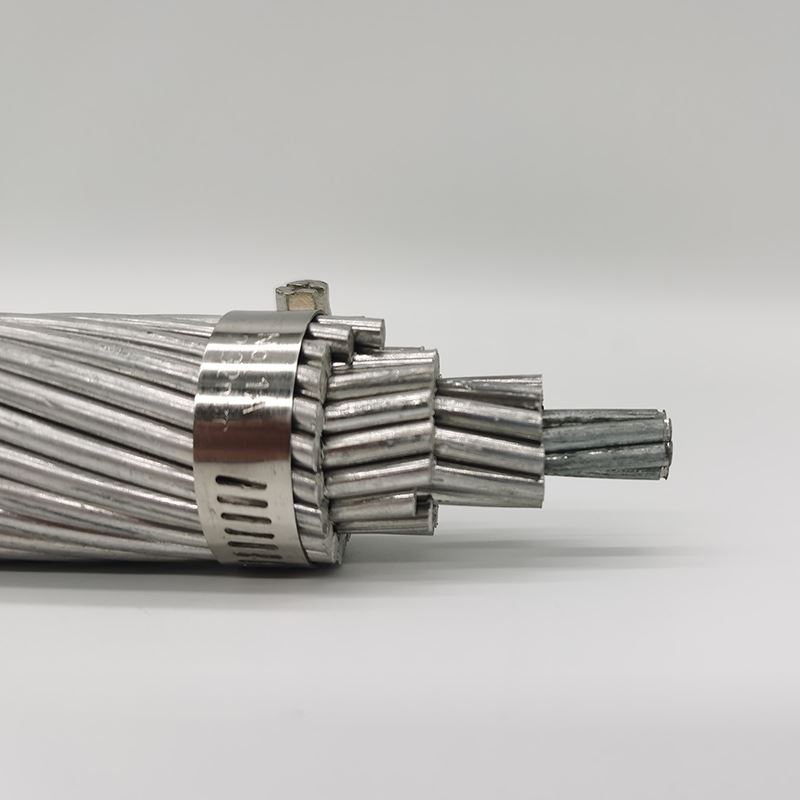

ACSS is a composite concentric-lay-stranded conductor. Steel strands form the central core of the conductor with one or more layers of 63% minimum average conductivity aluminum 1350-0 wire stranded around it. The steel core carries most or all of the mechanical load of the conductor due to the "0" (fully annealed or soft) temper aluminum. Steel core wires are protected from corrosion by Galfan® , zinc-5% aluminum-mischmetal alloy coating. High strength steel core, aluminized, and aluminum clad steel core is also available. Corrosion protection should be selected to suit the environment to which the conductor will be exposed.

ACSS/AW is a composite concentric-lay-stranded conductor. Steel strands form the central core of the conductor with one or more layers of aluminum 1350-0 wire stranded around it. The steel core carries most or all of the mechanical load of the conductor due to the "0" (fully annealed or soft) temper aluminum. Steel core wires are protected from corrosion by an aluminum coating.Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductor, Steel-Supported (ACSS/TW) is a concentrically stranded conductor with one or more layers of trapezoidal shaped hard drawn and annealed 1350-0 aluminum wires on a central core of steel.

SPECIFICATIONS

ACSS conductor meets or exceeds the following American Standard-ASTM specifications:

B500 Metallic Coated Stranded Steel Core for Use in Overhead Electrical Conductors.

B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.

B802 Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).

B803 High-Strength Zinc-5% Aluminum Mischmetal Alloy-Coated Steel Core Wire for Use in Overhead Electrical Conductors.

B856 Concentric-Lay-Stranded Aluminum Conductors, Coated Steel Supported (ACSS).

B958 Extra-High-Strength and Ultra-High-Strength Class A Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Use in Overhead Electrical Conductors.

The strandings available are identical to those listed in ASTM specification B232

ACSS/AW conductor meets or exceeds the following American Standard-ASTM specifications:

B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.

B502 Aluminum-Clad Steel Core Wire for Aluminum conductors, Aluminum-Clad Steel Reinforced.

B856 Concentric-Lay-Stranded Aluminum Conductors, Coated Steel Supported (ACSS).

The strandings available are identical to those listed in ASTM specification B232.

ACSS/TW conductor meets or exceeds the following American Standard-ASTM specifications:

B500 Metallic Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced.

B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.

B802 Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced.

B803 High-Strength Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum and Aluminum-Alloy Conductors, Steel Reinforced.

B857 Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Supported (ACSS/TW).

Parameter ACSS ASTM B856 Code Word Size (kcmil) Strand -ing (Al/St) Diameter (in) Weight (lbs/1000 ft) Individual Wires Steel Core Comp Cable Al Steel Al Steel Total Partridge/ACSS 266.8 26/7 0.1013 0.0788 0.2363 0.642 251.3 115.5 366.8 Junco/ACSS 266.8 30/7 0.0943 0.0943 0.2829 0.660 251.9 165.5 417.4 Ostrich/ACSS 300.0 26/7 0.1074 0.0835 0.2506 0.680 282.6 129.9 412.5 Linnet/ACSS 336.4 26/7 0.1137 0.0885 0.2654 0.720 316.8 145.7 462.5 Oriole/ACSS 336.4 30/7 0.1059 0.1059 0.3177 0.741 317.6 208.7 526.3 Brant/ACSS 397.5 24/7 0.1287 0.0858 0.2574 0.772 374.4 137.0 511.4 Ibis/ACSS 397.5 26/7 0.1236 0.0962 0.2885 0.783 374.4 172.1 546.5 Lark/ACSS 397.5 30/7 0.1151 0.1151 0.3453 0.806 375.3 246.5 621.8 Flicker/ACSS 477 24/7 0.1410 0.0940 0.2819 0.846 449.3 164.4 613.7 Hawk/ACSS 477 26/7 0.1354 0.1053 0.3160 0.858 449.3 206.5 655.8 Hen/ACSS 477 30/7 0.1261 0.1261 0.3783 0.883 450.4 295.9 746.3 Parakeet/ACSS 556.5 24/7 0.1523 0.1015 0.3045 0.914 524.0 192.0 716.0 Dove/ACSS 556.5 26/7 0.1463 0.1138 0.3413 0.927 524.2 240.9 765.1 Eagle/ACSS 556.5 30/7 0.1362 0.1362 0.4086 0.953 525.4 345.2 870.6 Peacock/ACSS 605 24/7 0.1588 0.1058 0.3175 0.953 569.8 208.5 778.3 Squab/ACSS 605 26/7 0.1525 0.1186 0.3559 0.966 569.8 261.9 831.7 Wood Duck/ACSS 605 30/7 0.1420 0.1420 0.4260 0.994 571.2 375.3 946.5 Teal/ACSS 605 30/19 0.1420 0.0852 0.4260 0.994 571.2 367.4 938.6 Rook/ACSS 636 24/7 0.1628 0.1085 0.3256 0.977 599.0 219.2 818.2 Grosbeak/ACSS 636 26/7 0.1564 0.1216 0.3649 0.991 599.0 275.4 874.4 Scoter/ACSS 636 30/7 0.1456 0.1456 0.4368 1.019 600.5 394.5 995.0 Egret/ACSS 636 30/19 0.1456 0.0874 0.4368 1.019 600.5 386.3 986.8 Flamingo/ACSS 666.6 24/7 0.1667 0.1111 0.3333 1.000 627.9 229.7 857.6 Gannet/ACSS 666.6 26/7 0.1601 0.1245 0.3736 1.014 627.8 288.6 916.4 Stilt/ACSS 715.5 24/7 0.1727 0.1151 0.3453 1.036 673.9 246.5 920.4 Starling/ACSS 715.5 26/7 0.1659 0.1290 0.3871 1.051 673.9 309.8 983.7 Redwing/ACSS 715.5 30/19 0.1544 0.0927 0.4633 1.081 675.6 434.6 1110.2 Cuckoo/ACSS 795 24/7 0.1820 0.1213 0.3640 1.092 748.8 274.0 1022.8 Drake/ACSS 795 26/7 0.1749 0.1360 0.4080 1.107 748.8 344.2 1093.0 Macaw/ACSS 795 42/7 0.1376 0.0764 0.2293 1.055 748.8 108.7 857.5 Tern/ACSS 795 45/7 0.1329 0.0886 0.2658 1.063 748.8 146.1 894.9 Condor/ACSS 795 54/7 0.1213 0.1213 0.3640 1.092 748.8 274.0 1022.8 Mallard/ACSS 795 30/19 0.1628 0.0977 0.4884 1.139 750.6 482.8 1233.4 Ruddy/ACSS 900 45/7 0.1414 0.0943 0.2828 1.131 847.7 165.4 1012.1 Canary/ACSS 900 54/7 0.1291 0.1291 0.3873 1.162 847.7 310.1 1157.8 Redbird/ACSS 954 24/7 0.1994 0.1329 0.3987 1.196 898.5 328.7 1227.2 Rail/ACSS 954 45/7 0.1456 0.0971 0.2912 1.165 898.5 175.3 1073.8 Towhee/ACSS 954 48/7 0.1410 0.1097 0.3290 1.175 898.5 223.7 1122.2 Cardinal/ACSS 954 54/7 0.1329 0.1329 0.3987 1.196 898.6 328.7 1227.2 Canvasback/ACSS 954 30/19 0.1783 0.1070 0.5350 1.248 900.7 579.4 1480.1 Snowbird/ACSS 1033.5 42/7 0.1569 0.0871 0.2614 1.203 973.4 141.3 1114.7 Ortolan/ACSS 1033.5 45/7 0.1515 0.1010 0.3031 1.212 973.4 190.0 1163.4 Curlew/ACSS 1033.5 54/7 0.1383 0.1383 0.4150 1.245 973.4 356.2 1329.6 Bluejay/ACSS 1113 45/7 0.1573 0.1048 0.3145 1.258 1048.3 204.5 1252.8 Finch/ACSS 1113 54/19 0.1436 0.0861 0.4307 1.292 1053.4 375.5 1428.9 Bunting/ACSS 1192.5 45/7 0.1628 0.1085 0.3256 1.302 1123.2 219.2 1342.4 Bittern/ACSS 1272 45/7 0.1681 0.1121 0.3363 1.345 1198.0 234.0 1432.0 Pheasant/ACSS 1272 54/19 0.1535 0.0921 0.4604 1.381 1203.9 429.2 1633.1 Dipper/ACSS 1351 45/7 0.1733 0.1155 0.3465 1.386 1272.5 248.3 1520.8 Martin/ACSS 1351 54/19 0.1582 0.0949 0.4745 1.424 1278.7 455.8 1734.5 Bobolink/ACSS 1431 45/7 0.1783 0.1189 0.3566 1.427 1347.8 263.0 1610.8 Plover/ACSS 1431 54/19 0.1628 0.0977 0.4884 1.465 1354.4 482.8 1837.2 Nuthatch/ACSS 1510 45/7 0.1832 0.1221 0.3664 1.465 1422.2 277.5 1699.7 Parrot/ACSS 1510 54/19 0.1672 0.1003 0.5017 1.505 1429.2 509.5 1938.7 Ratite/ACSS 1590 42/7 0.1946 0.1081 0.3243 1.492 1497.6 217.4 1715.0 Lapwing/ACSS 1590 45/7 0.1880 0.1253 0.3759 1.504 1497.6 292.2 1789.8 Falcon/ACSS 1590 54/19 0.1716 0.1030 0.5148 1.544 1504.9 536.5 2041.4 Chukar/ACSS 1780 84/19 0.1456 0.0873 0.4367 1.601 1684.7 386.1 2070.8 Mockingbird/ACSS 2034.5 72/7 0.1681 0.1121 0.3362 1.681 1925.6 233.7 2159.3 Roadrunner/ACSS 2057 76/19 0.1645 0.0768 0.3839 1.700 1946.9 298.3 2245.2 Bluebird/ACSS 2156 84/19 0.1602 0.0961 0.4806 1.762 2040.6 467.6 2508.2 Kiwi/ACSS 2167 72/7 0.1735 0.1157 0.3470 1.735 2051.0 248.9 2299.9 Thrasher/ACSS 2312 76/19 0.1744 0.0814 0.4070 1.802 2188.2 335.3 2523.5 Joree/ACSS 2515 76/19 0.1819 0.0849 0.4245 1.880 2380.4 364.7 2745.1
