Product Applications

This product is suitable for distribution lines of AC 35kV and below, especially for railways, tunnels, power stations, petroleum, chemical industry, high-rise buildings and other important places that require high flame retardancy of cables.

illustrate:

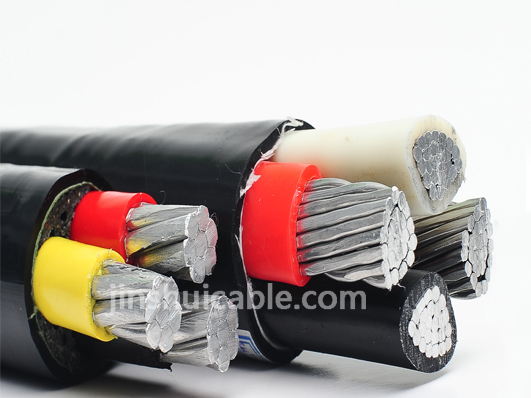

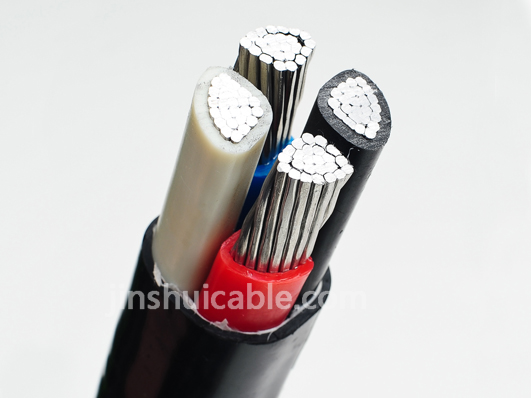

1. Conductor: copper or aluminum.

2. Armoured and unarmoured power cables are available.

3. Rated voltage: 0.6/1kV

4. Insulation: PVC

5. Outer sheath: PVC or PE

6. The number of cable cores: 1 core (single core), 2 cores (dual core), 3 cores, and our square cores (4 cores with equal cross-sectional area and 1 neutral core with small cross-sectional area). Standard: IEC 60502. IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST, etc. or other special characteristics required by customers.

Product Features

1. The long-term maximum working temperature of PVC insulated cables is 70°C

2. Cable installation temperature is not lower than 0 ℃

3. The maximum short-circuit temperature is: PVC does not exceed 160°C and does not exceed 5 seconds.

4. The allowable bending radius of the cable: not less than 10d times (D: the outer diameter of the cable)

5. Good chemical stability, acid, alkali, grease and organic solvent resistance, flame retardant.

Product Type

Type Name Usage VV PVC insulated PVC sheathed power cable

Can be laid at indoor, tunnel and tube.

Cable cannot under take mechanism outside force

VLV VY PVC insulated and PE sheathed power cable Can be laid at indoor, tunnel tube and serious polluted places.
Cablecannot undertake mechanism outside force VLY VV22

PVC insulated steel belt armored

and PVC sheathed power cable

Can be laid at indoor, tunnel tube and mining well.
Cable cannot undertake mechanism outside force VLV22 VV23

PVC insulated steel belt armored

and PE sheathed power cable

Can be laid at indoor, tunnel tube mining well and serious polluted places.
Cable cannot undertake mechanism outside force VLV23 VV32

PVC insulated steel belt armored

and PE sheathed power cable

Can be laid at indoor, tunnel tube mining well and serious polluted places.
Cable cannot undertake mechanism outside force VLV32 VV33

PVC insulated steel belt armored

and PE sheathed power cable

Can be laid at indoor, tunnel tube mining well and serious polluted places.
Cable cannot undertake mechanism outside force VLV33 VV42

PVC insulated steel belt armored

and PE sheathed power cable

Can be laid at indoor, tunnel tube mining well and serious polluted places.
Cable cannot undertake mechanism outside force VLV42 VV43

PVC insulated steel belt armored

and PE sheathed power cable

Can be laid at indoor, tunnel tube mining well and serious polluted places.
Cable cannot undertake mechanism outside force
