Product Application:

XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable.XLPE power cable has high electric strength,mechanical strength,high-ageing resisting,environmetal stress resisting antichemical corrossion,and it is simple construction,using convenient and higher operating of long term temperature.It can be laid with no drop restriction.

Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free,and non-smoke nonhalogented and three classes of A,B,C.

Product Construction:

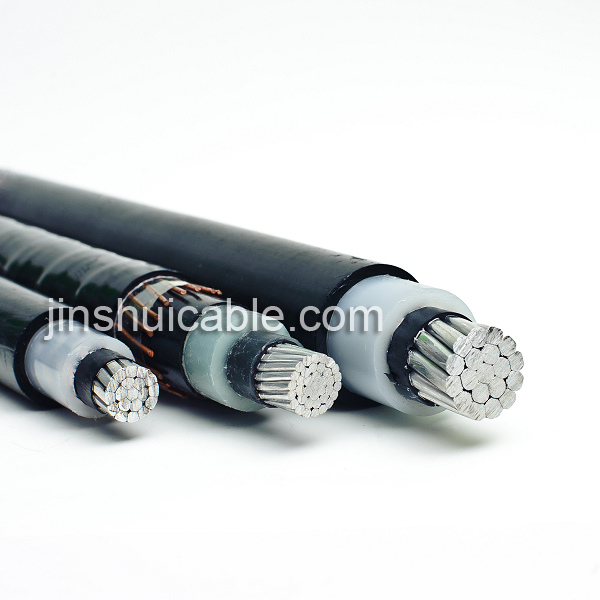

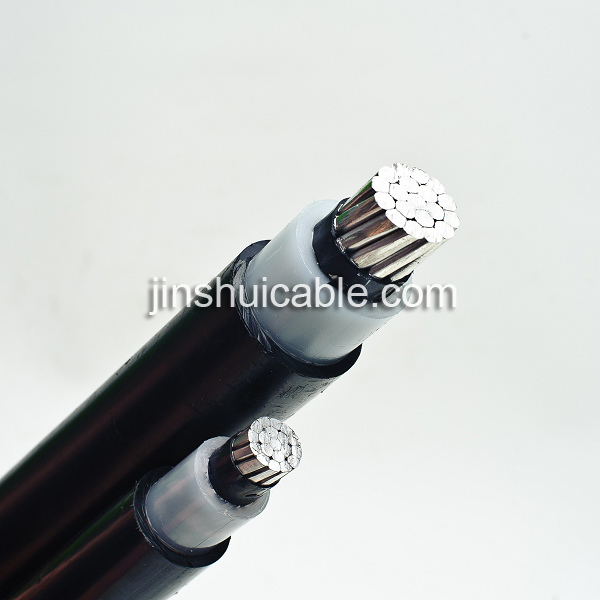

Al/Cu Conductor XLPE Insulated Thin/Thick steel armored PE Sheathed Power Cable.

Product Standards:

The products are mainly complying with IEC 60502 standard, also can be produced according to OEM requirements and other standards, such as BS standard, DIN standard, ASTM standard, etc.

Voltage grade is up to 35kv, cross-section area can be up to 400 sqmm (copper or alumimum conductor). Conductor long-time operating temperature is 90℃. In short circuit, conductor highest temperature should be not more than 250℃

Using features:

1. Rated voltage: Uo/U: 26/35kV, 21/35kV, 12/20 kV (24 kV), 8.7/10kV, 8.7/15kV, 6/6kV, 6/10kV.

2. No. of core: Single-core, Three-core.

3. The highest allowed operating temperature of conductor for long-term working is 90℃. In short-circuit (Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250℃.

4. D.C Resistance of the conductor complies with the stipulations of GB/T3956-1997.

5. The environment temperature should be no lower than 0℃ when lay. Otherwise it should be preheated.

6. The cable is laid without horizontal drop limit. The Min. Bending radius of three-core cable should be no smaller than 12 times of cable outer diameter.

7. Working Frequency Voltage Test:.

For cable with Uo of 3.6kV or lower: 2.5Uo+2kV/5min without puncture.

For cable with Uo of 3.6Kv~18kV: 3.5Uo/5min without puncture.

For cable with Uo of 21kV and 26 kV: 2.5Uo/30min without puncture.

8. Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.

This series includes:

Copper (aluminum) core, XLPE insulated and sheathed power cables.

Copper (aluminum) core, XLPE insulated, PE sheathed power cables.

Copper (aluminum) core, XLPE insulated, steel tape armoring PVC sheathed power cables.

Copper (aluminum) core, XLPE insulated, steel tape armoring, PE sheathed power cables.

Copper (aluminum) core, XLPE insulated, steel wire armoring, PVC sheathed power Cables.

Copper (aluminum) core, XLPE insulated, steel wire armoring, PE sheathed power cables

Number of cores: 1 to 6.

Packing: Wooden drum, steel-wooden drum.
