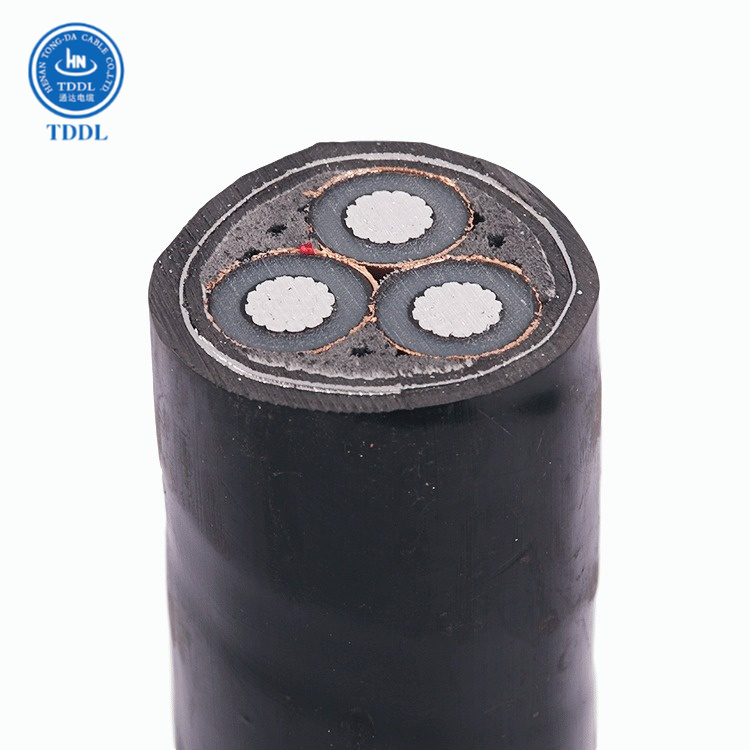

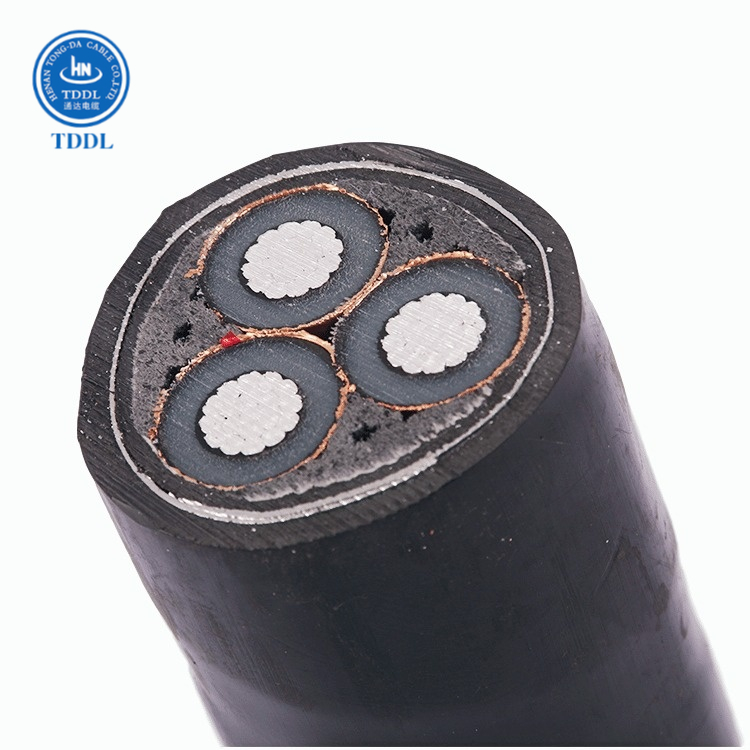

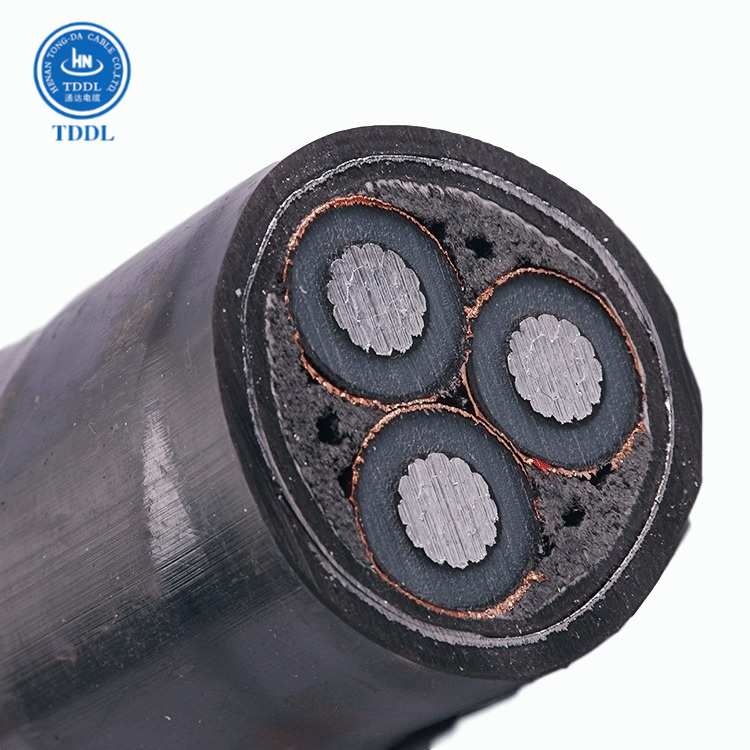

Aluminium conductor, XLPE insulated, Copper Tape screened, PVC sheathed medium voltage power cable
HENAN TONG-DA CABLE CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Aluminium conductor, XLPE insulated, Copper Tape screened, PVC sheathed medium voltage power cable
HENAN TONG-DA CABLE CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier
YJLV (NA2XSEY) Three-core 6/10kV 8.7/15kV 12/20kV 18/30kV
AL / XLPE / CTS / PVC
(Aluminium conductor, XLPE insulated, Copper Tape screened, PVC sheathed)
Application:
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.
Construction ：
- 1) Conductor : Aluminium ,Class 1 or Class 2,solid or stranded Circular conductors
- 2) Conductor screen: Non-metallic，semi-conducting compound
- 3) Insulation: Cross-linked polyethylene XLPE
- 4) Insulation screen: Non-metallic，semi-conducting compound
- 5) Metallic screen: Copper tape
- 6) Filler: Non-hygroscopic material
- 7) Binder tape: Non-hygroscopic material
- 8) Oversheath: Polyvinyl chloride PVC
SPECIFICATIONS:
IEC 60228 Conductors of insulate cables
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 2:Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)
No. of cores and nominal cross section
Thickness of Insulation
Thickness of
Sheath
Approx.overall Diameter
Approx. weight
Max. DC resistance of conductor（20℃）
Current carrying capacity
(mm2)
(mm)
(mm)
(mm)
(kg/km)
(Ω/km)
In Air(A)
In Ground(A)
YJLV (NA2XSEY) - 6/10kV
3X25
3.4
2.2
39.3
1408
1.20
95
105
3X35
3.4
2.3
41.7
1605
0.868
115
125
3X50
3.4
2.4
44.7
1856
0.641
135
150
3X70
3.4
2.5
48.5
2224
0.443
170
185
3X95
3.4
2.6
52.2
2630
0.320
205
220
3X120
3.4
2.7
55.4
3008
0.253
235
250
3X150
3.4
2.8
58.9
3419
0.206
270
280
3X185
3.4
2.9
62.7
3947
0.164
310
320
3X240
3.4
3.1
67.9
4727
0.125
370
375
3X300
3.4
3.3
73.0
5548
0.100
420
425
3X400
3.4
3.5
79.9
6679
0.0778
485
485
YJLV (NA2XSEY) - 8.7/15kV
3X25
4.5
2.4
44.4
1759
1.20
95
105
3X35
4.5
2.5
46.8
1974
0.868
115
125
3X50
4.5
2.6
49.8
2248
0.641
135
150
3X70
4.5
2.7
53.7
2645
0.443
170
185
3X95
4.5
2.8
57.3
3079
0.320
205
220
3X120
4.5
2.9
60.6
3481
0.253
235
250
3X150
4.5
3.0
64.0
3918
0.206
270
280
3X185
4.5
3.1
67.9
4476
0.164
310
320
3X240
4.5
3.3
73.0
5295
0.125
370
375
3X300
4.5
3.4
78.0
6121
0.100
420
425
3X400
4.5
3.7
85.1
7340
0.0778
485
485
No. of cores and nominal cross section
Thickness of Insulation
Thickness of
Sheath
Approx.overall Diameter
Approx. weight
Max. DC resistance of conductor（20℃）
Current carrying capacity
(mm2)
(mm)
(mm)
(mm)
(kg/km)
(Ω/km)
In Air(A)
In Ground(A)
YJLV (NA2XSEY) - 12/20kV
3X35
5.5
2.7
51.7
2207
0.868
115
125
3X50
5.5
2.8
54.3
2464
0.641
135
150
3X70
5.5
2.9
58.4
2877
0.443
170
185
3X95
5.5
3.0
62.3
3340
0.320
205
220
3X120
5.5
3.1
65.3
3766
0.253
235
250
3X150
5.5
3.2
68.5
4204
0.206
270
285
3X185
5.5
3.3
72.4
4757
0.164
310
320
3X240
5.5
3.5
78.0
5591
0.125
365
370
3X300
5.5
3.6
83.0
6500
0.100
415
420
3X400
5.5
3.9
89.3
7725
0.0778
485
480
YJLV (NA2XSEY) - 18/30kV
3X35
8.0
3.0
63.3
3035
0.868
132
119
3X50
8.0
3.1
65.8
3327
0.641
158
140
3X70
8.0
3.2
69.9
3793
0.443
196
171
3X95
8.0
3.4
73.8
4307
0.320
236
203
3X120
8.0
3.5
76.9
4774
0.253
273
232
3X150
8.0
3.6
80.1
5284
0.206
309
260
3X185
8.0
3.7
84.0
5858
0.164
355
294
3X240
8.0
3.8
89.5
6726
0.125
415
340
3X300
8.0
4.0
94.6
7740
0.100
475
384
3X400
8.0
4.2
100.9
8966
0.0778
552
438
