About this product
- Materials: Aluminum Alloy & Steel
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
About this product
- Materials: Aluminum Alloy & Steel
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
Product details
| Materials | Aluminum Alloy & Steel |
|---|
Product details
| Materials | Aluminum Alloy & Steel |
|---|
From the supplier
APPLICATION:
Aluminum Alloy Conductor Steel Reinforced is widely used in power transmission lines with various voltage levels.
It can be used as large span conductor,heavy ice wire or overhead communications wire,ground wire.
The temperature for continuous use can be up to 90°C,heat-resistance AACSR can be up to 150°C and above.
It has high current carrying capacity,variable steel core stranding enables the designed strength to be achieved without sacrificing ampacity.
CONSTRUCTION：

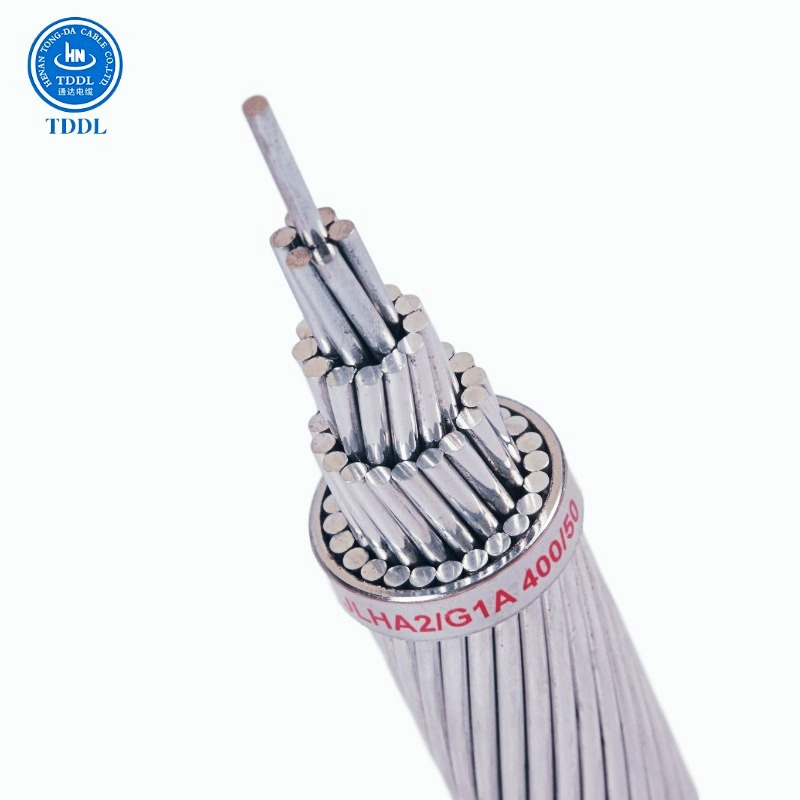

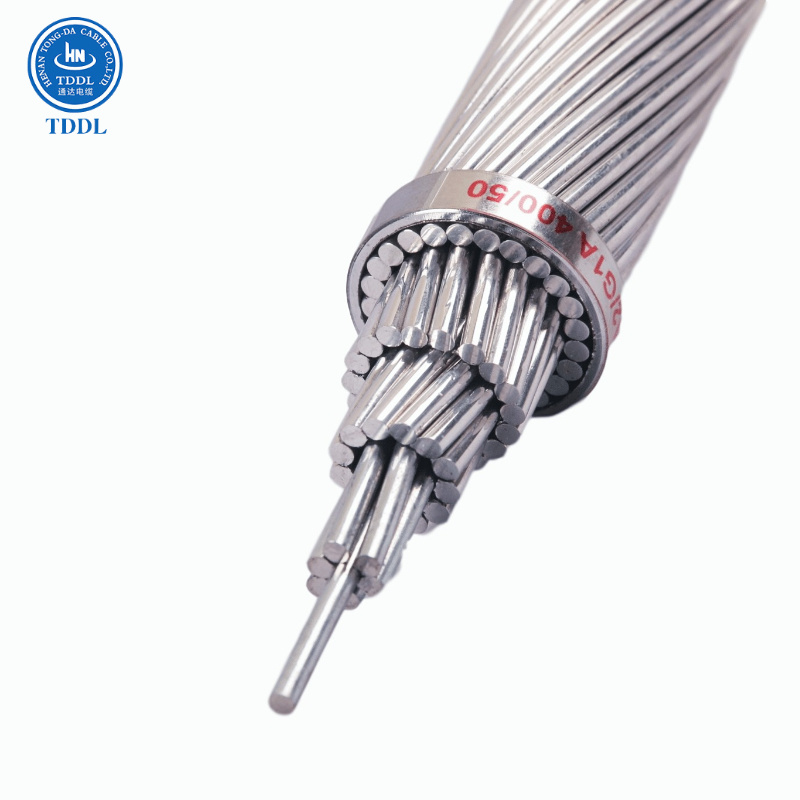

(1)AACSR is a concentrically stranded conductor composed of one or more layers of 6201 -T81 aluminum alloy wire stranded with a high-strength coated steel core. The core may be single wire or stranded depending on the size.
(2)The proportions of aluminum alloy and steel can be varied to obtain the relation between current carrying capacity and mechanical strength best suited to each application.
(3)Core wire for AACSR is available with Class A, B or C-galvanized; "aluminized" (AZ): or aluminum clad (AW).
(4)Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
STANDARDS:
ASTM B711,DIN 48206,IEC 61089
From the supplier
APPLICATION:
Aluminum Alloy Conductor Steel Reinforced is widely used in power transmission lines with various voltage levels.
It can be used as large span conductor,heavy ice wire or overhead communications wire,ground wire.
The temperature for continuous use can be up to 90°C,heat-resistance AACSR can be up to 150°C and above.
It has high current carrying capacity,variable steel core stranding enables the designed strength to be achieved without sacrificing ampacity.
CONSTRUCTION：
(1)AACSR is a concentrically stranded conductor composed of one or more layers of 6201 -T81 aluminum alloy wire stranded with a high-strength coated steel core. The core may be single wire or stranded depending on the size.
(2)The proportions of aluminum alloy and steel can be varied to obtain the relation between current carrying capacity and mechanical strength best suited to each application.
(3)Core wire for AACSR is available with Class A, B or C-galvanized; "aluminized" (AZ): or aluminum clad (AW).
(4)Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
STANDARDS:
ASTM B711,DIN 48206,IEC 61089
