From the supplier

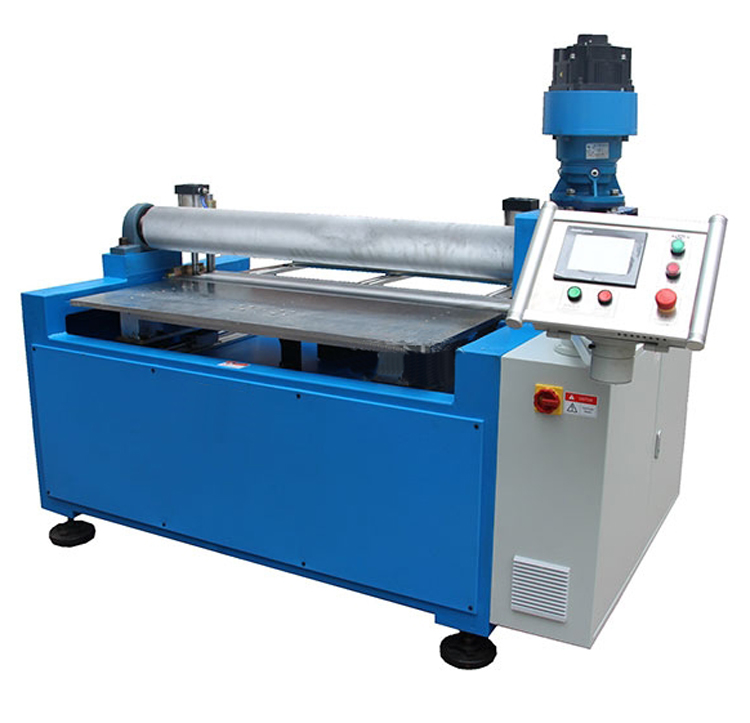

This machine is special designed for bending condenser core of air conditioner to L, U, or G shape automatically.
This machine is PLC control, servo motor driving, HMI presetting related parameters, simple & convenient operation.

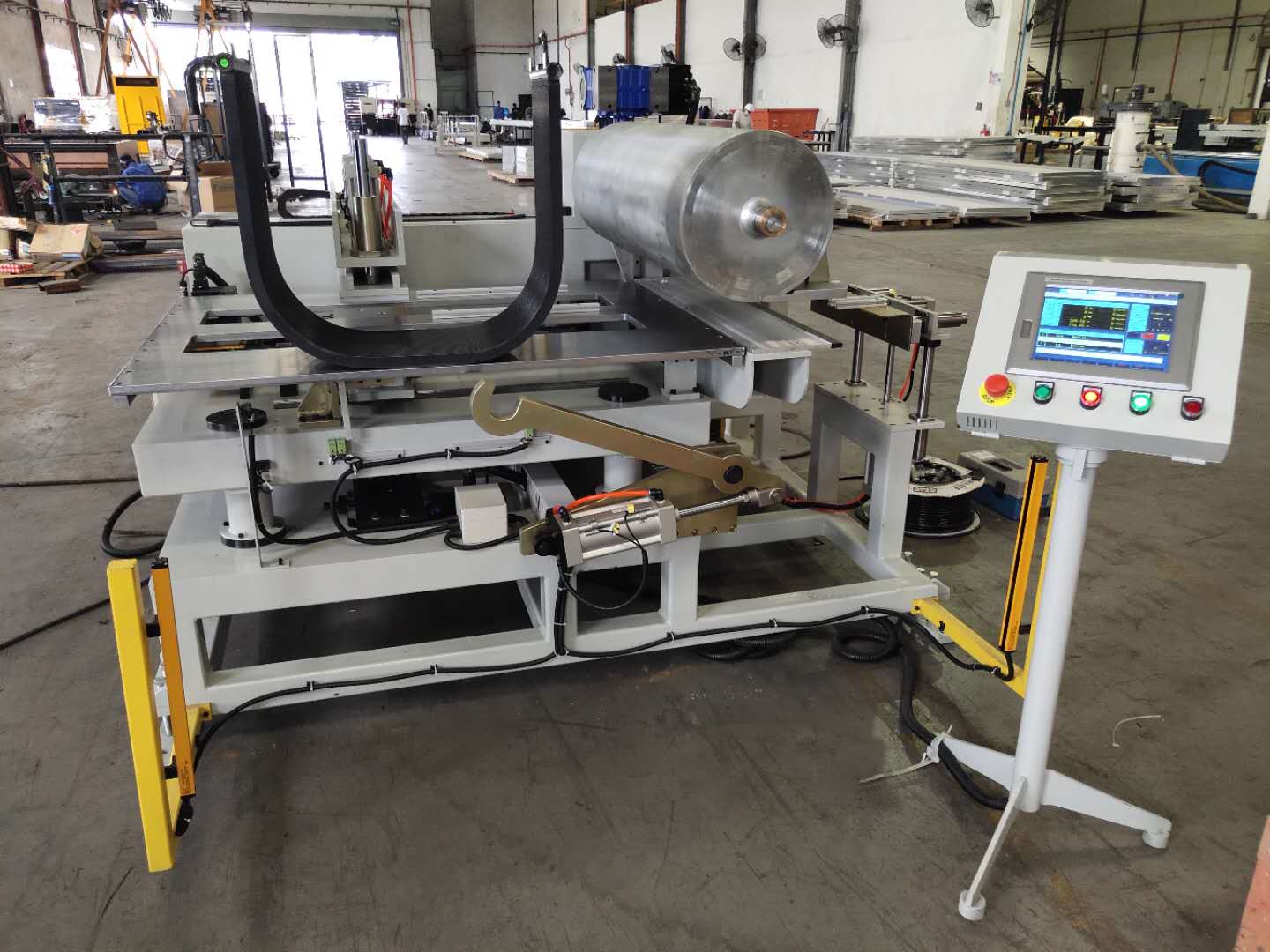

Illustration of the machine
- Bending mechanism is driving by inverter motor, stable working
- Worktable is elevated, inverter motor driving, stable and noiseless
- Worktable has one following trolley for related compensating motion, good non-deformability
Main technical data
No.
Item
Data
1
Applicable condenser coil width
Max. 850mm
2
Applicable condenser coil layers
1, 2, 3
3
Bending thickness
13.37mm, 19.05mm, 22mm
4
Bending shape
L, U, G
5
Bending radius
R105 (1 layer)；R85 (2 layers)；R65 (2 or 3 layers)
6
Bending angle
0~120°, adjustable
7
Bending precision
±0.1°
8
Operation method
Automatic/ manual
9
Bending speed
Not more than 15 seconds
10
Core thickness thinning rate
Not more than 5%
11
Total power
4.5kW
12
Machine weight
About 1600kg
