CNC Miling Machine XH7122
- FOB goods (100)
- $1,750,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $61,250
- Section 301 tariff (25.0%)
- $437,500
- Customs fees (MPF/HMF)
- $2,822
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
CNC Miling Machine XH7122
- FOB goods (100)
- $1,750,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $61,250
- Section 301 tariff (25.0%)
- $437,500
- Customs fees (MPF/HMF)
- $2,822
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: metal
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea
- Made in: Anhui, China
About this product
- Materials: metal
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea
- Made in: Anhui, China
Product details
| Materials | metal |
|---|---|
| Color | grey |
From the supplier
Description

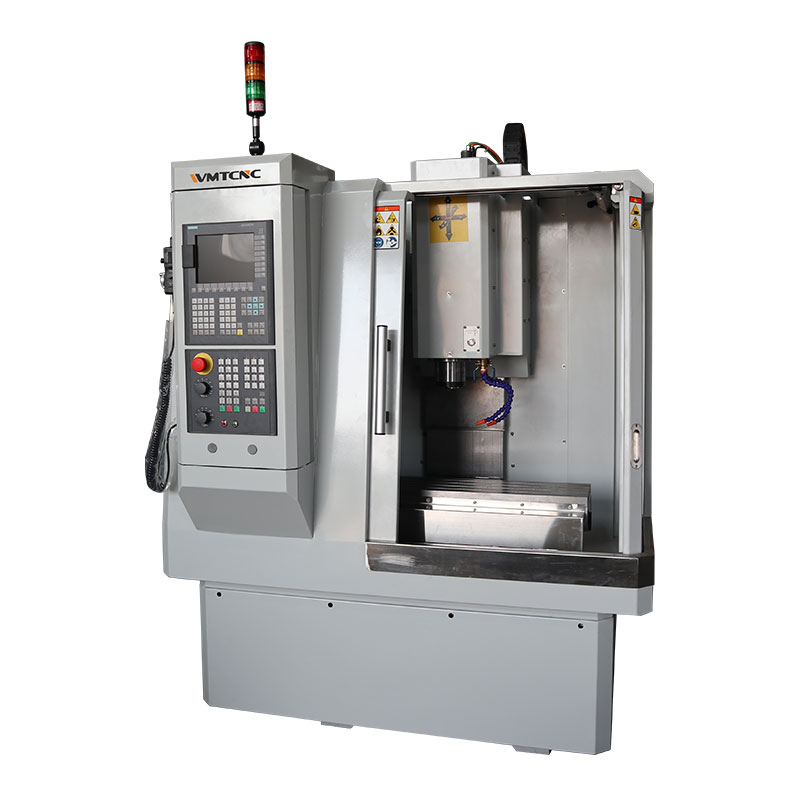

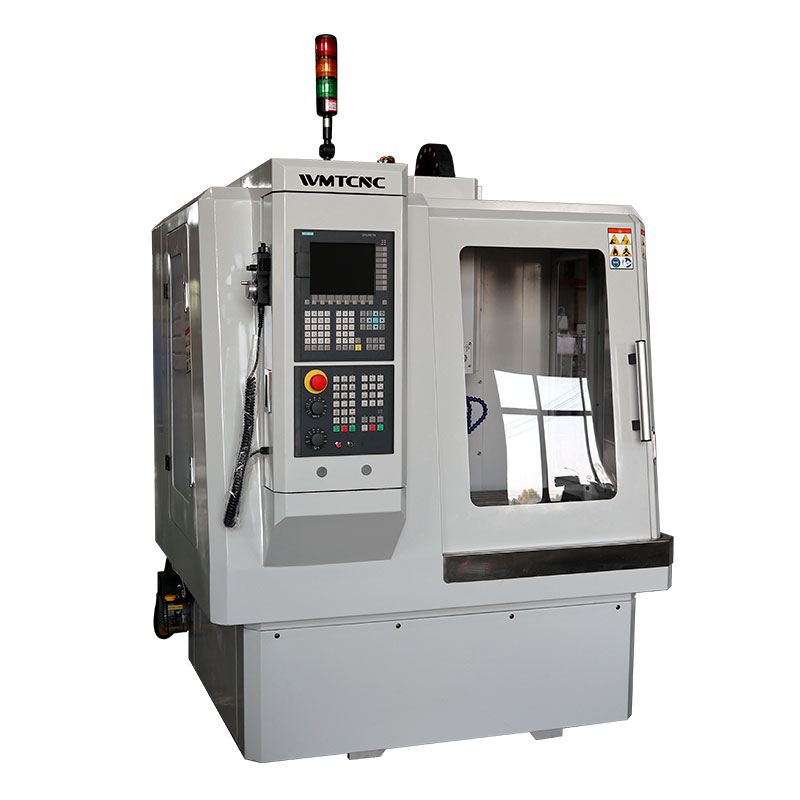

CNC metal milling machine XH7122 is a versatile and powerful solution for various machining needs. Its high precision, storage capacity, and robust construction make it an indispensable tool in industries such as instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics, and astronautics. Whether you require surface millingor hole drilling, this machine offers excellent performance and reliability, making it a valuable asset in the manufacturing sector.
specification
Specification XH7122 Worktable Worktable size（LxW） 700x210mm T-slot (NxWxD) 5-18×100mm Travel X/Y/Z axis travel 360/260/400mm Machining range Distance from spindle center to column 270mm Distance from spindle nose to worktable surface 75-520mm Spindle Spindle taper BT30 Spindle power 2.2KW-3.7KW Max.spindle speed 8000r/min Feed Max.feed speed 18m/min Rapid feed speed（X/Y/Z) 10/10/10/min Power AC servo motor torque(X/Y/Z) 6/6/6N.m X/Y/Z feed motor power 0.75/0.75/1kw Rated power 4.5kw Ball screw(diameter+lead) X/Y/Z axis ball screw 2505 Tool magazine Tool magazine capacity 8T/12T(optional) Max.length of tool 175mm Tool change time(T-T) 7s Positioning accuracy(National standard) Positioning accuracy (X/Y/Z) ±0.02mm Re-positioning accuracy(X/Y/Z) ±0.01mm Machine dimension LxWxH 1470x1550x2080mm Machine weight Max.loading of worktable 200kg Machine weight 1300kg
Details
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
