The operating pressure of compressed air needed for laser cutting and automobile maintenance industry is 1.0-1.5Mpa, however, at present, for these industries, they generally use the separately arranged air compressor station system that consists of screw machine, air storage tank, dryer and precise filter. The traditional air compressor stations occupy a large area, and the mobility is weak, which increase the production cost for enterprises. Therefore, an integral machine of permanent magnet dryer and screw has been customized by Jaguar permanent magnet screw machine for these customers, which can directly output the air required for those customers.

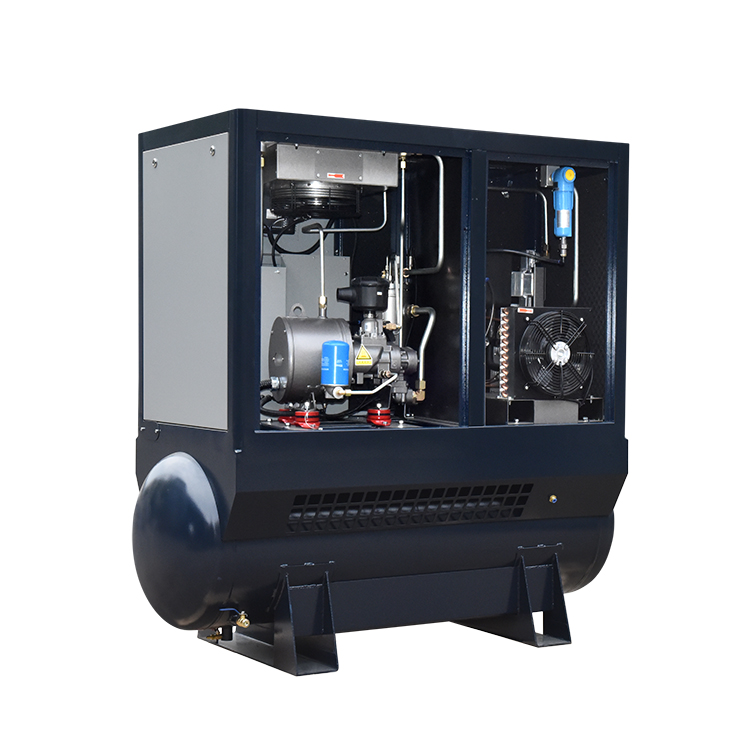

■ product name: Jaguar integrated screw air compressor

■Application fields: Laser cutting, automobile maintenance industry, machinery

■ Product features:

▲Energy-saving and power-saving: The permanent frequency variable frequency can save energy as high as 50%

▲Integrated air compression station: Compact structure, high reliability, longer service life

▲Pure venting: The efficient and precise filter ensures the purity of the final air.

The unique design for Jaguar integrated screw air compressor:

1, The integrated control system adopts display-control all-in-one machine. It can turn on and turn off the machine with one key, which makes the operation easier.



2. The cooling fan adopts the variable frequency control, which can reduce noise and save 3% energy consumption.



3. It adopts the original permanent magnet liquid cooling integrated drive technology invented by Jaguar. Compared with conventional motor drive mode, the efficiency can improve 8%, and the protection grade can be as high as IP65.



4. Permanent magnet IPM motor adopts 8 levels high revolving speed motor. The energy-saving efficiency can be increased by 10% than the asynchronous motor.

Low-RPM permanent magnet variable frequency screw air-end:

1. The third generation of self-patented asymmetric screw rotor type line and the selection of heavy load-bearing.



2. Low revolving speed and low abrasion can significantly improve reliability.

3. Professional, efficient screw handpiece creates the super massive air displacement and super low cost to use.

4. Super low revolving speed can be as low as 1500RPM.

Jaguar patent application for liquid-cooled permanent magnet motor:

The exclusive technology development of Jaguar adopts the liquid-cooled permanent magnet motor shell, which assures the stable temperature of the permanent magnet motor and ensures that the motor will never demagnetization.

High-performance temperature-sensing valve:

Aiming at the laser cutting and automobile maintenance industry, it adopts the high-performance temperature-sensing valve to avoid the emulsification of engine oil effectively.
The integrated evaporator assemblyIt adopts aluminum heat exchanger, which is rust-proof and leakage-free. As a result, the service life can be extended significantly. The heat-exchange effect is of high efficiency, and the pressure dew point can reach 2-10 degrees.
