Δ TECHNICAL DATA

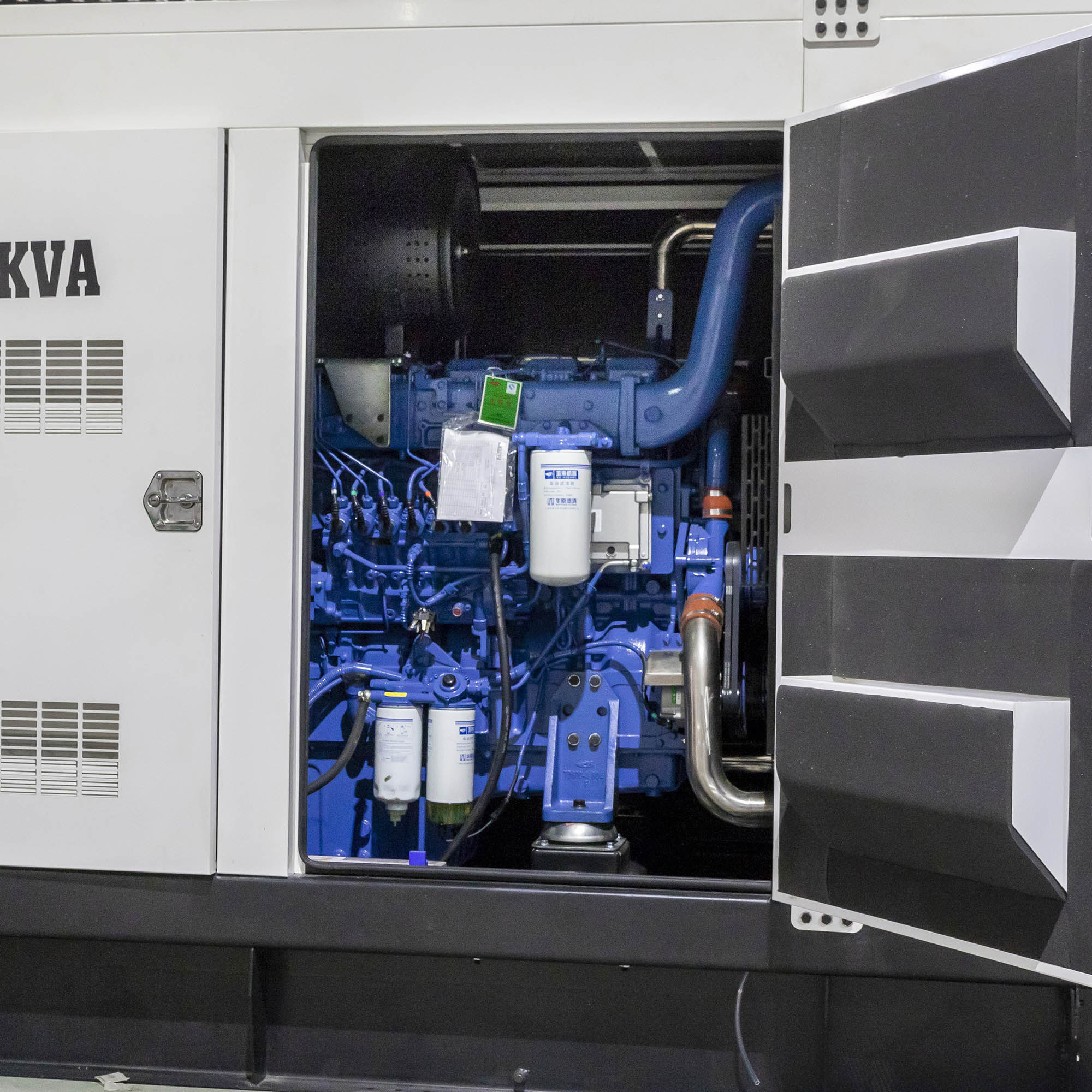

250KVA 200KW Yuchai Silent diesel generator setSuper Silent Diesel Generator Set

Genset

GFC-250

Prime Power(KW)

200

Engine

YC6MK350L-D20

Prime Power(KVA)

250

Alternator

EL 274K

standby Power(KW)

220

Frequency(Hz)

50

standby Power(KVA)

275.0

Phase/Voltage

3 phase/400v/230v

N.W(kg)

2750

Rated Current

360

Size(L*W*H)mm

3100*1150*1750

Qty/20FCL

0

Qty/40HQ

0

Engine

Brand/Original

Yuchai

Type

4-Stroke,V In-line,Water Cool, Electric start

Item No.

YC6MK350L-D20

Cylinder No.

6

Displacement(L)

9.84

Bore and Stoke(mm)

120*145

Prime power(KW)

235

Volume of Oil (L)

28

Prime power(KVA)

293.8

Combustion

Direct Injection

Fuel Consumption(g/kw/h)

195

Aspiration Type

Turbocharged Inter-cooled

Governor

Electrical Governor

Radiator Water Tank

50ºC

Alternator

Brand/Original

Stamford

Efficient

90%

Alternator ModelS

SLG274K

A.V.R

SX440

Type

Brushless sel-excited

protection

IP23

Prime Power(KW)

200

insulation

Class H

Winding Lead

12

Factor

0.8

Controller

Brand/Original

Smartgen

Item No.

HGM6120/HGM6110

Diesel Generator Set configuration Table

configuration One

Configuration Two

Configuration Three

Configuration Four

Brush Generator

Brush Generator

Brushless Generator

Brushless Generator

Electronic Instrument

Digital Controller

Electronic instrument

Digital Controller

Δ GFY SERIES DIESEL GENERATOR SET POWER RANGE (POWERED BY YUCHAI)
50Hz
3 phase, 4 wires, 0.8PF, 1500rpm, 415-230V/240-115VGen-set PerformanceEngine PerformanceDia.(L*W*H)ModelPowerModelPowerFuel ConsumptionOpen typekWkVAkW  (Rated/Max.)g/kW.h(mm)GFC30 2430YC2115ZD33/36.32151650x680x1300GFC504050YC4D60-D2140/442051800x600x1300GFC625062YC4D85Z-D2055/60.52001850x650x1350GFC756075YC4D90Z-D2060/662051850x650x1350GFC887088YC4A100Z-D2070/772001850x650x1350GFC10080100YC6B135Z-D2090/992022300x700x1450GFC125100125YC6B155L-D21103/1132002400x750x1450GFC150120150YC6B180L-D20120/1322002400x850x1500GFC162130162YC6A200L-D20132/1451922400x900x1500GFC187150187YC6A230L-D20155/170.51922400x900x1500GFC200160200YC6G245L-D20165/181.51952600x900x1500GFC225180225YC6M285L-D20192/2111972800x1100x1700GFC287230287YC6M350L-D20235/2591972900x1000x1700GFC337270337YC6MK420L-D20281/3091943000x1100x1800GFC375300375YC6MJ480L-D20321/3531943000x1100x1800GFC437350437YC6T550L-D21368/4051953200x1240x1960GFC500400500YC6T600L-D22401/4411953475x1240x1960GFC550440550YC6T660L-D20441/4851953500x1250x2800GFC562450562YC6T700L-D20468/5151953500x1250x2800GFC625500625YC6TD780L-D20520/5721953500x1300x2100GFC687550687YC6TD840L-D20560/6161953500x1300x2100GFC750600750YC6C1020L-D20680/7481955200x1500x2200GFC875700875YC6C1070L-D20715/7871955200x1500x2200GFC10008001000YC6C1220L-D20815/8971955200x1500x2200GFC11259001125YC6C1320L-D20880/9681955200x1500x2200

Product Description

Δ GENSET FEATURES

1. Genuine YUCHAI  industrial diesel engine

2. Radiator 40°C max, fans are driven by belt, with safety guard

3. Genuine stamford. Leroy somer, marathonm, engga alternator

4. Choice of manual/auto and AMF control panels and protection systems

5. Digital auto-start panel

6. Anti Vibration Suspension Absorber

7. Dry type air filter, fuel filter, oil filter

8. 10-hour operation base tank

9. Mould case circuit breaker

10. 24V DC start motor and storage battery

11. 24V charge alternator

12. 24V batteries, rack and cable

13. Rippl;e flex echaust pipe, exhaust siphon, flange, and muffler

14. Comply with ISO and CE standards

15. All generator sets are gone through rigorous testing before beging released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

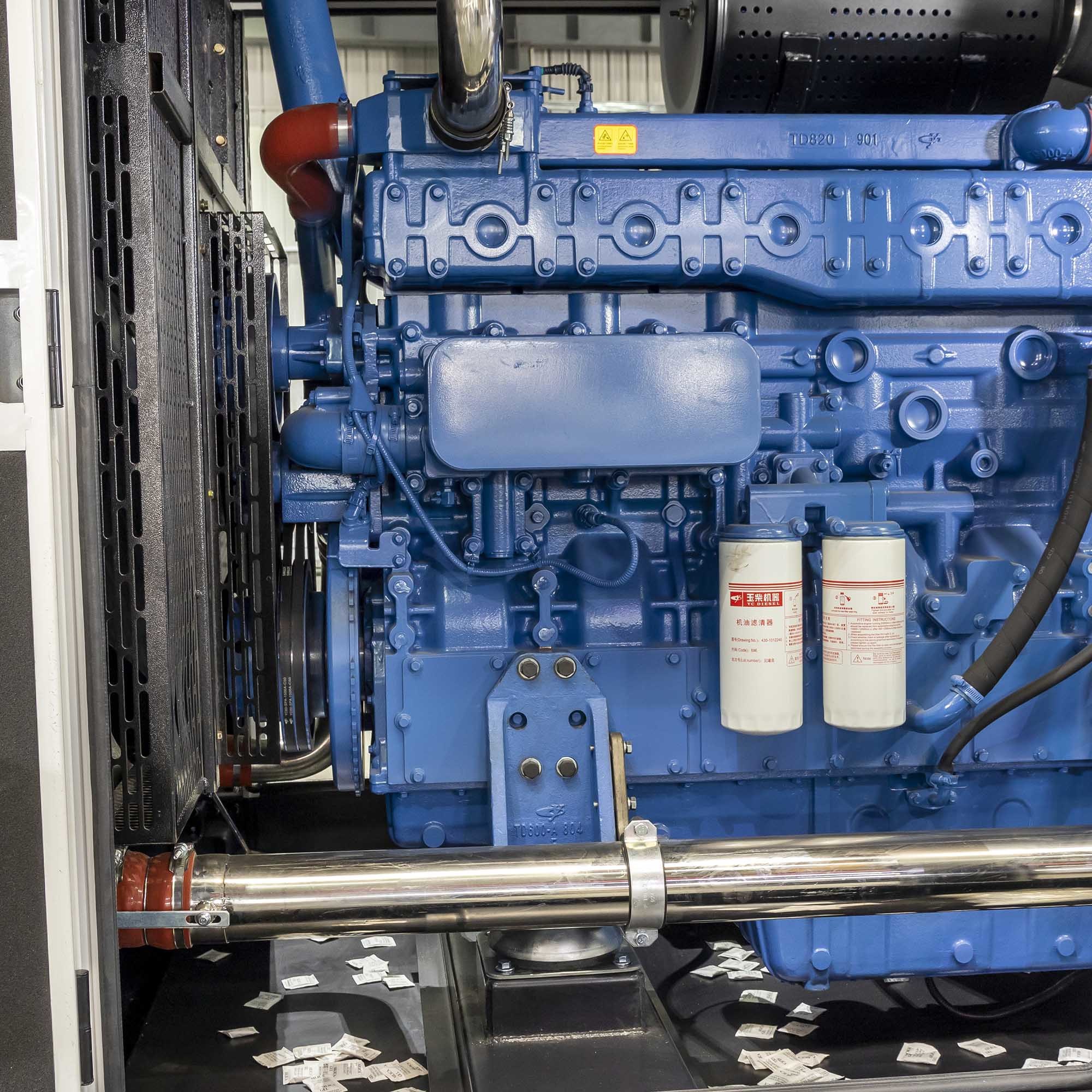

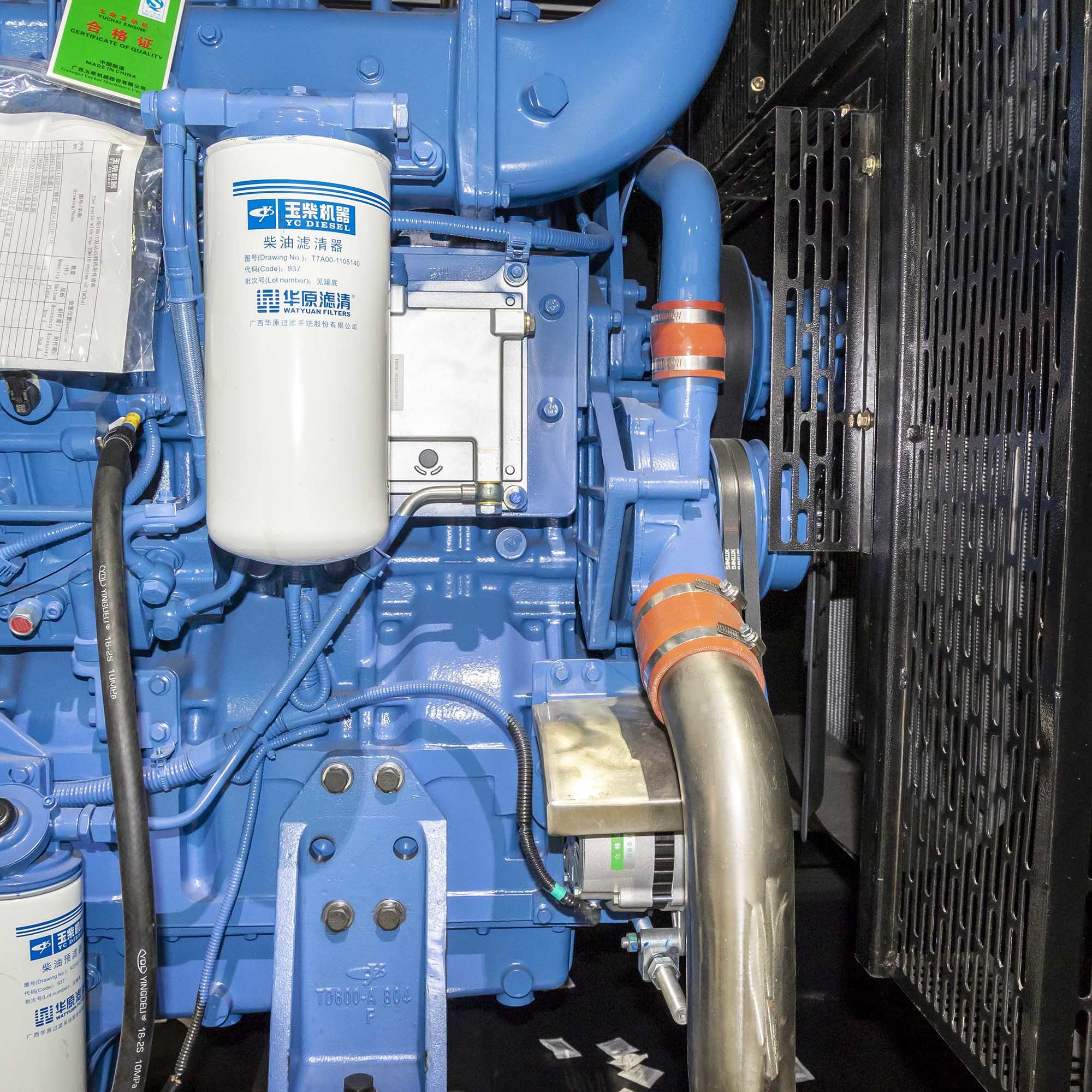

Δ ENGINE FEATURES

1. Genuine YUCHAI  industrial diesel engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily


Δ ALTERNATOR FEATURES

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, Yabo

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

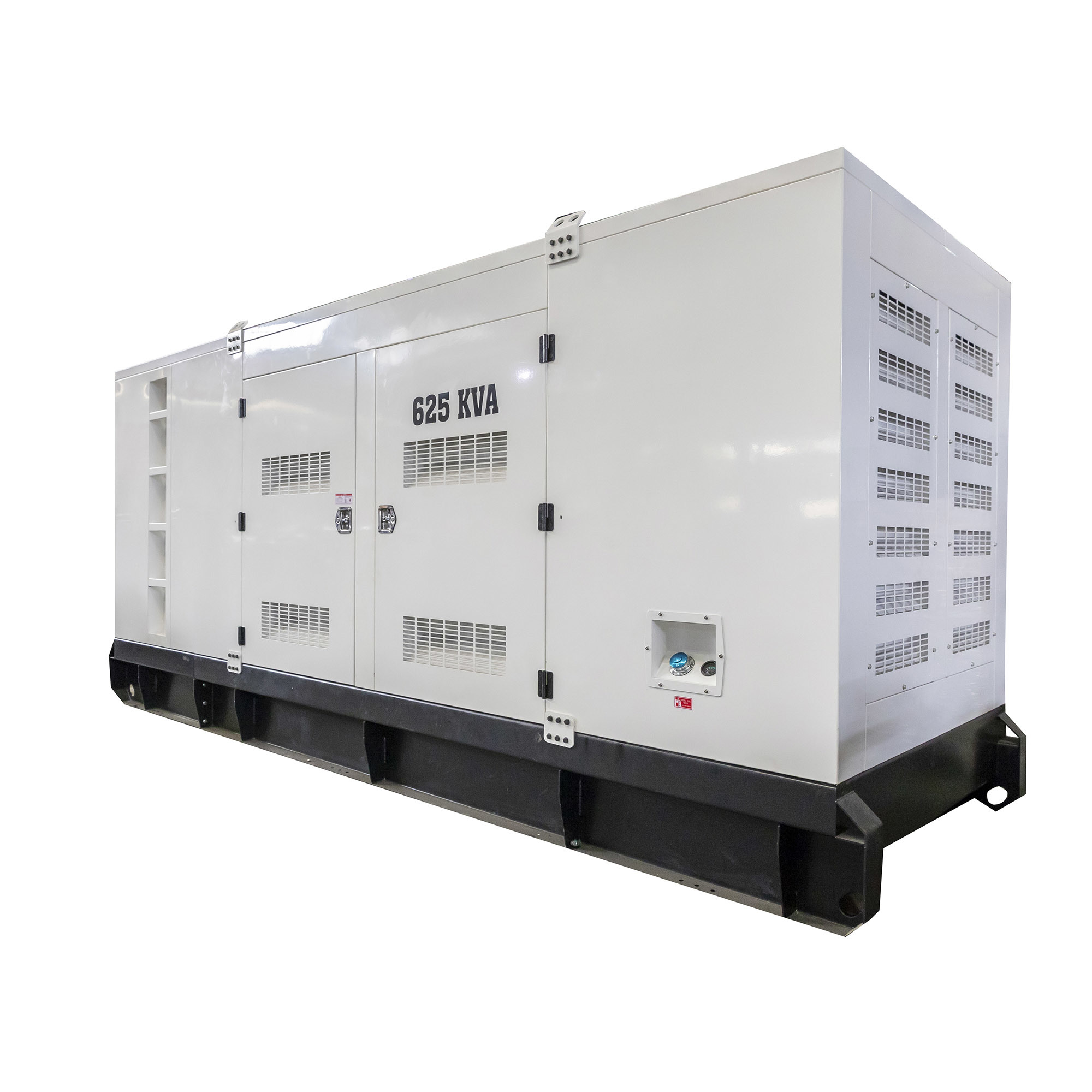

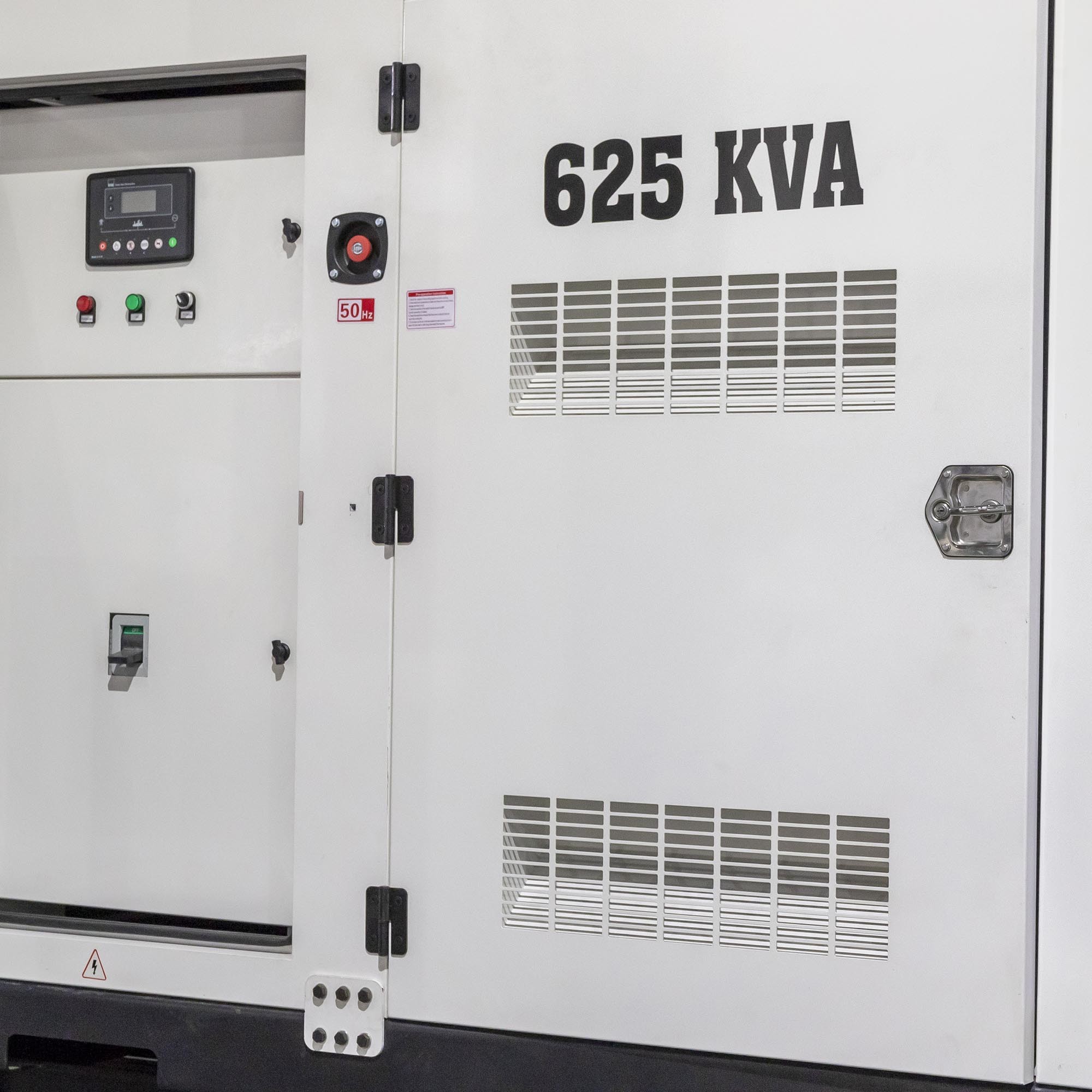

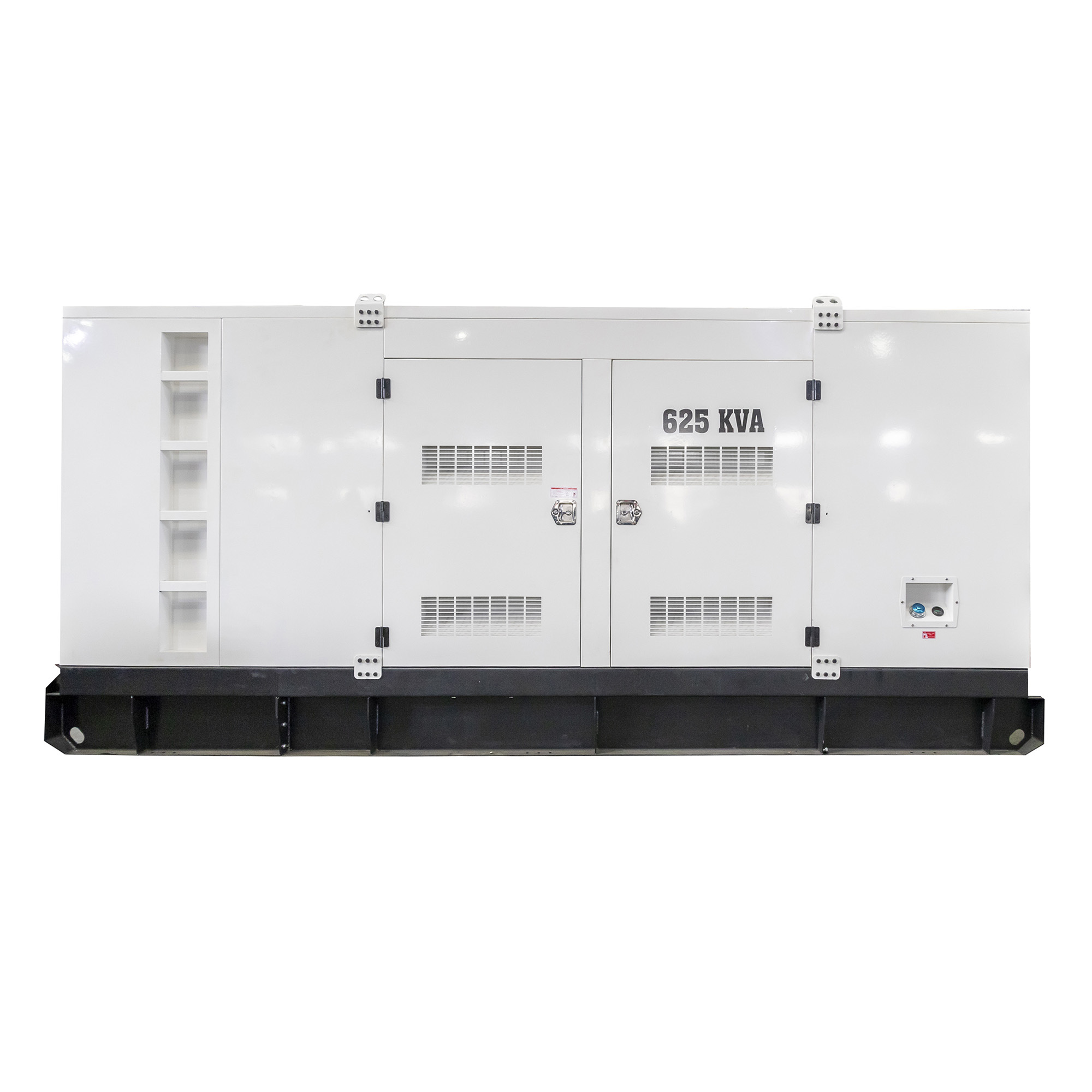

Quality control oF XINYABO Power Genset

1.The genset canopy can be designed by customers demand free of charge.

2.Noise level can be designed by customer demand, standard noise level is 70-73DB at 7m. Super silent is60-65DB at 7m.

3. Canopy color can be painted free of charge by customer demand. It is high quality paint.

4.All connection components and door lock are stainless steel.

5. We added oil filling inlet with lock

6. The oil box is separate made and then welded to the base frame, not by simple welding on the base frame. It is to make sure there is no oil leakage

7. The base frame is with forklift mouth which is easy to load and discharge

8. For Logo, we can paint customer's logo when the order is more than 5sets.

9. For technical specification or question, we can support you by our strong technical team

Δ FAQ (FREQUENCY ASKED QUESTION)
Question: What's your warranty period?
Answer: Our payment terms is 1 year or 1000 running hours whichever comes first.
But based on some special project, we can extended our warranty period.

Question: Does your generators has global warranty?
Answer: Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service.
And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.

Question: Do you accept OEM/ODM service?
Answer: Yes, we can accept OEM & ODM service.

Question: What's your payment terms?
Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment.
Or 100% irrevocable confirmed L/C at sight.Question: What's your delivery time?
Answer: Our normal delivery time is 15 - 25 working days.
But if your order is some special engine and alternator, then the delivery time is longer.

Question: What's the MOQ?
Answer: 1 Set
