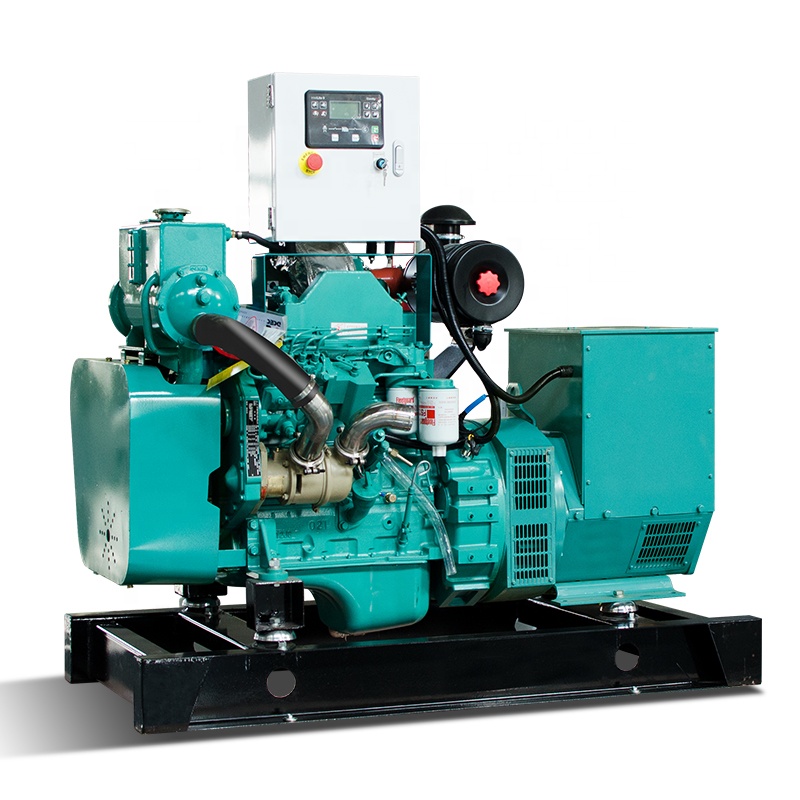

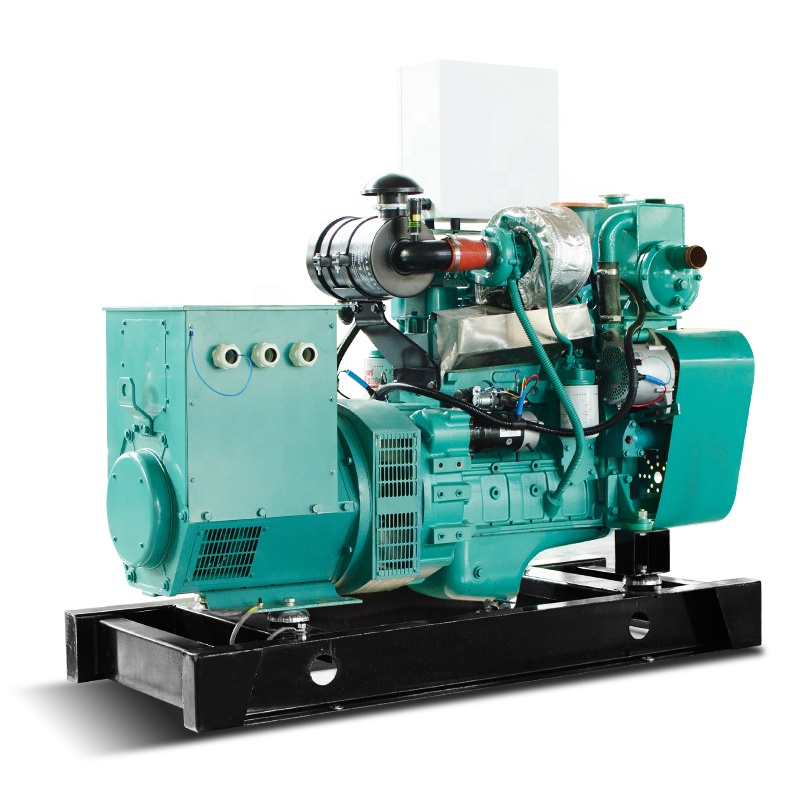

Powered by Cummins diesel engine 50kva marine generator

Engine Model

4BTA3.9-GM47

Number of Cylinders

4cylinders, Vertical in line

Cycle

4 stroke

Aspiration

Turbocharged and aftercooled

Bore×Stroke

102mm x120mm

Displacement

3.9L

Compression ratio

17.3:1

Prime Power/Speed

47KW / 1500rpm

Standby Power/Speed

52KW / 1500rpm

Speed Governor

electrical

Cooling System

Heat exchanger

Steady speed droop

≤1%

Total lubrication system capacity

10.9L

Coolant capacity (engine only)

7.9L

Fuel Consumption at 100% Load

213g/kw.h

Starter Motor

DC24V,

Alternator

DC24V

Alternator Spec

Coupled with Stamford alternator (enjoy 3 years' worldwide warranty) 50kva marine generator

Alternator brand

Stamford

Prime power

50KVA

Frequency/speed

50Hz/1500rpm

Exciter type

Single bearing, Brushless, Self-excited

Power factor

0.8

Voltage adjust range

≥5%

Voltage regulation NL-FL

≤±1%

Insulation Grade

H

Protection Grade

IP23

Control PanelMany different control models for optional. (marine generator 50kva)Model

ComAp IL9, MRS10,  AMF20,AMF25

SmartGen HGM6110N, HGM6120N,HGM9510

DeepSea DSE6020, DSE7320, DSE8610 etc

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

 Standard Accessories

40kw/50kva marine generator

Standard Accessories

Open type

Silent type

Sound-proof & Weather-proof Canopy

N/A

√

Daily base fuel tank. 8 hours capacity

N/A

√

Single-bearing generator again drops

√

√

Intelligent LED display control panel

√

√

Speed governor

√

√

Electric start and 24v charger

√

√

Standard air filter, oil filter, fuel filter

√

√

Cooling water tank/Heater exchanger

√

√

High-efficient silencer.

√

√

Exhaust elbow

√

√

Storage battery

√

√

Steel base-frame against vibration

√

√

Soft pipe for fuel and handle for lube going-out

√

√

Operation& Maintenance manual.

√

√

Technical Data:

Genset TypeMarine TypePrime Output10-400KW/12-500KVAVoltage110/220V, 220/380V,230/400V, 440V, 480V, etc.Electric System24V/12VFrequency50HZ/60HZRated Speed1500/1800rpmTypesingle phase or three phase,4wire connectionCooling SystemWater CooledFuel Tankat least 8 hours running time for full loadInsulation ClassClass HProtection ClassIP21-23Wave DistortFrequency at Stable StateFrequency Deviation at Instantaneous State≤+10% Frequency Return Time≤3sVoltage deviation at stable state≤±1% Voltage deviation at instantaneous state≤+20% Voltage return time ≤4s  Voltage modulation ≤0.3%OtherOpen/Silent/weather proof/trailer type for optional with silencer,manual and tools


Δ STANDARD SUPPLY SCOPEExhaust silencerFlexible pipesFlangeBase frameMain circuit breakerStarting batteryBattery wiresBattery chargerFloat battery chargerAVRCooling radiatorWires diagramManual booksAuto control panelSilent canopyΔ OPTIONAL PARTSEngine & RadiatorAlternator partElectric partFuel tank partOthersWater preheaterPMGATSExternal daily fuel tankWeatherproof canopyLub oil pre-heaterAnti-condensation heaterSynchronization panelAutomatic fuel pumpMobile trailerSpare partsParallel droopABB breakerOil drain pump Containerized

Δ FAQ (FREQUENCY ASKED QUESTION)
Question: What's your warranty period?
Answer: Our payment terms is 1 year or 1000 running hours whichever comes first.
But based on some special project, we can extended our warranty period.

Question: Does your generators has global warranty?
Answer: Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service.
And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.

Question: Do you accept OEM/ODM service?
Answer: Yes, we can accept OEM & ODM service.

Question: What's your payment terms?
Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment.
Or 100% irrevocable confirmed L/C at sight.Question: What's your delivery time?
Answer: Our normal delivery time is 15 - 25 working days.
But if your order is some special engine and alternator, then the delivery time is longer.

Question: What's the MOQ?
Answer: 1 Set
