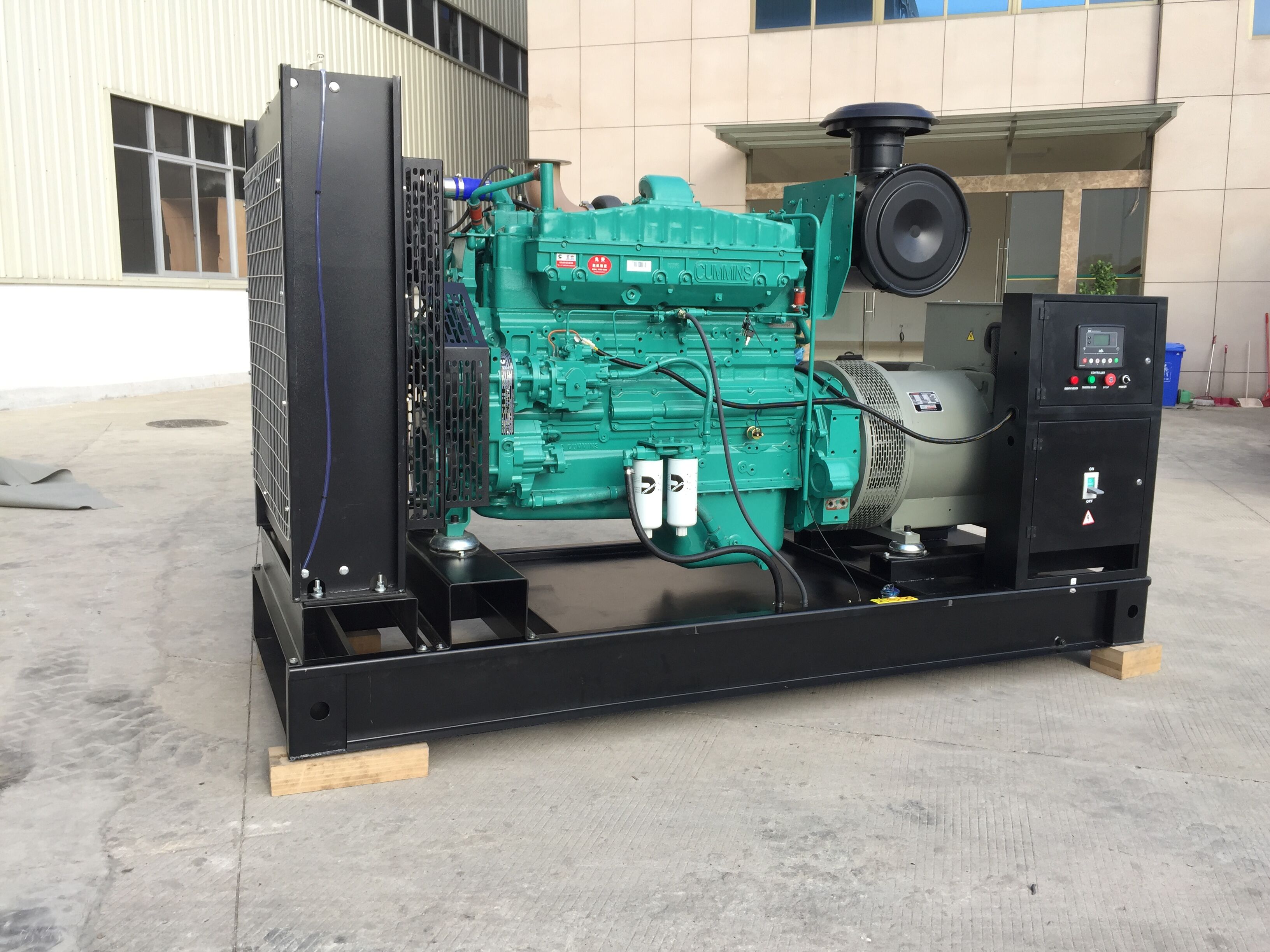

25kva -1500kva Electric Silent Diesel Generator Powered by Cummins Engine

1.Power by Cummins Engine
2.With Stamford / Leroy Somer / Marathon Alternator
3. With CHINT / ABB MCCB & Electronic Components
4. Electric Start with Battery
5. Base Integrated Fuel Tank
6. ATS, Deepsea / ComAp / Smartgen Controller
7. Comply with ISO9001/CE

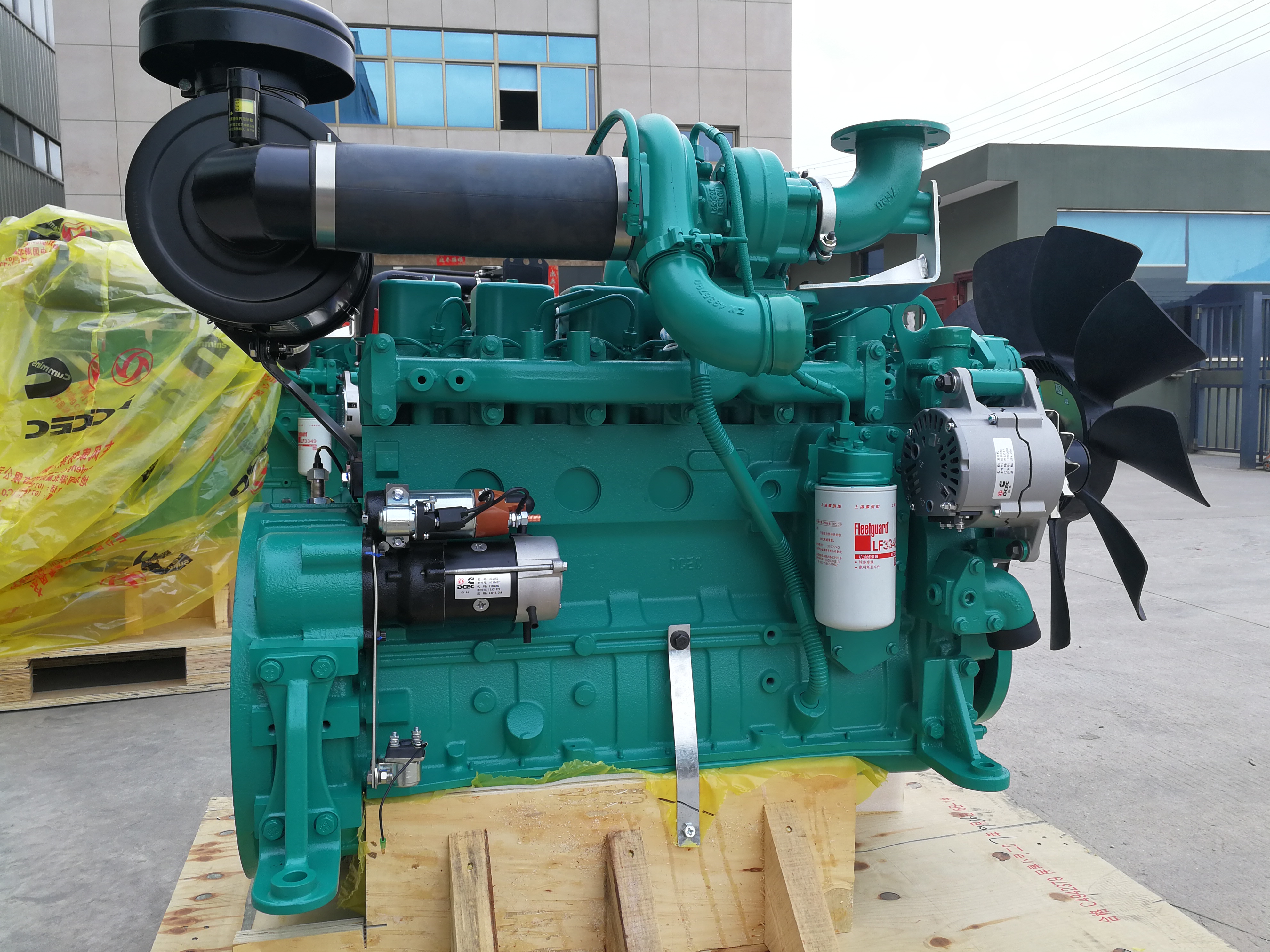

8. After-sale ServicesEngine
*Heavy duty diesel engine
*Four stroke, water cooled
*12V and 24V stater and charge alternator
*Cooling radiator and fan
*Maintenance free battery including ract and cable
*Flexible fuel connection hoses and manual oil sump drain valve
*Exhaust silencer
Alternator
*Brushless, single bearing, flexible disc
*Insulation class: H
*Protection class: IP23
*Self-exciting and Self-regulation
Canopy
*All canopy designed with modular principles
*All metal canopy parts painted by electrostatic polyester power paint
*Soundproof design ensure that the noise level be controlled in small scope
*Convenient to lift and move
*Easy to maintenance and operate
Base Frame
*Base frame including position for forklift and crane
*Integral fuel tank
*Daily fuel tank continuously supply for 8-24 hours
*Fuel tank easy to maintain and clean
*Anti-vibration pads are flexed between engine and alternator.
Control System
*Control, monitor and protect the Generator Set including:
*High water temperature
*Low oil pressure
*Over and under speed
*Over current
*Under/Over generator voltage
*Start and stop failure
*Low and high battery voltage
*Charge fail
*Emergency stop



set
ModelPrime
Power
(kva/kw)Standby
Power
(kva/kw)Engine ModelCylinderBore*Strok
(mm)Disp
(L)Lube
 (L)Open Type Size
L*W*H(mm)Weight
(kgs)YB-C2825/2027.5/224B3.9-G1/G24102*1203.9111800*800*1150750YB-C4440/3244/35.24BT3.9-G1/G24102*1203.9111800*800*1150780YB-C5550/4055/444BTA3.9-G24102*1203.9111800*800*1150820YB-C6660/4866/52.84BTA3.9-G24102*1203.9111800*800*1150850YB-C8375/6082.5/664BTA3.9-G114102*1203.9111900*800*12001100YB-C110100/80110/886BT5.9-G1/G26102*1205.917.32170*800*12001150YB-C138125/100137.5/1106BTA5.9-G26102*1205.917.32300*800*12001200YB-C150135/108150/1206BTAA5.9-G26102*1205.917.32300*800*12001300YB-C165150/120165/1326BTAA5.9-G126102*1205.917.32300*800*12001400YB-C200180/144200/1606CTA8.3-G26114*1358.327.62400*850*14001600YB-C220200/160220/1766CTAA8.3-G26114*1358.327.62600*950*15001700YB-C275250/200275/220NT855-GA6140*1521436.72900*1000*15002500YB-C300275/220300/240MTA11-G2A6125*14711392750*1100*16502350YB-C330300/240330/264NTA855-G1A6140*1521436.72900*1100*16502700YB-C344312.5/250344/275MTAA11-G36125*14711392750*1100*16502500YB-C385350/280385/308NTA855-G2A6140*1521436.72900*1100*16502800YB-C413375/300412.5/330NTA855-G46140*1521436.72900*1100*16502900YB-C440400/320440/352NTAA855-G7A6140*1521436.72900*1100*16503250YB-C500450/360500/400KTA19-G36159*15919503100*1200*17003800YB-C550500/400550/440KTA19-G3A6159*15919503200*1200*17004000YB-C620562.5/450620/496KTAA19-G56159*15919503300*1300*18004300YB-C660600/480660/528KTA19-G86159*15919503500*1400*20004500YB-C688625/500688/550KTAA19-G6A6159*15919503500*1400*20004700YB-C825750/600825/660KTA38-G212159*159381354400*1800*24006500YB-C900825/660900/720KTA38-G2B12159*159381354500*1800*24006700YB-C1000900/7201000/800KTA38-G2A12159*159381354600*1800*24007000YB-C11001000/8001100/880KTA38-G512159*159381354800*2000*25007500YB-C1250Y1125/9001250/1000KTA38-G912159*159381354850*2200*25008000YB-C13751250/10001375/1100KTA50-G316159*159501774850*2250*25009200YB-C16501500/12001650/1320KTA50-GS816159*159502045000*2300*25009800



Optional:No.Item nameBrand Note1Silent CanopyHeyuanOption 2ATS systemABB/SOCOMEC/AISIKAIOption 3Parallel system Schneider/Delix/ABBOption 4TrailerHeyuanOption 5Water jacket preheaterHeyuanOption 6Fuel tankHeyuanOption 7CableStandardOption 8Daily consumable spare partsCumminsOption 8.1Fuel fliterCumminsOption 8.2Air fliter CumminsOption 8.3Oil fliterCumminsOption

Δ ALTERNATOR FEATURES

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, Yabo

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Δ DIGITAL CONTROL PANEL

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown

Δ STANDARD SUPPLY SCOPEExhaust silencerFlexible pipesFlangeBase frameMain circuit breakerStarting batteryBattery wiresBattery chargerFloat battery chargerAVRCooling radiatorWires diagramManual booksAuto control panelSilent canopyΔ OPTIONAL PARTSEngine & RadiatorAlternator partElectric partFuel tank partOthersWater preheaterPMGATSExternal daily fuel tankWeatherproof canopyLub oil pre-heaterAnti-condensation heaterSynchronization panelAutomatic fuel pumpMobile trailerSpare partsParallel droopABB breakerOil drain pump Containerized

Δ FAQ (FREQUENCY ASKED QUESTION)
Question: What's your warranty period?
Answer: Our payment terms is 1 year or 1000 running hours whichever comes first.
But based on some special project, we can extended our warranty period.

Question: Does your generators has global warranty?
Answer: Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service.
And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.

Question: Do you accept OEM/ODM service?
Answer: Yes, we can accept OEM & ODM service.

Question: What's your payment terms?
Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment.
Or 100% irrevocable confirmed L/C at sight.Question: What's your delivery time?
Answer: Our normal delivery time is 15 - 25 working days.
But if your order is some special engine and alternator, then the delivery time is longer.

Question: What's the MOQ?
Answer: 1 Set
