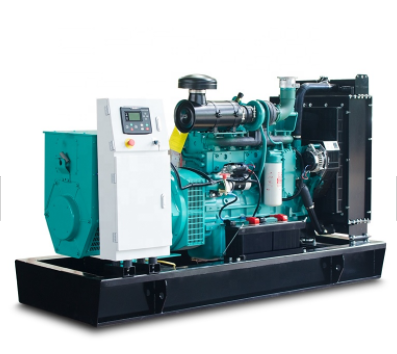

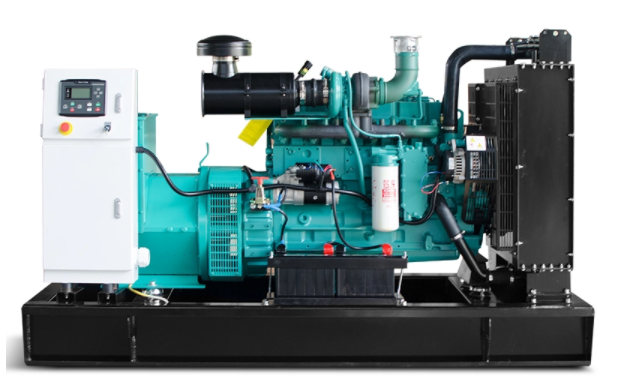

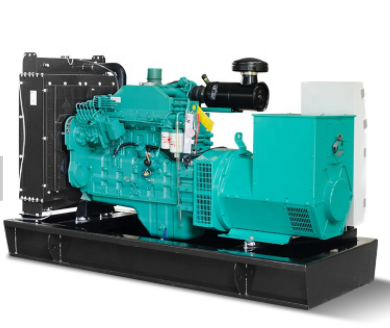

Industrial Price With Engine Cummins 6CTA8.3-G2 200KVA Diesel Generator
FUJIAN XINYABO POWER TECHNOLOGY CO., LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Industrial Price With Engine Cummins 6CTA8.3-G2 200KVA Diesel Generator
FUJIAN XINYABO POWER TECHNOLOGY CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier
Engine Model
6CTA8.3-G2
Number of Cylinders
6 cylinders in line
Cycle
4 stroke
Aspiration
Turbocharged and after water cooled
Bore×Stroke
114mm x135mm
Displacement
8.3L
Compression ratio
17.0:1
Prime Power/Speed
188kw / 1800rpm
Standby Power/Speed
207kw / 1800rpm
Speed Governor
Electrical
Cooling System
Forced water cooling cycle
Steady speed droop
≤1%
Total lubrication system capacity
23.8L
Coolant capacity (engine only)
12.3L
Fuel Consumption at 100% Load
210g/kwh
Starter Motor
DC24V,
Alternator
DC24V
Alternator SpecCoupled with Stamford alternator (3 years' warranty) 200kva diesel generator price
Alternator Model
UCI274G
Standby power
200KVA
Frequency/speed
60HZ/1800rpm
Exciter type
Single bearing, Brushless, Self-excited
Power factor
0.8
Voltage adjust range
≥5%
Voltage regulation NL-FL
≤±1%
Insulation Grade
H
Protection Grade
IP23
Phase
Three phases
Control PanelModel
DSE6020/HGM6110N...
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
From the supplier
Engine Model
6CTA8.3-G2
Number of Cylinders
6 cylinders in line
Cycle
4 stroke
Aspiration
Turbocharged and after water cooled
Bore×Stroke
114mm x135mm
Displacement
8.3L
Compression ratio
17.0:1
Prime Power/Speed
188kw / 1800rpm
Standby Power/Speed
207kw / 1800rpm
Speed Governor
Electrical
Cooling System
Forced water cooling cycle
Steady speed droop
≤1%
Total lubrication system capacity
23.8L
Coolant capacity (engine only)
12.3L
Fuel Consumption at 100% Load
210g/kwh
Starter Motor
DC24V,
Alternator
DC24V
Alternator SpecCoupled with Stamford alternator (3 years' warranty) 200kva diesel generator price
Alternator Model
UCI274G
Standby power
200KVA
Frequency/speed
60HZ/1800rpm
Exciter type
Single bearing, Brushless, Self-excited
Power factor
0.8
Voltage adjust range
≥5%
Voltage regulation NL-FL
≤±1%
Insulation Grade
H
Protection Grade
IP23
Phase
Three phases
Control PanelModel
DSE6020/HGM6110N...
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
