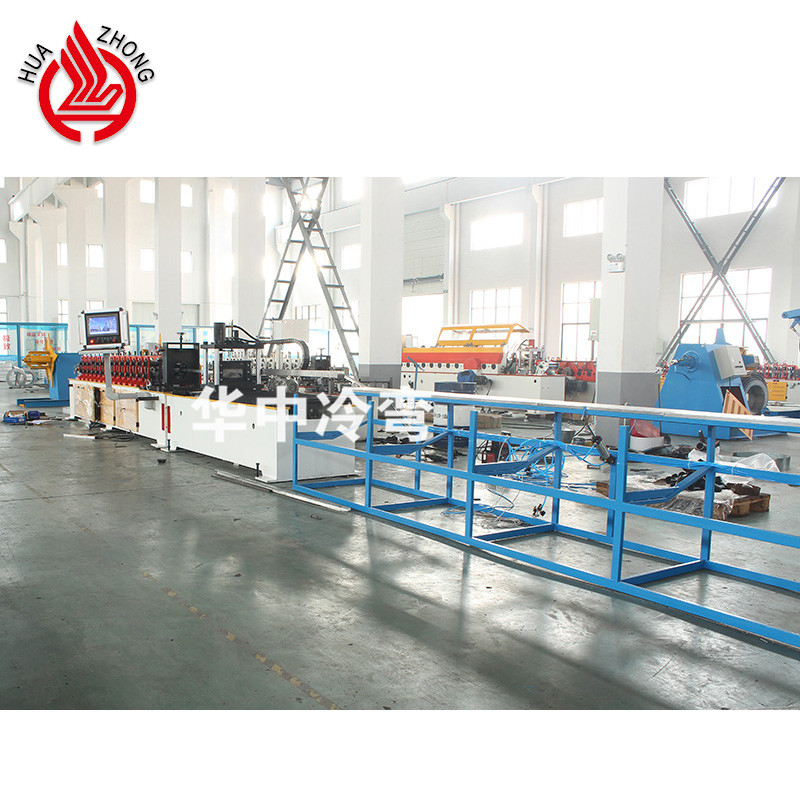

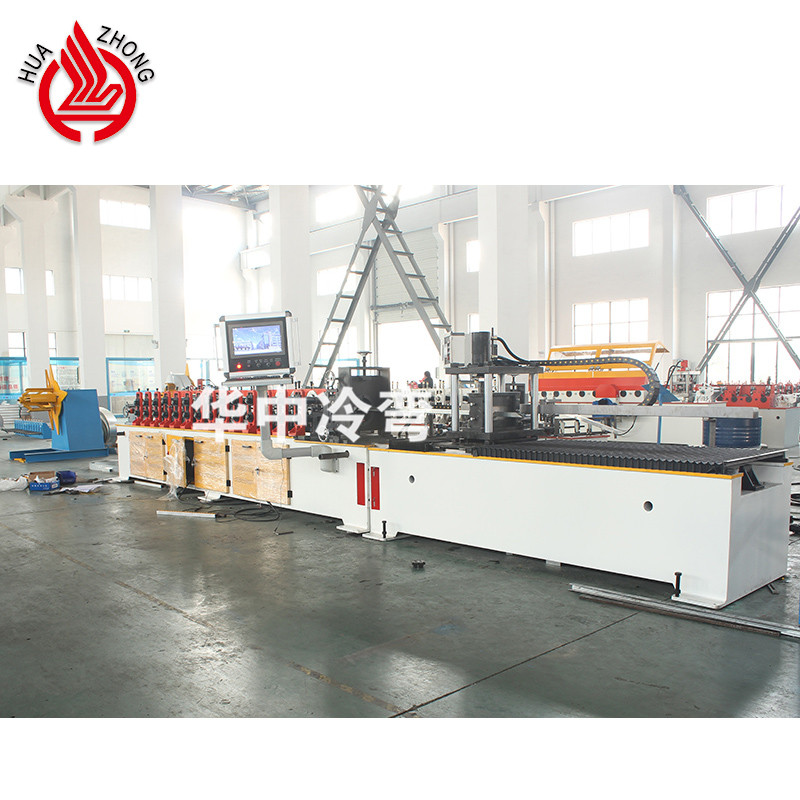

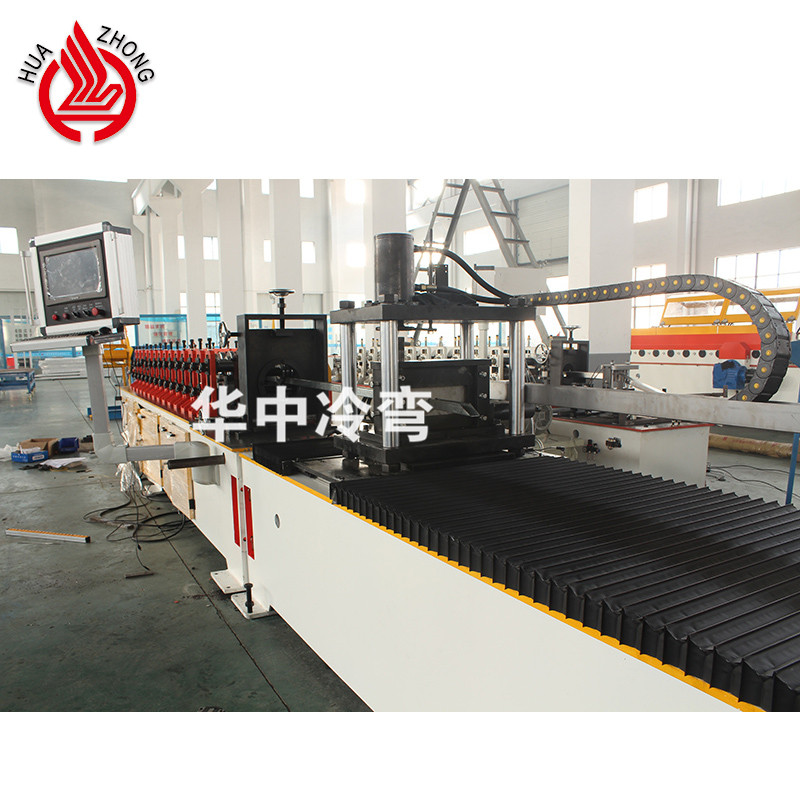

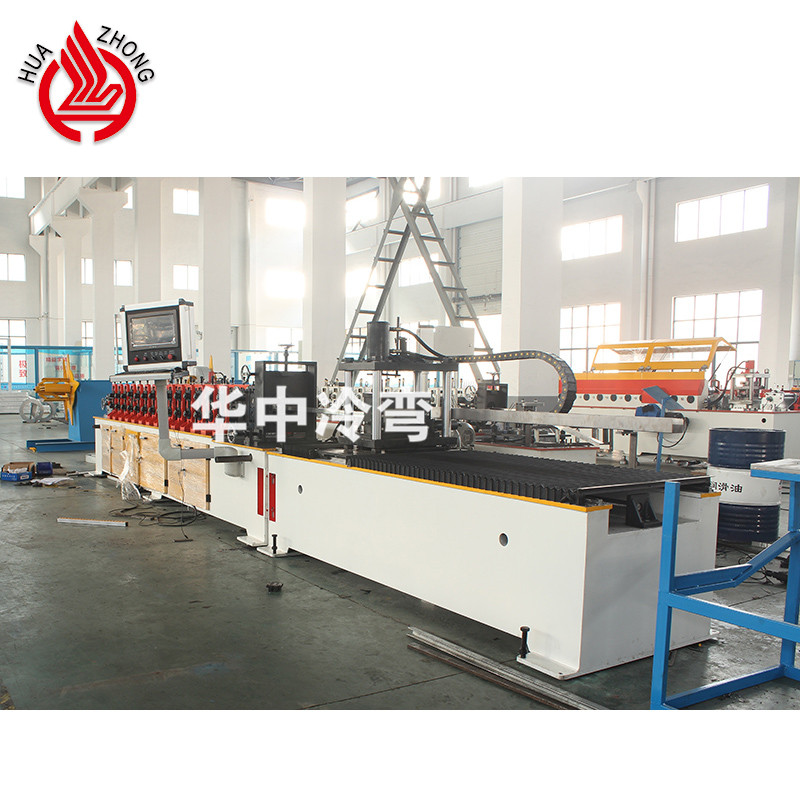

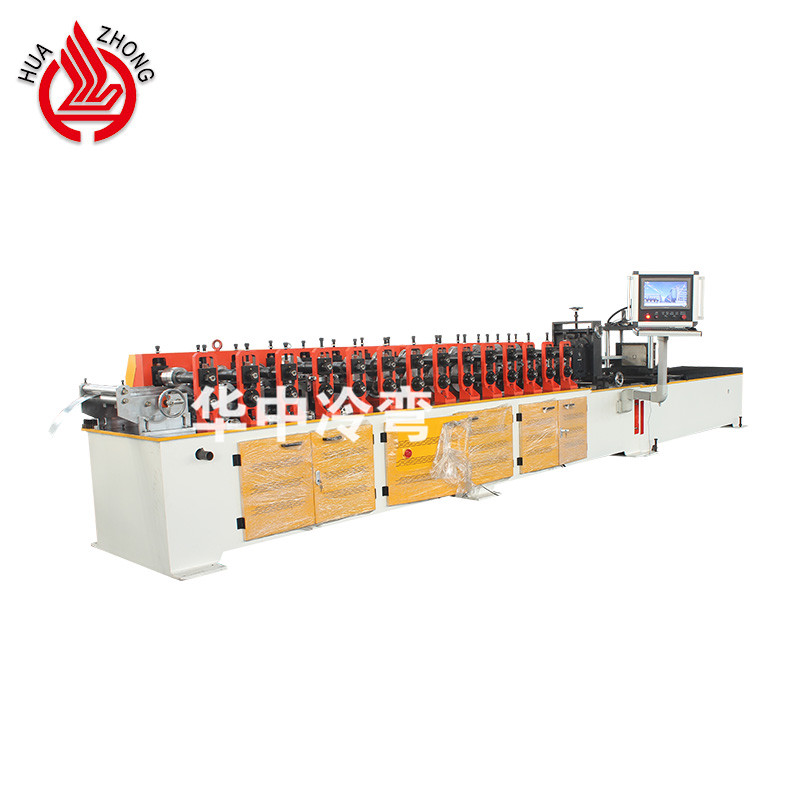

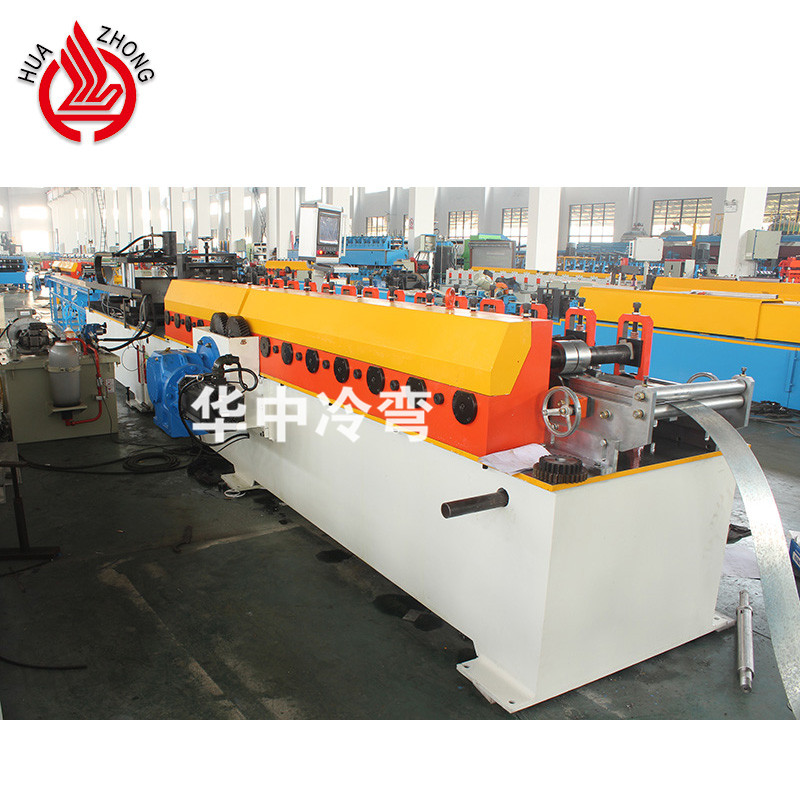

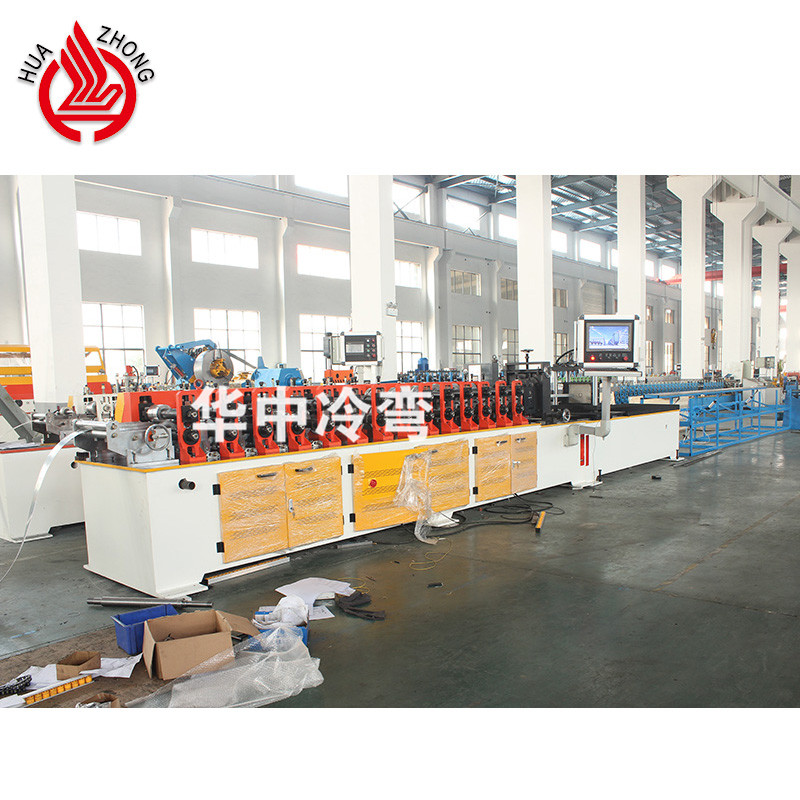

CU profile roll forming machine（can change）
- FOB goods (100)
- $5,500,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $192,500
- Section 301 tariff (25.0%)
- $1,375,000
- Customs fees (MPF/HMF)
- $7,510
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
CU profile roll forming machine（can change）
- FOB goods (100)
- $5,500,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $192,500
- Section 301 tariff (25.0%)
- $1,375,000
- Customs fees (MPF/HMF)
- $7,510
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: 5200mm*1200mm*1450mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Size: 5200mm*1200mm*1450mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Size | 5200mm*1200mm*1450mm |
|---|
From the supplier
Specification
One-piece frame
Uncoiler: 3 Tons
Forming stations: 14
External hydraulic station: 7.5KW, 220/380V, 50/60 HZ, 3 Phase, single station，with accumulator
Electric cabinet: Siemens Control System
Cantilever console: Siemens touch screen
Thickness: 0.8-1.6mm
Main motor power: 15KW, 220/380V, 50/60 HZ, 3 Phase，Yaskawa servo motor, Distribution transformer
Cutting type: hydraulic cutting with servo motor, Delta 3KW Servo Motor
Forming speed: 70m/min
Drive type: gear transmission system
Lubricating cooling system
6m pneumatic run out table
Technical process
Uncoiler---Feeding guide---Roll forming---Hydraulic cutting with servo motor---Run out
