About this product
- Size: φ20mm高25mm
- Color: black
- Conductor type: Solid
- Application: UndergroundOther
- Certification: CCCISO9001
- Brand: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Hong Kong China, Macao China and Taiwan China
About this product
- Size: φ20mm高25mm
- Color: black
- Conductor type: Solid
- Application: UndergroundOther
- Certification: CCCISO9001
- Brand: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Hong Kong China, Macao China and Taiwan China
Product details
| Size | φ20mm高25mm |
|---|---|
| Color | black |
| Conductor type | Solid |
| Application | UndergroundOther |
| Certification | CCCISO9001 |
| Brand | Other |
| Rangeof application | Cold-ResistantRefractoryOther |
| Material shape | RoundWire |
| Insulation material | XLPE |
| Conductor material | AluminumOther |
| Sheath material | Crosslinking |
From the supplier

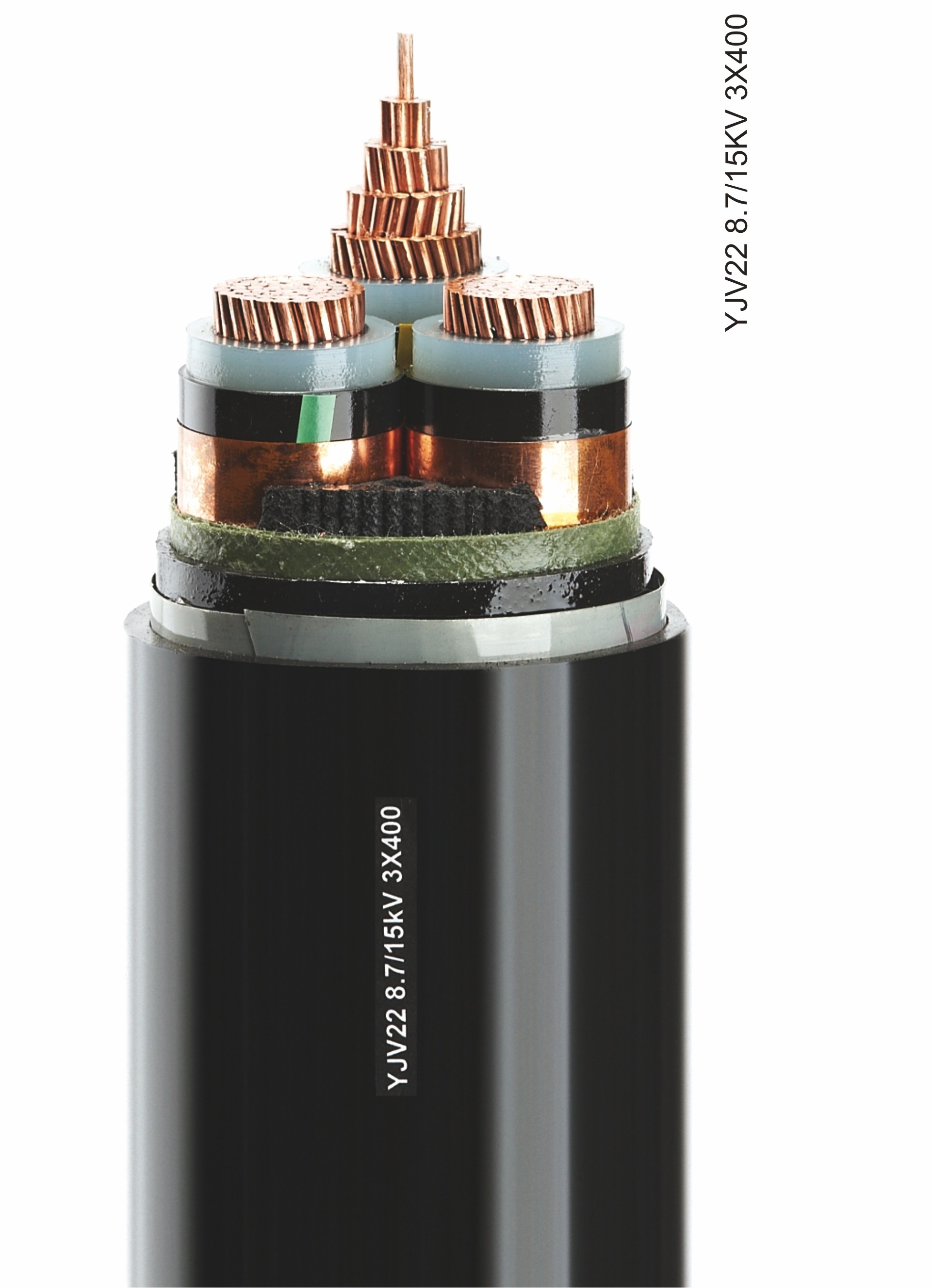

Common models: YJV22, YJV62, YJV32, YJV72 and their flame retardant and fire-resistant series;
Common voltages: 3.6/6kV, 6/6kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 18/20kV, 18/30kV, 26/35kV, 3.8/6.6kV, 6.35/11kV, 12.7/22kV, 19/33kV
Usage: This product is suitable for use in power transmission and distribution systems of 35kV and below, for supplying power transmission and distribution energy. Widely used in power, construction, industrial and mining, metallurgy, petrochemicals, and transportation sectors, it has completely replaced oil impregnated paper insulated power cables and some polyvinyl chloride insulated power cables. The maximum allowable working temperature for the conductor in the long term is 90 ℃. In the event of a short circuit (with a maximum duration of no more than 5 seconds), the maximum temperature of the cable conductor shall not exceed 250 ℃
