E6013 WEDING ELECTRODE

GB：E4313
AWS：E6013
Applications：Suit or welding general low-carbon steel structures, especially suitable for welding small size thin plates, intermittent welding with short weld heads and cosmetic welding that requires smooth weld beads.


According with GB E4313
 Corresponding with AWS E6013

Introduction: J421 is a kind of carbon steel electrode with titania type coating. AC/DC. All-position welding. It has excellent welding performance, excellent operating performance, easy re-ignition, stable arc and smooth welding appearance.

Applications: Suit for welding general low-carbon steel structures, especially suitable for welding small size thin plates, intermittent welding with short weld heads and cosmetic welding that requires smooth weld beads..

Chemical Composition of Deposited Metal (%)

Chemical Composition

C

Mn

Si

S

P

Guarantee Value

≤0.12

0.3~0.6

≤0.35

≤0.035

≤0.040

Mechanical Properties of Deposited Metal

Test Item

Rm(MPa)

ReL(Mpa)

A(%)

KV2(J)

KV2(J)

Guarantee Value

≥420

≥330

≥17

-(normal temperature)

-(0℃)

General Result

460~540

≥340

18~26

50~80

≥47

X-ray Radiographic Inspection: ⅡDegree

Reference Current (AC, DC)

Electrode Diameter(mm)

φ2.0

φ2.5

φ3.2

φ4.0

φ5.0

Welding Current (A)

40~70

50~90

90~130

130~210

170~230

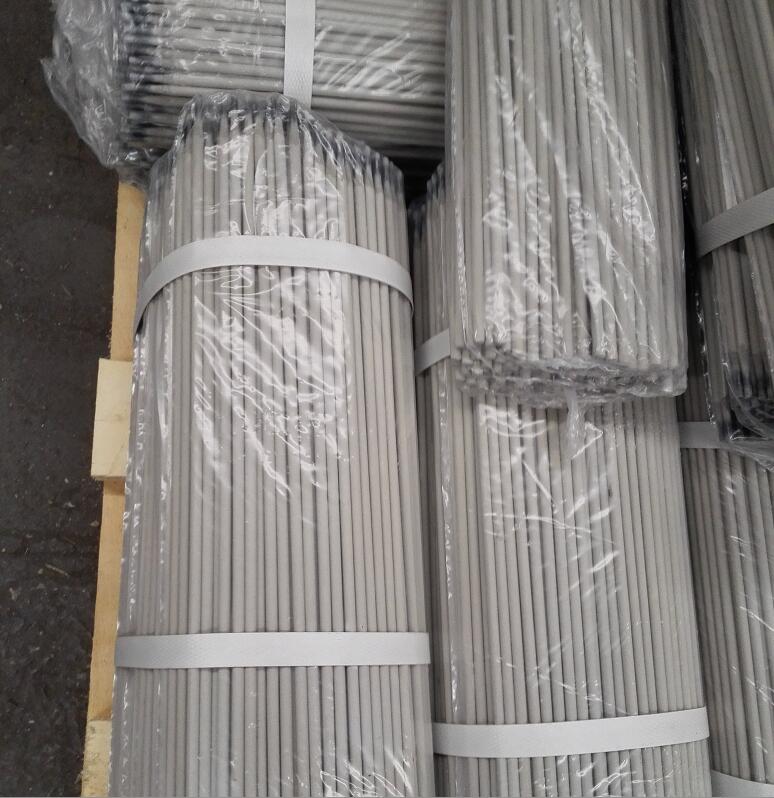

Packing details: In carton of 20kgs/net, consisting of 8 boxes x 2.5kgs for 2.5mm, & 4 boxes x 5kgs for other sizes.

             With/ without pallets (Fumigation-free pallets) upon customer’s request.
