TIANJIN BRIDGE Stainless Steel Welding Electrode AWS E2209-16
TIANJIN BRIDGE WELDING MATERIALS GROUP CO., LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
TIANJIN BRIDGE Stainless Steel Welding Electrode AWS E2209-16
TIANJIN BRIDGE WELDING MATERIALS GROUP CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Stainless Steel
- Size: 2.5/3.2/4.0/5.0
- Color: Green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Tianjin, China
About this product
- Materials: Stainless Steel
- Size: 2.5/3.2/4.0/5.0
- Color: Green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Tianjin, China
Product details
| Materials | Stainless Steel |
|---|---|
| Size | 2.5/3.2/4.0/5.0 |
| Color | Green |
Product details
| Materials | Stainless Steel |
|---|---|
| Size | 2.5/3.2/4.0/5.0 |
| Color | Green |
From the supplier

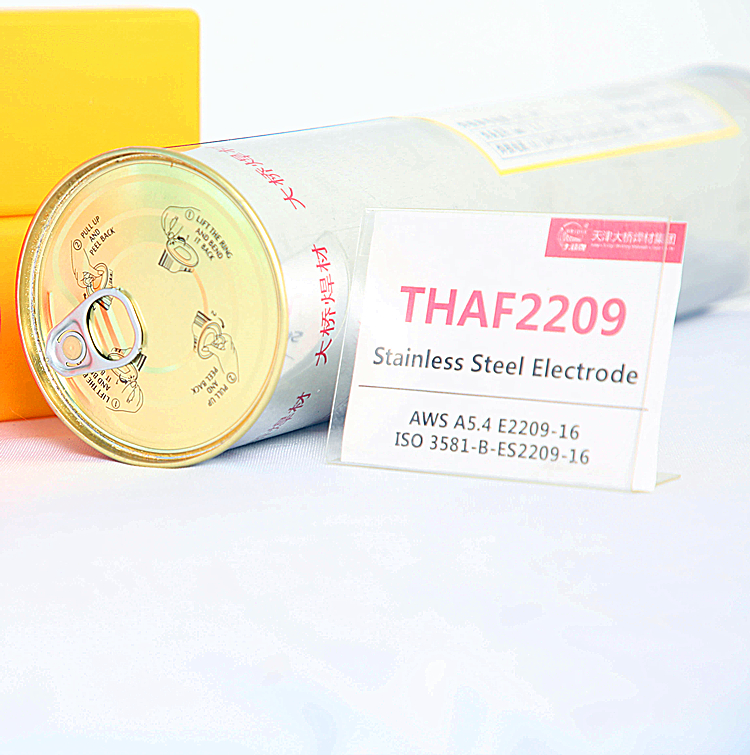

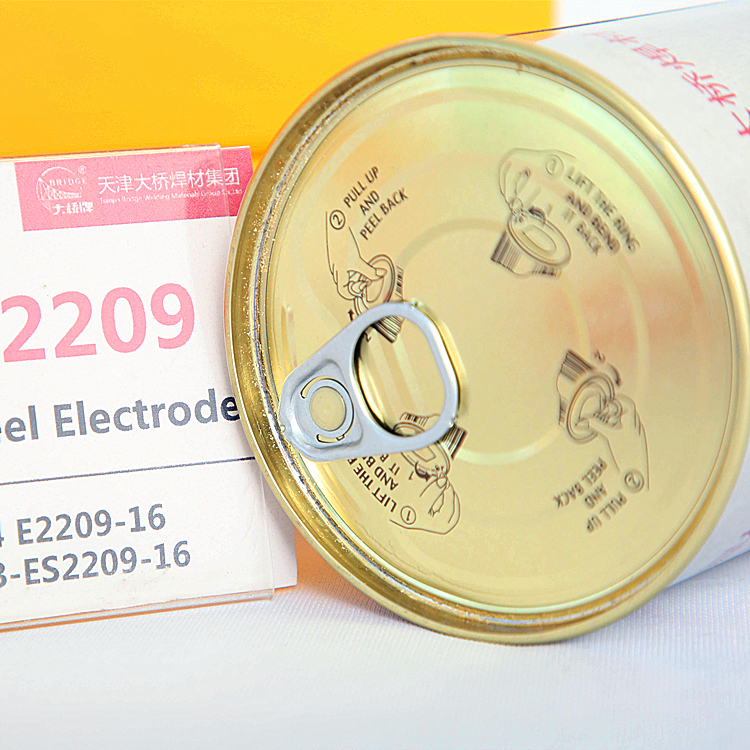

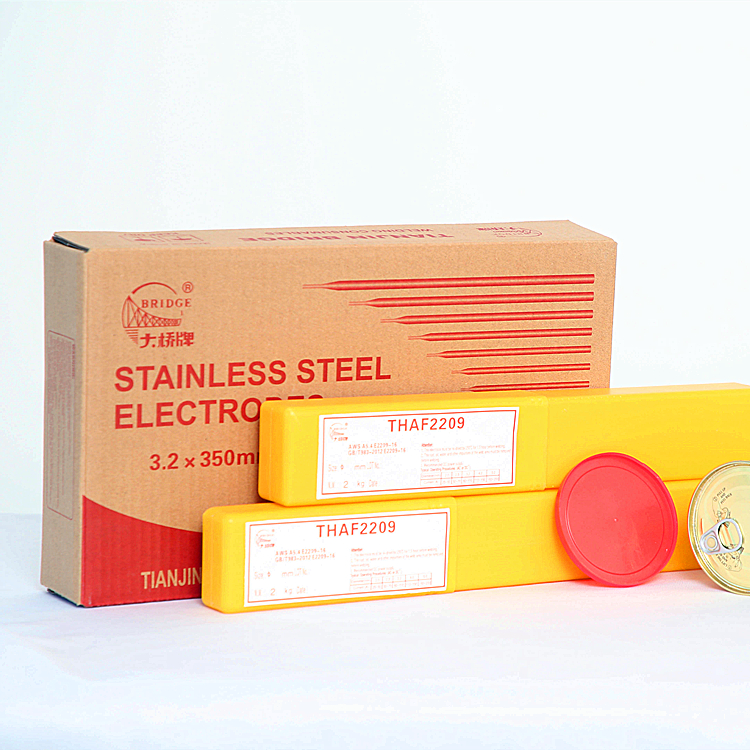

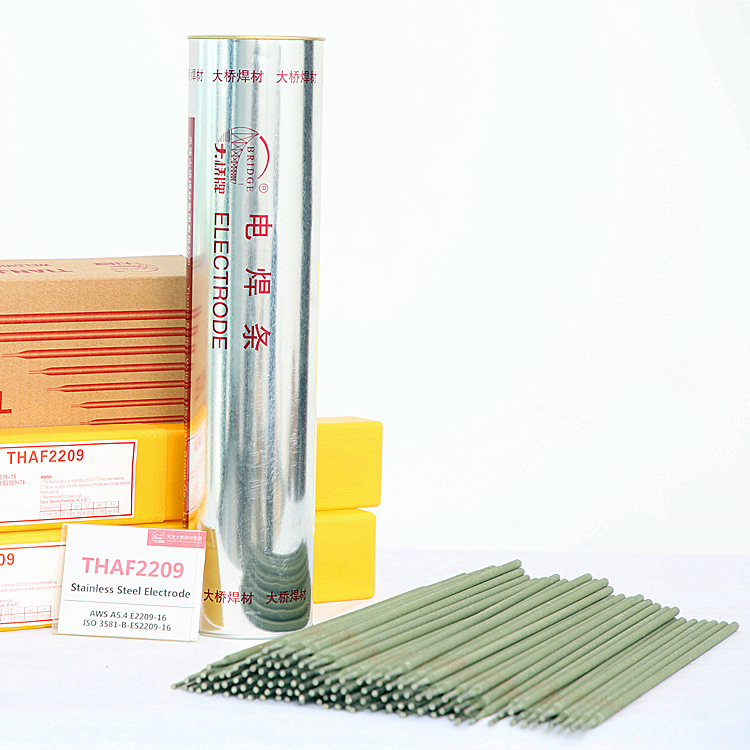

THAF2209
Rutile type ultra-low carbon Cr22Ni9Mo3N duplex stainless steel electrode
GB/T 983 E2209-16
AWS A5.4 E2209-16
ISO 3581-B-ES2209-16
Applications：Suitable for welding of ultra-low carbon duplex stainless steel in petrochemical, nuclear power and shipbuilding industries, such as 00Cr22Ni5Mo3N.
Features：THAF2209 is a rutile type ultra-low carbon Cr22Ni9Mo3N duplex stainless steel electrode. both AC and DC can be used, and can be all-position welding. The electrode has good welding performance. Because of low carbon content and containing Mo and N, the weld metal has strong corrosion resistance, especially stress corrosion resistance.
Welding Positions：PA、PB、PD、PF
Attention：
1. Before welding, the electrode must be baked at 250℃ for 1.5 hours, as needed.
2. The rust, oil, water and other impurities of the weld must be removed before welding.
3. It is recommended to use DC power supply, because the AC welding, shallow penetration, current should not be too large, so as to avoid coating redness, cracking.
4. Reduce heat input as much as possible, the swing of electrode should not be too large.
5. Preheat and interlayer-temperature should remain below 150 ℃.
From the supplier
THAF2209
Rutile type ultra-low carbon Cr22Ni9Mo3N duplex stainless steel electrode
GB/T 983 E2209-16
AWS A5.4 E2209-16
ISO 3581-B-ES2209-16
Applications：Suitable for welding of ultra-low carbon duplex stainless steel in petrochemical, nuclear power and shipbuilding industries, such as 00Cr22Ni5Mo3N.
Features：THAF2209 is a rutile type ultra-low carbon Cr22Ni9Mo3N duplex stainless steel electrode. both AC and DC can be used, and can be all-position welding. The electrode has good welding performance. Because of low carbon content and containing Mo and N, the weld metal has strong corrosion resistance, especially stress corrosion resistance.
Welding Positions：PA、PB、PD、PF
Attention：
1. Before welding, the electrode must be baked at 250℃ for 1.5 hours, as needed.
2. The rust, oil, water and other impurities of the weld must be removed before welding.
3. It is recommended to use DC power supply, because the AC welding, shallow penetration, current should not be too large, so as to avoid coating redness, cracking.
4. Reduce heat input as much as possible, the swing of electrode should not be too large.
5. Preheat and interlayer-temperature should remain below 150 ℃.
