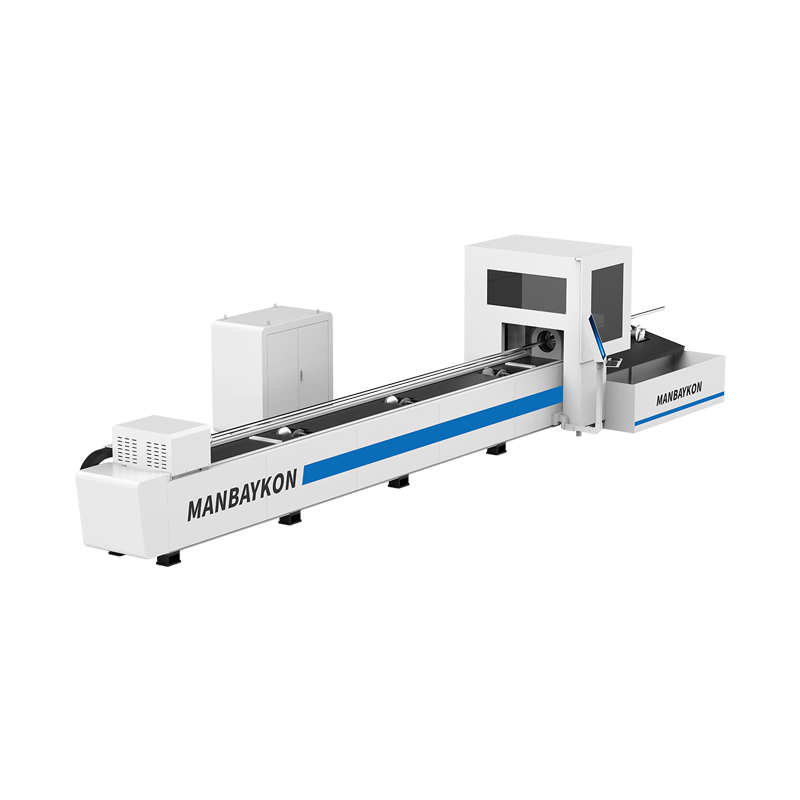

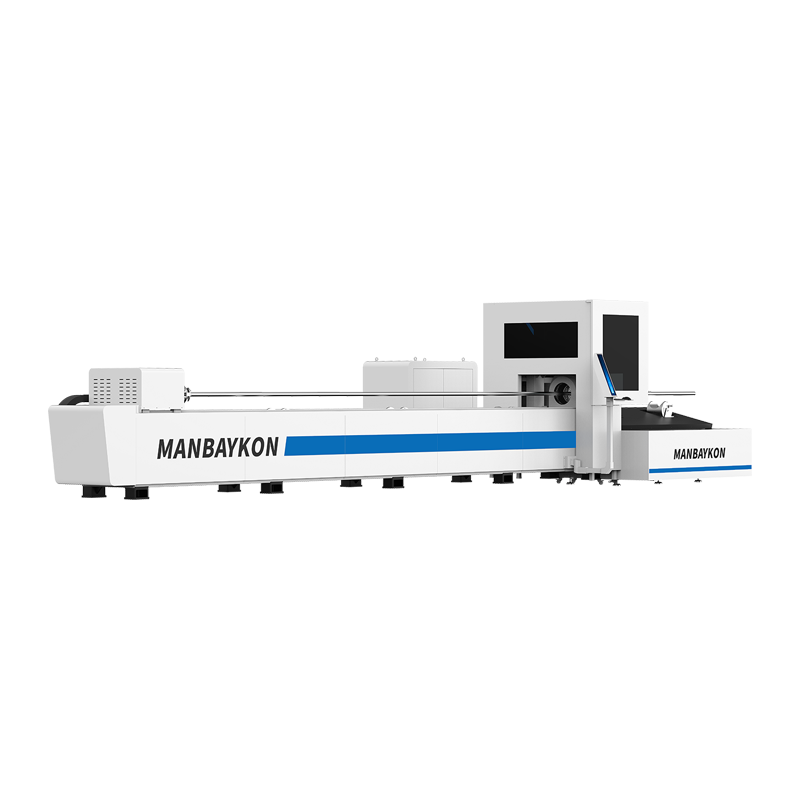

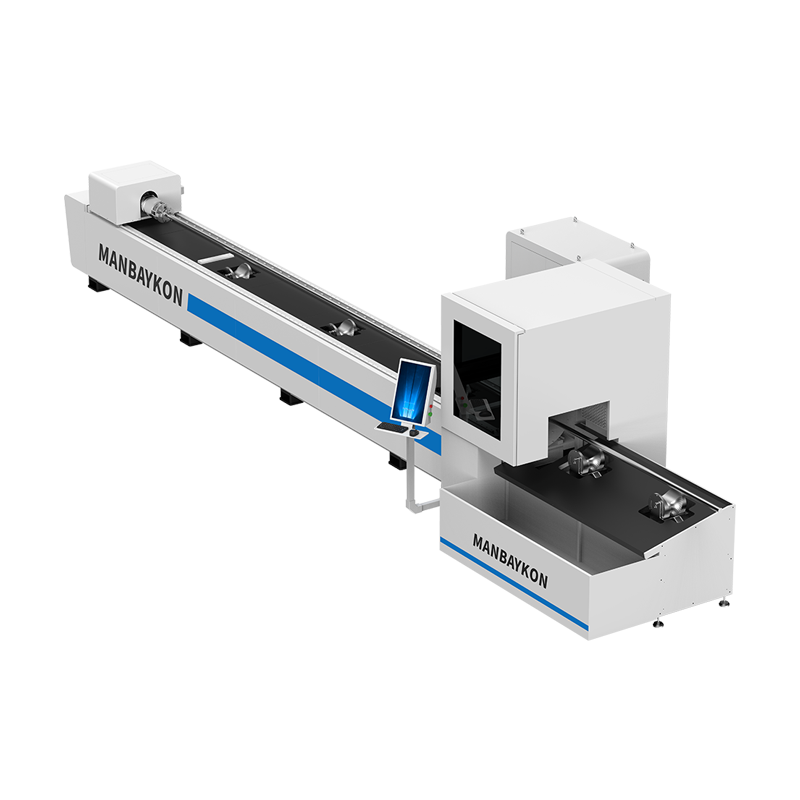

MAGICK support custom models Iterate and upgrade products continuously to empower the enterprise production. 1.The pipe clamping range is wide,Round tube φ10-φ10, and Square tube side length is 10 * 10mm-350mm * 350mm. Support the cutting of various shapes of pipe materials, such as I-beam, channel steel, angle steel, elliptical pipe, waist pipe, multi-deformed pipe,etc.
2.The unique industrial structure design gives it maximum stability and higher vibration resistance and damping quality. The compact spacing of 650mm ensures the agility of the chuck and the stability during high-speed driving.
3.Fixing the pipe effectively solves the deformation problem in the cutting operation of the long pipe.
4.The professional cutting software for processing various types of pipes. Through the collection and processing of various real-time information, it can achieve high-precision cutting and achieve higher efficiency processing.
5.Manually set the number and time interval of automatic lubrication according to the length of equipment use;Automatic lubrication of guide rails, sliders, gears, racks, and other components, recycling, and centralized processing of lubricating waste oil. Specification Model MK-6020T Positioning Accuracy ±0.05mm Effective Cutting Diameter Of Round Tube φ15mm-φ230mm Effective Cutting Diameter Of Square Tube □15*15mm-□160*160mm Max running speed 140m/min Laser Power 1kw-6kw Laser Source MAX / Raycus / IPG Repeat Positioning Accuracy ±0.01mm Maximum Acceleration 1G Product Details Double Chuck Clamping Clamping round tube 10-160 mm. Servo Motor and reducer are driven synchronously to enssure processing accurcay Both front and rear chucks are pneumatically tightened Gear Drive High Transmission efficiency, high accuracy, stable and long service life. Stable Machine Bed and Gantry Structure Machine bed and the gantry structure adopt plate welding structure After heat treatment and annealing to remover stress, the structure is stable and the rigidity is good Laser Source
Raycus/MAX/IPG, multiple choice
Different brands, different laser power are available. The higher power, the thicker cutting thickness. Laser Cutting head 3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time. Japan Shimpo Dual cooling function Real-time alarm Machine protection Taiwan - APEX High precision Accurate instantaneous transmission ratio High transmission efficiency; Long life

Company Profile Magick Laser Shandong Magick Intelligent Technology Co., Ltd. is a professional manufacturer of Industrial Laser Equipment. Our machines are widely used in metal processing industry. All of our products have passed ISO, CE, RoHS,TUV, SGS, EAC, FDA, FCC,agency testing. We are a reliable supplier of laser equipment, providing 2-3 years of complete quality assurance services to ensure customer experience. We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world, We export to more than 100 countries. 10 100 200 MORE THAN 10 YEARS PROFESSIONAL MANUFACTURER TRUST AND RECOGNITION FROM 130 COUNTRIES AND REGIONS PROFESSIONAL TECHNICAL TEAM OF OVER 200 PERSONS 5000 50000 25 DEEP COOPERATION WITH 5,000 ENTERPRISES HIGH-LEVEL PROFESSIONAL FACTORY WITH OVER 50,000 ㎡ 25 PATENTS AND CERTIFICATES

MAGICK AFTER SALES SERVICE

Free software training Immediate installation guide
Free equipment maintenance
Professional workshop planning
One year free warranty
Future equipment upgrades
