From the supplier
Application:
The Laser screed machine is used for concrete construction in large area,such as workshop,supermarket,warehouse,airport,square and so on,can meet the construction requirement of high flatness and levelness for large area.Also can used in flat, slope, double slope road concrete screeding and rebar concrete project.
Product Features:

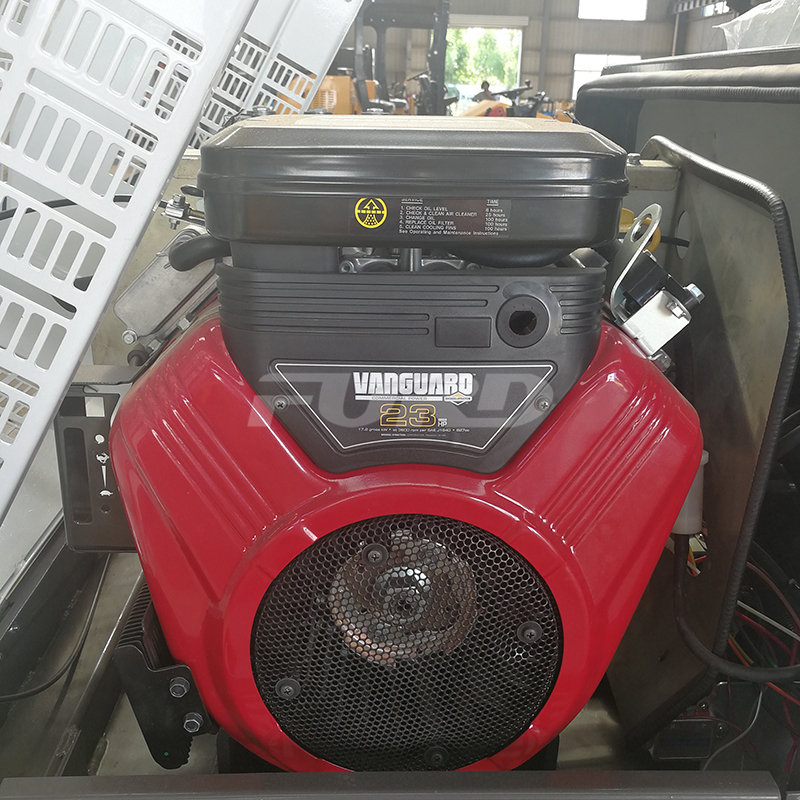

1. Adopt the Briggs & Stratton gasoline engine with strong power and superior performance;

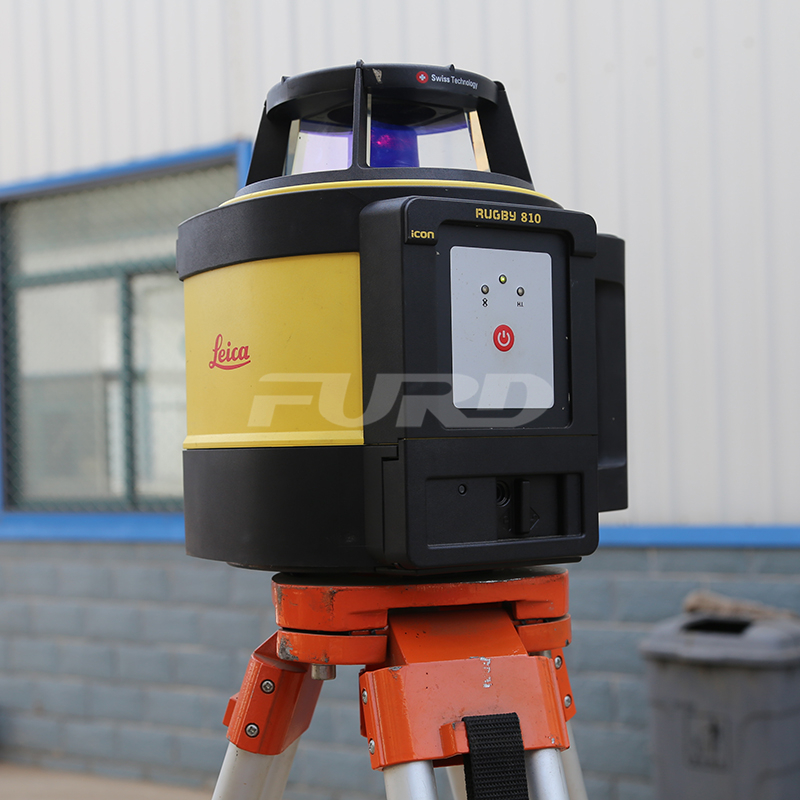

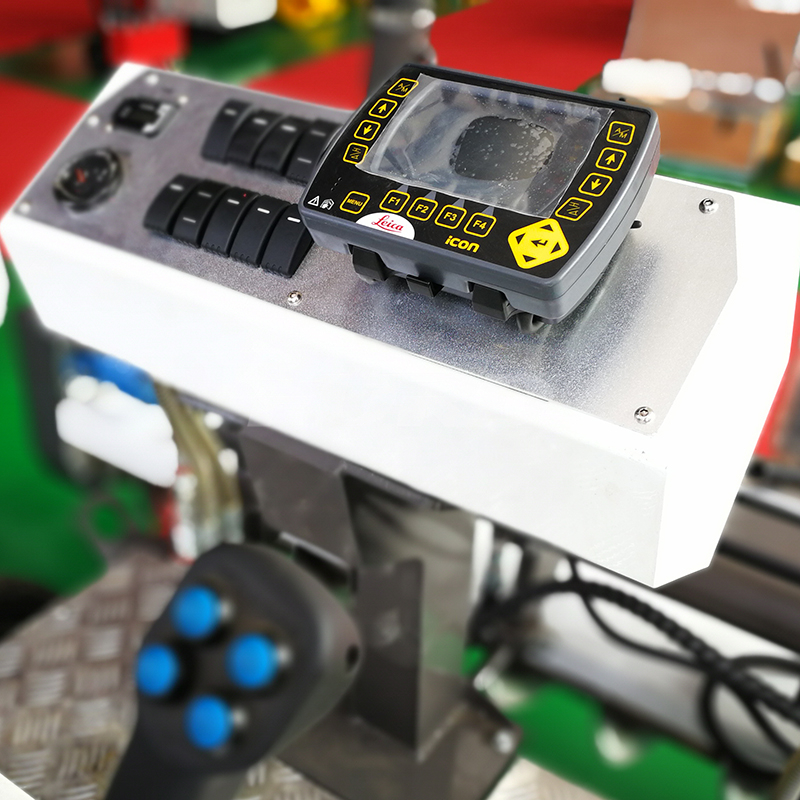

2. Imported Leica laser emitting and receiving system,assurance the accuracy of leveling;

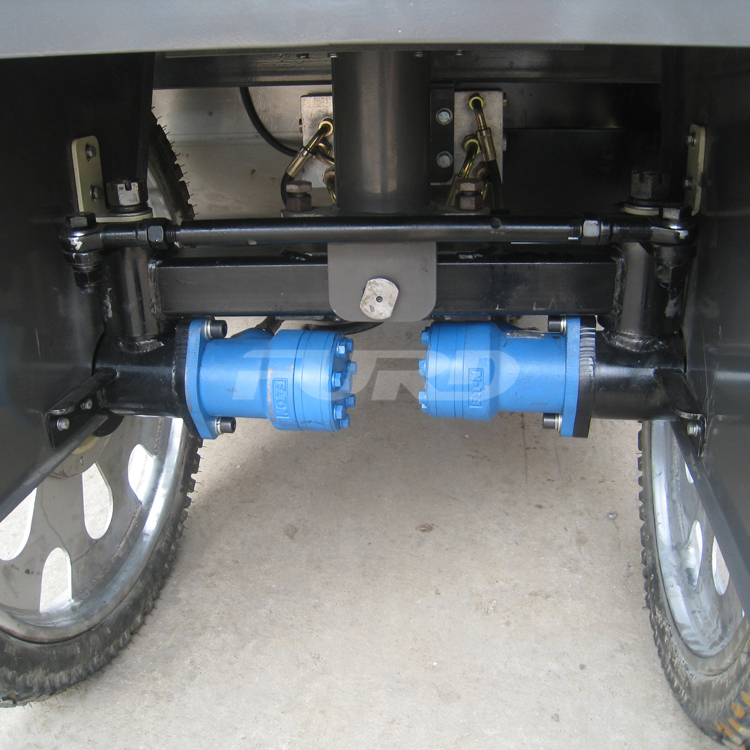

3. Full hydraulic four motor drive, hydraulic steering, flexible operation;
4. The screed head can slide;
5. Adopting anti-puncture solid tires;
6. The machine is equipped with a water pump, easy to clean;
7. This product has passed CE and EPA certification.
Technical Parameters:
OVERVIEW
Brand
FURD
Model
FJZP-200
Engine
Engine Model
Briggs & Stratton 627cc, Electric Start
Engine Type
Gasoline Engine, OHV, double cylinder
Power
23HP
Static Linear Load
20/55 N/cm
Fuel Tank Capacity
40L
Lubricant Oil
1.5L
Fuel Consumption
313g/kWh
Travel System
Drive
Hydraulic motor,Four-wheel drive
Wheel
Solid puncture-proof tyre
Running Speed
0-70m/min
Leveling System
Width
2500mm

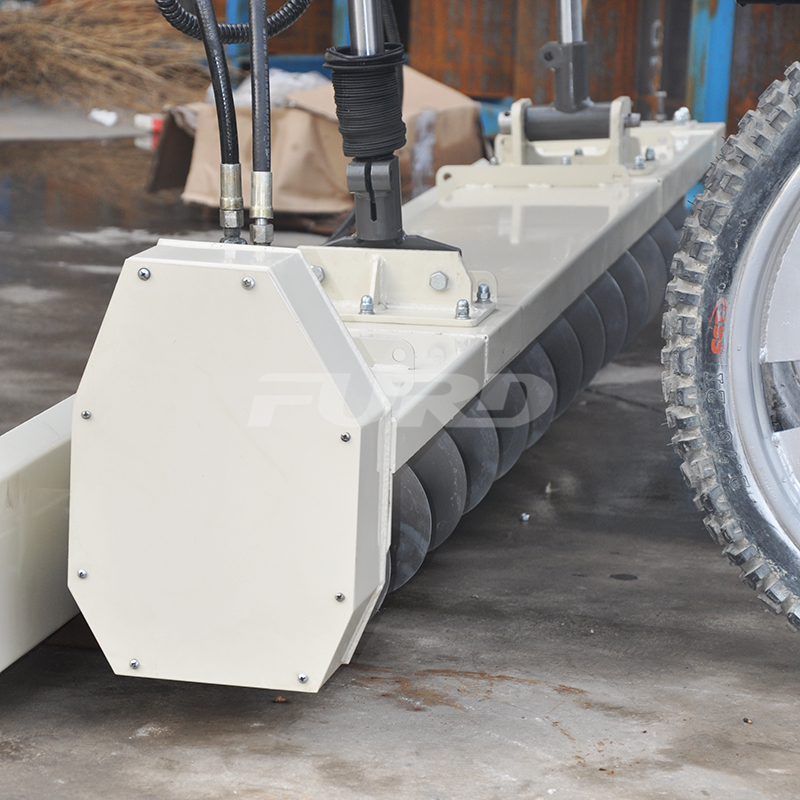

Paving Type
Auger Paving
Centrifugal Force
500N
Vibration Frequency
50Hz
Screed Head Type
Swing head
Screed Plate Height
330mm
Paving Depth
30-200mm
Translational Range
500mm
Laser Control System
Control Type
Microcomputer Laser scanning
Control Effect
Plane, slope or dual slope (three-dimensional)
Operation Mode
Forward,Backward
Handle Control, CVT
Steering
Hydraulic Control
Cleaning System
Power
Hydraulic Motor
Theoretical Flow
20L/min
Rated Pressure
7MPa
Size and Weight
Overall Dimensions
2554*2500*2360mm
Weight
1080kg
