Numerical control wire mesh fence panel welding machine

Product Description

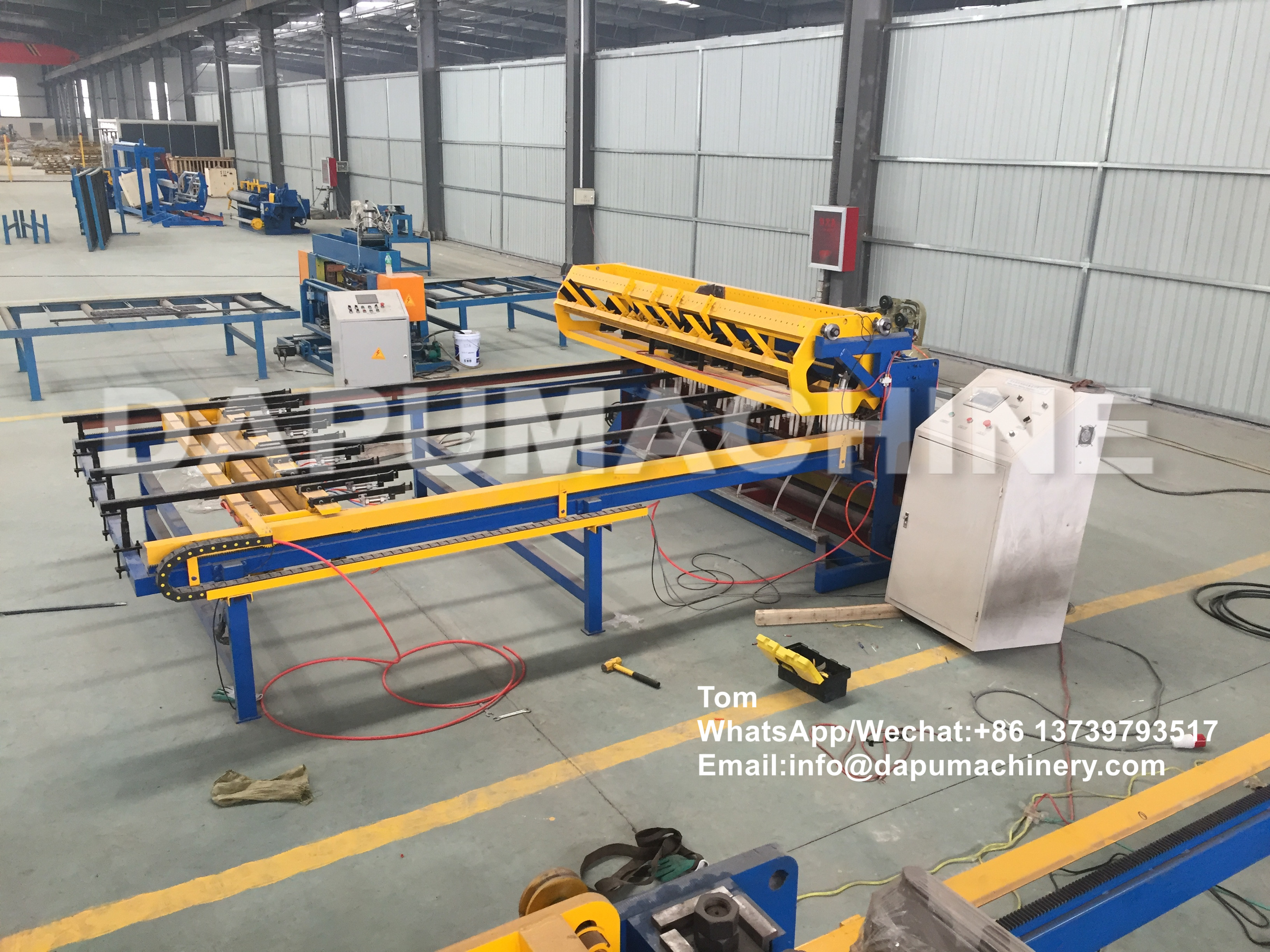

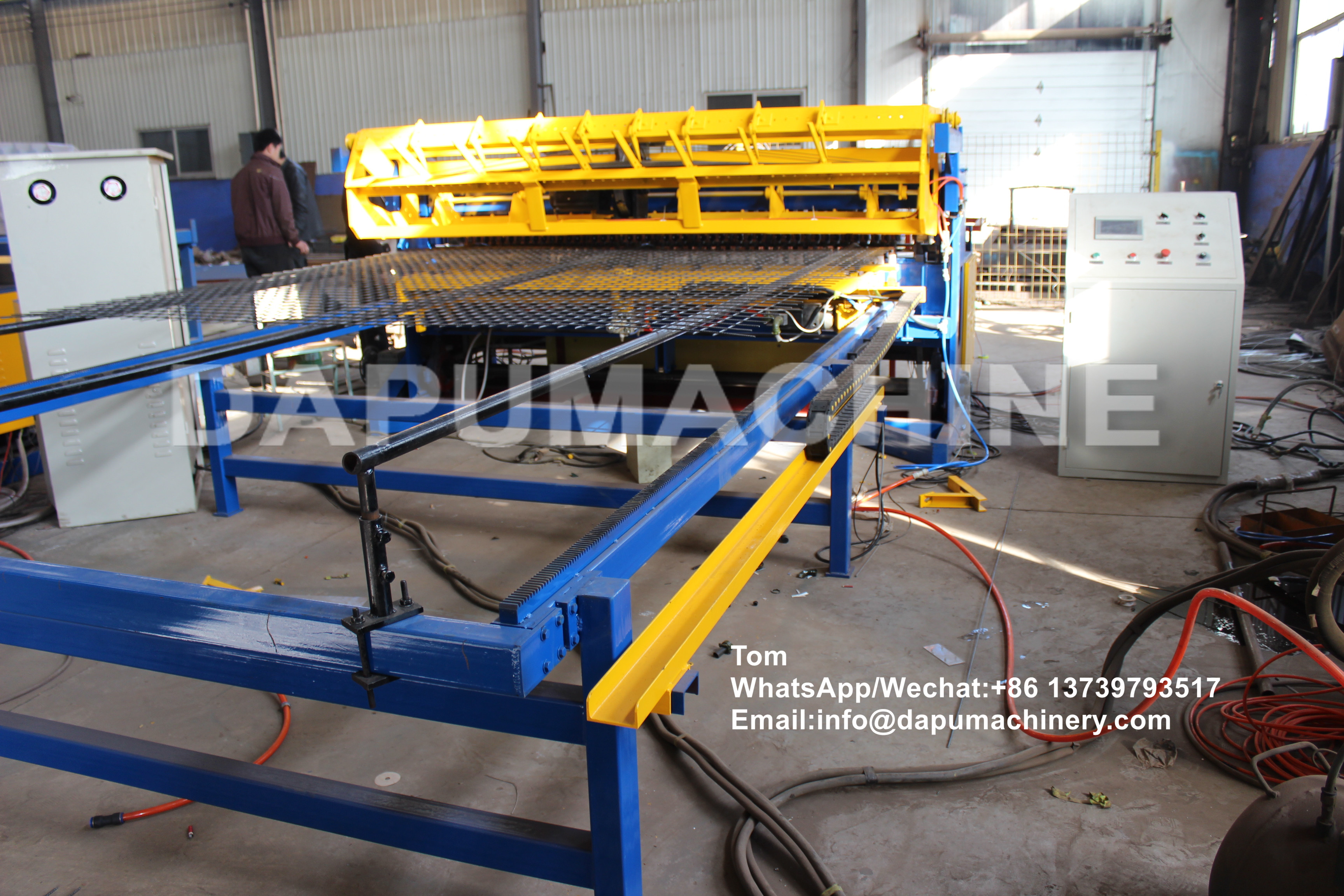

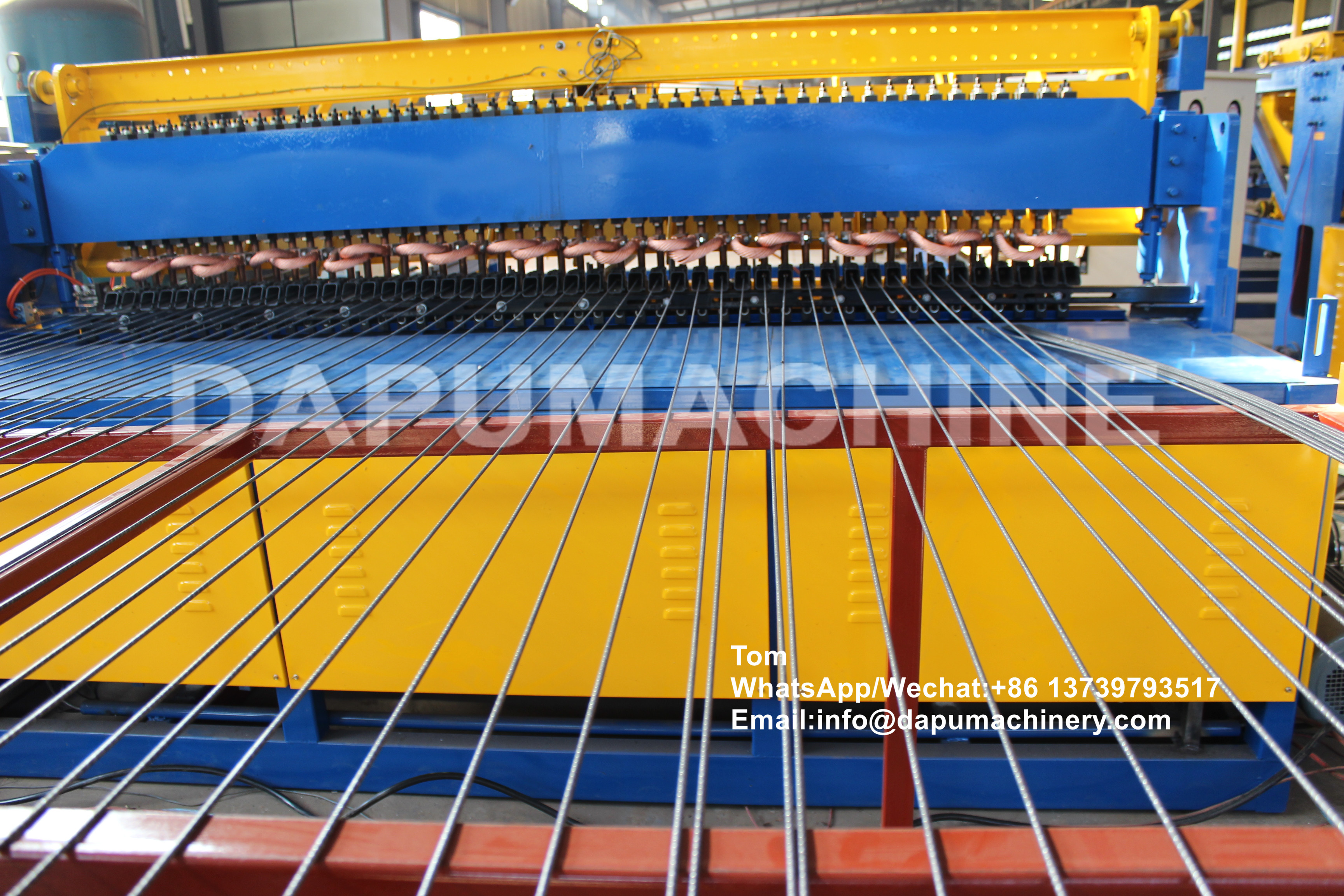

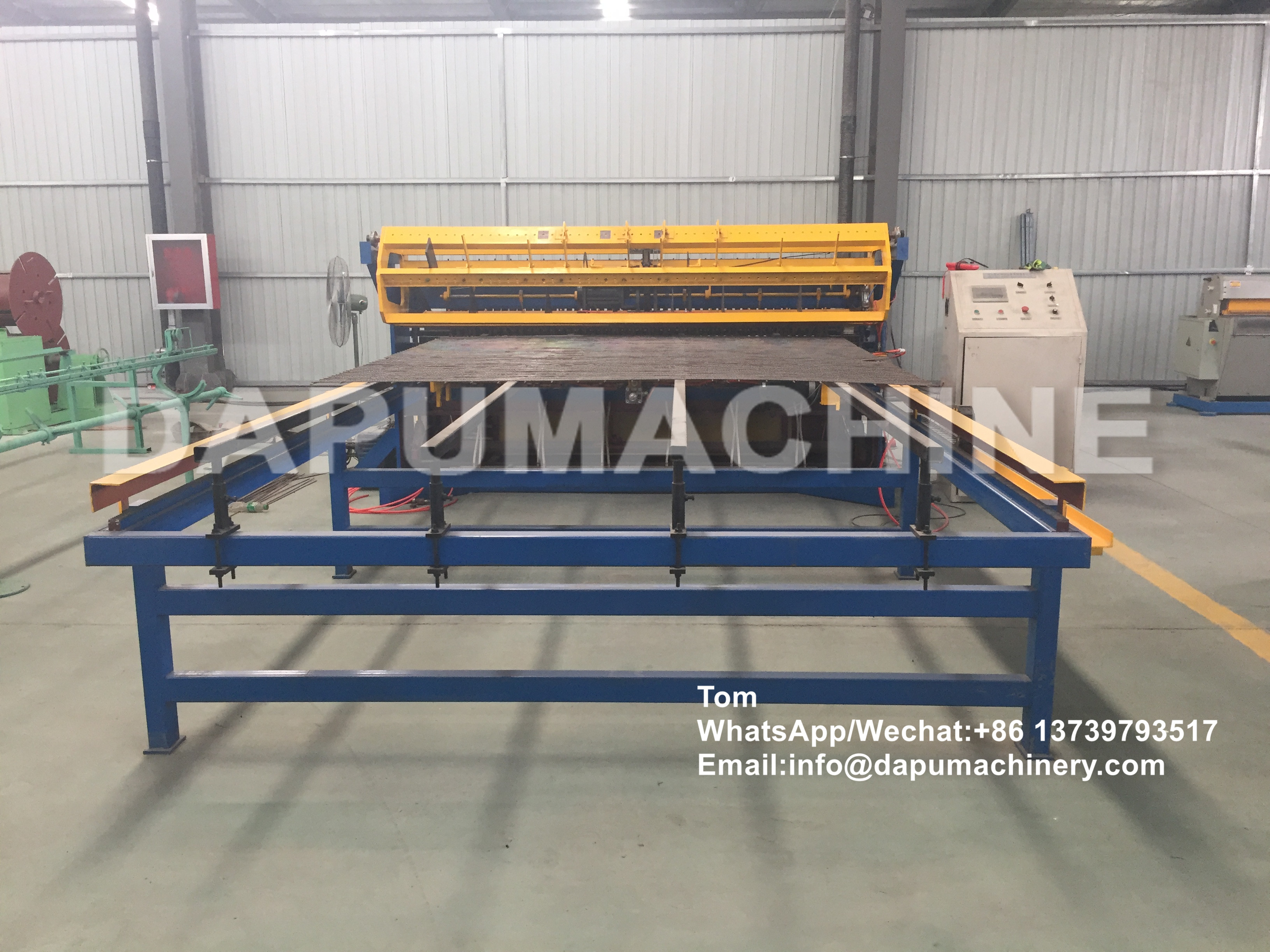

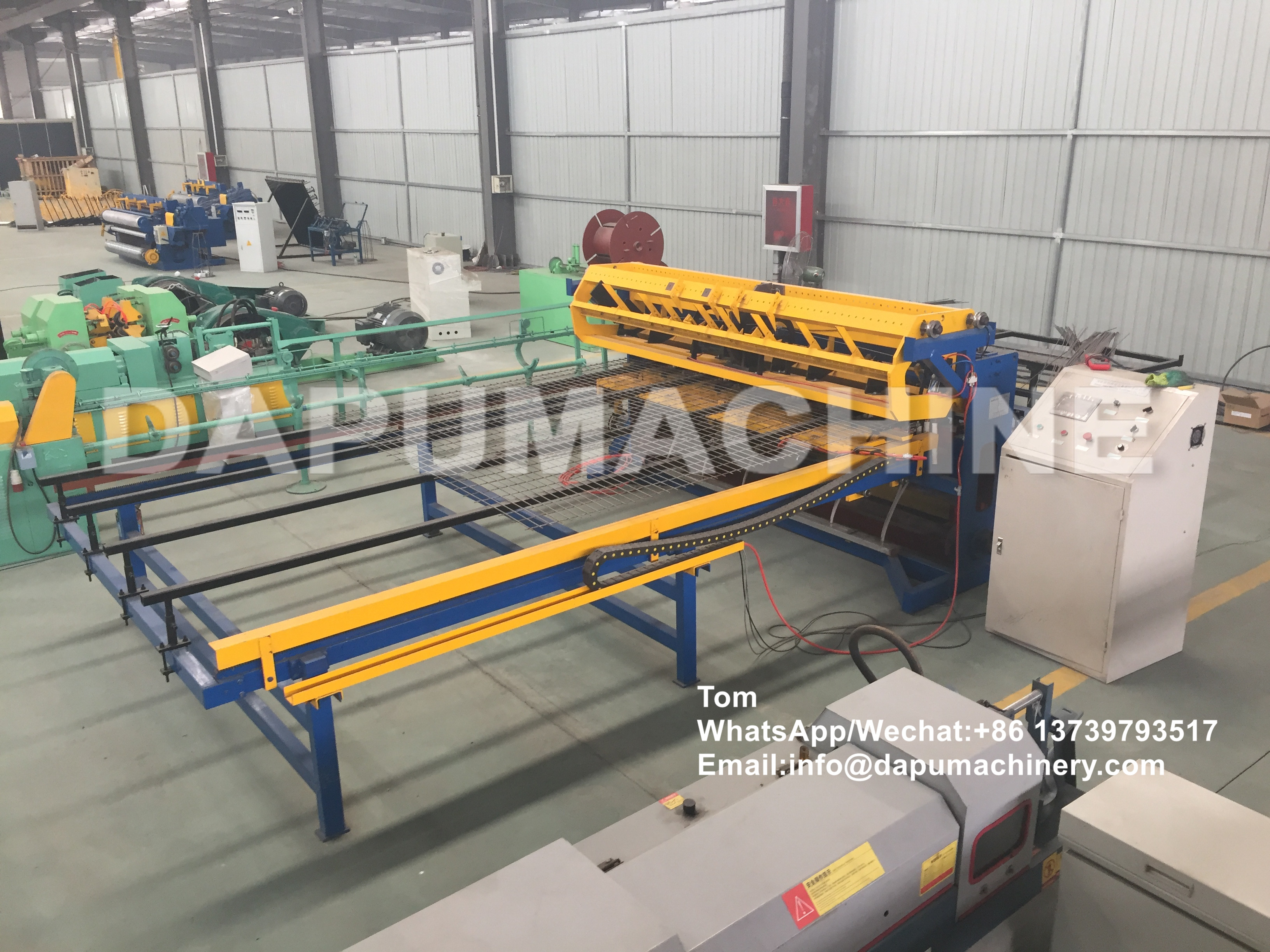

3D fence panel machine(DP-FP-2500A) Automatic 3D fence panel machine(DP-FP-3000AN) Anti-climb fence machine(DP-FP-3200A+)

We can supply different types of fence panel machine. Below three models are the most popular.

DP-FP-2500A, this machine is common type, the bending is manual. This machine adopts many famous brand electric parts, the main motor connects with main aixs directly, the mesh pulling is controlled by Panasonic servo motor.

DP-FP-3000AN, it is specially designed to make the bending automatic. The bending machine is connected to the welding machine. After finish welding, the mesh pulling car can send the fence mesh to bending part automatically, then the bending machine can bend after each pulling.

DP-FP-3200A+, it is specially designed to make anti-climb fence (358 fence). Each welding electrode is controlled by one SMC air cylinder, the pressure can be totally same. So the welding points are even, the finished mesh is flattened. The bending is manual.

We can design the machine according to your wire diameter, mesh hole size and mesh width.

Technical Parameters Model DP-FP-2500A DP-FP-3000AN DP-FP-3200A+ Wire diameter 3-6mm Line wire space 50-300mm 50-300mm 76.2-300mm Cross wire space Min.25mm Min.25mm Min.12.7mm Width of mesh Max.2.5m Max.3m Max.3200mm Length of mesh Max.3.2m Max.3m Max.4000mm Welding electrodes 48pcs 61pcs 44pcs Welding transformer 150kva*6pcs 160kva*8pcs 150kva*11pcs Welding speed Max.70 times/min Max.60 times/min Max.120 times/min Line wire feeding Pre-straightened&pre-cut Cross wire feeding Pre-straightened&pre-cut Weight 3.6T 7.4T 5.4T Machine size 4.9*3.4*1.6m 12*3.7*2.5m 5.4*3.7*2.3m Bending way Manual Automatic Manual Welding Parts

Upper electrode diameter: 20mm

Lower electrode: 20*20*20mm

Chromium Zirconium copper

Upper electrode diameter: 22mm

Lower electrode: 20*30*30mm

Chromium Zirconium copper

Electrode: 20*20*30mm

Electrode base: water cooling

Chromium Zirconium copper

Auxiliary Equipments

Wire straightening and cutting machine, 2 sets

· Wire diameter: 2-6mm

· Cut length: 100-6000mm

· Straighten motor: 2.2kw

· Cut motor: 1.5kw

· Speed: 30m/min

· Straighten degree: +/-1mm

· Material: round bar or ribbed bar

· Machine size:2100*800*1100mm

· Weight: 350KG

Fence mesh bending machine, 1 set

· Wire diameter: 2.5-6mm

· Width: 3200mm

· Pressure: 100T

· Nominal pressur: 800KN

· Motor: 7.5KW

· Dimension: 3340*1000*2300mm

· Weight: 3T

Finished mesh&application

2D fence panel 3D fence pane Anti-climb fence panel
