About this product
- Materials: HDPE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: HDPE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | HDPE |
|---|
From the supplier

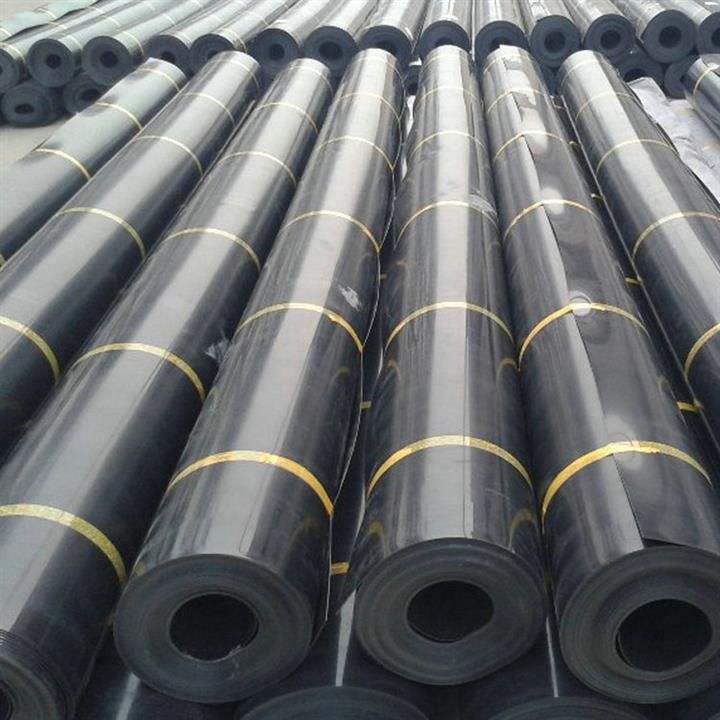

HDPE Geomembrane is one kind of waterproofing barrier type material using (Middle) High density PE as raw material,its full name is”High density PE geomembrane”. It has excellent environmental resistance and stress cracking performance, lowtemperature resistance, anti-aging, decay resistance, and big temperature using range (-60--+60), using life is about 50 years.
Model
JG-TGM3000
JG-TGM4000
JG-TGM5000
JG-TGM6000
JG-TGM8000
Width of product
mm
3000
4000
5000
6000
8000
Sheet thickness
mm
0.7-3mm,1-3mm
Screw diameter
mm
Ø120
Ø150
Ø150×2
Ø160×2
Ø180×2
L/D ratio
L/D
33:1
Roller diameter
mm
Ø400
Ø500
Ø600
Ø700
Ø800
Product speed
m/min
1-5(Panel) 2-10

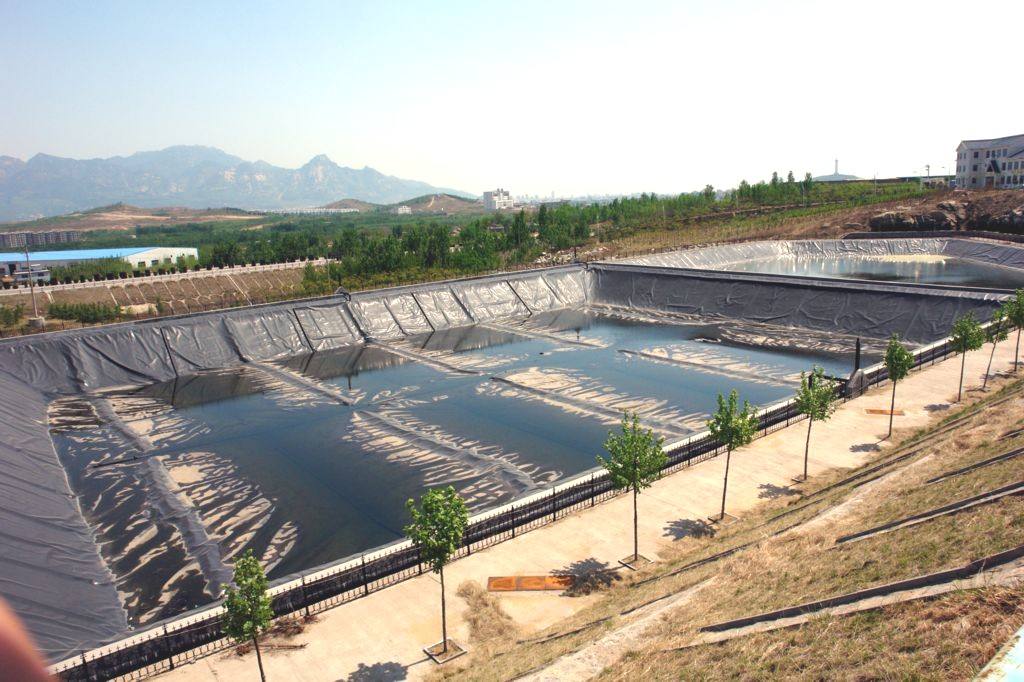

◆ HDPE Geomembrance used in environmental protection and environmental sanitation, such as refuse landfill, sewage treatment plant, power regulating pool, industry, hospital solid waste, etc.
◆ LDPE Geomembrance used for hydraulic engineering, such like permeability proof, leakage treatment and reinforcement of reservoir dam, seepage prevention of canal, vertical wall, slope protection, etc.
◆ HDPE Geomembrance used in municipal engineering: metro, building underground engineering, planted roof, garden roof, sewage pipe seepage proof.
◆ PE Geomembrance used in gardens: artificial lake, riverway, impounding reservoir, pond bottom of golf course, slope protection,water and moisture proofing of virescence turf,ect.
