High speed U profile keel roll forming machine
- FOB goods (100)
- $3,250,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $113,750
- Section 301 tariff (25.0%)
- $812,500
- Customs fees (MPF/HMF)
- $4,697
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
High speed U profile keel roll forming machine
- FOB goods (100)
- $3,250,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $113,750
- Section 301 tariff (25.0%)
- $812,500
- Customs fees (MPF/HMF)
- $4,697
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: 5200mm*1200mm*1450mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Size: 5200mm*1200mm*1450mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Size | 5200mm*1200mm*1450mm |
|---|
From the supplier
Specification
One-piece frame
Uncoiler: 2 Tons

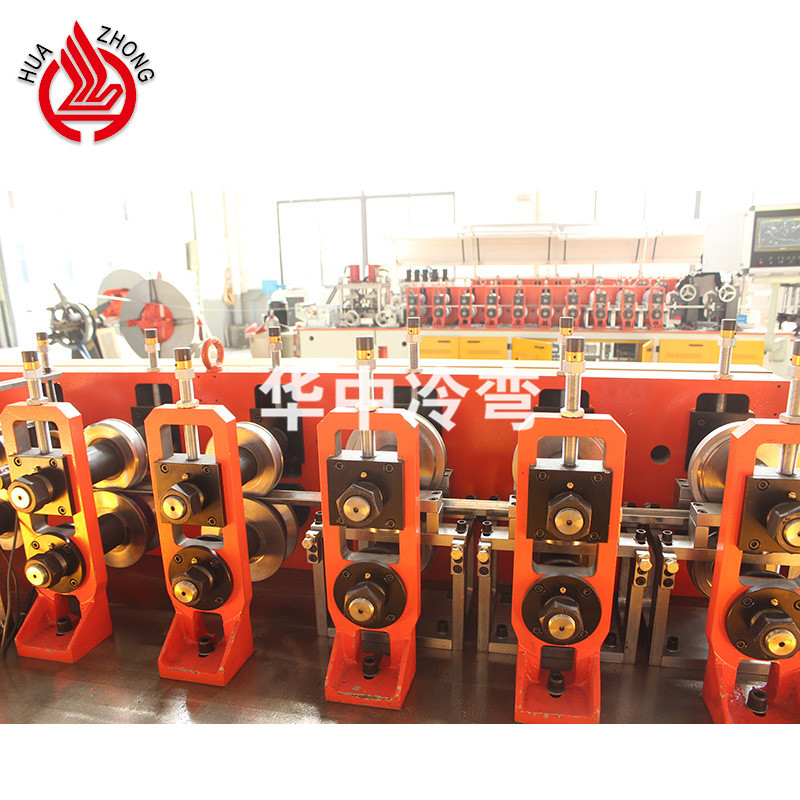

Forming stations: 12
Embedded hydraulic station: 4KW, 220/380V, 50/60 HZ, 3 Phase
Embedded electric cabinet: Delta PLC control system, Delta inverter

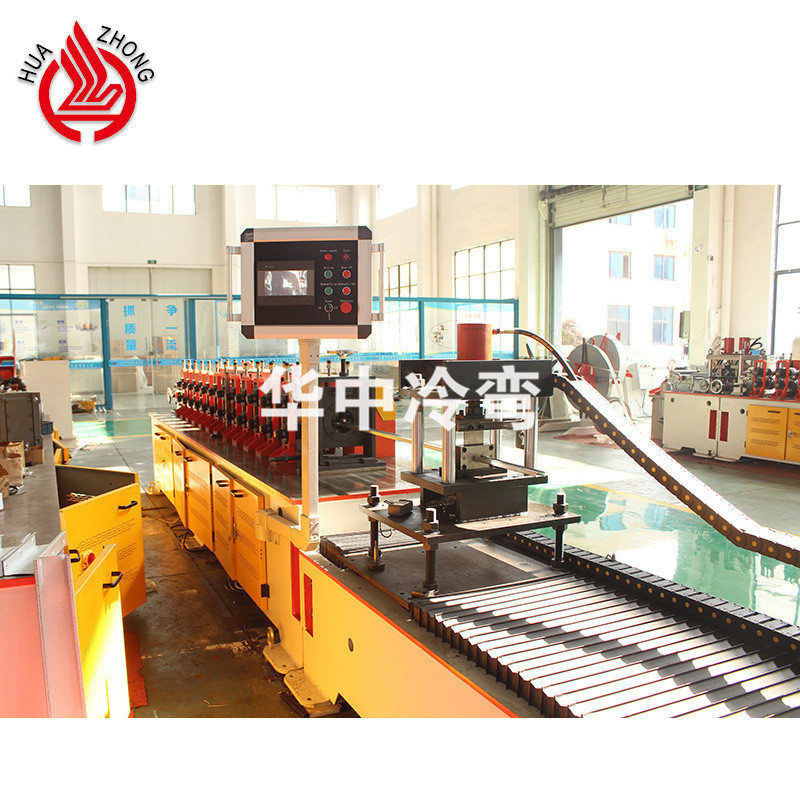

Cantilever console: Delta touch screen
Thickness: 0.6mm
Main motor power: 5.5KW, 220/380V, 50/60 HZ, 3 Phase
Cutting type: hydraulic cutting with servo motor
Forming speed: 30m/min
Drive type: gear transmission system
Technical process
Uncoiler---Feeding guide---Roll forming---Hydraulic cutting with servo motor---Run out
About the supplier
Main products: Other Building Materials Processing Equipment,Steel Plate Forming Machine
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2003
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2003
