From the supplier

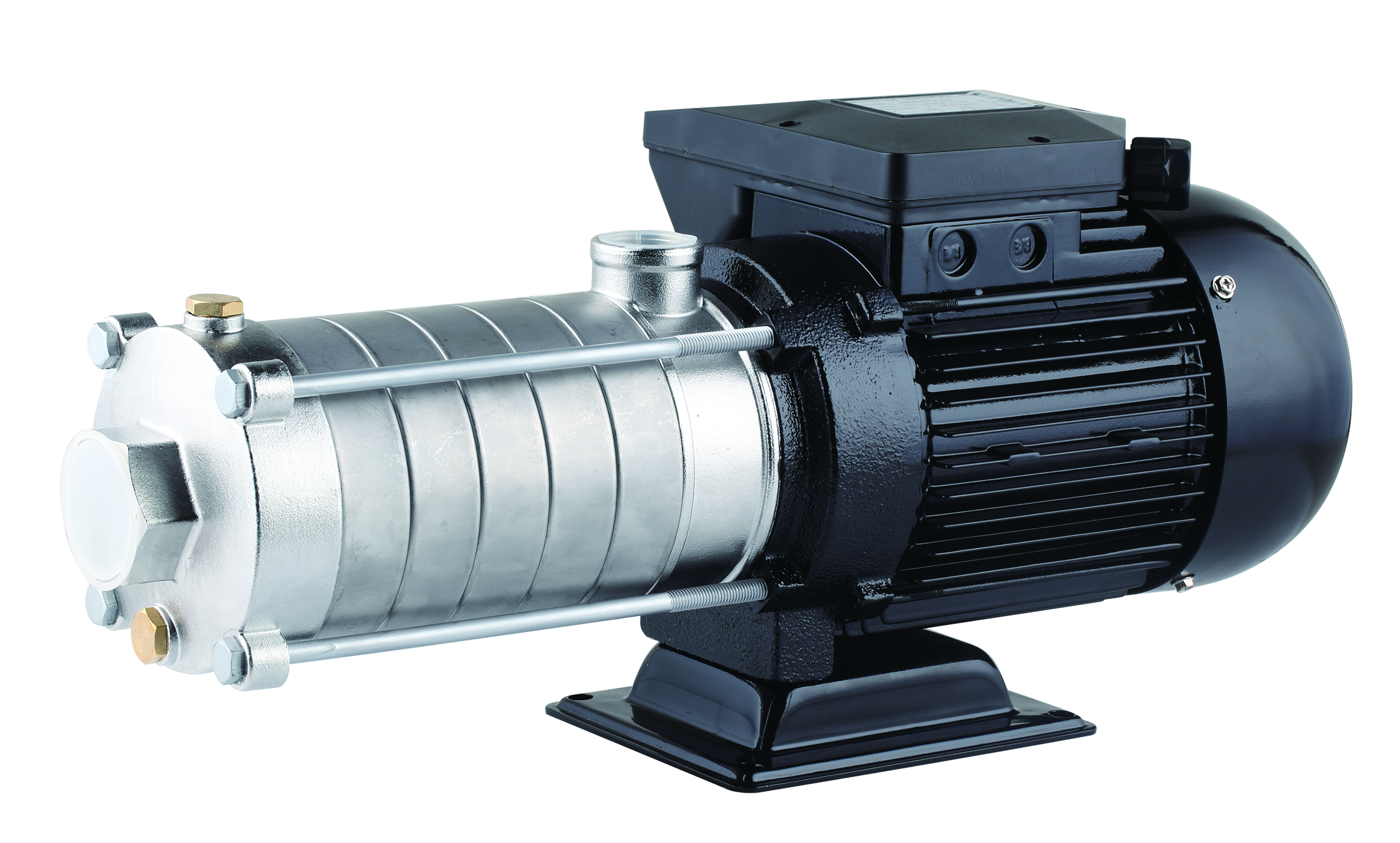

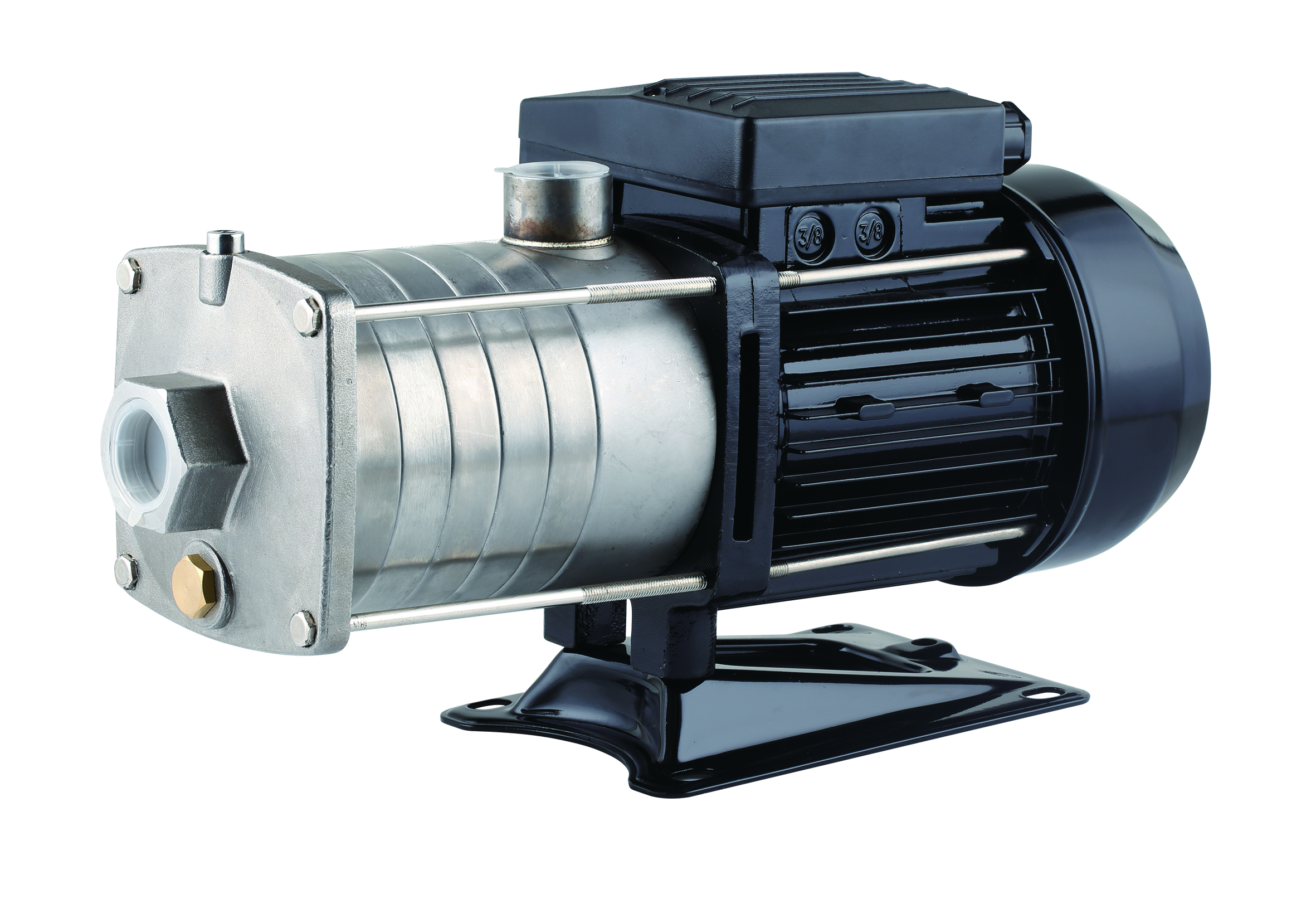

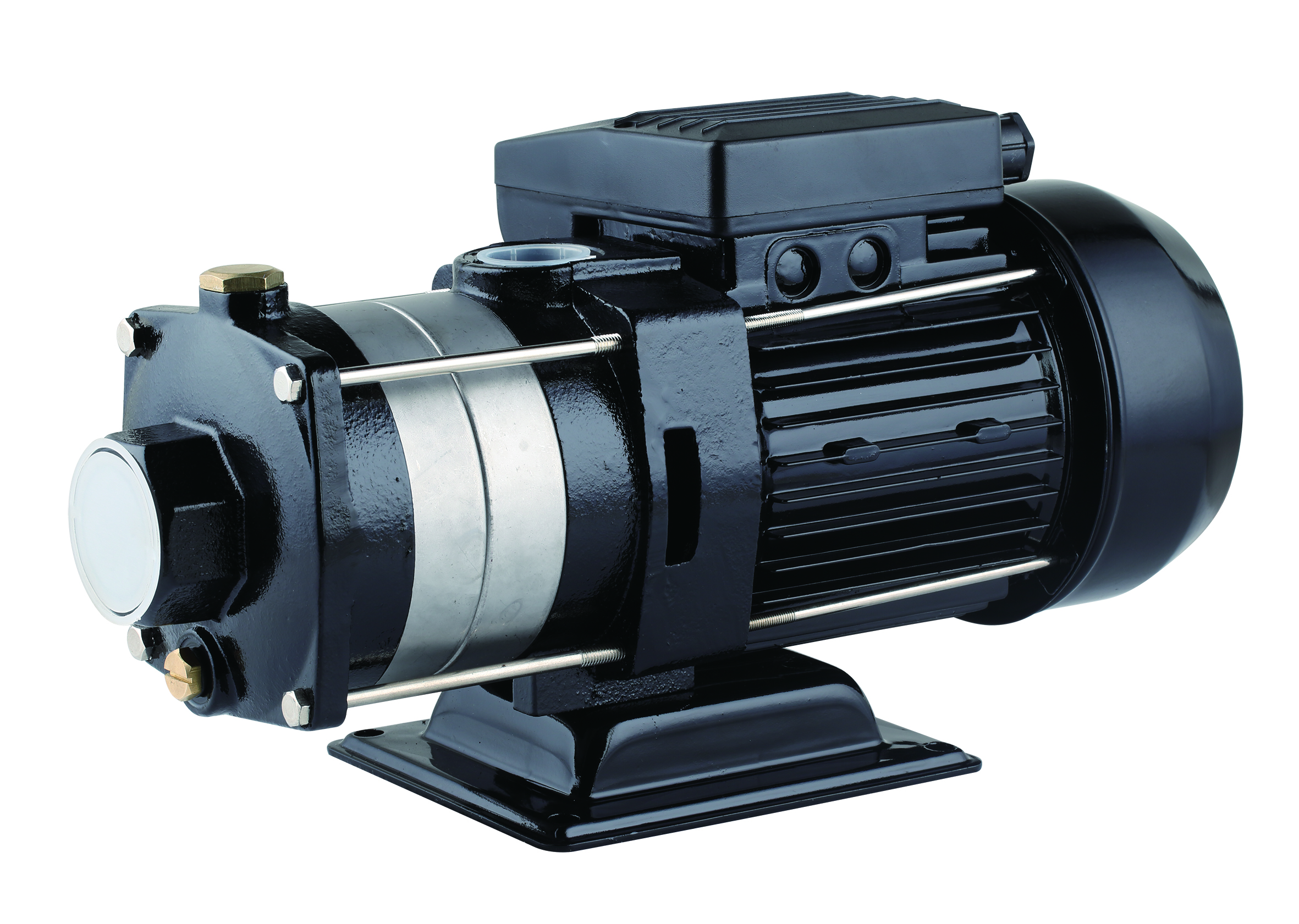

Centrifugal horizontal multi-impeller water pumps able to develop high pressure and a high water lift with a comparatively low power consumption. Thanks to their silent running and very good features,they are suitable in dommestic fittings by tank pressure groups,for small sprinker irrigations and car washing .
OPERATING CONDITIONS
>> Max working pressure: 10bar
>> Liquid temperature up to 90℃
>>Ambient temperature up to 40℃
>>Total suction lift up to 7m
>>Continuous duty
Motor
>> Two-pole induction motor
>>Insulation : Class F
>> Protection IP44
Materials
>> Pump body :cast iron
>> Motor support : Cast iron
>> Impeller Stainless steel
>>Diffusers Stainless steel
>> Shaft : Stainless steel
>> Mechanical seal: Ceramic /Graphite
