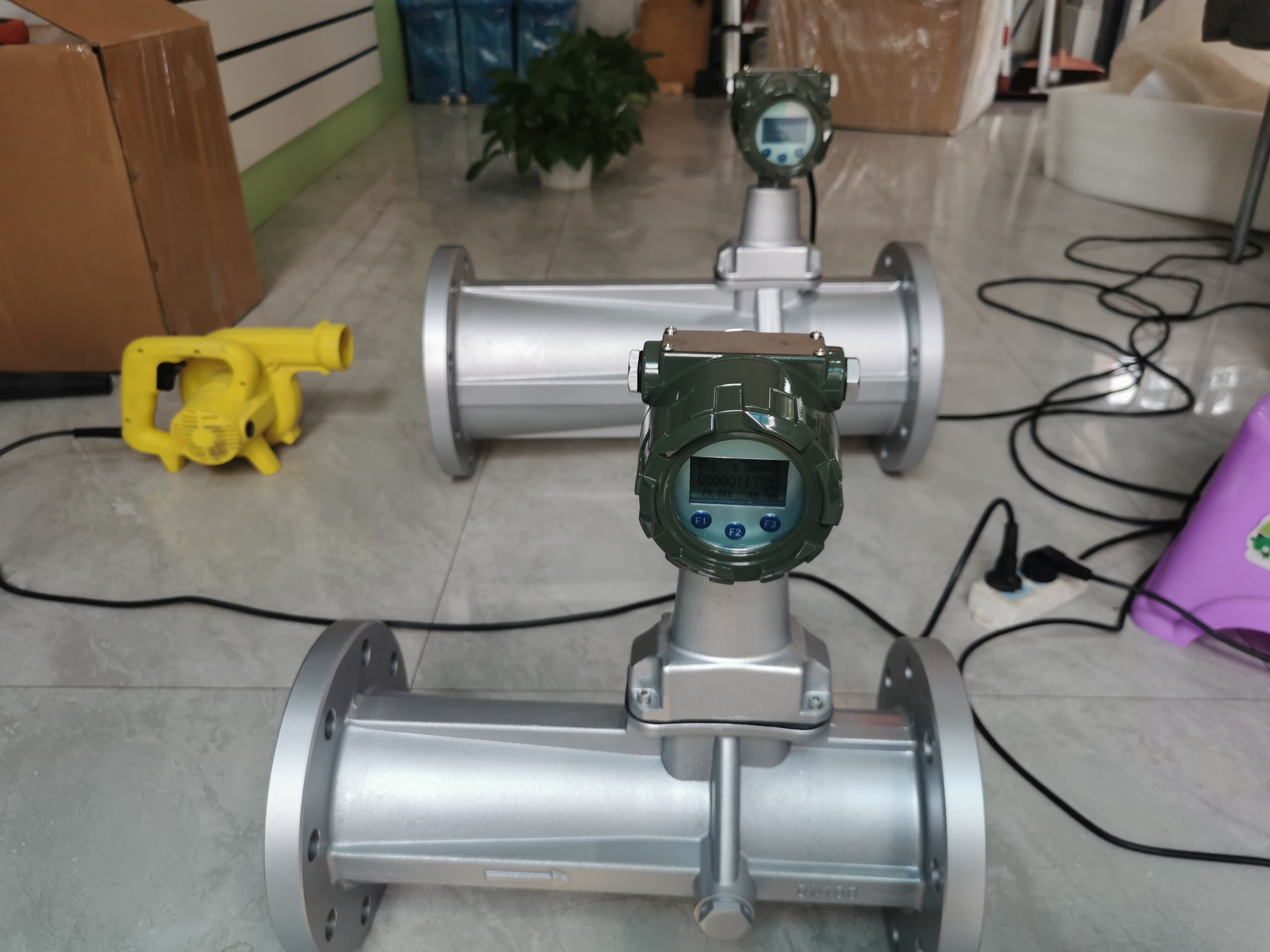

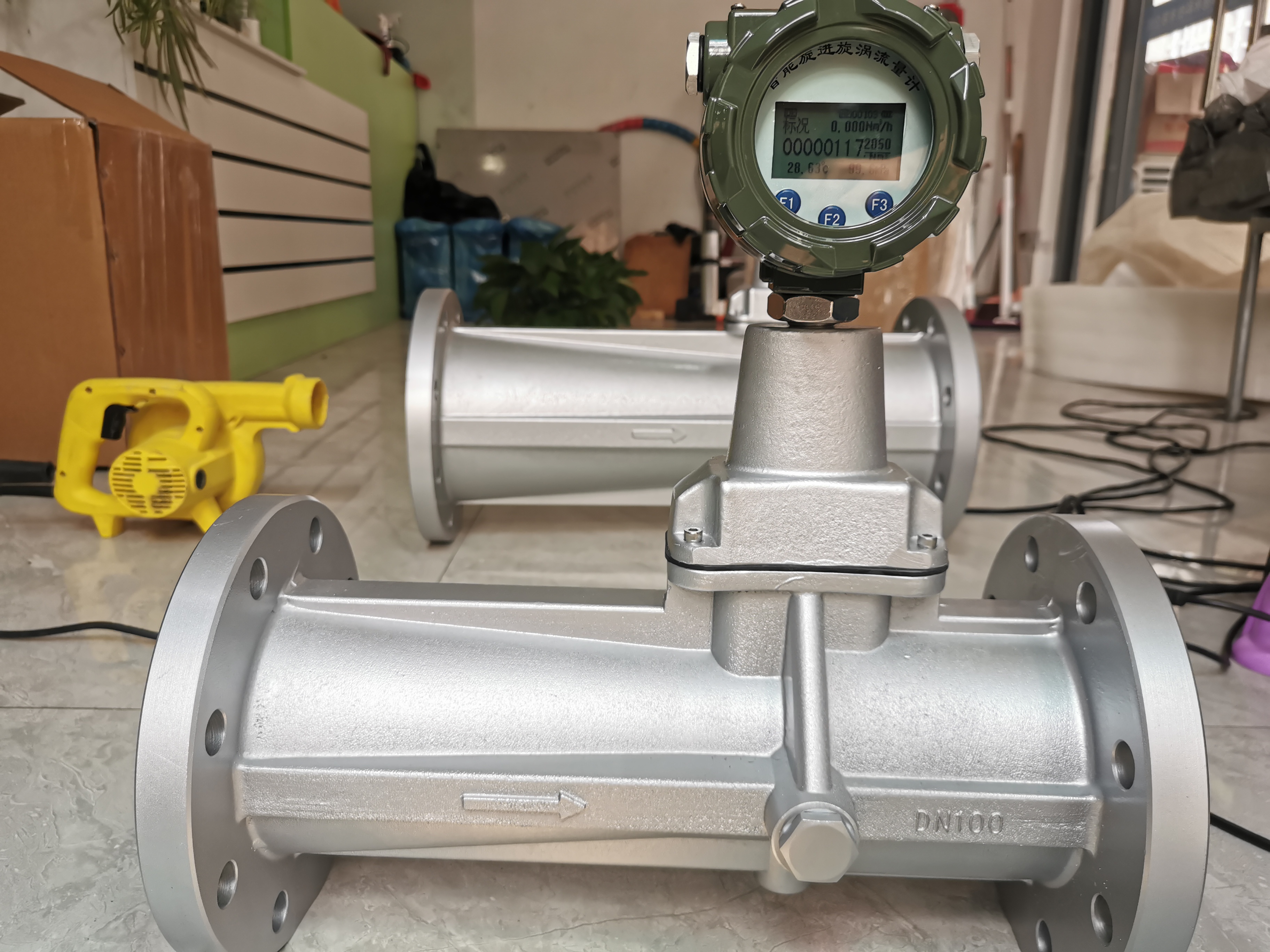

Intelligent Vortex Precession Gas Flowmeter Model: LUXZ-5H
I. Working principle
When fluid passes through the spiral vortex generator, it is forced to rotate violently around the center of the vortex generator, forming a vortex flow. The vortex flow accelerates and passes through a constriction section along the flow direction, where the flow intensity increases. When the vortex flow enters the diffusion section, under the action of the return flow of the flow guide, the vortex undergoes secondary rotation. The frequency of the secondary vortex is proportional to the flow rate. When the flowmeter is properly designed, the frequency of the vortex is linearly related to the flow rate over a wide range of flow rates. This frequency is detected by a piezoelectric sensor, calculated and processed by a flow totalizer, and displays the instantaneous flow rate and cumulative total flow rate, and transmits the corresponding 4-20mA current signal
II. Characteristics

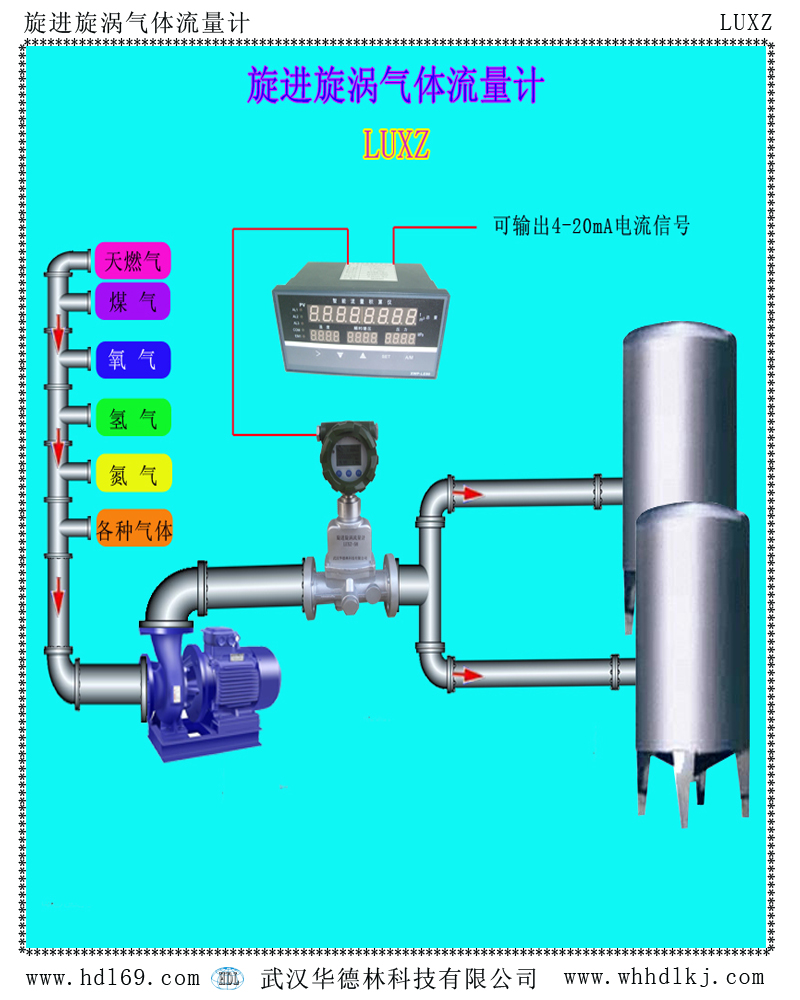

The LUXZ series intelligent vortex precession gas flowmeter adopts advanced micro-physics technology, featuring strong functionality, wide flow range, simple operation and maintenance, and convenient installation and use. Its main technical indicators have reached the advanced level of similar foreign products, making it widely applicable to the measurement of various gases in industries such as petroleum, chemical, electric power, metallurgy, and coal
1. Equipped with built-in pressure, temperature, and flow sensors, it boasts high safety performance, compact structure, and elegant appearance,
2. Display temperature, pressure, instantaneous flow rate, and cumulative total on-site.
3. By utilizing advanced signal processing amplifiers and unique filtering techniques, interference signals generated by pressure fluctuations and pipeline vibrations are effectively eliminated, greatly enhancing the anti-interference capability of the flowmeter and ensuring excellent stability for low flow rates
4. With unique time display and real-time data storage functions, internal data can be permanently saved without loss under any circumstances.
5. The entire device boasts extremely low power consumption, allowing it to operate continuously on its internal battery for extended periods. It serves as an ideal local display instrument that requires no external power source.
6. The anti-theft function is reliable, featuring password protection to prevent parameter tampering

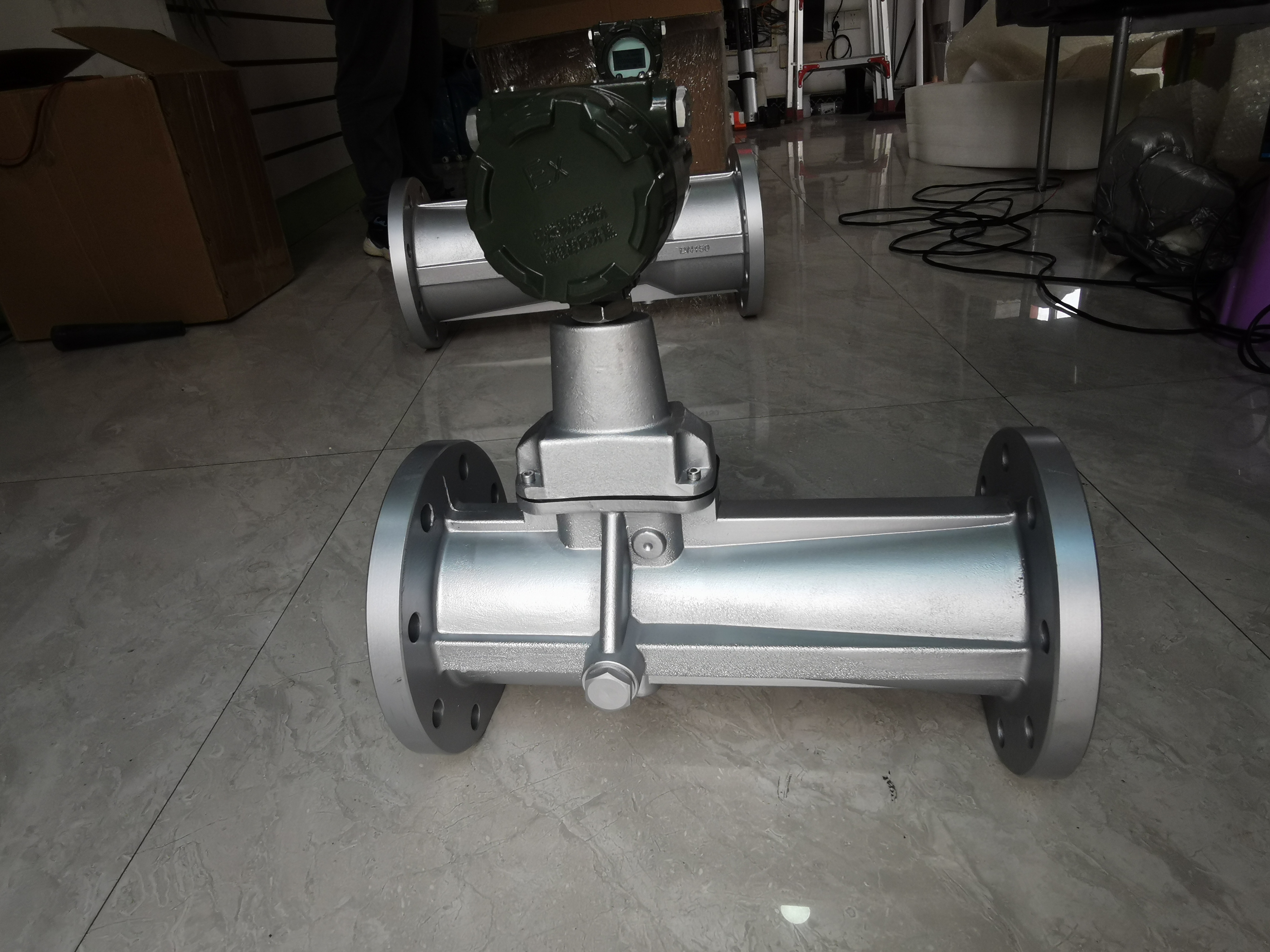

7. The meter head can be rotated freely through 180 degrees, making installation convenient.
III. Technical Parameters
1. Ambient temperature:
2. Medium temperature:
3. Operating power supply: External power supply: +24VDC. Internal power supply: 3.6 lithium battery
4. Overall power consumption: External power supply: less than 1W; Internal power supply: less than 0.3mW, with lithium battery capable of lasting for over two years
5. Output mode: 4-20mA current signal, RS485 communication
6. Explosion-proof Mark: Exd II BT4
7. Protection level: IP65
