About this product
- Materials: STEEL
- Size: 7300*2300*2200mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea
About this product
- Materials: STEEL
- Size: 7300*2300*2200mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea
Product details
| Materials | STEEL |
|---|---|
| Size | 7300*2300*2200mm |
From the supplier
Characteristics:
◆ Full automatic run. High speed.Suitable for packing bundling rolls(6,8,10 rolls in one bag).
◆ Can be connected with log saw or single roll wrapping machine.
◆ Servo system,PLC controlled.
◆ Auto feeding, auto adjustment.Adopting high quality sensors.
◆ Operated by color touch screen display.
◆ Emergency stop/ pause function, safety alarm system, air and electric power protection system.
◆ Adopting constant temperature sealing and cutting system.
- 机器技术参数
机器型号 Model
XP280
包装速度 Capacity
22提/分钟 22bundling bag/min
电源电压 Power supply
380 V三相四线 380V 50HZ
气源气压(压缩空气) Air supply
0．6 MPA(客户自备) 0.6MPA(Supplied by user)
总功率 Power
30KW
供料方式 Feeding mode
全自动双通道智能供料系统 Full automatic 2 lanes feeding system
被包物适应范围 Suitable for packing
小盘纸 jumble rolls
单个卷纸尺寸 Single roll size
Ø 180-280mm，Length:80-140mm
中包包装范围 Bag size/Rolls per bag
L(300-450)*W(160-280)*H(180-280) mm
4、6 rolls/bundling bag
中袋包装样式 Bundling bag mode
预制袋, 预留排气孔,袋子最长850mm Prefabricated bag with air-bleed hole
中袋包装膜材质Bundling bag material
PE, 厚度:5SAbove PE, thickness:：≥0.05mm
设备包装袋安装结构 Bundling bag store
悬挂式左右对称双袋库,提手孔位间距40mm Two bag storage
袋库储存数量范围 Bundling bag storing quantity
≤500Piece ≤500 pcs
整机重量 Machine weight
3000kg

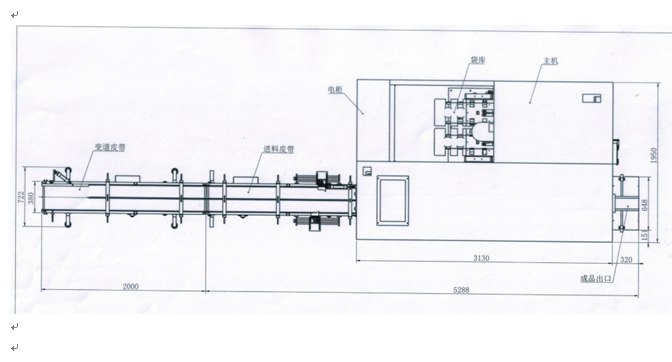

机器尺寸 Machine size
L7300*W230*H220 mm
