Product Description

Main Features

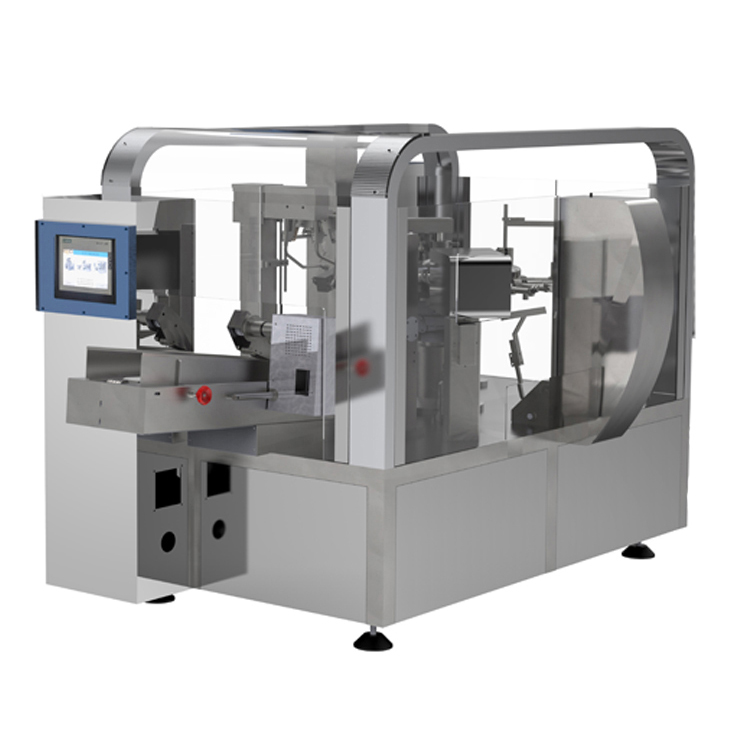

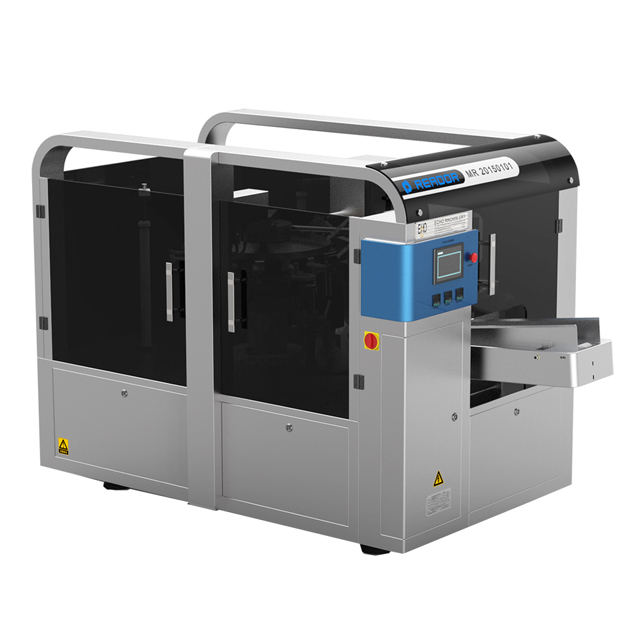

1) Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
2) The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
3) Automatic checking system can check bag situation, filling and sealing situation.
The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
4) The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.

We can customize the suitable one for you according to your requiredment.

Just Tell us : Weight or Bag Size required.

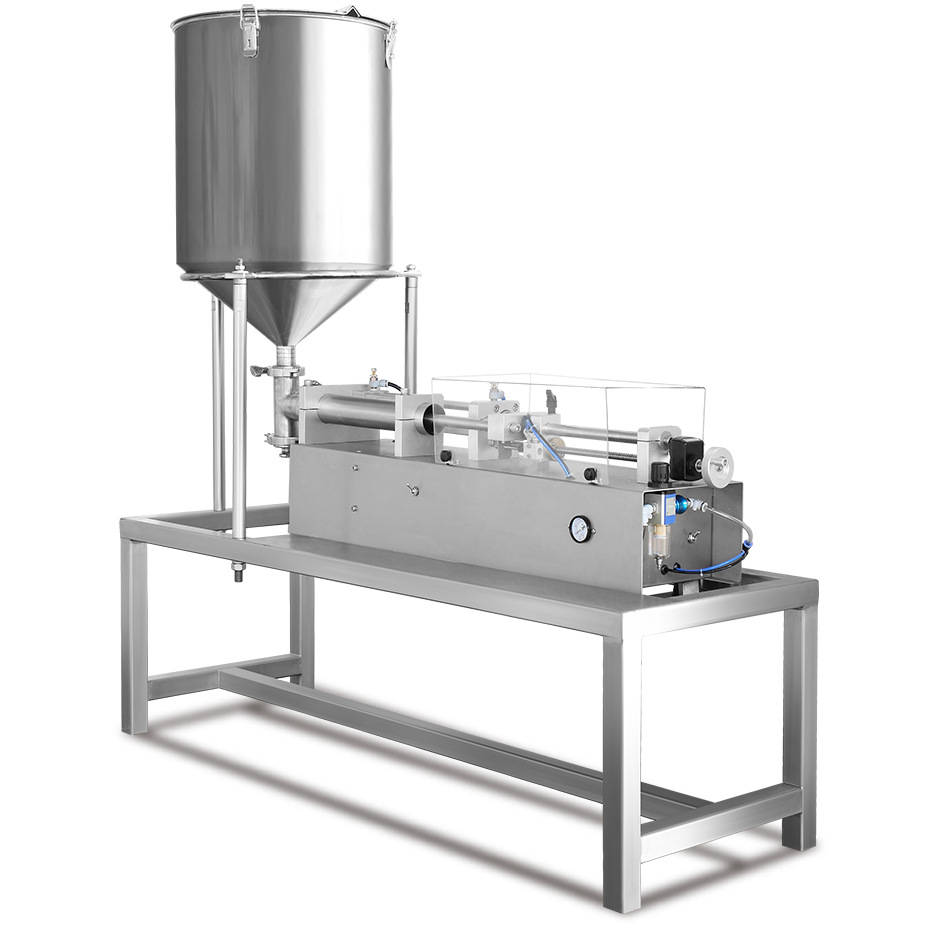

• Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste,etc.
• Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc.
• Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer,etc.
• Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc.
• Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc.

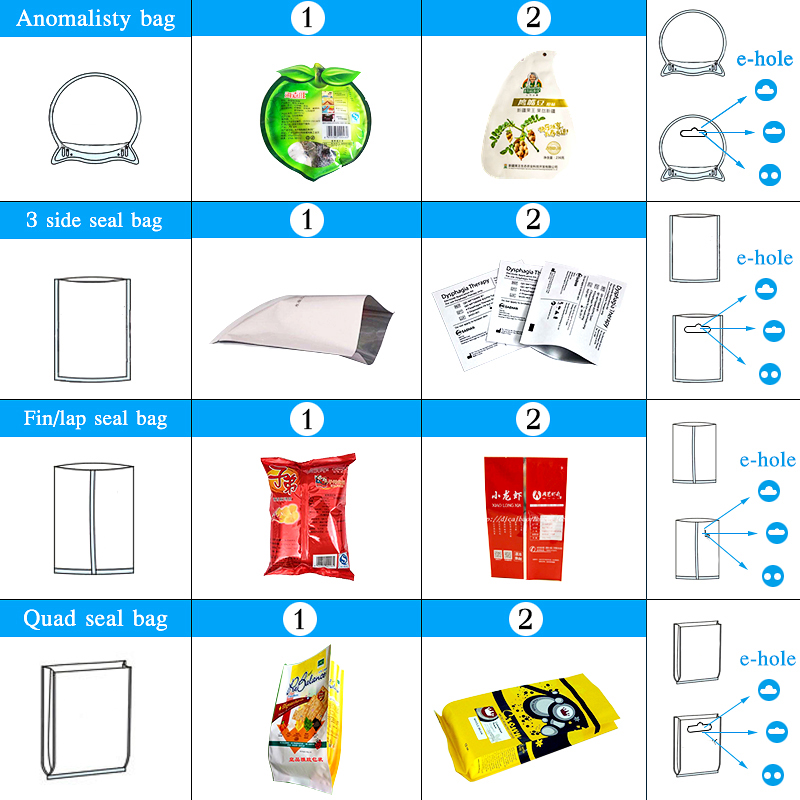

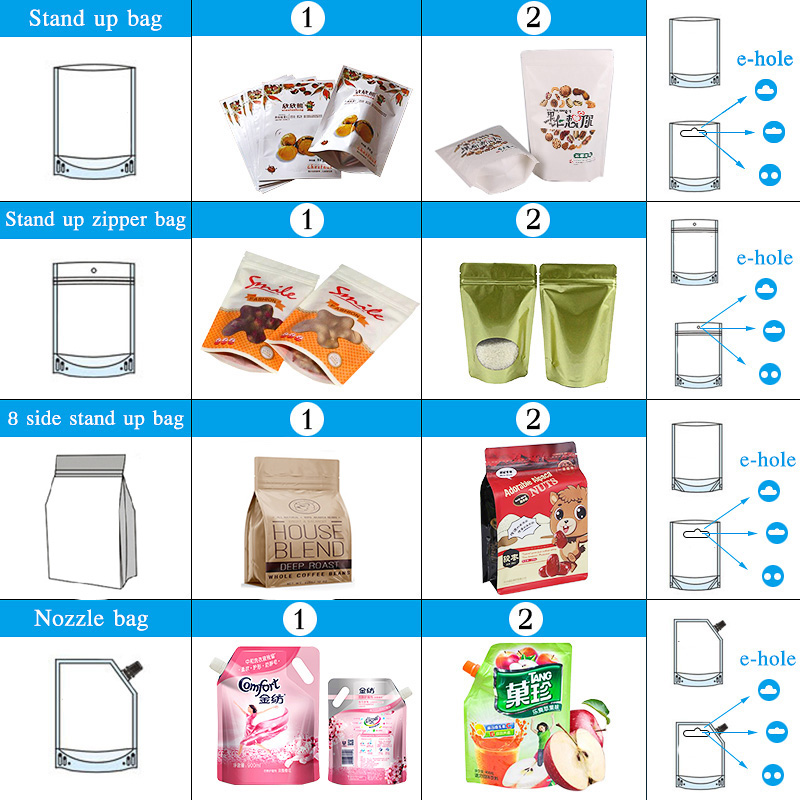

• Various bag types are available:All type of heat sealable performed side seal bags,block bottom  bags,zip-lock recloseable bags,stand-up pouch with or without spout,paper bags etc.



The Main Technical ParametersModelMR8-200/300RWBag SizeWidth:80-210/200-300mm, Length:100-300/100-350mmFilling Volume5-2500g (Depending on type of products)Capacity30-60bags/min (The speed depends on type of products and packaging material used)
25-45bags/min (For zipper bag) Package Accuracy

Error≤±1%

Total Power2.5KW (220V/380V,3PH,50HZ)Demension1710*1505*1640 (L*W*H)Weight1480KGSCompress Air Requirement≥0.8m³/min supply by user

We can customize the suitable one for you according to your requiredment.

Just Tell us : Weight or Bag Size required.



Parts of MachineParts PLCTouch ScreenFrequency ConveterVacuum PumpPrinterMain MotorTemperature ControllorProximoty Swith

Magnetic Value

CylinderBrandSIEMENSSIEMENSTOSHIBAORIONSHENG LONGEVERGEARAISET OMRONFESTOAIRTACOringinGermanyGermanyJapanJapanChinaChinaChinaJapanGermanyChinaCan replace parts as needed



Work ProcessSafety Measures

1.no bag feeding, no filling and no sealing.

2.no bag opening/open error, no filling and no sealing

3.no filling, no sealing

Product

Process

Station 1 Bag Feeding
Station 2 Date Printing (option)and Open zipper bag
Station 3 Open bag
Station 4 Filling Materials
Station 5,6,7 :Vibration,Air Removal,Nitrogen Filling,Close Zipper,Hole Punching,Heat Sealing
Remark:No.5.6.7.Stations are based on customer requirements for adjusting.
Station 8 Heat Sealing and Product Output



Stations are based on customer requirements for adjusting.



Our ServicesPre-sale Service1. Equipment model selection;
2.according to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.5. Acceptance of the product;
6. Assist the client in drafting the construction plan;Medium-sales Services
ECHO have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.After-sales Service1.One Year Warranty,As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement,Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of enployees to serve you.
3.Engineer Asssignment,Lifelong maintentance,If your equipment breaks down,we will arrange engineers to repair it.
4.Online Instruction,We open online services,as long as your equipment failure,our engineers will be the first time for a one-to-one trou-bleshooting.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.Company Information

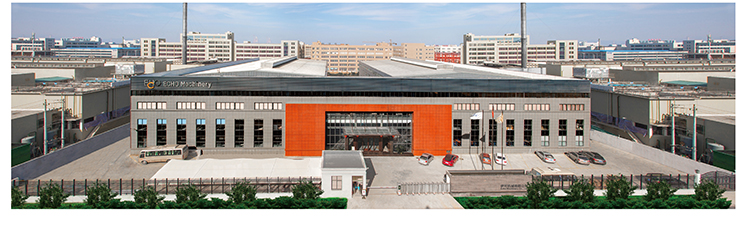

Echo Machinery CO.,LTD is manufacturing and trading company which is mainly engaged in the R&D, manufacture,marketing and service of plastic & paper bag food packaging machinery with more than 20 years in China.

The aim of Echo is to give you  a hand and assist you to solve your package problems with most suitable solution.

We are specialized in packing machine

1.Rotary packing machine

2.Horizontal bag making&packing machine

3.High speed vertical packing machine

4.Pillow packing machine

5.Vacuum packaging machine

We provide professional packing solution and do a series of service from beginning to end

Our strength

1.Equipment make and assemble strictly in accordance with CE,ISO9001(certification) standard in our own CNC.

2.20years experience in packing industrial with good after-sale service group

3.Our professional team of research and development has got our own paten for invention

4.Professional sales and engineer team with 24 hours hot line to do design packing project, problem consulting,soultion.

5.Professional engineers group as after-service team can speak English and do overseas service.

We continually design new model and improve machines and solutions to satify different and stringent requirements from market.

Our professional pre-sales and after-sales service guarantee the complete satifaction of the equipments.Welcome to work with us to win a mutual benfit future.



Packaging & Shipping



Contact US

Company Address:

No. 81, Dongsan Road, Nanbin Street, Ruian City, Zhejiang Province,China

If You Would Like To Visit Our Just Now,Plese Contact Us and We Will Arrange a Special Bus To Pick You Up.

Kindly Reminder:

Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.

1. Product details

2. Bag width,bag length

3. Bag shape

4. Packing film material

5. Machine frame

ECHO MACHINERY is still developing, and the products are also being innovated.

Welcome our old and new customers to visit our factory and make the consultation.

We will provide professional packaging solutions for you!
