Kudi CEP001 laser blanking production line
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Kudi CEP001 laser blanking production line
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: Image Dimensions
- Color: See figure
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: Image Dimensions
- Color: See figure
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | Image Dimensions |
|---|---|
| Color | See figure |
Product details
| Size | Image Dimensions |
|---|---|
| Color | See figure |
From the supplier
Function
Automatic uncoiling and leveling, online servo feeding, automatic real-time deviation correction.
Laser continuous cutting of workpieces, product stacking, waste material recycling, etc.

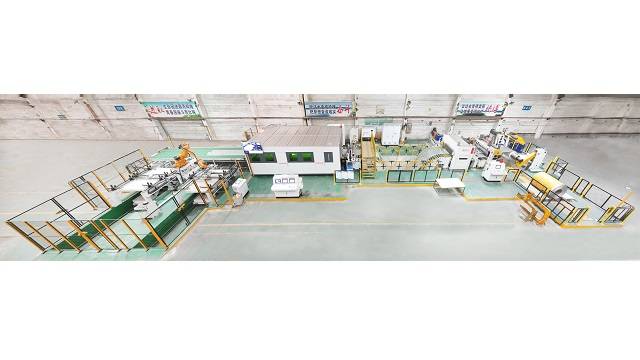

Product Composition

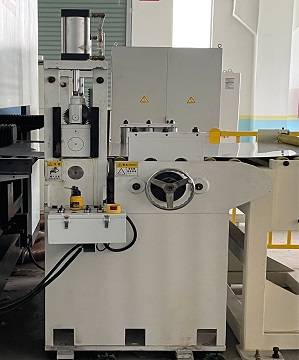

Uncoiling and leveling system / Three-in-one feeding system
Feeding System
Laser continuous cutting machine
Multiple Lasers, Multiple beams and Multiple Laser Cutting Heads
Material separation and stacking system (Optional)
Waste recycling system (Optional)
Auxiliary System (Optional)

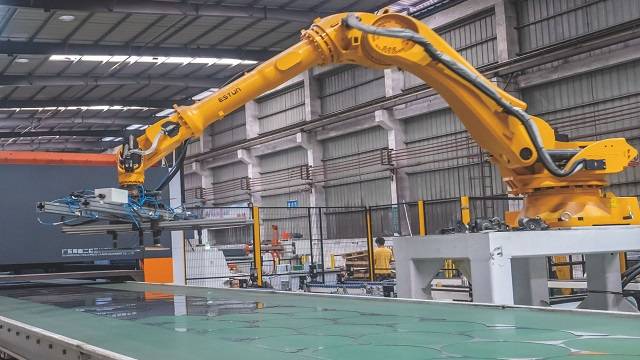

Optional gantry or robot stacking
Product Features

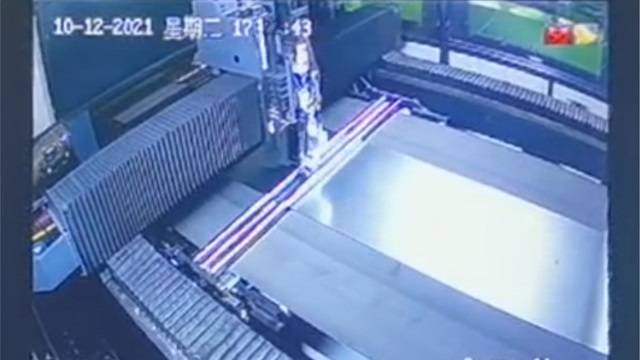

Static and dynamic continuous cutting
Belt supported, moving light slit, ensures the surface quality of the part: no scratches, no slag on the end surface
Automatically generate cutting paths
Mature, reliable, efficient and non-destructive automated stacking
High material utilization
Applicable Scenes
Specially designed for products with high surface quality requirements such as automotive exterior panels and aluminum products
Suitable for processing high-strength steel plates.
Project Parameters
Applicable Materials: Aluminum plate, steel plate, stainless steel plate
Coil Width: 500-1,850 mm
Material Thickness: 0.5-3.0 mm
Number of Cutting Heads: 1 - 2
Stacking Weight: 5 ton
Specific requirements can be discussed and communicated. We are dedicated to serving you.
From the supplier
Function
Automatic uncoiling and leveling, online servo feeding, automatic real-time deviation correction.
Laser continuous cutting of workpieces, product stacking, waste material recycling, etc.
Product Composition
Uncoiling and leveling system / Three-in-one feeding system
Feeding System
Laser continuous cutting machine
Multiple Lasers, Multiple beams and Multiple Laser Cutting Heads
Material separation and stacking system (Optional)
Waste recycling system (Optional)
Auxiliary System (Optional)
Optional gantry or robot stacking
Product Features
Static and dynamic continuous cutting
Belt supported, moving light slit, ensures the surface quality of the part: no scratches, no slag on the end surface
Automatically generate cutting paths
Mature, reliable, efficient and non-destructive automated stacking
High material utilization
Applicable Scenes
Specially designed for products with high surface quality requirements such as automotive exterior panels and aluminum products
Suitable for processing high-strength steel plates.
Project Parameters
Applicable Materials: Aluminum plate, steel plate, stainless steel plate
Coil Width: 500-1,850 mm
Material Thickness: 0.5-3.0 mm
Number of Cutting Heads: 1 - 2
Stacking Weight: 5 ton
Specific requirements can be discussed and communicated. We are dedicated to serving you.
