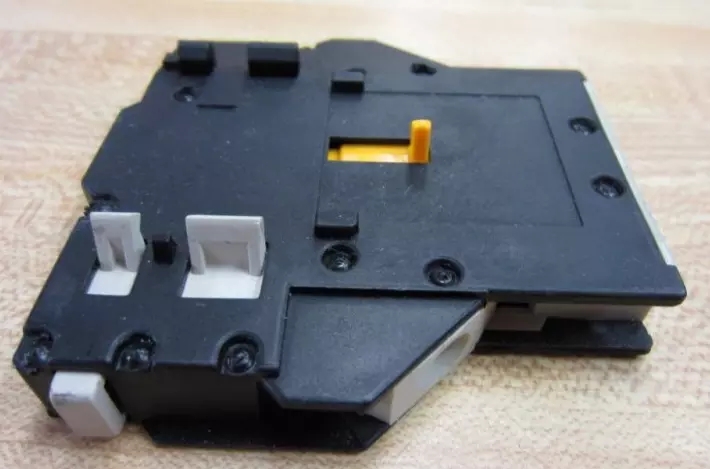

LA2-DT4 10-180S NO+NC Delay timer
SHANGHAI CET ELECTRIC CO., LTD
See what’s includedHide breakdown
- FOB goods (100)
- $234
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $6.32
- Section 301 tariff (25.0%)
- $59
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $234
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $6.32
- Section 301 tariff (25.0%)
- $59
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
LA2-DT4 10-180S NO+NC Delay timer
SHANGHAI CET ELECTRIC CO., LTDSee what’s includedHide breakdown
- FOB goods (100)
- $234
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $6.32
- Section 301 tariff (25.0%)
- $59
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $234
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $6.32
- Section 301 tariff (25.0%)
- $59
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: PC
- Color: Black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: PC
- Color: Black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | PC |
|---|---|
| Color | Black |
Product details
| Materials | PC |
|---|---|
| Color | Black |
From the supplier
LA2-D delay timer is applicable to be DLC1-D AC contactor & DLA1-DN Auxiliary contact block into DLC3-D star-delta reduced voltage starter is to start motor.
Rated insulation voltage: 600V
Rated heating current: 10A
Rated control capacity: AC-15 360VA; DC-13 33 (W)
Rated working current: AC-15 380V 0.95A; DC-13 220V 0.15A
Delay characteristics: power-on delay 1NO; power-off delay 1NC
Delay range: 0.1 ～ 3 S; 0.1 ～ 30S; 10 ～ 180 S;
Delay repeat error: ± 5%
Electrical life: 1 million times
Mechanical life: 3 million times
working principle:
The contactor's power-on delay head is an extension of the basic function of the contactor. There are relay type and module type, which can be regarded as an accessory of the contactor. Power-on delay type, that is, the delay relay contact does not act immediately after the contactor is powered on, and only acts after a delay, and the delay relay acts immediately after the contactor is powered off. In general, the relay normally open and normally closed contacts act No timing requirements.
Model: LA2-DT4
Delay range:10-180S
Poles: NO+NC
Brand: SHCET or OEM

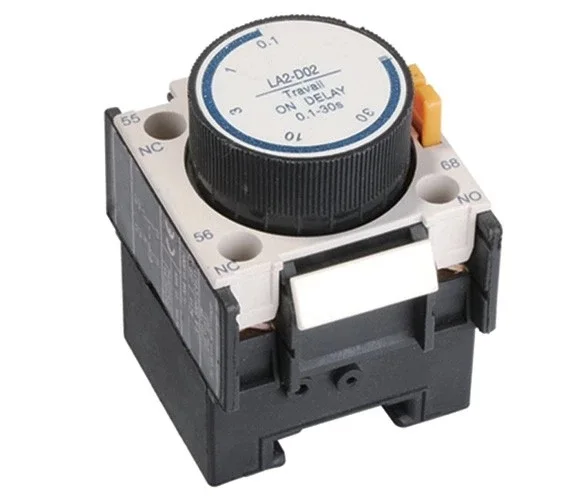

LA2 Delay TimerTypeDelay RangeNumber of delay contactsLA2-DT00.1s-3sNO+NCLA2-DT20.1s-30sLA2-DT410s-180sLA2-DR00.1s-3sLA2-DR20.1s-30sLA2-DR410s-180s
From the supplier
LA2-D delay timer is applicable to be DLC1-D AC contactor & DLA1-DN Auxiliary contact block into DLC3-D star-delta reduced voltage starter is to start motor.
Rated insulation voltage: 600V
Rated heating current: 10A
Rated control capacity: AC-15 360VA; DC-13 33 (W)
Rated working current: AC-15 380V 0.95A; DC-13 220V 0.15A
Delay characteristics: power-on delay 1NO; power-off delay 1NC
Delay range: 0.1 ～ 3 S; 0.1 ～ 30S; 10 ～ 180 S;
Delay repeat error: ± 5%
Electrical life: 1 million times
Mechanical life: 3 million times
working principle:
The contactor's power-on delay head is an extension of the basic function of the contactor. There are relay type and module type, which can be regarded as an accessory of the contactor. Power-on delay type, that is, the delay relay contact does not act immediately after the contactor is powered on, and only acts after a delay, and the delay relay acts immediately after the contactor is powered off. In general, the relay normally open and normally closed contacts act No timing requirements.
Model: LA2-DT4
Delay range:10-180S
Poles: NO+NC
Brand: SHCET or OEM
LA2 Delay TimerTypeDelay RangeNumber of delay contactsLA2-DT00.1s-3sNO+NCLA2-DT20.1s-30sLA2-DT410s-180sLA2-DR00.1s-3sLA2-DR20.1s-30sLA2-DR410s-180s
