About this product

Materials: High chromium alloy
Color: customizable
Exports to: Africa, Southeast Asia, South Asia, Other European Countries, Others
Made in: Shandong, China

$1,00000–$25,00000/ unit FOB

MOQ 1 unit

Estimated landed cost

$16,736 / unit

range $1,298–$32,171 · total ≈ $1,673,580

Quantity

FOB goods (100): $1,300,000
Ocean freight + handling (1.0 CBM): $820
US duty (3.5%): $45,500
Section 301 tariff (25.0%): $325,000
Customs fees (MPF/HMF): $2,260

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Get a quote from this supplier See all sourcing services

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

Materials: High chromium alloy
Color: customizable
Exports to: Africa, Southeast Asia, South Asia, Other European Countries, Others
Made in: Shandong, China

Product details

Materials	High chromium alloy
Color	customizable

From the supplier

Large Flow Sand Suction Dredging PumpProduct Description

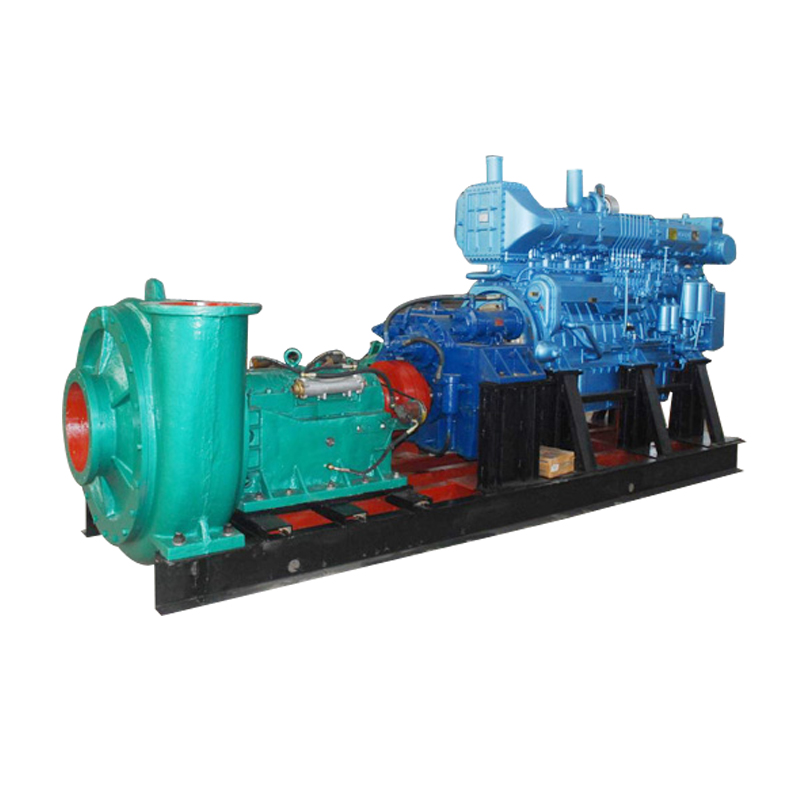

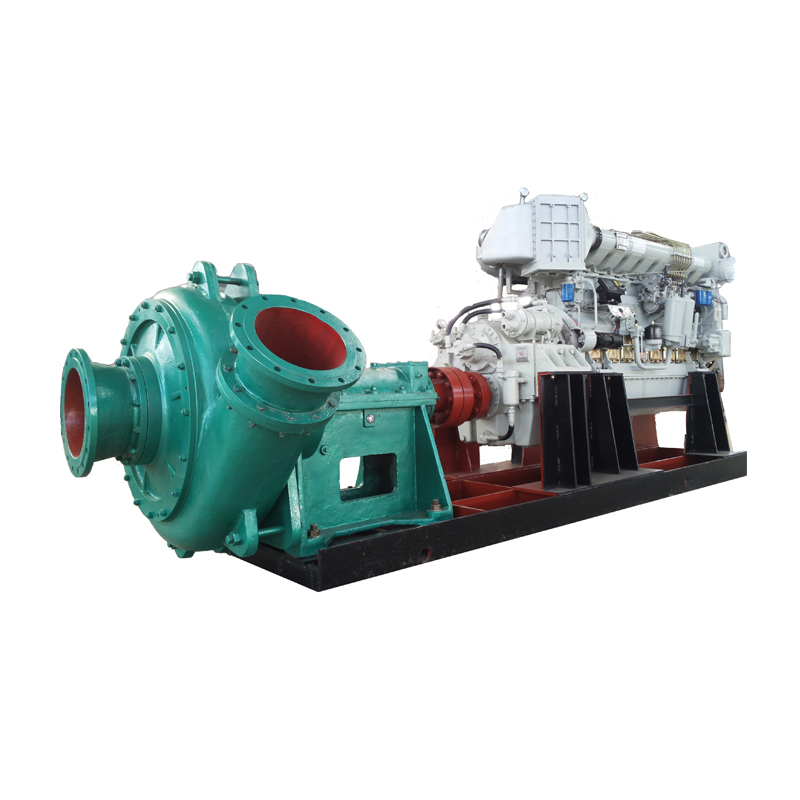

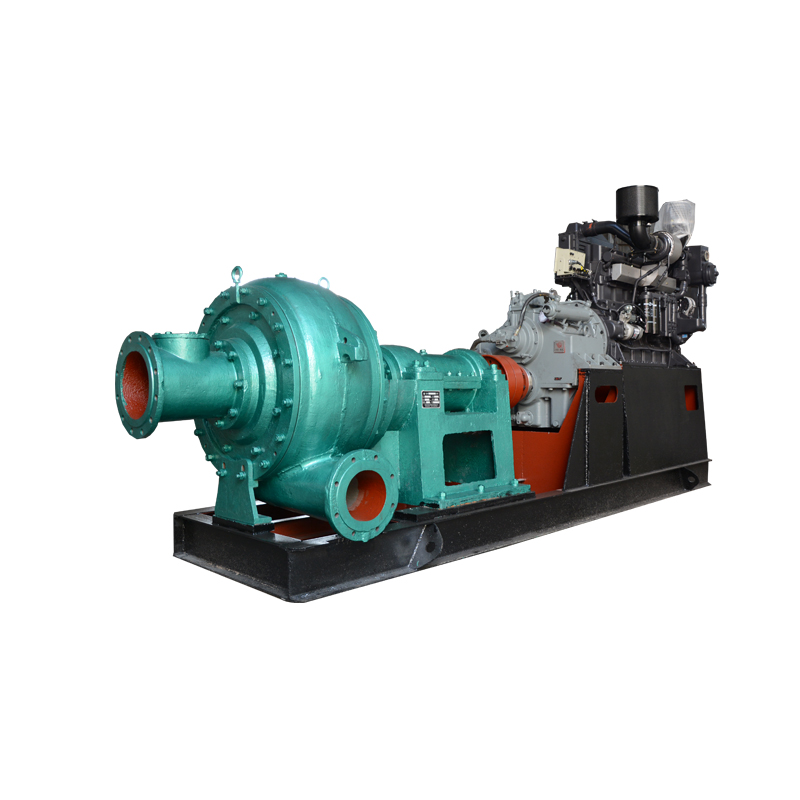

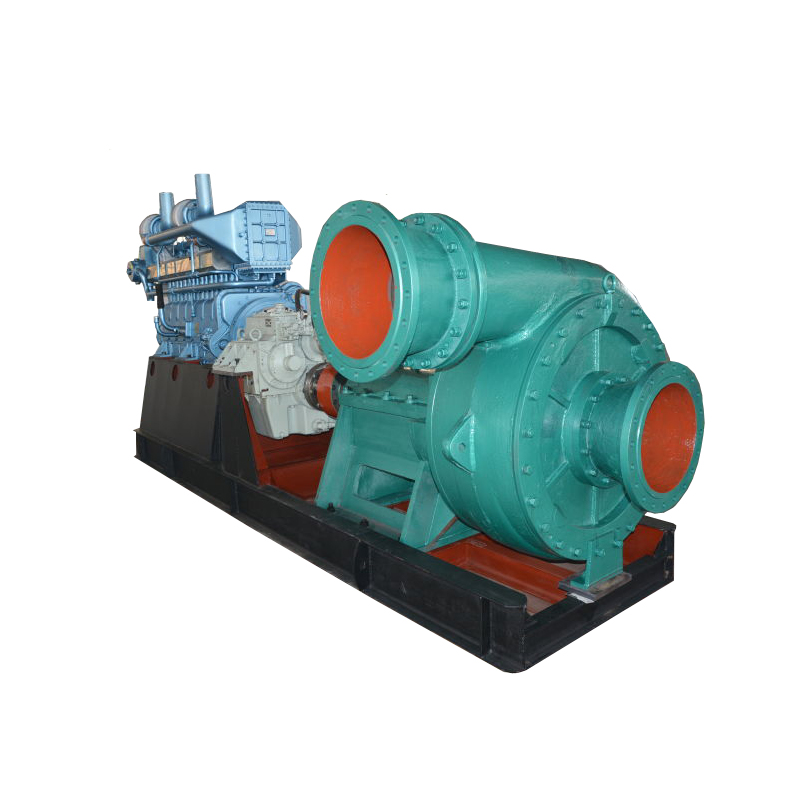

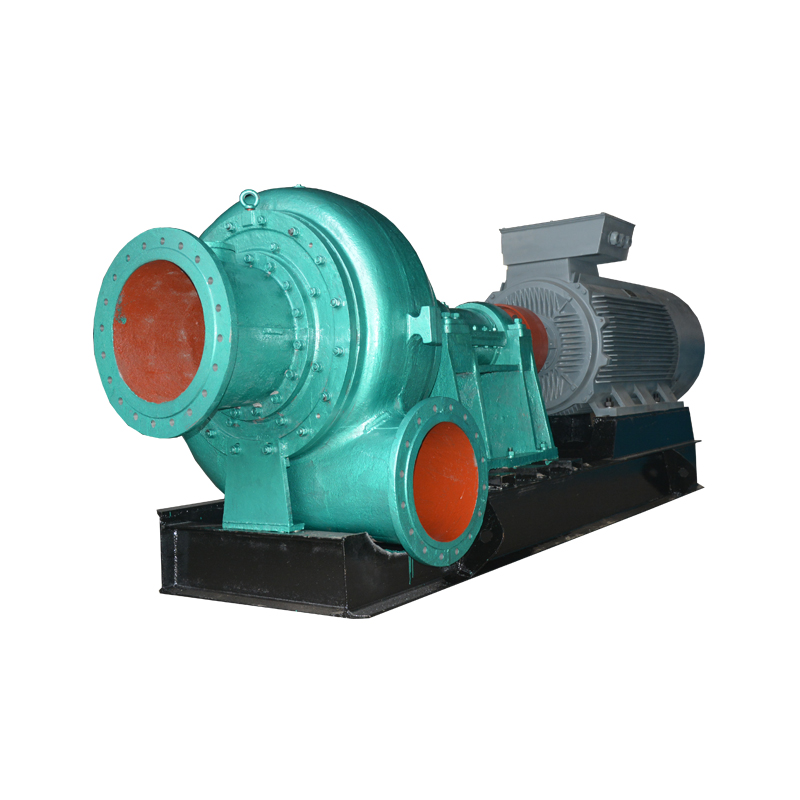

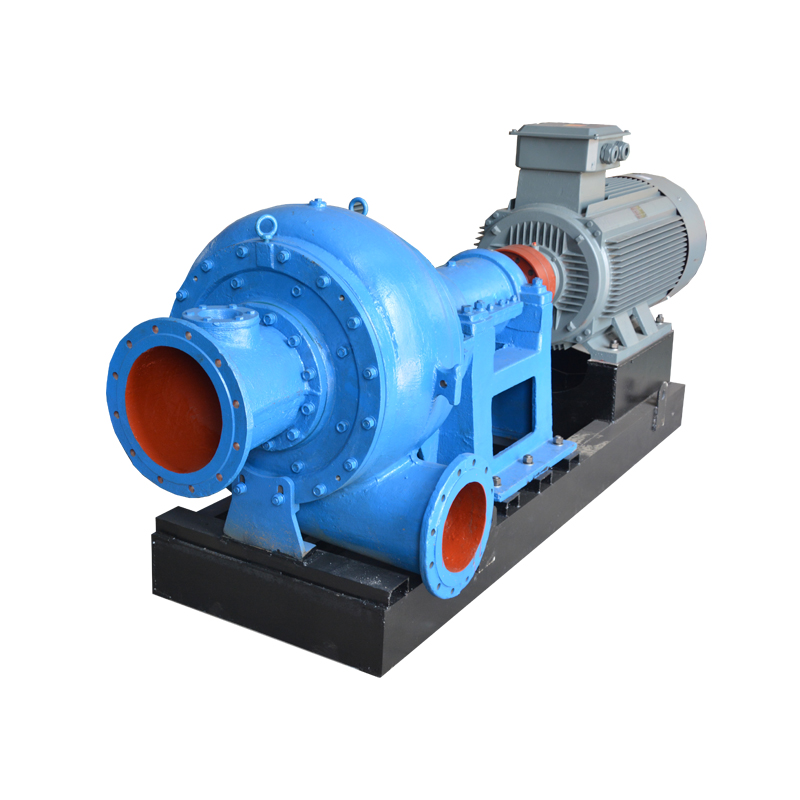

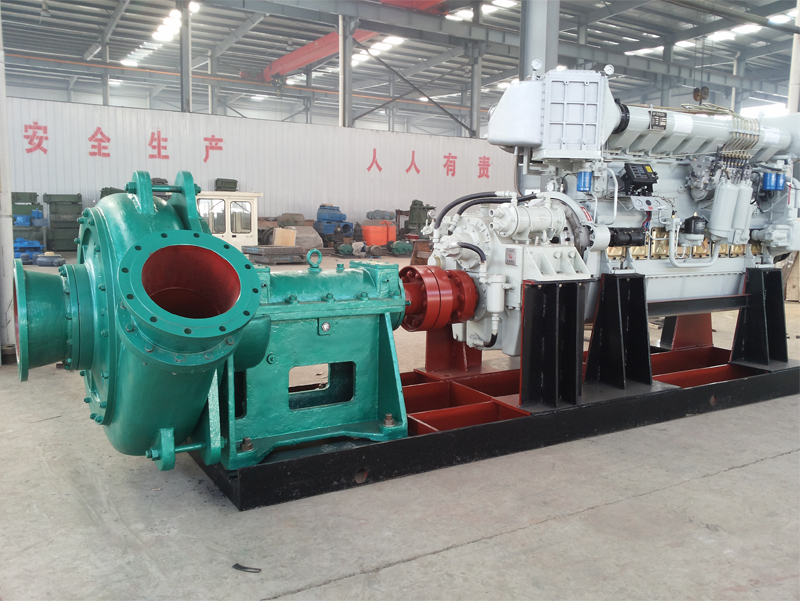

Suction dredge pumps is suitable to deliver low density slurry for metallurgical, mining, coal and building material, the suction dredge pumps can be used to extract a variety of fine sand in industrial and mining enterprises. The suction dredge pumps has the characteristics of high efficiency, energy saving, wear resistance, corrosion resistance, reliable operation, high lift head, large flow (Max. mixed flow rate is up to 2000-5000m3/h), deep dredging depth (Max. dredging depth is up to 30m), long delivery distance(longest delivery distance is up to 2km). The power of suction dredge pumps can be electric motor or diesel engine.

The shaft seal of suction dredge pumps is packing seal. The high pressure flushing water is added to clean the packing chamber and ensure the normal operation of the heavy duty pump. The steering of suction dredge pumps is counterclockwise in the inlet. The outlet of the suction dredge pumps is on the right side of horizontal direction of the suction dredge pumps. The outlet can be adjusted within 360 degrees according to the requirement. The material of suction dredge pumps casing can be cast iron, cast steel or alloy. The material of the impeller and guard plate can be cast iron, cast steel, wear-resistant alloy, or non-metal wear-resistant material. The users can choose different types according to the actual application.

Specification

suction dredge pumps structure description diagram

suction dredge pumps specifications

TypeFlowHeadRotation rateDiesel engineImpeller diameterDiameter(inch)(m³/h)(m)(r/min)(hp)(mm)InletOutlet200PNS-305404898018055086410287307586250PNS-248503898025055010862021730122108250ND-2280022730150-2506201010250PNS-30111030730185-250650108250PNS-35145035730250670108350PNS-24165024730250-3005601412350PNS-35180035730350-4086901412400PNS-30220030730408-4506501614450PNS-30260030700520-6007201816500PNS-40285038700580-7207502016350DN-50240050550720-8189501614450DN-60315042550540-72010001816500DN-30392028550818-10009002016550DN-60400060500818-120010002218Features

1.Material : Using the cast iron ,cast steel or high wear resistant and strong corrosion resistance chrome alloy to make the over -flow part .

2.Long-term bearing life .The bearing assembly is composed of large diameter shaft and short overhang.

3.with distinctive innovation in hydraulic and structural design.

4.Large dredging depth, high density of dredging mud, good NPSH (net positive suction head)and strong suction lift ability.

5. the suction depth up to 35 meter under water, discharge head up to 60 meter and discharge distance up to 1000 meter-1500 meter without boost pump. The gravel size allow to pass through up to 80mm.

Application

Apply for sand suction and dredging, extracting mud for ship, marine reclamation land, wharf building electric power and metallurgical industry for conveying tailing, and in coal washing industry for filtering coal slime.

Successful cases

On November 5th, 2018, our customer from Malaysia sent us an inquiry about suction dredge pumps. He wanted to purchase suction dredge pumps mainly used for sedimentation tank dredging. He required to pump the sediment into the sedimentation tank. The size of sedimentation tank was 5 m* 6 m*3 m. He planed to finished the dredging task within one hour. The discharge distance was 200m, the height was 5m. After discussed with the customer, our engineer team selected 200PNS-300 suction dredge pumps. At the same time, we recommended the customer 8 inch sand suction rubber hose and HDPE pipe. The customer had electric power near the work site, so we equipped the suction dredge pumps with 55kw electric motor. In order to ensure the safety of the electric motor and easy operation, we attached a 75 KW frequency cabinet.

suction dredge pumps Performance ParametersModel200PNS-30Flow410m³/hHead28mRotating speed730rpmPower55kwDischarge distance200m

After accepted the suction dredge pumps, our customer took videos for us. We helped him design the installation line. According to our design drawings, the customer finished the dredging task as planned. They were very pleased with the efficiency of our heavy duty suction dredge pumps.

Related productsAbout Ocean Pump

OCEAN Pump Factory is located in Taian City, the famous tourist city near the expressway from Beijing to Shanghai, Shandong Province, China. As the leading suction dredge pumps designer and manufacturer, OCEAN Pump has its own 15,000 square meters state-of-art manufacturing factory. In recent years, we had invested more than 700,000 dollars into our modern manufacturing factory to improve the basic production facilities , working conditions, employee salary and welfare, technical and teamwork training, etc.
