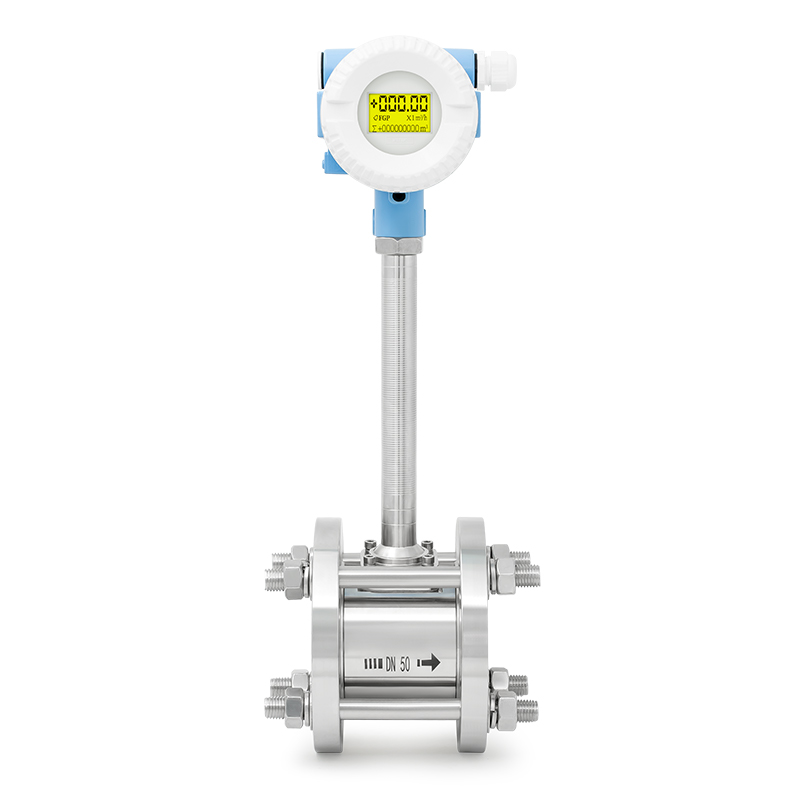

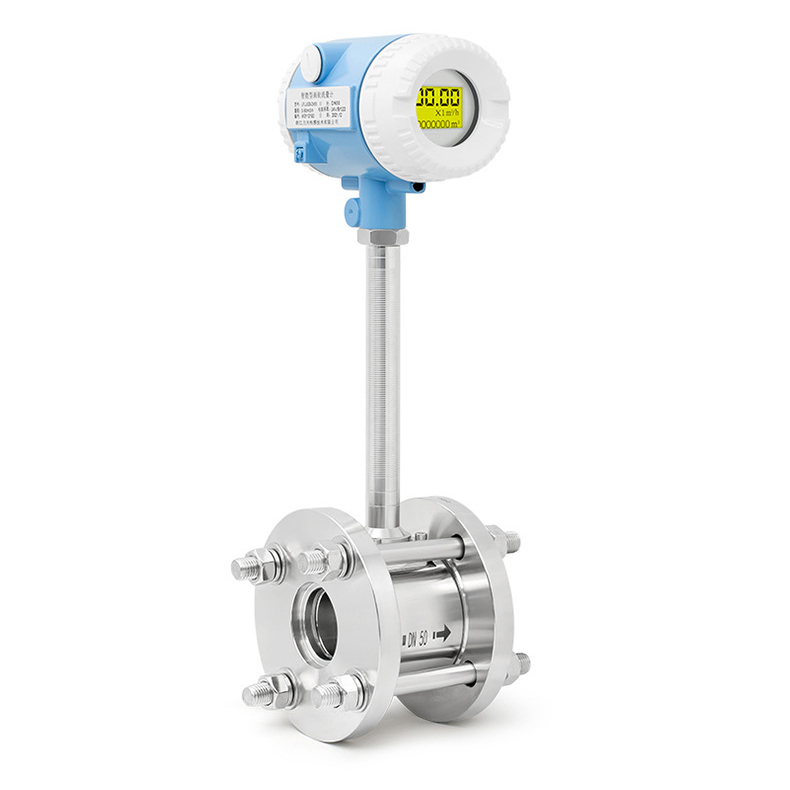

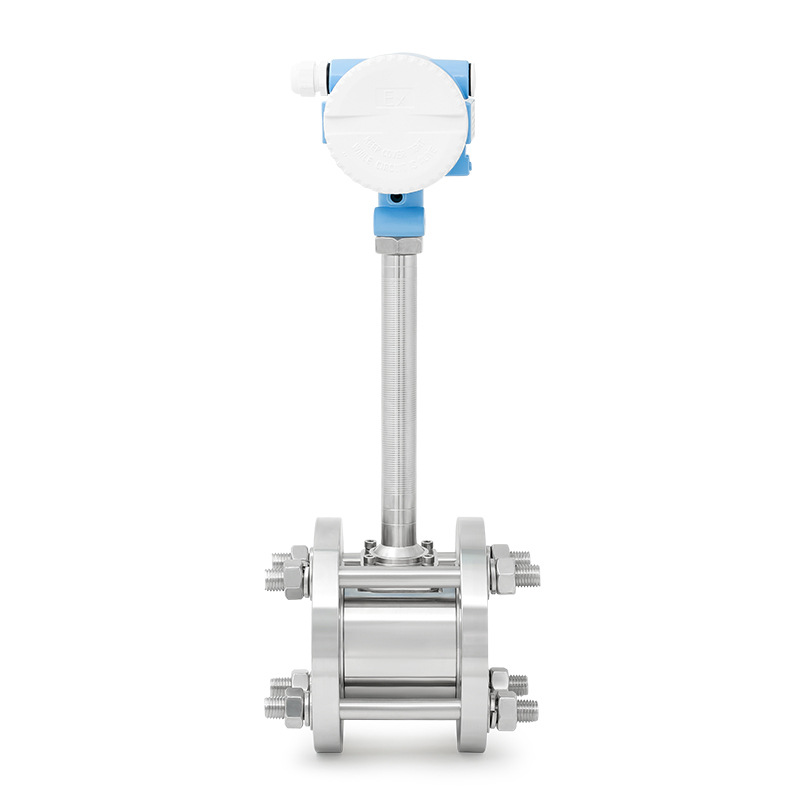

LEFOO intelligent vortex flowmeter Steam natural gas thermal conductivity gasoline sewage flowmeter
ZHEJIANG LEFOO CONTROLS CO., LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
LEFOO intelligent vortex flowmeter Steam natural gas thermal conductivity gasoline sewage flowmeter
ZHEJIANG LEFOO CONTROLS CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 104*600
- Color: white
- Usage: OtherIndustrial
- Customized: Non-CustomizedCustomized
- Certification: Other
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: 104*600
- Color: white
- Usage: OtherIndustrial
- Customized: Non-CustomizedCustomized
- Certification: Other
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | 104*600 |
|---|---|
| Color | white |
| Usage | OtherIndustrial |
| Customized | Non-CustomizedCustomized |
| Certification | Other |
| Material | Other |
| IP rating | IP65 |
Product details
| Size | 104*600 |
|---|---|
| Color | white |
| Usage | OtherIndustrial |
| Customized | Non-CustomizedCustomized |
| Certification | Other |
| Material | Other |
| IP rating | IP65 |
From the supplier
Vortex flowmeter is a volume flowmeter that measures the volume flow of gas, steam or liquid, the volume flow of standard conditions or mass flow according to the Karman vortex principle. Mainly used for flow measurement of industrial pipeline medium fluid, such as gas, liquid, steam and other media. It is hardly affected by parameters such as fluid density, pressure, temperature, viscosity, etc. when measuring the volume flow of the working condition. No moving mechanical parts, so high reliability and low maintenance. Instrument parameters can be stable for a long time.
Features
The structure is simple and firm;
There are many types of applicable fluids;
High precision;
Wide range;
Small pressure loss.
Advantages
1. Simple structure, no moving wear parts.
2. High measurement accuracy and reliability, no need for on-site debugging.
3. It can transmit traffic signals over long distances, and can be networked with computers to achieve centralized management.
4. The amplifying board adopts a unique design, which is universal for gas and liquid.
Specification
Latus rectum
10-300mm
Maximum velocity of flow
10m/s
Output signal
4-20mA, HART, RS485
Electrical connection
Connection Terminals
Comprehensive accuracy class
1
Fluid Electrical Conductivity
≥5μs/cm
Power supply
220VAC, 24VDC
Power consumption
<20W
Nominal pressure
4.0MPa / 2.5MPa / 1.0MPa / 0.6MPa
Ambient temperature
-25°C ~ 60°C
Measured medium temperature
-40°C ~ 350°C
Connection flange material
Carbon steel / Stainless steel (304, 316, 316L)
Explosion-proof level
IallCT6 (intrinsically safe explosion-proof)
Protection grade
IP65
Certification
CE, ROHS
From the supplier
Vortex flowmeter is a volume flowmeter that measures the volume flow of gas, steam or liquid, the volume flow of standard conditions or mass flow according to the Karman vortex principle. Mainly used for flow measurement of industrial pipeline medium fluid, such as gas, liquid, steam and other media. It is hardly affected by parameters such as fluid density, pressure, temperature, viscosity, etc. when measuring the volume flow of the working condition. No moving mechanical parts, so high reliability and low maintenance. Instrument parameters can be stable for a long time.
Features
The structure is simple and firm;
There are many types of applicable fluids;
High precision;
Wide range;
Small pressure loss.
Advantages
1. Simple structure, no moving wear parts.
2. High measurement accuracy and reliability, no need for on-site debugging.
3. It can transmit traffic signals over long distances, and can be networked with computers to achieve centralized management.
4. The amplifying board adopts a unique design, which is universal for gas and liquid.
Specification
Latus rectum
10-300mm
Maximum velocity of flow
10m/s
Output signal
4-20mA, HART, RS485
Electrical connection
Connection Terminals
Comprehensive accuracy class
1
Fluid Electrical Conductivity
≥5μs/cm
Power supply
220VAC, 24VDC
Power consumption
<20W
Nominal pressure
4.0MPa / 2.5MPa / 1.0MPa / 0.6MPa
Ambient temperature
-25°C ~ 60°C
Measured medium temperature
-40°C ~ 350°C
Connection flange material
Carbon steel / Stainless steel (304, 316, 316L)
Explosion-proof level
IallCT6 (intrinsically safe explosion-proof)
Protection grade
IP65
Certification
CE, ROHS
