Aikunrui ACM mass flowmeter
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Aikunrui ACM mass flowmeter
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: Image Dimensions
- Color: See figure
- Certification: Other
- Material: Other
- Usage: Other
- IP rating: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: Image Dimensions
- Color: See figure
- Certification: Other
- Material: Other
- Usage: Other
- IP rating: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | Image Dimensions |
|---|---|
| Color | See figure |
| Certification | Other |
| Material | Other |
| Usage | Other |
| IP rating | Other |
| Customized | Customized |
Product details
| Size | Image Dimensions |
|---|---|
| Color | See figure |
| Certification | Other |
| Material | Other |
| Usage | Other |
| IP rating | Other |
| Customized | Customized |
From the supplier

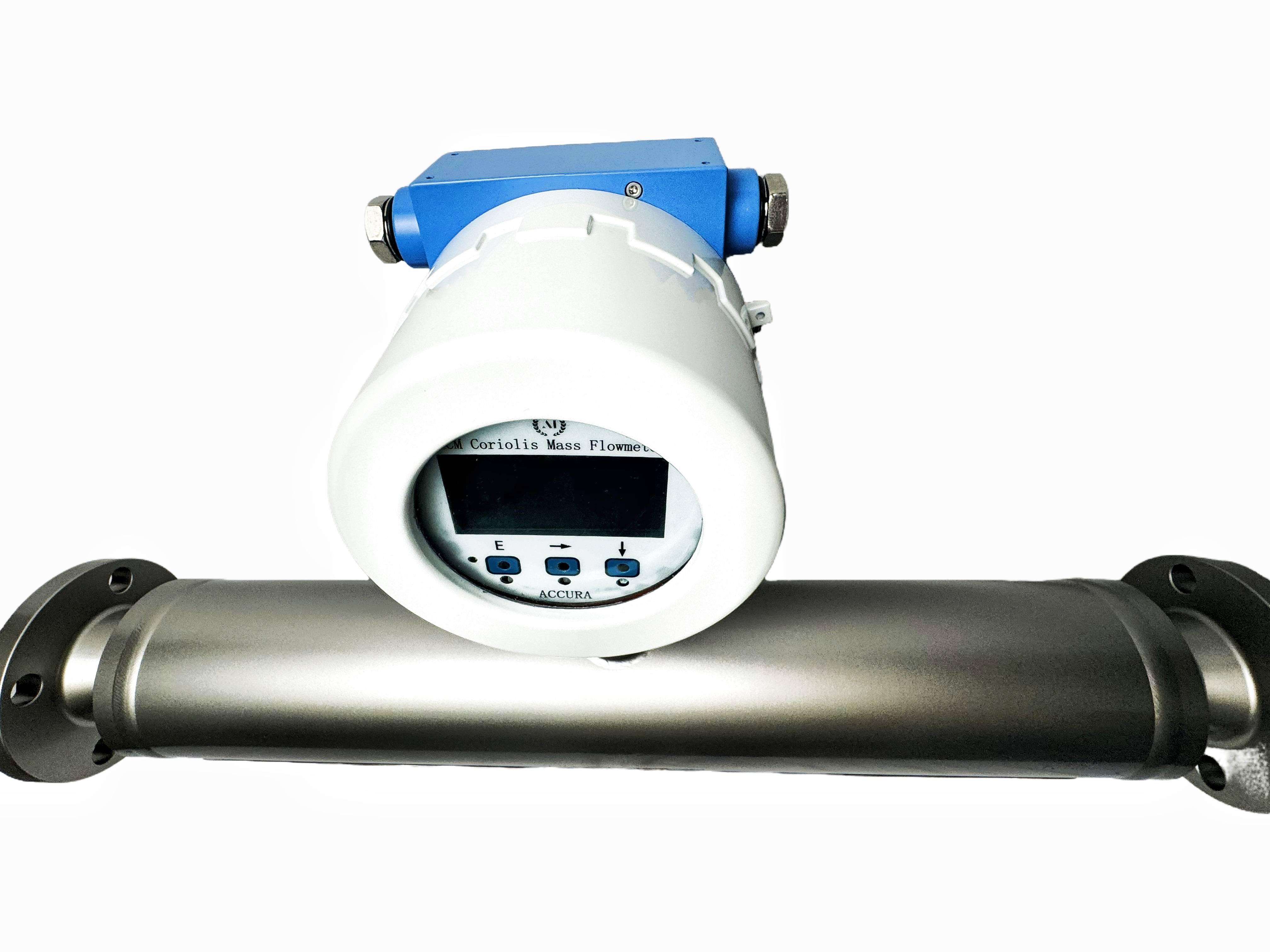

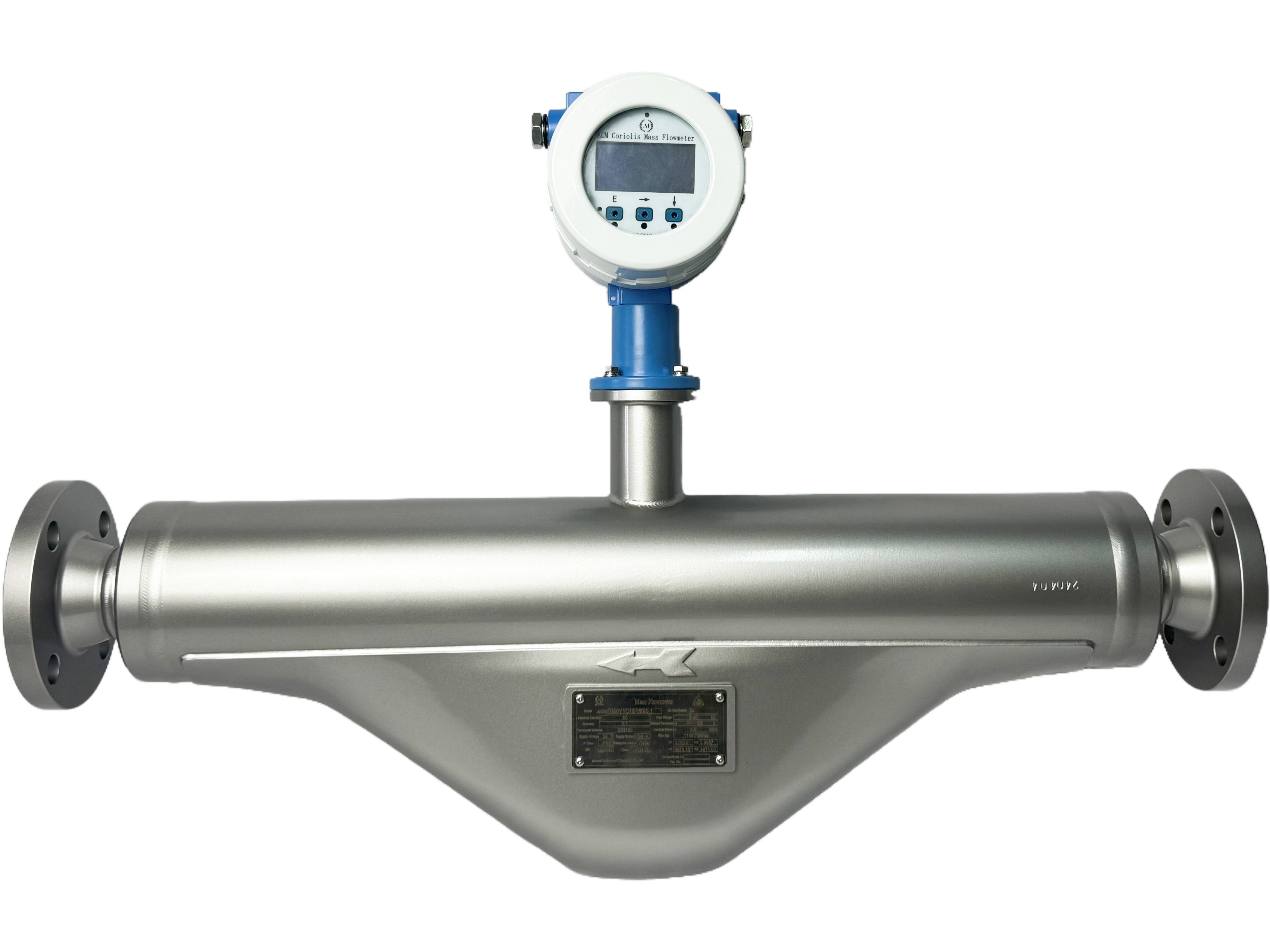

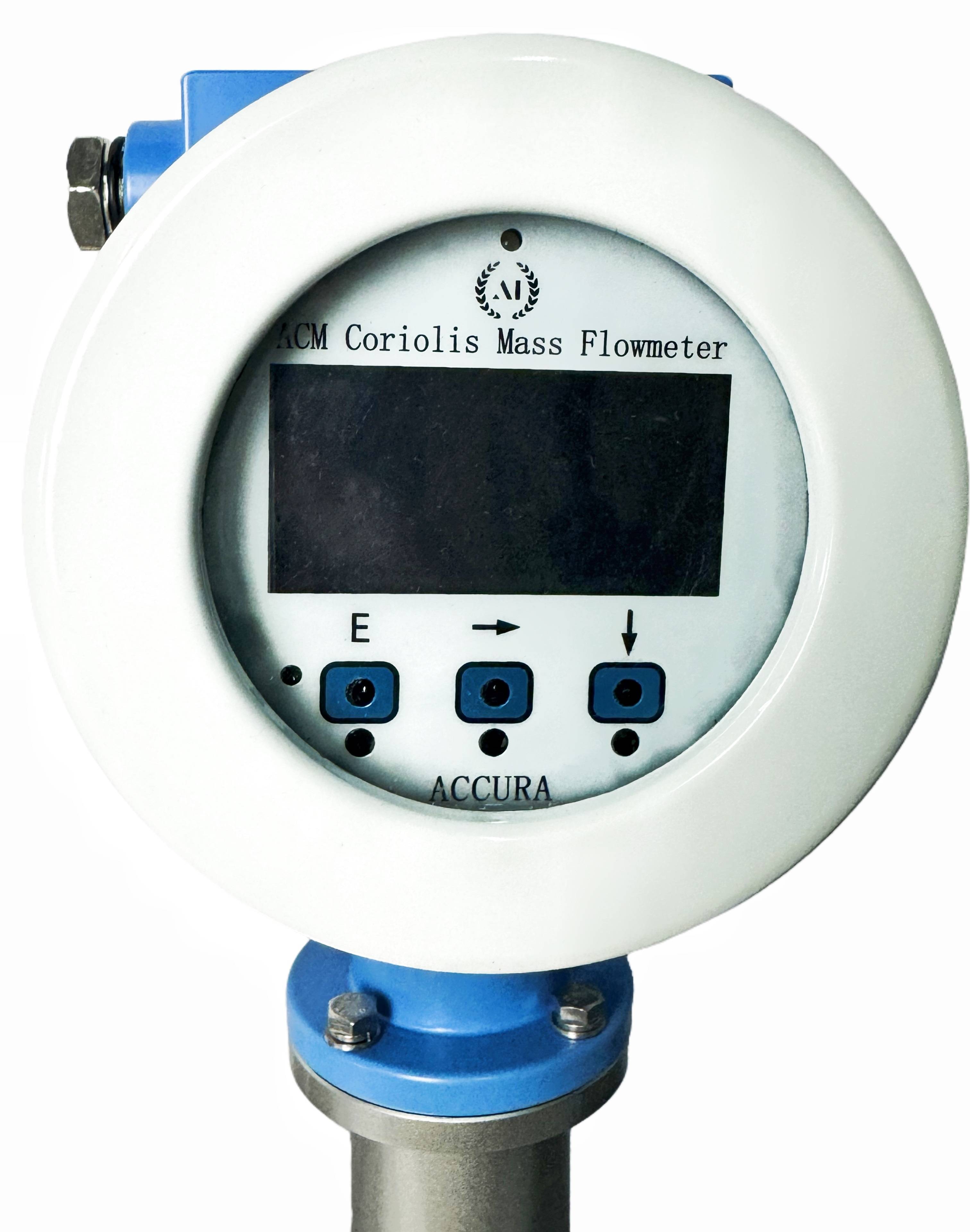

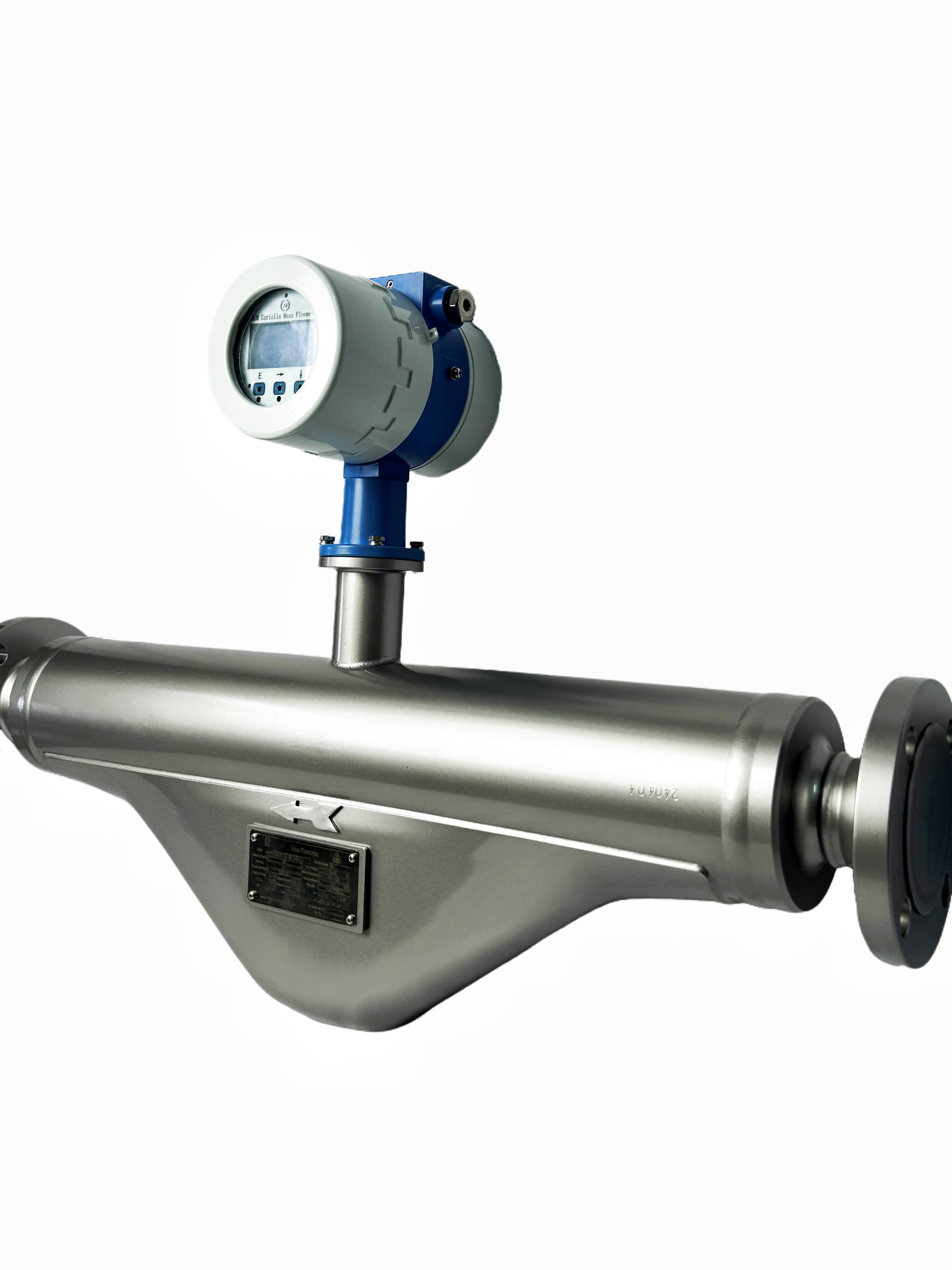

The Coriolis mass flowmeter is a national key product developed by our company, has the characteristics of small pressure loss, small volume, and convenient on-site installation, which is widely used in process inspection and trade handover measurement in petroleum, petrochemical, chemical, shipping, pharmaceutical, municipal, paper making, food, energy and other industries. It is highly valued by domestic and foreign flow measurement circles and welcomed by users. It is a relatively advanced and fast developing flow.
With the application of digital signal processing technology, with DSP chips as the processing core, Coriolis mass flowmeter that can accurately detect high-frequency signals of flow meter was developed. Compared with traditional mass flow meter, it significantly reduces pressure loss, expands the flow range, and greatly improves stability and reliability, reaching the international advanced level.
The Coriolis mass flowmeter produced by our company has complete intellectual property rights and has obtained multiple invention patents and utility model patents. It has the characteristics of high accuracy and good repeatability, and can achieve high-precision measurement of mass flow in a relatively large range. In addition to measuring uniform fluids with a certain viscosity, it can also measure various high viscosity, non Newtonian fluids.
The Coriolis mass flowmeter effectively improves the mechanical characteristics and quality factors of the Coriolis mass flow meter sensor, reduces the volume of the flow meter to a greater extent, and is more convenient for on-site installation and application. It has the characteristics of low resistance and low pressure loss, which greatly improves measurement accuracy, expands the range ratio, improves anti-interference ability, and meets the increasingly complex on-site working conditions for high-precision measurement to a greater extent.
DN (mm)
8, 10, 15, 25, 40, 50, 80, 100, 150, 200, 250
Structure
Integratetype (-50~+125)℃, separated type (-50~+200)℃
High-temp separated type (-50~+350)℃, Low-temp (-200~+125)℃
Transmitter
Digital Type
PowerSupply
DC( 18~ 30)V, AC(85 ~ 250)V
Output Interface
RS485 Modbus, HART
Nominl Pressure (MPa)
1.6 2.5 4.0 6.3
Signal output
Pulse output, (4-20)mA
Accuracy
0.1%, 0.15%, 0.2%, 0.5%
DN
(mm)
Max flow range
(kg/h)
Flow range for accuracy
0.1%,0.15% (kg/h)
Flow range for accuracy
0.2% (kg/h)
Flow range for accuracy
0.5%(kg/h)
Stability of zero point
(kg/h)
8
8~800
80~800
55~800
40~800
0.035
10
10~1000
100~1000
70~1000
50~1000
0.045
15
20~3000
300~3000
200~3000
150~3000
0.09
25
80~10000
600~10000
400~10000
300~10000
0.25
40
240~24000
2400~24000
1200~24000
1000~24000
1
50
500~50000
5000~40000
3500~40000
2000~50000
2
80
800~120000
10000~120000
8000~120000
6000~120000
3.5
100
1500~200000
25000~200000
20000~200000
10000~200000
7
150
5000~500000
50000~500000
35000~500000
30000~500000
23
200
10000~1000000
100000~1000000
70000~1000000
50000~1000000
45
250
15000~1500000
150000~1500000
120000~1500000
75000~1500000
70
