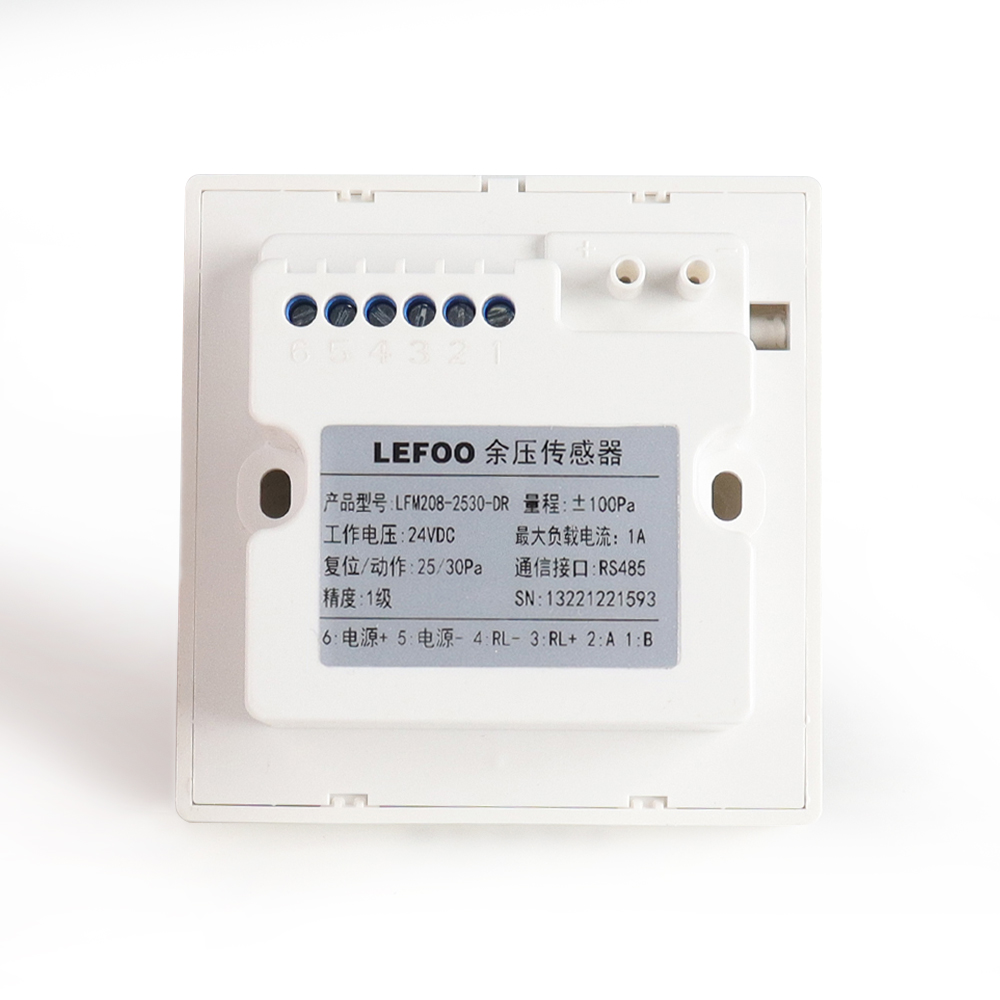

The residual pressure transducer is a device used to detect the air pressure of the fire exit. Usually, the air pressure of the fire exit needs to be higher than other rooms and areas to prevent the smoke and harmful gas from overflowing into the fire exit. When the pressure value of the device is lower than the normal value, it means that there is a safety hazard risk in this fire passage.

Features

CQC certificated

For fire fighting system Application

Pressure monitoring for fire exits. And prevent the leakage of toxic gases and dense smoke when fire broke out.

Description

Adopt American imported pressure sensing element

Elevator front room and staircase of high-rise building

Basement and refuge

Pressure monitoring in hotels, shopping malls, hospitals and

other public places

Compliant with The National Standard

?Technical Standard for Smoke Management System in Buildings?

Specification

Measurement

range 0~±100Pa

Accuracy (a)

±1%F.S

Working temperature

-20°C~75°C

Compensated temperature

-5°C~60°C

Protection Grade

IP30

Power Supply

24VDC±2.4V

Consumption

≤0.75W

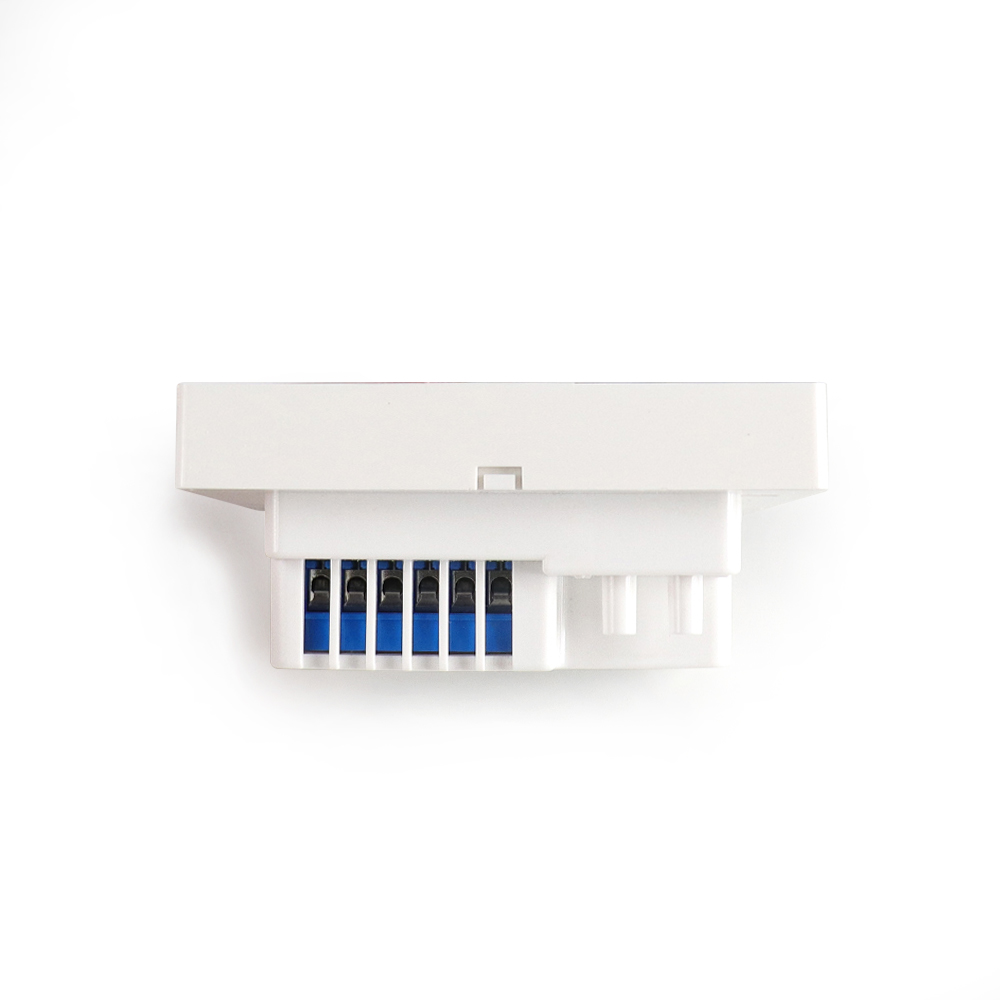

Trachea connection

+ High voltage side - Low pressure side; adopt 3.5mm inner diameter hose

Instructions

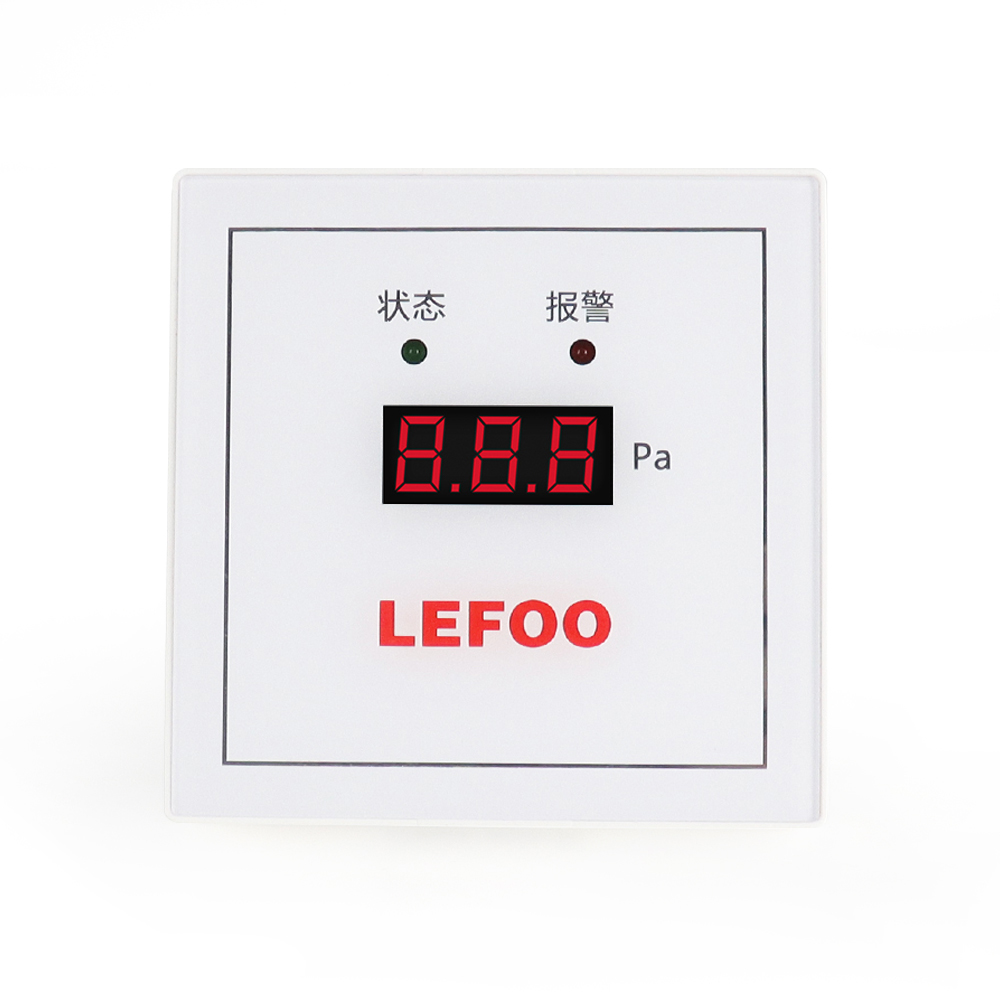

Green status, red alarm indicator

Display method

With display/without display

Measured medium

Air and non-corrosive gas

Control signal(b)

switching value

Communication mode

Two bus (two-wire system)/RS-485 (four-wire system)

Withstand voltage

1000Pa
