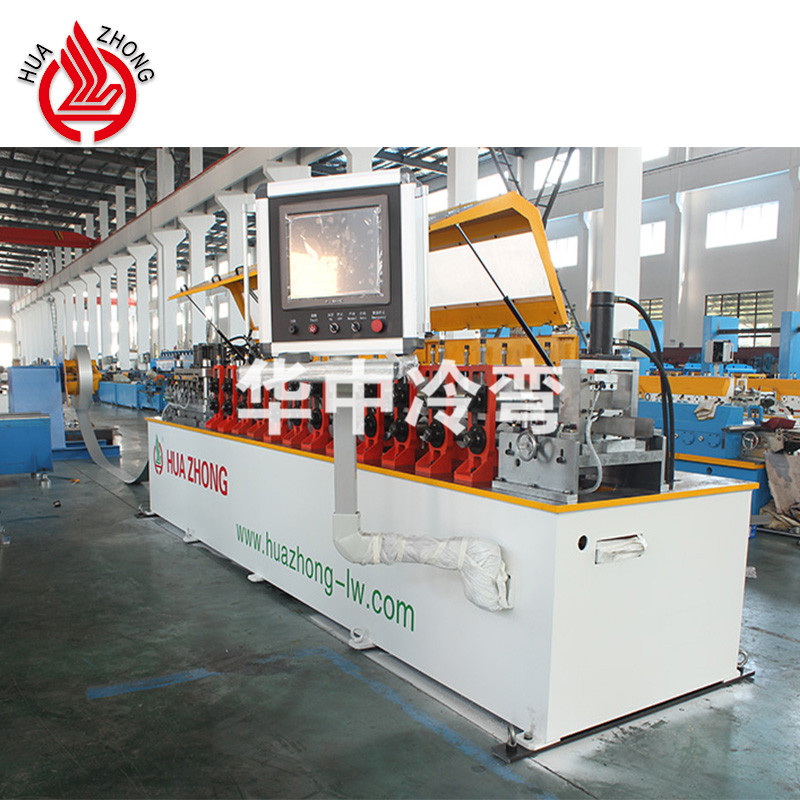

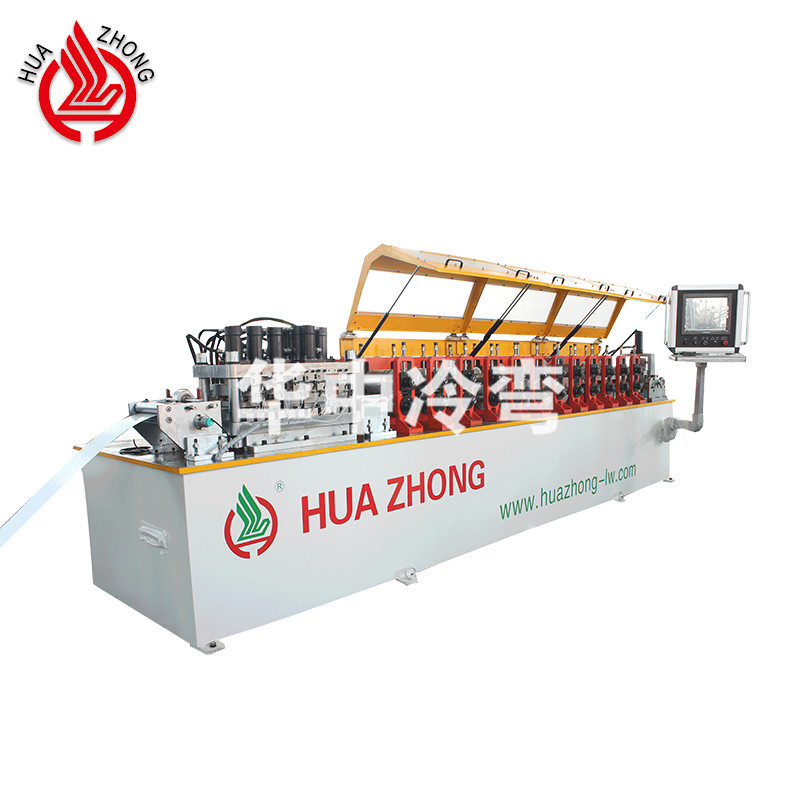

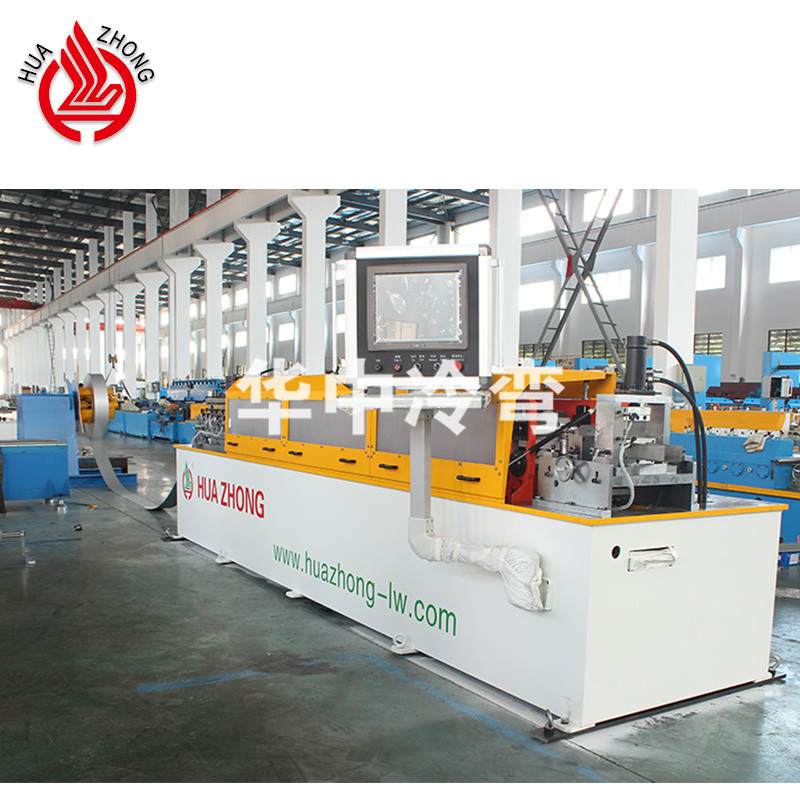

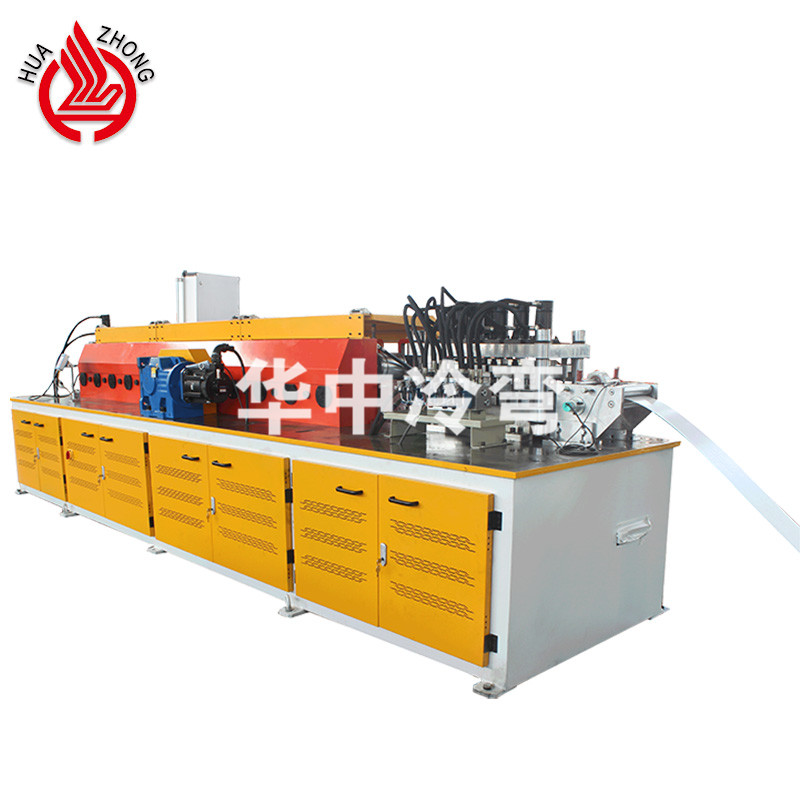

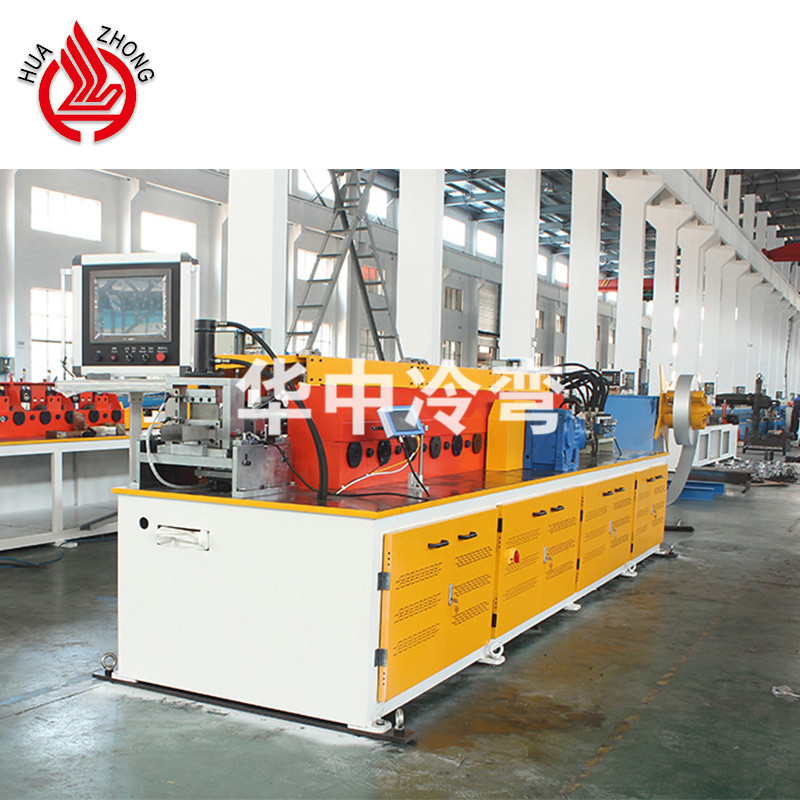

Light gauge steel roll forming machine
JIANGSU HUA ZHONG ROLL FORMING MACHINERY CO.,LTD
See what’s includedHide breakdown
- FOB goods (100)
- $6,597,222
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $230,903
- Section 301 tariff (25.0%)
- $1,649,306
- Customs fees (MPF/HMF)
- $8,881
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $6,597,222
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $230,903
- Section 301 tariff (25.0%)
- $1,649,306
- Customs fees (MPF/HMF)
- $8,881
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Light gauge steel roll forming machine
JIANGSU HUA ZHONG ROLL FORMING MACHINERY CO.,LTDSee what’s includedHide breakdown
- FOB goods (100)
- $6,597,222
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $230,903
- Section 301 tariff (25.0%)
- $1,649,306
- Customs fees (MPF/HMF)
- $8,881
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $6,597,222
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $230,903
- Section 301 tariff (25.0%)
- $1,649,306
- Customs fees (MPF/HMF)
- $8,881
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: steel
- Size: 5200mm*1200mm*1450mm
- Color: yellow/white/red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: steel
- Size: 5200mm*1200mm*1450mm
- Color: yellow/white/red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | steel |
|---|---|
| Size | 5200mm*1200mm*1450mm |
| Color | yellow/white/red |
Product details
| Materials | steel |
|---|---|
| Size | 5200mm*1200mm*1450mm |
| Color | yellow/white/red |
From the supplier
Specification
Description: Single Web Size Profile(C+C&C+U)Framing System
Design soft integrated: Design Software with 3D Modeling, Detailing, Structure calculations
Machine control: Windows Base PC control & Full NC linked with Design Software
Profile Sizes Capable
C profile: A1-89(89*41mm) or A1-100(100*41mm) or A1-140(140*41mm)
U profile: A1-89(92*38mm) or A1-100(103*38mm) or A1-140(143*38mm)
Thickness range:0.8mm-1.2mm
Tooling punch: Service Hole, Web Notch, Lip cut, Truss, Dimple, Swage, Crimp, Shear
Max. Line speed: 1800M/hr(30M/min)
Main Driver Motor: 10HP(7.5kw) Servo Motor
Hydraulic Power: 7.5HP(5.5kw) with 3 Liters Accumulator and oil cooler
Printer: SOJET
Dimension: Length 5200mm*Width 1200mm*Height 1450mm
Machine Weight: about 3500kg
Uncoiler: 2000kgs, powered
From the supplier
Specification
Description: Single Web Size Profile(C+C&C+U)Framing System
Design soft integrated: Design Software with 3D Modeling, Detailing, Structure calculations
Machine control: Windows Base PC control & Full NC linked with Design Software
Profile Sizes Capable
C profile: A1-89(89*41mm) or A1-100(100*41mm) or A1-140(140*41mm)
U profile: A1-89(92*38mm) or A1-100(103*38mm) or A1-140(143*38mm)
Thickness range:0.8mm-1.2mm
Tooling punch: Service Hole, Web Notch, Lip cut, Truss, Dimple, Swage, Crimp, Shear
Max. Line speed: 1800M/hr(30M/min)
Main Driver Motor: 10HP(7.5kw) Servo Motor
Hydraulic Power: 7.5HP(5.5kw) with 3 Liters Accumulator and oil cooler
Printer: SOJET
Dimension: Length 5200mm*Width 1200mm*Height 1450mm
Machine Weight: about 3500kg
Uncoiler: 2000kgs, powered
