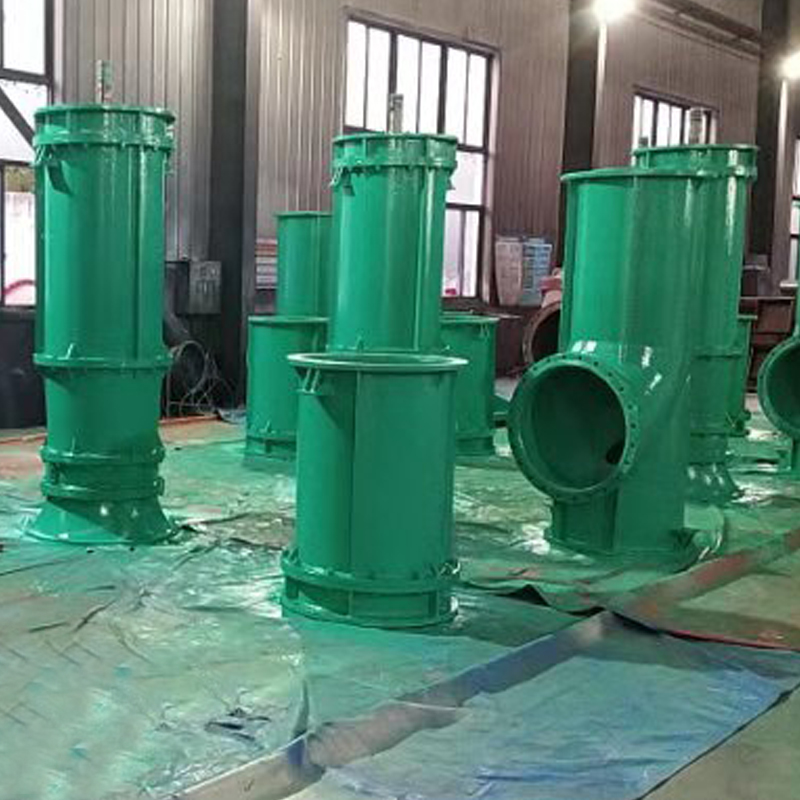

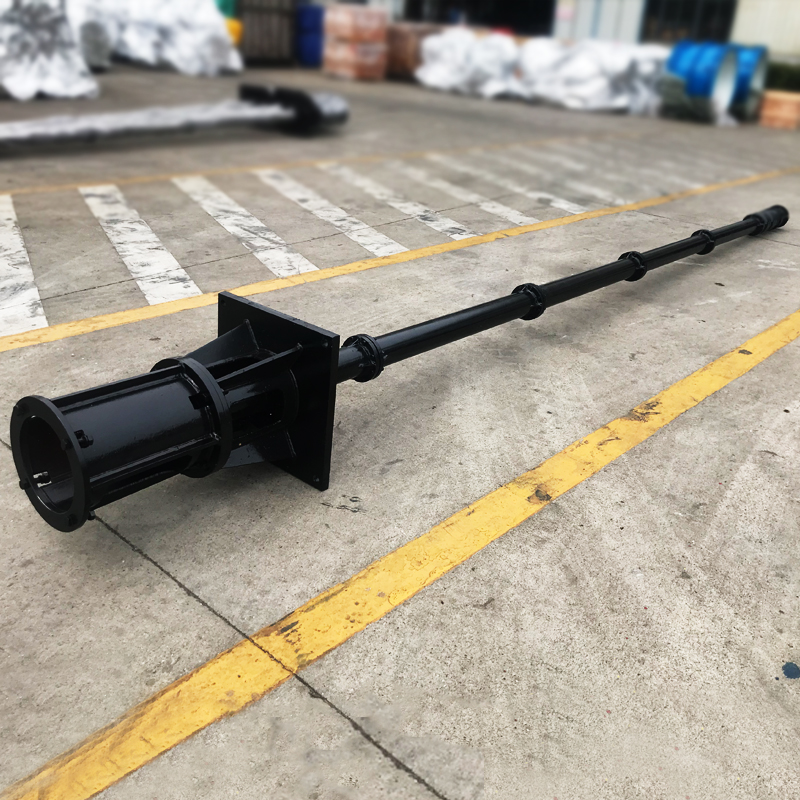

Product overview:

LP type vertical turbine pump is mainly used for pumping non-corrosive sewage and wastewater with temperature less than 60℃ and suspended solid content less than 150mg/L.

The LPT type vertical turbine pump has a shaft sleeve based on the LP type, the lubricating water is passed through the shaft sleeve. It can pump sewage or wastewater with temperature below 60℃ and containing certain solid particles (such as iron filings, fine sand, coal powder, etc.).

Application:

LP (T) type vertical turbine pump can be widely used in municipal engineering, metallurgy iron and steel, mining, chemical papermaking, water supply, power plant and farmland water conservancy projects.

Working conditions:

1. Neutral medium, PH value: 6.5-8.5. The temperature should not exceed 60℃;

2. For the LP pump, the content of suspended solid in the medium should less than 150mg /L; For the LPT pump, the maximum diameter of the solid should be less than 2mm, and the content should be less than 2g/L.

3. The LPT pump must connect the clean water or soapy water to lubricate the rubber bearings. For two-stage pumps, the lubricating water pressure should not lower than the working pressure of the pump.

4. At the lowest water level, the first-stage impeller must be submerged higher than 0.5mm, normally 2-3mm.

Working ranges:

Discharge Diameter: DN50~2400mm

Capacity Range: 8～60000m3/h

Head Range: 3～150m

Motor Power: 1.5～3600kW

Voltage: 380V、660V、3KV  6KV、10KV

Medium Temperature: ≤60℃

Frequency: 50Hz / 60Hz

Protection Grade: IP54/ IP55/ IP56

Insulation Class: F / H

Motor Type: Dry type three-phase induction motor
