Pump
Self-priming is achieved by using a ejector,housed in the pump body. The total delivery produced by the closed centrifugal impeller is send only partly to the delivery opening, the remaining water is re-circulated through the ejector, which is connected to the suction chamber and generates the necessary vacuum to self-prime the pump. When first starting the pump, fill the pump body with water without bothering to fill the suction the piping and eliminate any air from the suction to the delivery chamber, expelling it through the delivery piping. At the same time the vacuum thus generated causes water to rise in the suction piping, thus self-priming the pump.APPLICATION
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for lifting water from well, sprinkling irrigation in garden, pressure boosting of running water, or supporting equipment etc. DESIGN FEATURES
Pump body/motor bracket: cast iron
Impeller: Brass
Bearing: C&U
100% copper winding
Built-in thermal protector for single phase motor
Motor shaft: AISI 304 welded shaft
Mechanical seal: Graphite/Ceramic/NBR/SUS304SPECIAL FEATURES ON REQUEST
Anti-rust treatment for casting
PPO/SUS304 impeller
Cast Iron Diffuser, brass nozzle (JFS/JSm no nozzle)
AISI 1045 motor shaft
Carbon/SiC/V mechanical seal
Other voltage and frequnecy
Insultation class: FOPERATING LIMITS
Total suction lift up to 6-8 mt. with foot valve
Max. operating pressure: 8 bar.
Max. ambient temperature: +40℃
Max. liquid temperature: +60℃
Max. altitude: +1000 mt.MOTOR
Insultation class: B
Protection: IP44
Speed of rotation: 2850rpm
Continuous duty: S1
Self-priming is achieved by using a ejector,housed in the pump body. The total delivery produced by the closed centrifugal impeller is send only partly to the delivery opening, the remaining water is re-circulated through the ejector, which is connected to the suction chamber and generates the necessary vacuum to self-prime the pump. When first starting the pump, fill the pump body with water without bothering to fill the suction the piping and eliminate any air from the suction to the delivery chamber, expelling it through the delivery piping. At the same time the vacuum thus generated causes water to rise in the suction piping, thus self-priming the pump.APPLICATION
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for lifting water from well, sprinkling irrigation in garden, pressure boosting of running water, or supporting equipment etc. DESIGN FEATURES
Pump body/motor bracket: cast iron
Impeller: Brass
Bearing: C&U
100% copper winding
Built-in thermal protector for single phase motor
Motor shaft: AISI 304 welded shaft
Mechanical seal: Graphite/Ceramic/NBR/SUS304SPECIAL FEATURES ON REQUEST
Anti-rust treatment for casting
PPO/SUS304 impeller
Cast Iron Diffuser, brass nozzle (JFS/JSm no nozzle)
AISI 1045 motor shaft
Carbon/SiC/V mechanical seal
Other voltage and frequnecy
Insultation class: FOPERATING LIMITS
Total suction lift up to 6-8 mt. with foot valve
Max. operating pressure: 8 bar.
Max. ambient temperature: +40℃
Max. liquid temperature: +60℃
Max. altitude: +1000 mt.MOTOR
Insultation class: B
Protection: IP44
Speed of rotation: 2850rpm
Continuous duty: S1

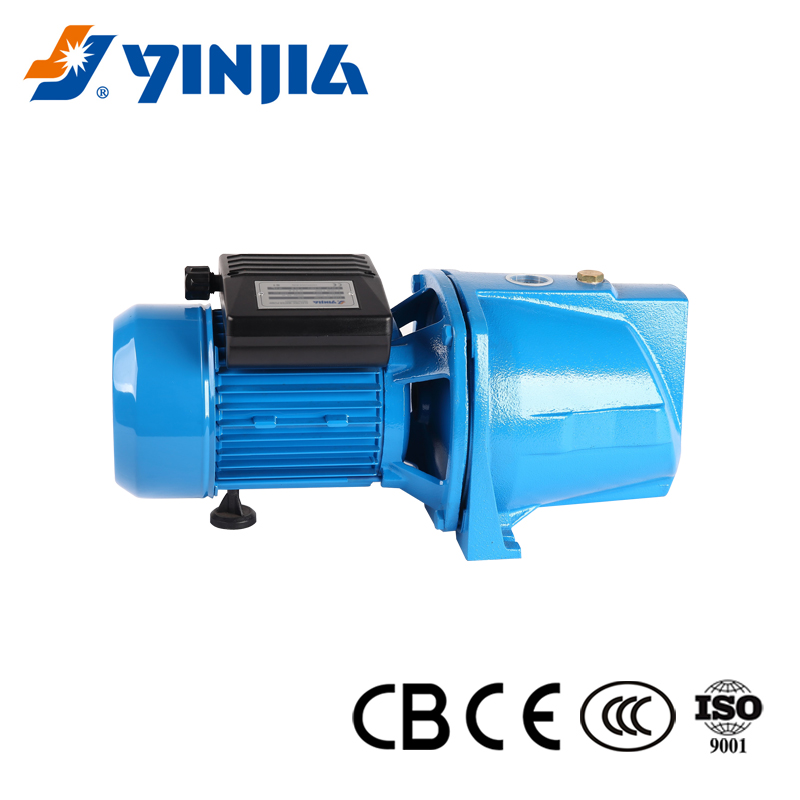

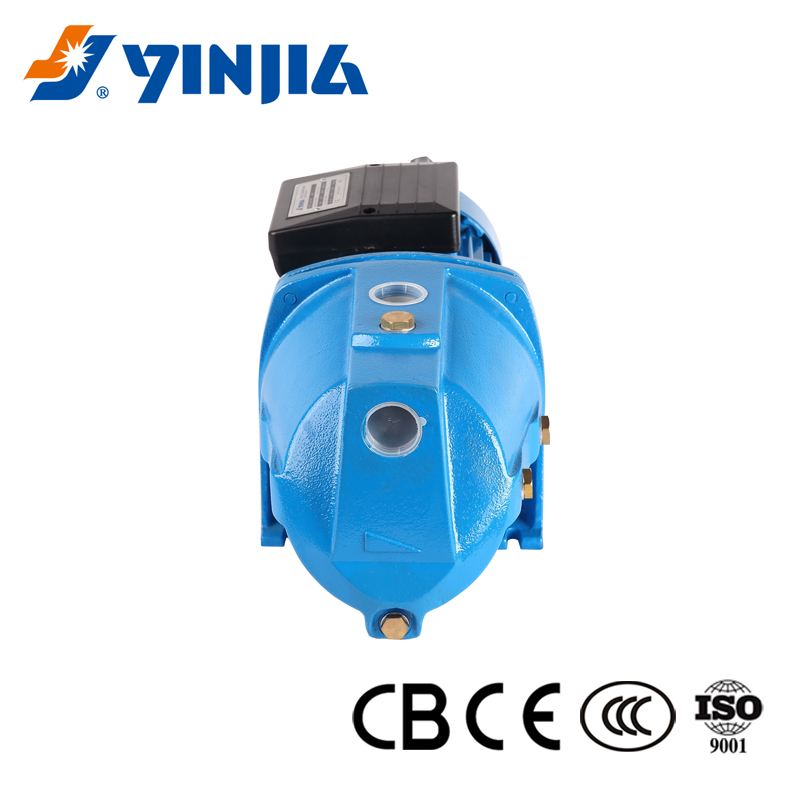

Fujian New Yinjia Pump JSW10M 0.75KW JET PUMP HOME USING SELFPRIMING PUMP with high suction
FUJIAN NEW YINJIA PUMP CO,.LTD.10/10 fairsManufacturerModel JSW10M
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Fujian New Yinjia Pump JSW10M 0.75KW JET PUMP HOME USING SELFPRIMING PUMP with high suction
FUJIAN NEW YINJIA PUMP CO,.LTD.10/10 fairsManufacturerModel JSW10M
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Nozzle: brass/ppo
- Size: 420*146*203
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
About this product
- Materials: Nozzle: brass/ppo
- Size: 420*146*203
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
Product details
| Materials | Nozzle: brass/ppo |
|---|---|
| Size | 420*146*203 |
| Color | blue |
Product details
| Materials | Nozzle: brass/ppo |
|---|---|
| Size | 420*146*203 |
| Color | blue |
From the supplier
WORKING PRINCIPLE
Self-priming is achieved by using a ejector,housed in the pump body. The total delivery produced by the closed centrifugal impeller is send only partly to the delivery opening, the remaining water is re-circulated through the ejector, which is connected to the suction chamber and generates the necessary vacuum to self-prime the pump. When first starting the pump, fill the pump body with water without bothering to fill the suction the piping and eliminate any air from the suction to the delivery chamber, expelling it through the delivery piping. At the same time the vacuum thus generated causes water to rise in the suction piping, thus self-priming the pump.APPLICATION
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for lifting water from well, sprinkling irrigation in garden, pressure boosting of running water, or supporting equipment etc. DESIGN FEATURES
Pump body/motor bracket: cast iron
Impeller: Brass
Bearing: C&U
100% copper winding
Built-in thermal protector for single phase motor
Motor shaft: AISI 304 welded shaft
Mechanical seal: Graphite/Ceramic/NBR/SUS304SPECIAL FEATURES ON REQUEST
Anti-rust treatment for casting
PPO/SUS304 impeller
Cast Iron Diffuser, brass nozzle (JFS/JSm no nozzle)
AISI 1045 motor shaft
Carbon/SiC/V mechanical seal
Other voltage and frequnecy
Insultation class: FOPERATING LIMITS
Total suction lift up to 6-8 mt. with foot valve
Max. operating pressure: 8 bar.
Max. ambient temperature: +40℃
Max. liquid temperature: +60℃
Max. altitude: +1000 mt.MOTOR
Insultation class: B
Protection: IP44
Speed of rotation: 2850rpm
Continuous duty: S1
From the supplier
WORKING PRINCIPLE
Self-priming is achieved by using a ejector,housed in the pump body. The total delivery produced by the closed centrifugal impeller is send only partly to the delivery opening, the remaining water is re-circulated through the ejector, which is connected to the suction chamber and generates the necessary vacuum to self-prime the pump. When first starting the pump, fill the pump body with water without bothering to fill the suction the piping and eliminate any air from the suction to the delivery chamber, expelling it through the delivery piping. At the same time the vacuum thus generated causes water to rise in the suction piping, thus self-priming the pump.APPLICATION
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for lifting water from well, sprinkling irrigation in garden, pressure boosting of running water, or supporting equipment etc. DESIGN FEATURES
Pump body/motor bracket: cast iron
Impeller: Brass
Bearing: C&U
100% copper winding
Built-in thermal protector for single phase motor
Motor shaft: AISI 304 welded shaft
Mechanical seal: Graphite/Ceramic/NBR/SUS304SPECIAL FEATURES ON REQUEST
Anti-rust treatment for casting
PPO/SUS304 impeller
Cast Iron Diffuser, brass nozzle (JFS/JSm no nozzle)
AISI 1045 motor shaft
Carbon/SiC/V mechanical seal
Other voltage and frequnecy
Insultation class: FOPERATING LIMITS
Total suction lift up to 6-8 mt. with foot valve
Max. operating pressure: 8 bar.
Max. ambient temperature: +40℃
Max. liquid temperature: +60℃
Max. altitude: +1000 mt.MOTOR
Insultation class: B
Protection: IP44
Speed of rotation: 2850rpm
Continuous duty: S1
