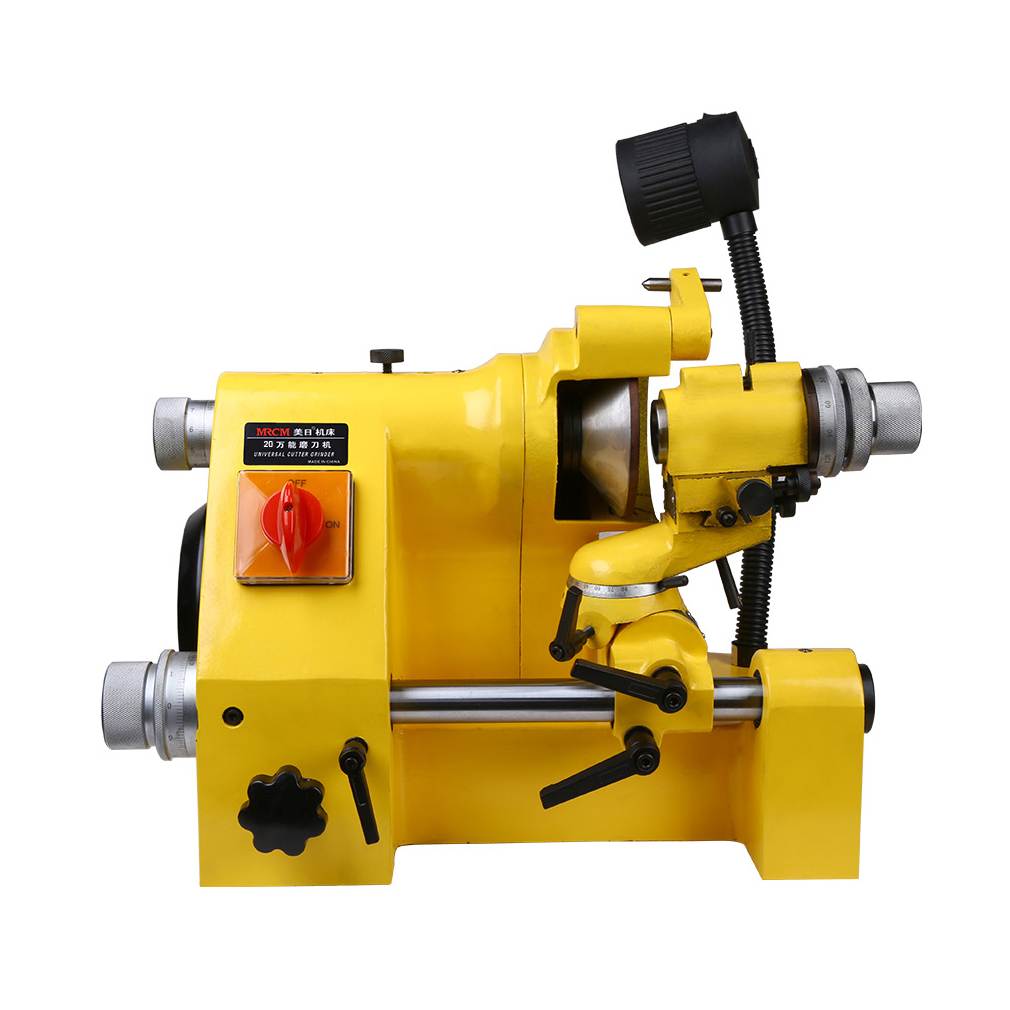

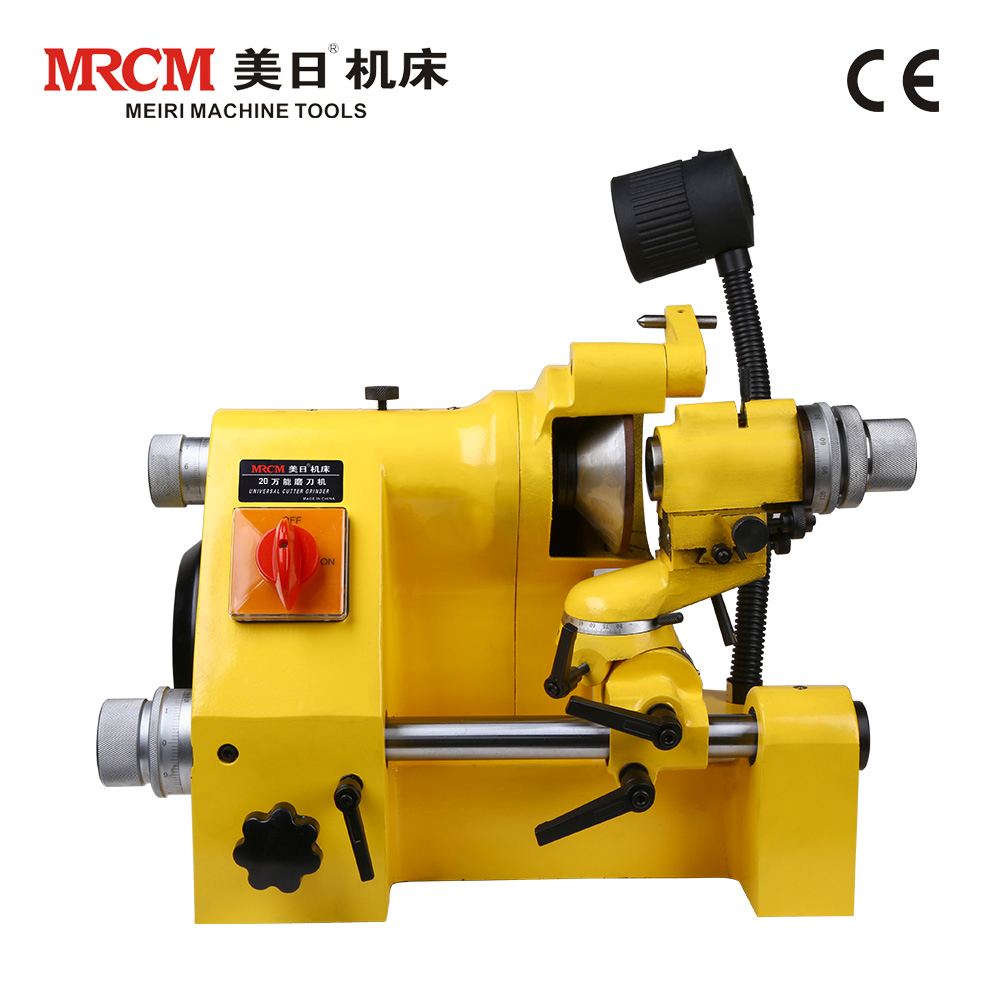

CE Approved Universal Tool & Cutter Grinder Machine MR-20 Machinereputation

Product Description



1. For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters.
2. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 360 or 100 rotation is allowed for grinding End Mills,Twist Drill,Lathe Tools, only replace the attachment to the index head without any complex setup.ModelMR-U3Max. collet capacityΦ18 mmMax. grinding dia. Φ18 mmLongitudinal traver of index head carrier140mmLongitudinal adjustment trave of index head carrier180mmSpindle and wheel longltudinal adjustment travel600mmTaper angle range0~ 180 (degree)Relief angle range0~ 45  (degree)Negative angle range0~ 25  (degree)Motor1/3HP 220V/380V 50HZ Grinding spindle5300rpmGrinding wheelΦ100×50×Φ20Dimension55×46×49cmWeight55KGStandard Equipment5 collets: Φ4,  Φ 6,  Φ 8,  Φ 10,  Φ 12Pin grinding Wheel ×1Belt×1Diamond pen×1Twist drill grinding attachment×1End mill grinding attachment×1Lathe tools grinding attachment×1Option EquipmentEleven piece collets:  Φ 3, Φ 4, Φ 5, Φ 6, Φ 8, Φ 9, Φ 10, Φ 12, Φ 14, Φ 16, Φ 18



Details:



MR-U3

       UNIVERSAL CUTTER GRINDER

      It is specially designed for sharpening various diameters,shapes,angles of carving knives,round knives,straight shank cutter,end mill,drill,lathe tool,engraving cutter and so on;
it is with good precision,competive price,on skill request.

Standard accessories:

Focus on precision and detail

The equipment adopts one type pig iron casting process to ensure that the center of gravity is stable and not tremble.

MR-U3 universal cutter grinder, it is improved according the U2, more accurate

Change the parts can grind the mills, drills and lathe tools.

reputation

Product Description



1. For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters.
2. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 360 or 100 rotation is allowed for grinding End Mills,Twist Drill,Lathe Tools, only replace the attachment to the index head without any complex setup.ModelMR-U3Max. collet capacityΦ18 mmMax. grinding dia. Φ18 mmLongitudinal traver of index head carrier140mmLongitudinal adjustment trave of index head carrier180mmSpindle and wheel longltudinal adjustment travel600mmTaper angle range0~ 180 (degree)Relief angle range0~ 45  (degree)Negative angle range0~ 25  (degree)Motor1/3HP 220V/380V 50HZ Grinding spindle5300rpmGrinding wheelΦ100×50×Φ20Dimension55×46×49cmWeight55KGStandard Equipment5 collets: Φ4,  Φ 6,  Φ 8,  Φ 10,  Φ 12Pin grinding Wheel ×1Belt×1Diamond pen×1Twist drill grinding attachment×1End mill grinding attachment×1Lathe tools grinding attachment×1Option EquipmentEleven piece collets:  Φ 3, Φ 4, Φ 5, Φ 6, Φ 8, Φ 9, Φ 10, Φ 12, Φ 14, Φ 16, Φ 18



Details:



MR-U3

       UNIVERSAL CUTTER GRINDER

      It is specially designed for sharpening various diameters,shapes,angles of carving knives,round knives,straight shank cutter,end mill,drill,lathe tool,engraving cutter and so on;
it is with good precision,competive price,on skill request.

Standard accessories:

Focus on precision and detail

The equipment adopts one type pig iron casting process to ensure that the center of gravity is stable and not tremble.

MR-U3 universal cutter grinder, it is improved according the U2, more accurate

Change the parts can grind the mills, drills and lathe tools.

Product Description

 1. For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters.

2. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 360 or 100 rotation is allowed for grinding End Mills,Twist Drill,Lathe Tools, only replace the optional attachment to the index head without any complex setup.ModelMR-20Max. collet capacityΦ25 mmMax. grinding dia. Φ25 mmLongitudinal traver of index head carrier140mmLongitudinal adjustment trave of index head carrier180mmSpindle and wheel longltudinal adjustment travel600mmTaper angle range0~ 180 (degree)Relief angle range0~ 45  (degree)Negative angle range0~ 25  (degree)Motor1/3HP 220V/380V 50HZ Grinding spindle5300rpmGrinding wheelΦ100×50×Φ20Dimension55×46×49cmWeight45KGStandard Equipment3 collets: Φ4,  Φ 6,  Φ 8Diamond grinding Wheel ×1Diamond pen×1Option EquipmentEleven piece collets:  Φ 3, Φ 4, Φ 5, Φ 6, Φ 8, Φ 9, Φ 10, Φ 12, Φ 14, Φ 16, Φ 18,  Φ 20, Φ 22, Φ 24, Φ 25Twist drill grinding attachment×1End mill grinding attachment×1Lathe tools grinding attachment×1



Details:



MR-20

       UNIVERSAL CUTTER GRINDER

      It is specially designed for sharpening various diameters,shapes,angles of carving knives,round knives,straight shank cutter,end mill,drill,lathe tool,engraving cutter and so on;
it is with good precision,competive price,on skill request.

Standard accessories:

Focus on precision and detail

The equipment adopts one type pig iron casting process to ensure that the center of gravity is stable and not tremble.



Chooise  the parts can grind the mills, drills and lathe tools.

Packaging & Shipping

   EXPORTING PACKAGE, SAFE AND STABLE
