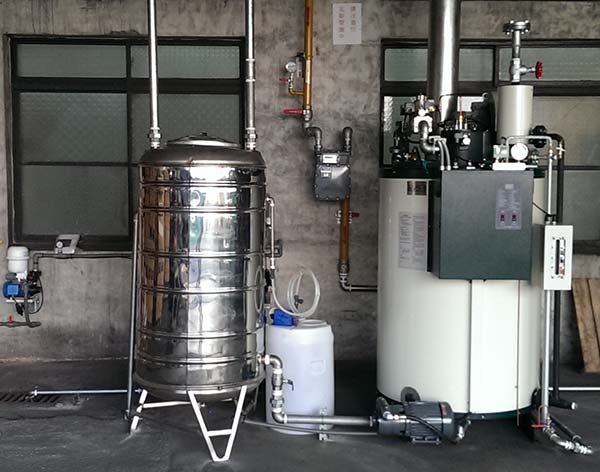

Sitong oil gas fired quick steam generator is vertical type with high thermal efficiency (96%) and quick steam generation (3~5 minutes). This generator is once through structure and it is constructed with vertical water tubes, has small steam capacity (0.1-4tph), low infrastructure investment and quiet operation. The stem generator is equipped with full automatic control on temperature, pressure, and water level, etc, to ensure highest safety and reliability.

This oil gas fired quick steam generator is designed by Taiwan Zuhow Company, and produced jointly with Sitong Boiler, the manufacturing technique has reached to the world advanced level. The generator is about 20% energy saving than the ordinary boilers. It is delivered as a whole when leaving factory, it could operate just need to plug into electric and water power, there is no need any installation, save installation cost.

Application

The oil gas fired quick steam generator has the advantages of high thermal efficiency, quick steam generation, small area occupied, and energy saving, it could be used for heating, molding, and drying during industrial production, where need small steam capacity. Moreover, it could used for laundry, restaurant, hotel, school, etc.

Performance Advantages

1. Quick Steam Generation

Equipped with advanced once-through structure, and the small water capacity achieves fast heat absorption, high thermal efficiency and the steam could be generated within 3~5 minutes.



2. High Efficiency

1) Equipped with specific burner, high automation and combustion efficiency, low NOx emission.

2) Increases the layout of horizontal fins and vertical fins based on the boiler capacity, combustion gas flows among the water tube bundle at a high speed, excellent heat convection and fast heat transfer efficiency.

3) By equipping with economizer, make full use of the heat of flue gas, decrease the exhaust smoke temperature, the thermal efficiency increase to as high as 96%.

3. Full Automatic Control

1) The burner is full automatic, stable operation.

2) Full automatic interlock protection program, has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.



4. High Safety Performance

1) Complete gas manifolds and protection system, including filter, pressure regulating valve, and solenoid valve, etc., to ensure the safety performance of fuel.

2) Reliable boiler auxiliaries and multiple safety protection devices, such as pressure controller, pressure transmitter, water level alarm, safety valve, etc.

5. High Quality

1)  All the materials has quality certificate, uses full automatic CO2 welding, NDT test and hydraulic pressure will be done for all boilers to ensure the quality.

2) The preheater uses seamless steel pipes, which are treated by sand blasting and hot-dip galvanizing, lengthen the working life.



6. Centralized Control

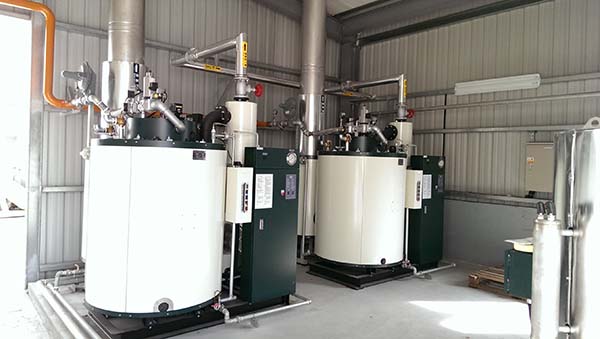

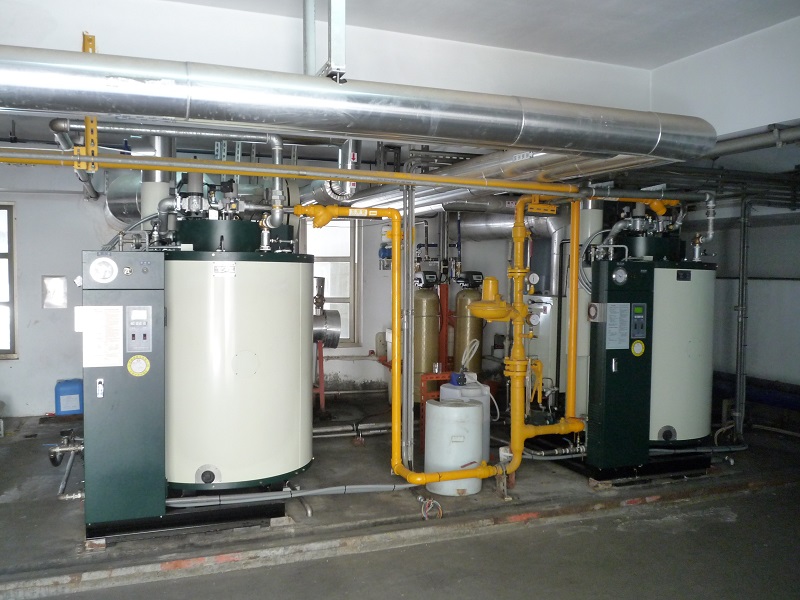

Several boilers could be used in parallel, and controlled centrally. Moreover, the centralized controller could record the downtime, location, evaporation capacity, fuel consumption, water volume, steam pressure, water tube temperature, exhaust smoke temperature, etc.

Parameter

Model

Heat Output

 (Kcal/h)

Working Pressure

(Kgf/cm2)

Boiler Efficiency

(%)

Overall Dimension

 L×W×H(mm)

Weight

(Kg)

Fuel Consumption13A  (Nm3/h)LPG Propane (Kg/h)LPG Butane (Kg/h)ZH-200G10800010961154×788×161547012.410.711.3ZH-300G/GE16200010961279/1447×915×1804620/7201815.516.5ZH-500GE/GE12690001096
1612/1612×1098×21151060/1060302627ZH-600GE/GE132300010961612/1612×1098×21151100/1100363133ZH-1000GE1/GE253900010961750/1809×1456×22221600/169085~9073~7877~82ZH-2000GE1/GE2108000010961830/1855×1908×23071980/2000113~12198~105103~110

Notes: 1. Parameter is for reference only. 2. The Lower heat valve: 13A=9900kcal/Nm3, LPG Propane=11460kcal/kg, LPG Butane=10900kcal/kg
