SZL series "A" type coal/biomass fired steam boiler

Capacity: 10-35 tons

Working pressure: 0.4MPa、0.7MPa、1.0MPa、1.25MPa、1.6MPa、2.5MPa、2.8MPa、3.5MPa

Boiler model: SZL10-1.25-T、SZL12-1.25-T、SZL15-1.25-T、SZL20-1.25-T、SZL25-1.25-T、SZL30-1.25-T、SZL35-1.25-T

SZL10-1.25-AII、SZL12-1.25-AII、SZL15-1.25-AII、SZL20-1.25-AII、SZL25-1.25-AII、SZL30-1.25-AII、SZL35-1.25-AII

Applicable fuel: Bituminous coal, firewood, rice husk, palm husk, wood chips, corn cob, etc.

Application industry: Chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building materials,

wine, rubber, paper, packaging, rice mill,etc.

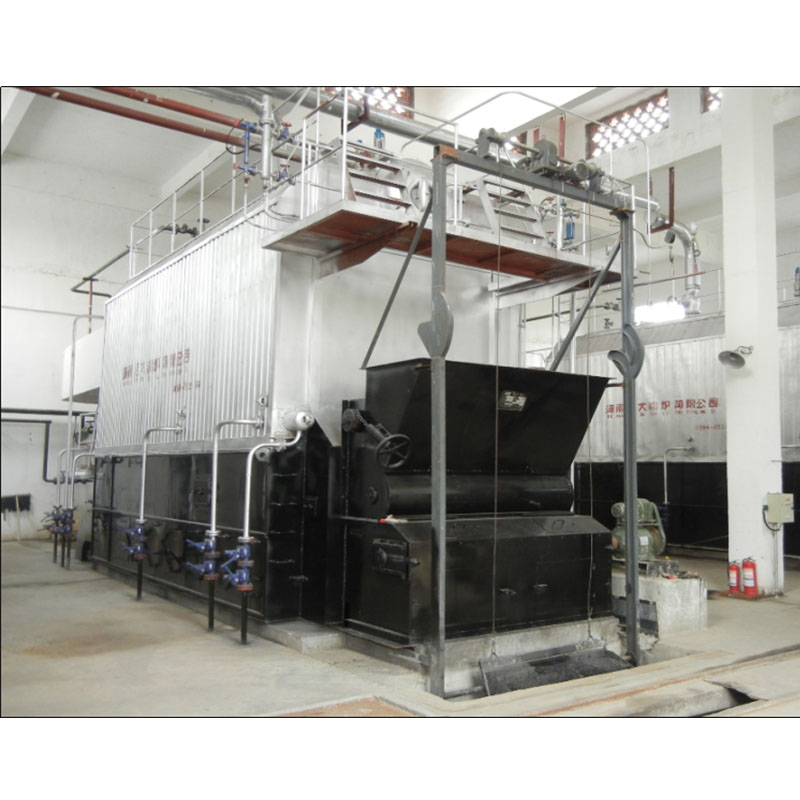

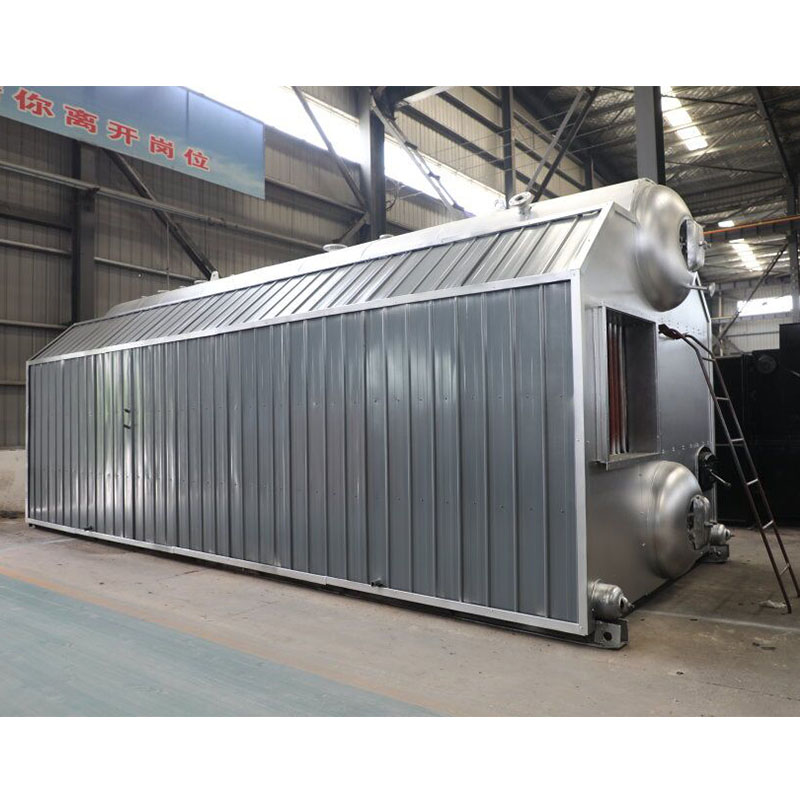

Our company SZL type boiler is a double-drum water tube assembly chain grate boiler (A type layout). The boiler

proper has an upper drum and a bottom drum longitudinally arranged along the boiler center. The front of the

upper drum and two sides water wall tubes constitute the boiler hearth radiation heating surface, and the tubes

between the rear of the upper drum and the bottom drum constitute the convection heating surface. The econom-

izer is arranged on the rear of the boiler,part of heat from high temperature exhaust gas generated by burning was

absorbed by economizer, then the exhaust gas go through the cooling chamber,exhaust gas enters the convection

heating surface to transfer heat power again, and through economizer,dust collector, finally draught by ID fan to

Chimney,discharges into the atmosphere.

Core technology:

1. Longitudinally arranged double drum

2. Airtight and uniform-pressure wind room

3. Customized combustion device

4. "α" type flame combustion

5. High quality aluminum silicate insulation

6. Built-in dust cleaning

7. Easy operation control system

Boiler ModelSZL6-1.25-TSZL8-1.25-TSZL10-1.25-TSZL15-1.25-TSZL20-1.25-TSZL25-1.25-TSZL30-1.25-TSZL35-1.25-TRated steam capacity(T/H)68101520253035Rated steam pressure(Mpa)1.25/1.6/2.5Rated steam temperature(℃)194/204/226Feed water temperature(℃)20/104Boiler water volume(m3)7.39.612.415.32124.331.837.7Thermal efficiency(%)>85Exhaust gas temperature(℃)176171171170167168169167Fuel typeSoft coal,Firewood,Rice Busk,Palm Shell and the other Biomass FuelsMax transportation weight(t) 2629314250282924

Our boilers have been exported to 86 countries around the world, such as Pakistan, Indonesia, Bangladesh, Nigeria, Kenya, Saudi Arabia, Ecuador, Chile, etc. In these countries, we have more than 20,000 cases in the grain and oil, chemical, paper, textile printing and biopharmaceutical industries.

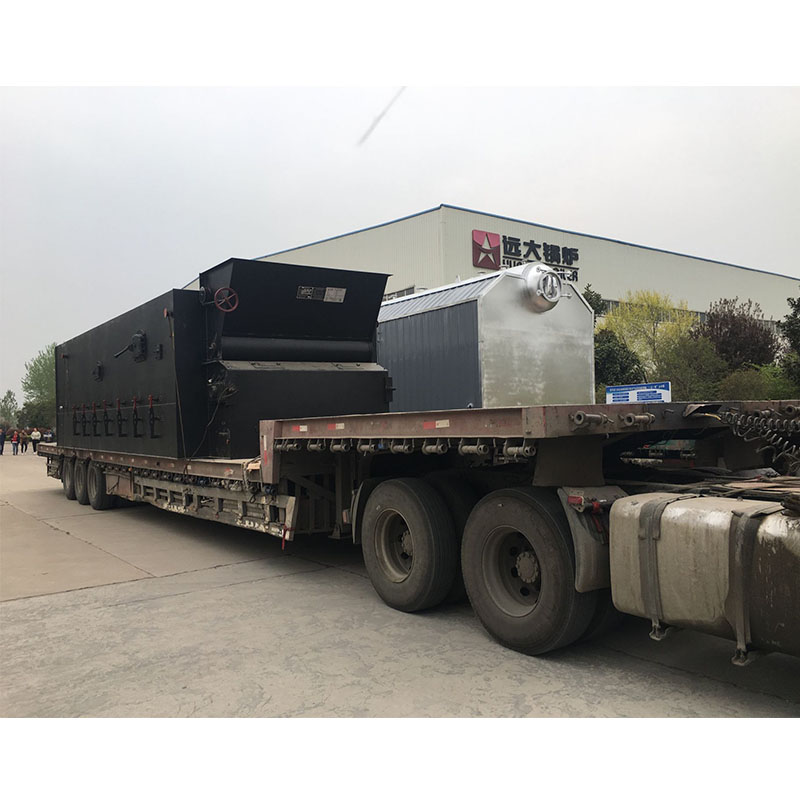

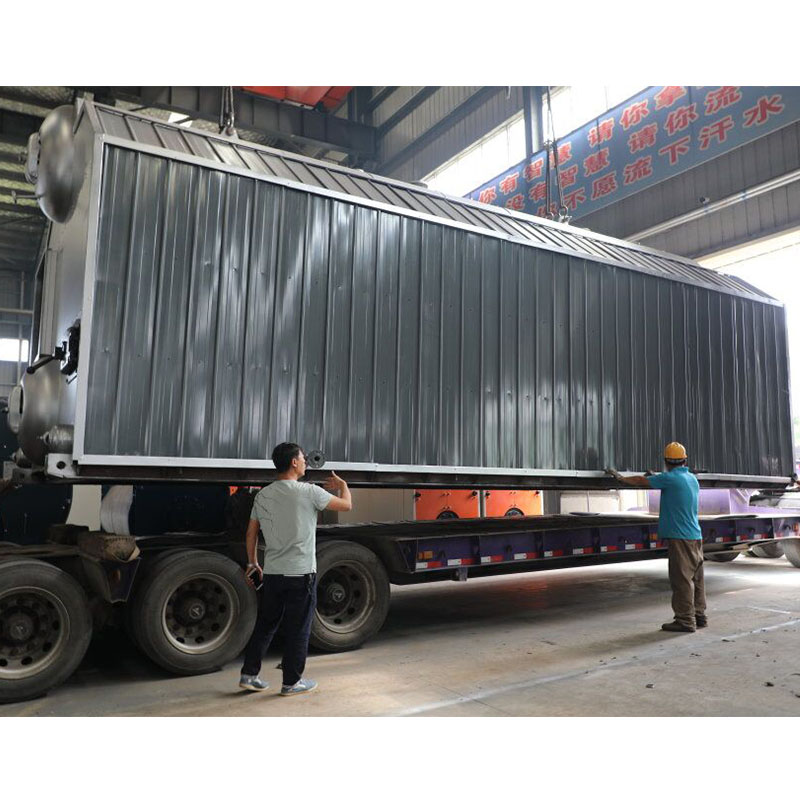

1.The boiler main unit and the large auxiliary equipment are naked, and other precision instruments or small

auxiliary equipment are packed in wooden boxes.

2.According to the tonnage of the boiler,we use 20-foot cabinet,40-foot cabinet,20 frame or 40 frame box for shipment.

3. All goods will be professionally reinforced after being loaded into the container.

4. We have a stable and cooperative freight company that can ensure the safety of the goods and ensure low transportation costs.

1.60+ years boiler manufacturing experience,15 years export experience.

2.Class A boiler manufacturer,ISO 9001:2000 certificate.

3.Export to 80+ countries,100,000+ cases and 0 accidents.

4.5000t/h annual production capacity of industrial boilers.

5.Engineers abroad installing and commissing service for 50+ countries.

6.Nearly 200 employees and 15 advanced engineers(The Father of China Boiler professor Zhiguang Li is our technical consultant)
