About this product
- Automatic grade: OtherNon Automation
- Customized: Non-CustomizedOtherCustomized
- Power source: OtherGasoline
- Walking mode: WheeledCrawlerOther
- Engine type: OtherDiesel Engine
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Changhzou, Jiangsu, China
About this product
- Automatic grade: OtherNon Automation
- Customized: Non-CustomizedOtherCustomized
- Power source: OtherGasoline
- Walking mode: WheeledCrawlerOther
- Engine type: OtherDiesel Engine
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Changhzou, Jiangsu, China
Product details
| Automatic grade | OtherNon Automation |
|---|---|
| Customized | Non-CustomizedOtherCustomized |
| Power source | OtherGasoline |
| Walking mode | WheeledCrawlerOther |
| Engine type | OtherDiesel Engine |
Product details
| Automatic grade | OtherNon Automation |
|---|---|
| Customized | Non-CustomizedOtherCustomized |
| Power source | OtherGasoline |
| Walking mode | WheeledCrawlerOther |
| Engine type | OtherDiesel Engine |
From the supplier

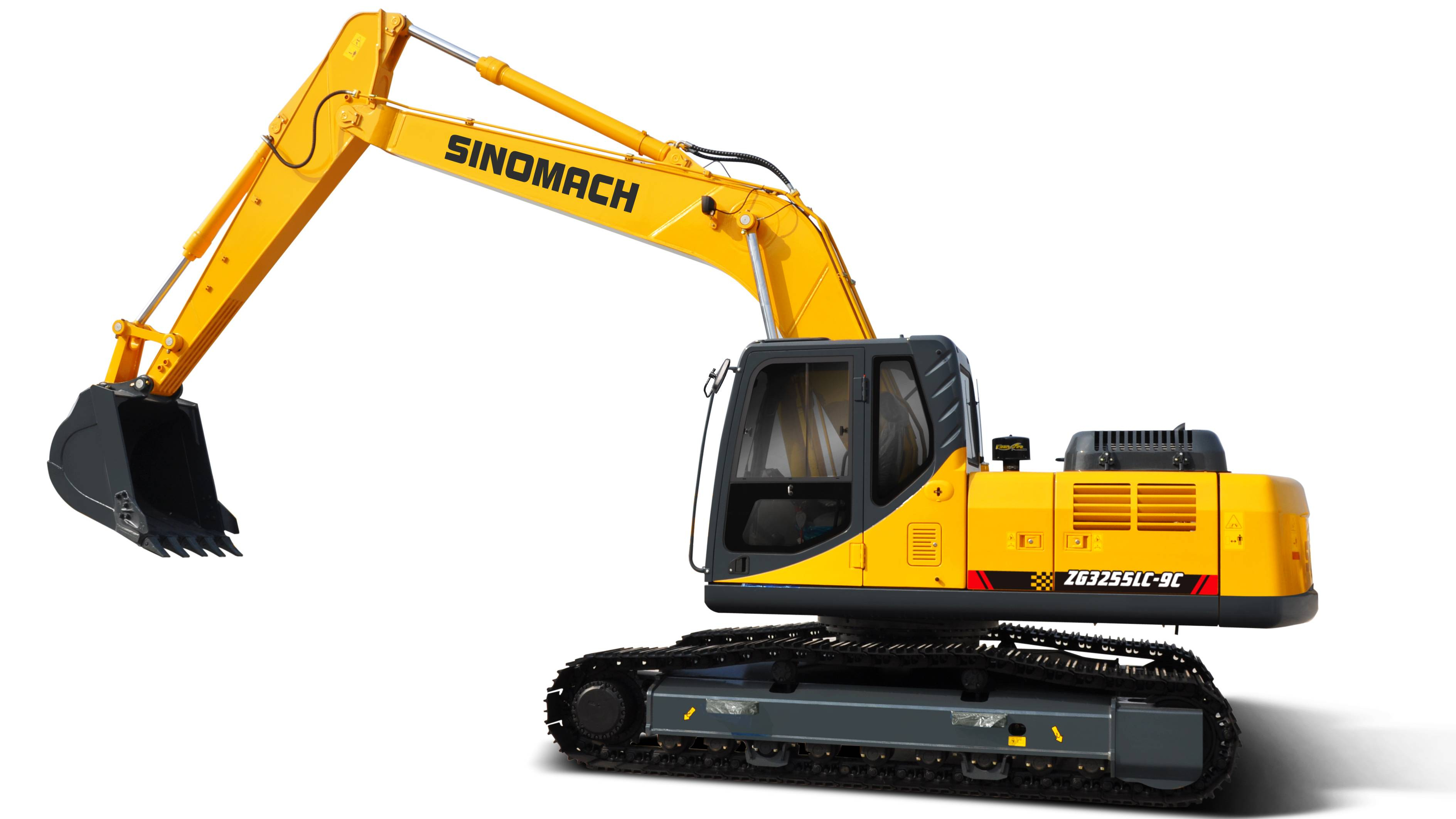

Equipped with Cummins engine, it is powerful, efficient, energy-saving, reliable and durable; advanced negative flow hydraulic system is comfortable to operate, high working efficiency, and excellent cost performance; full power control, four power modes adapt to different working conditions; stepper motor accurately controls throttle, significantly reduce fuel consumption; full three-dimensional modeling and finite element analysis technology ensure the reliability and stability of structural parts.
Operating weight
Kg
25000
Standard bucket capacity (ordinary bucket)Rated bucket capacitym3
1.2
Overall lengthmm
9840
Overall width (600mm track) Overall width (600mm trackshoe)mm
3180
Overall heightmm
3180
Turntable width Trunnable widthmm
2700
Cabin height above groundmm
2996
Traveling speed (H/L)Km/hr
8/3.2
Swing speedrpm
10.5
GradeabilityDegree(%)
35（70%）
Ground pressureKgf/cm2
0.45
Maximum mining radiusmm
10258
Ground maximum digging radiusmm
10086
Maximum mining depthmm
6995
Ground maximum digging depthmm
6813
Maximum vertical digging depthmm
6090
Maximum digging heightmm
9612
Maximum unloading heightmm
6690
Minimum front radius of gyration Min. front turning radiusmm
3740
From the supplier
Equipped with Cummins engine, it is powerful, efficient, energy-saving, reliable and durable; advanced negative flow hydraulic system is comfortable to operate, high working efficiency, and excellent cost performance; full power control, four power modes adapt to different working conditions; stepper motor accurately controls throttle, significantly reduce fuel consumption; full three-dimensional modeling and finite element analysis technology ensure the reliability and stability of structural parts.
Operating weight
Kg
25000
Standard bucket capacity (ordinary bucket)Rated bucket capacitym3
1.2
Overall lengthmm
9840
Overall width (600mm track) Overall width (600mm trackshoe)mm
3180
Overall heightmm
3180
Turntable width Trunnable widthmm
2700
Cabin height above groundmm
2996
Traveling speed (H/L)Km/hr
8/3.2
Swing speedrpm
10.5
GradeabilityDegree(%)
35（70%）
Ground pressureKgf/cm2
0.45
Maximum mining radiusmm
10258
Ground maximum digging radiusmm
10086
Maximum mining depthmm
6995
Ground maximum digging depthmm
6813
Maximum vertical digging depthmm
6090
Maximum digging heightmm
9612
Maximum unloading heightmm
6690
Minimum front radius of gyration Min. front turning radiusmm
3740
