Vertical Machining Center VMC600L
WMT CNC INDUSTRIAL CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Vertical Machining Center VMC600L
WMT CNC INDUSTRIAL CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: metal
- Size: 1900×1700×2240mm
- Color: black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: metal
- Size: 1900×1700×2240mm
- Color: black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | metal |
|---|---|
| Size | 1900×1700×2240mm |
| Color | black and grey |
Product details
| Materials | metal |
|---|---|
| Size | 1900×1700×2240mm |
| Color | black and grey |
From the supplier

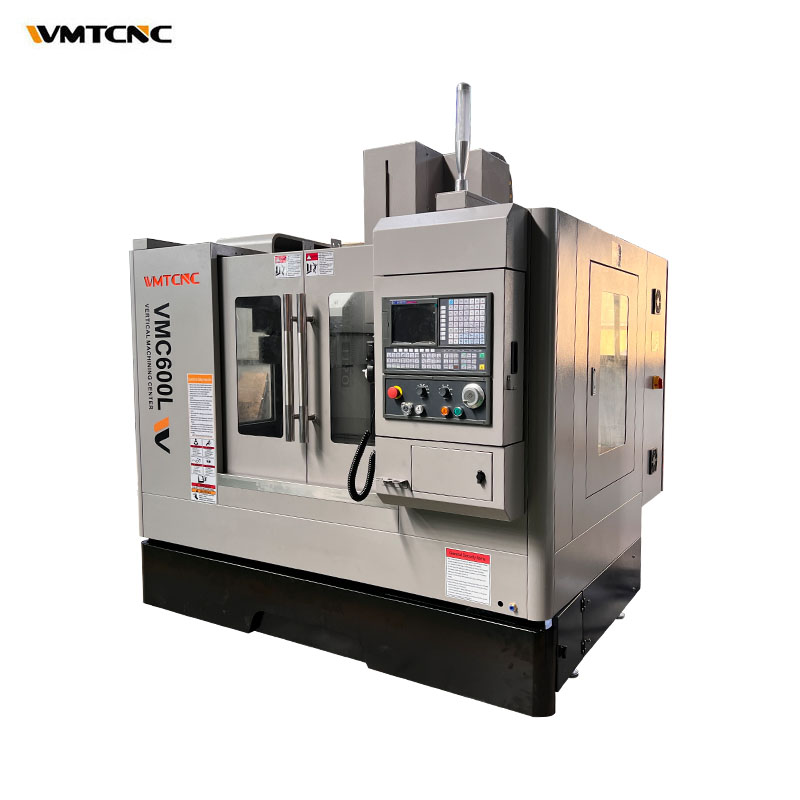

The WMTCNC VMC machine VMC600L is a high-performance vertical machining center designed for general mold processing. This state-of-the-art machine is equipped with advanced features and cutting-edge technology, making it an ideal choice for precision manufacturing applications.
The VMC600L VMC machine is equipped with a user-friendly interface and intuitive controls, enabling operators to easily program and operate the machine. Its advanced CNC system allows for complex machining operations, ensuring optimal performance and productivity.
Specification Specification VMC600L Worktable Worktable size (L×W) 800×400mm T-slots size (N×W×D) 3-14x100mm Travel X/Y/Z axis travel 600/400/450mm Machining range Distance from spindle center to column 550mm Distance from spindle nose to worktable surface 100-550mm Spindle Spindle taper BT40 Spindle power 5.5kw Max. spindle speed 8000rpm Feed Max. feed speed 10m/min Rapid feed speed (X/Y/Z) 30/30/25m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 3210 Tool magazine Tool magazine capacity 12T/16T(optional) Max. length of tool 300mm Tool change time 7s/2.5s Positioning accuracy (National standard) Positioning accuracy (X/Y/Z) ±0.005mm Re-positioning accuracy(X/Y/Z) ±0.003mm Machine dimension L×W×H 1900×1700×2240mm Machine weight Max. loading of worktable 300kg Machine weight 3500kgDetails
From the supplier
The WMTCNC VMC machine VMC600L is a high-performance vertical machining center designed for general mold processing. This state-of-the-art machine is equipped with advanced features and cutting-edge technology, making it an ideal choice for precision manufacturing applications.
The VMC600L VMC machine is equipped with a user-friendly interface and intuitive controls, enabling operators to easily program and operate the machine. Its advanced CNC system allows for complex machining operations, ensuring optimal performance and productivity.
Specification Specification VMC600L Worktable Worktable size (L×W) 800×400mm T-slots size (N×W×D) 3-14x100mm Travel X/Y/Z axis travel 600/400/450mm Machining range Distance from spindle center to column 550mm Distance from spindle nose to worktable surface 100-550mm Spindle Spindle taper BT40 Spindle power 5.5kw Max. spindle speed 8000rpm Feed Max. feed speed 10m/min Rapid feed speed (X/Y/Z) 30/30/25m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 3210 Tool magazine Tool magazine capacity 12T/16T(optional) Max. length of tool 300mm Tool change time 7s/2.5s Positioning accuracy (National standard) Positioning accuracy (X/Y/Z) ±0.005mm Re-positioning accuracy(X/Y/Z) ±0.003mm Machine dimension L×W×H 1900×1700×2240mm Machine weight Max. loading of worktable 300kg Machine weight 3500kgDetails
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
