Product Description

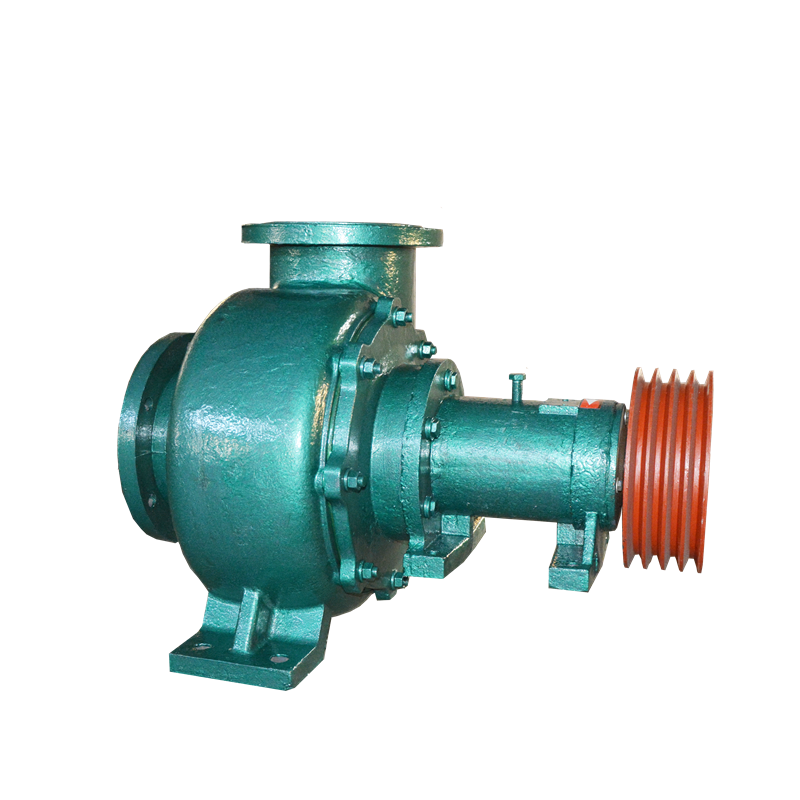

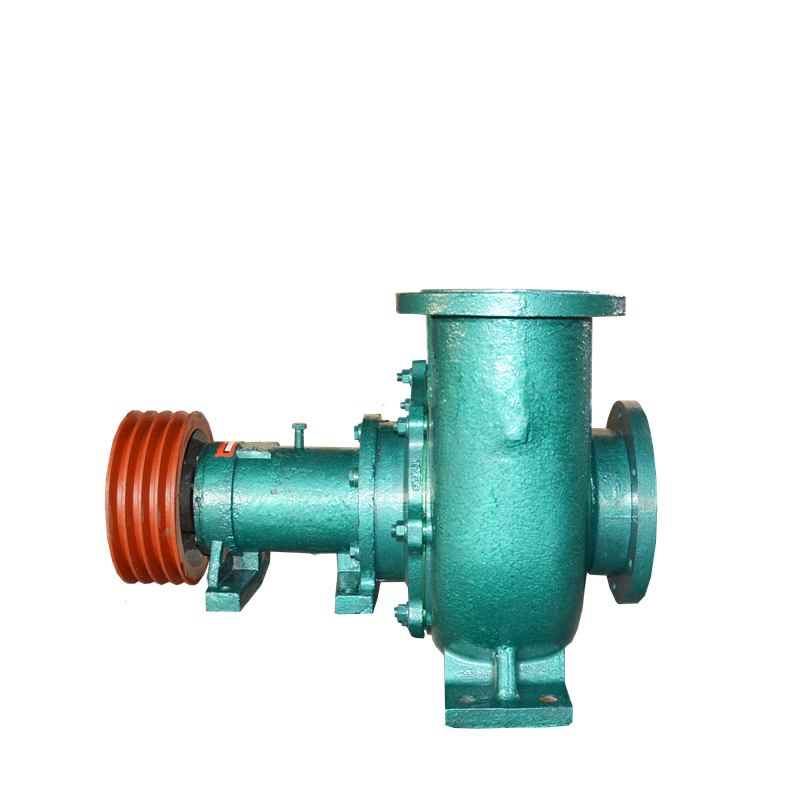

Sand extraction machine from river is also known as horizontal simple sand suction pump. Sand extraction machine is suitable to extract small granular sand. Wear resistant sand extraction machine uses the principle of centrifugal force. The sand extraction machine produces a huge suction by the high speed rotation of the impeller, so that the sand extraction machine can carry out high efficient sand extraction task. The sand extraction machine is commonly used in pumping system that move sand deposits to long distance. This kind of centrifugal sand extraction machine has good price and high performance in our 10 kinds of sand pump machines. At present, the dredger equipped with sand extraction machine is our main export products. The customers can choose the type of riverssand extraction pump and corollary equipment according to their own requirements.



Specification20”  2480 20 750 67518”  1950 20 750 45016”  1500 20 750 220 14”  1100 20 750 175 12”  900 20 900 14510”  480 15 1200 132 8”  360 15 120090 6” 26012  1400564”15012140022SizeFlow(m³/h)Head(m)Speed(rpm)Power(KW)

Remark:  1.  All these pump have two types: double flange one and single flange
                    one, please choose according to your actual requirements.
               2. The pump material can be iron casting, alloy according to different
                   site situation requirements.
The information in the table is not complete. Please click here to get more detailed data.

Features

1. Single stage, single suction, centrifugal sand pump.
2. Easy operation, transportation and maintenance.
3. Open impeller, wear resistance, big flow and better non-blockage performance.
4. Two types: double flange and single flange.
5. Two materials: iron cast and alloy.

Application

1. Mainly used for pumping sand from small river, lake, pond, pool.
2. Unloading or sucking sand from large dredger.

Successful cases

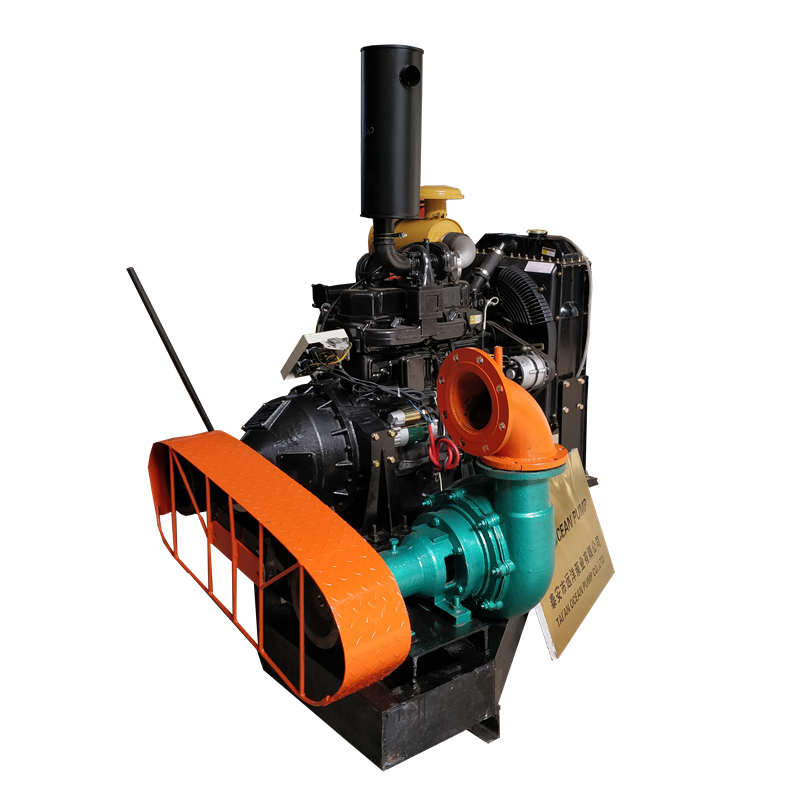

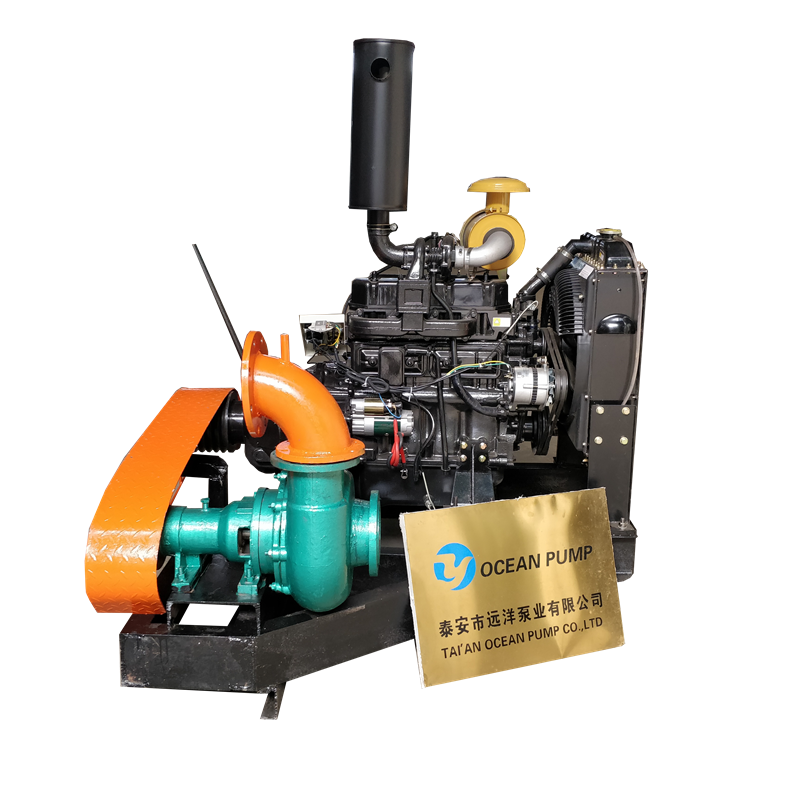

Our Fiji customer inquired us for a 4 inch sand extraction machine with diesel engine, he demand to discharge the material to 50 m. Our 4 inch portable series sand extraction machine can exactly meet his requirement, so we recommend him. This sand extraction machine is usually used on our small sand dredge, which is hot-selling in Africa countries and won good comments for many years.
Since the customer use the centrifugal sand extraction machine set separately but not in dredger, he needs to irrigate water into pump case before sucking sand. To prevent the water flow out, we added a bottom valve for him to connect on the suction hose end.



Parameters of sand extraction machine for customer

No.ProductsDetails14 inch sand extraction machine20-35 m3/h solid sand, head 12m, diesel engine 43 kw, fuel consumption 6L/H2Bottom valveUsed for prevent water backflow3Wearable hose50m , to discharge sand
