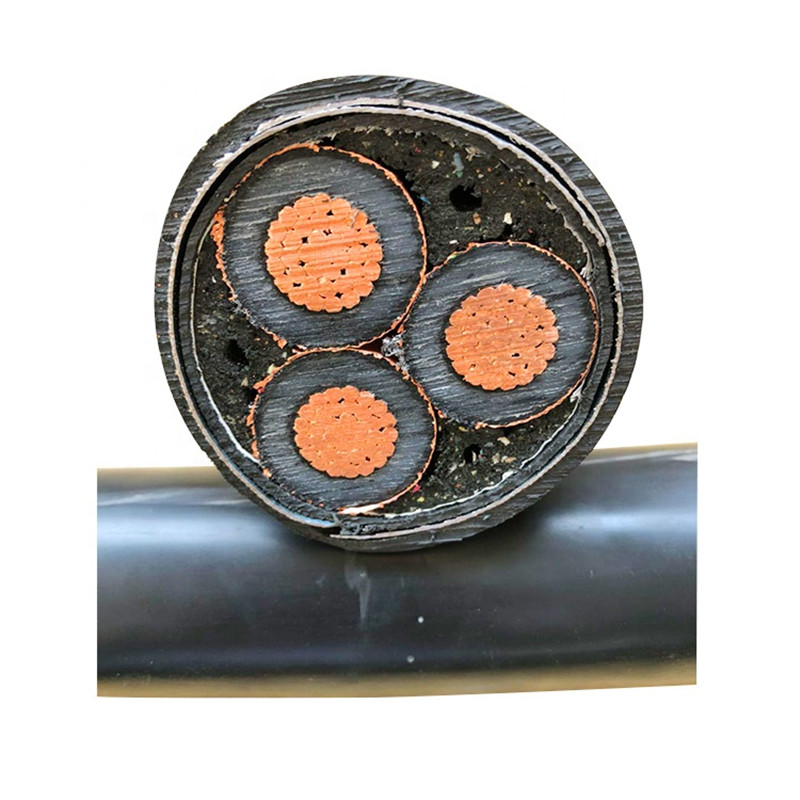

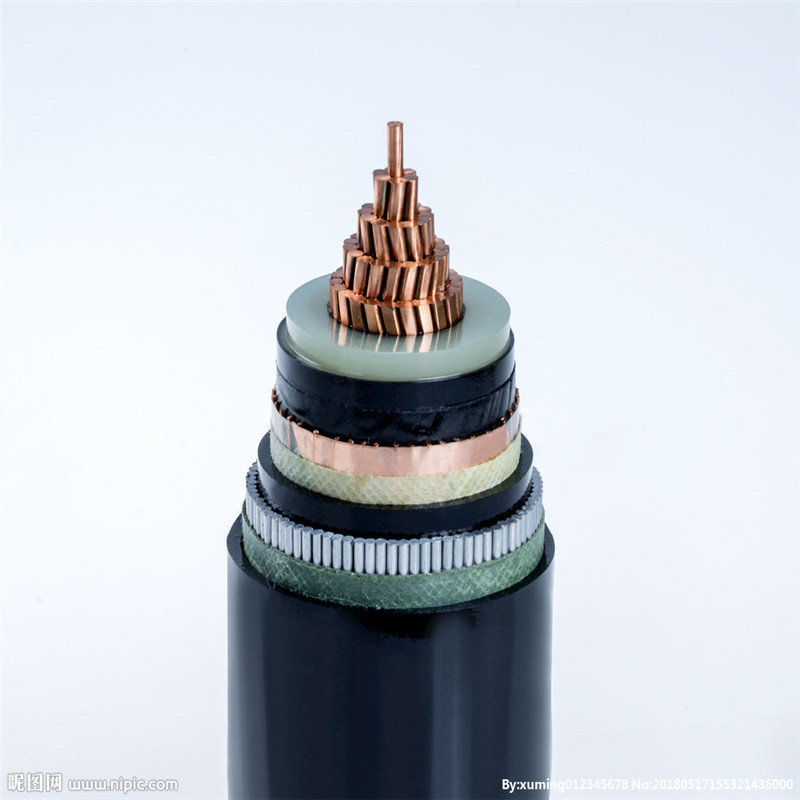

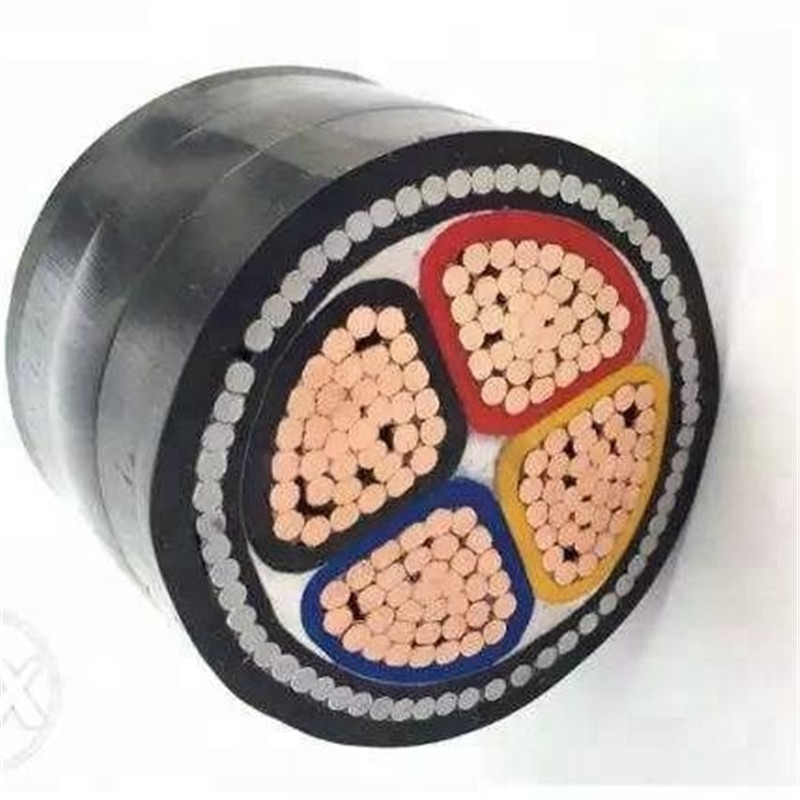

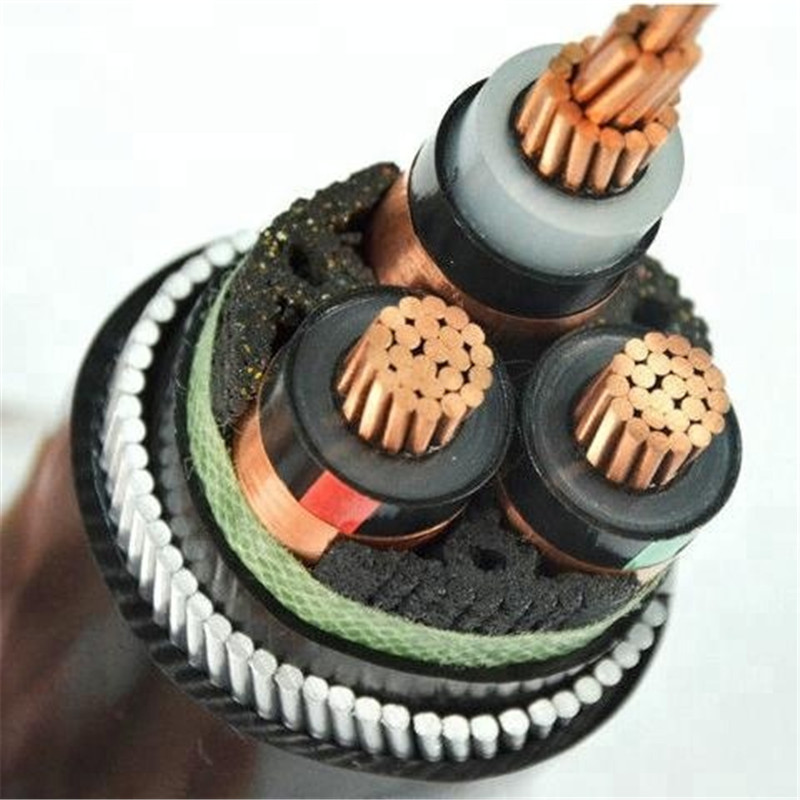

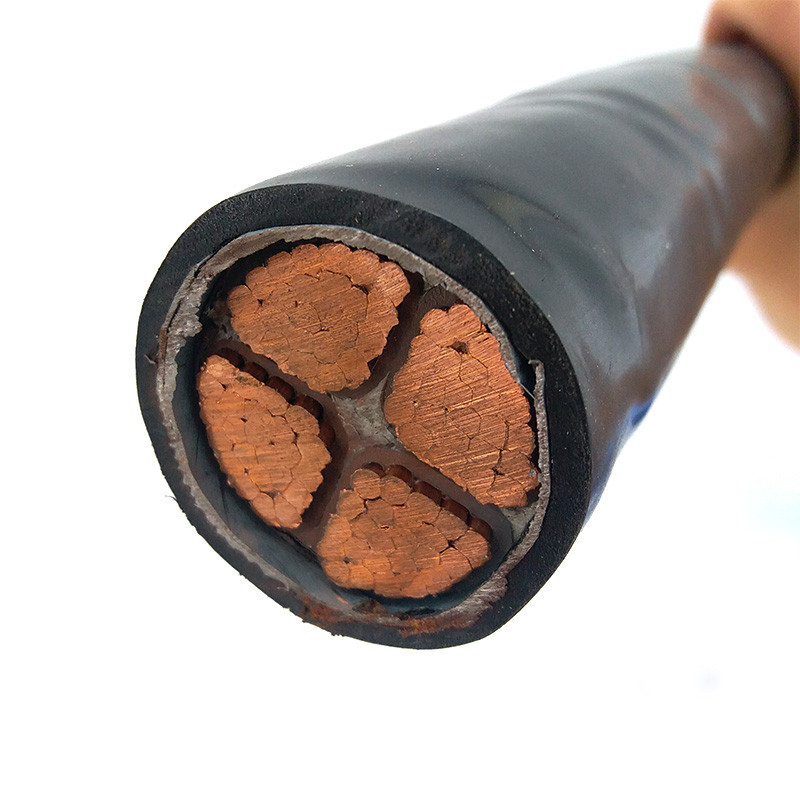

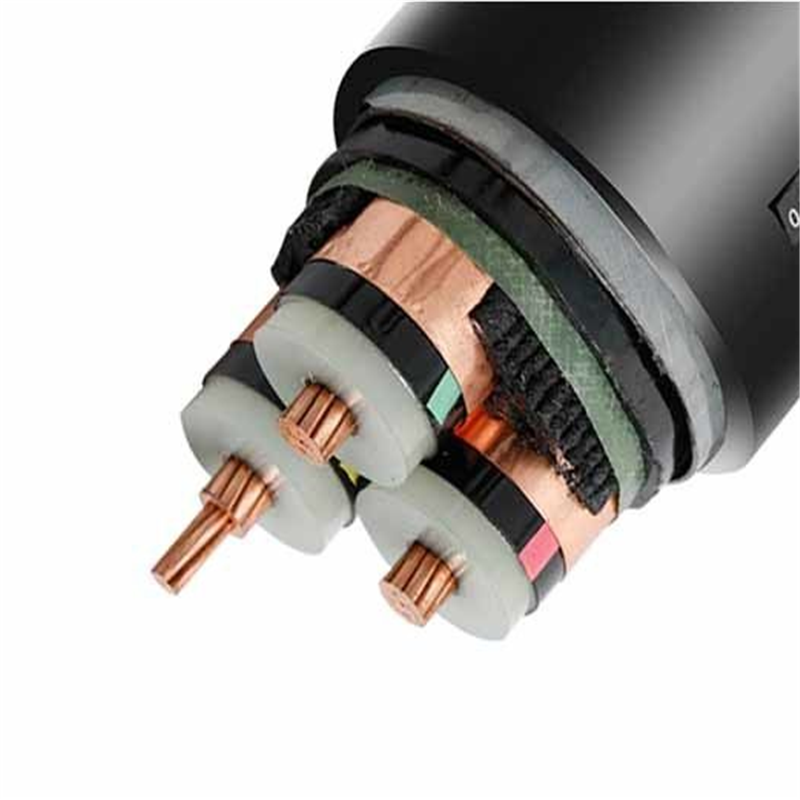

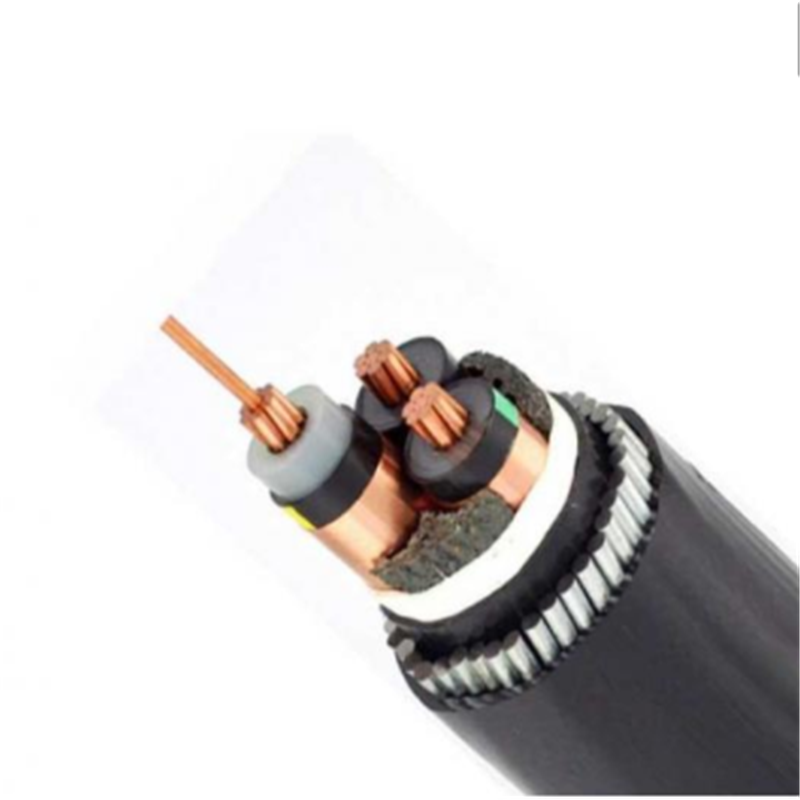

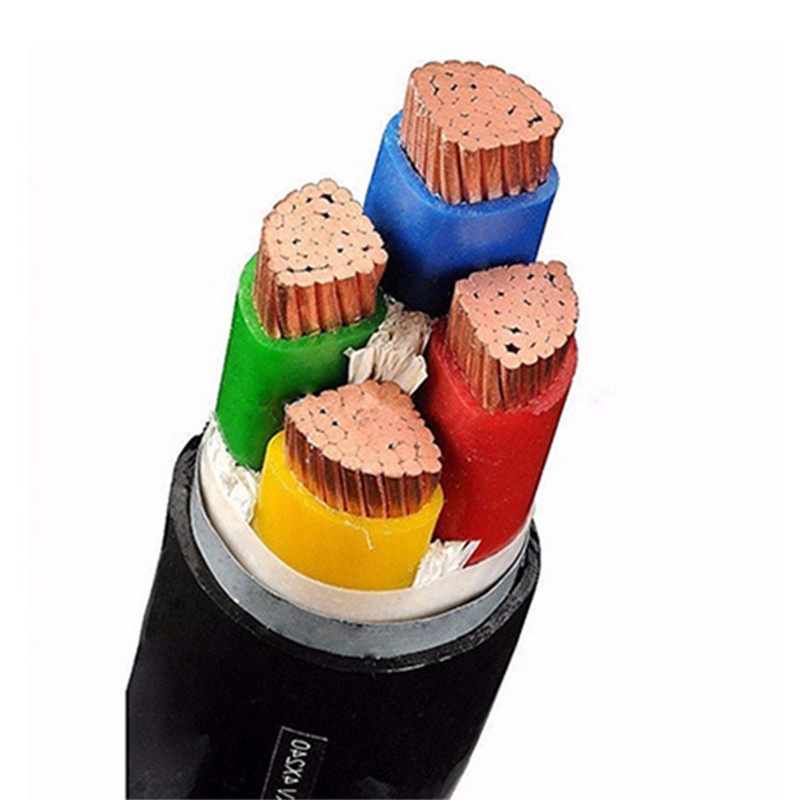

0.6/1KV 8.7/15KV 18/30KV Copper Core 2 3 4 5 core 10 16 25 mm2 185 sq mm Outdoor PVC/XLPE Insulated Armored Underground Power Cable Three Phase
RUITIAN CABLE CO.,LTD.
See what’s includedHide breakdown
- FOB goods (500)
- $25,170
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (2.7%)
- $680
- Section 301 tariff (25.0%)
- $6,292
- Customs fees (MPF/HMF)
- $119
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (500)
- $25,170
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (2.7%)
- $680
- Section 301 tariff (25.0%)
- $6,292
- Customs fees (MPF/HMF)
- $119
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
0.6/1KV 8.7/15KV 18/30KV Copper Core 2 3 4 5 core 10 16 25 mm2 185 sq mm Outdoor PVC/XLPE Insulated Armored Underground Power Cable Three Phase
RUITIAN CABLE CO.,LTD.See what’s includedHide breakdown
- FOB goods (500)
- $25,170
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (2.7%)
- $680
- Section 301 tariff (25.0%)
- $6,292
- Customs fees (MPF/HMF)
- $119
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (500)
- $25,170
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (2.7%)
- $680
- Section 301 tariff (25.0%)
- $6,292
- Customs fees (MPF/HMF)
- $119
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Copper, XLPE/PVC
- Size: 2.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300 sq.mm
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
About this product
- Materials: Copper, XLPE/PVC
- Size: 2.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300 sq.mm
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
Product details
| Materials | Copper, XLPE/PVC |
|---|---|
| Size | 2.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300 sq.mm |
| Color | Black |
Product details
| Materials | Copper, XLPE/PVC |
|---|---|
| Size | 2.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300 sq.mm |
| Color | Black |
From the supplier
CertificateCCC, CE
Cores Number1 2 3 4 5 3+1 3+2 4+1 cores
Conductor Cross Section2.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300 Squmm
Power Cable Description And Specification.rtf
1. Standard
IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)
2. Application
This cable is used for fixed installations, such as distrubution networks or industrial installations. It can be installed in cable duct, trench or directly buried in earth.
3. Product Description
1) Rated Voltage: 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV, 132KV
2) Max. working temperature: 90 °c
3) Max. temperature during short circuit (≤5S): 250 °c
4) Conductor: class 1, 2 copper or aluminum
5) Sectional area: 25 - 630mm2
6) Insulation: XLPE
7) No. of cores: 1, 2, 3, 4, 5, 3+1, 3+2, 4+1
8) Armor: steel wire or steel tape for 3 core cables and non-magnetic material for single core
9) Oversheath: PVC
10) Min. beding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones
11) Max. conductor DC resistance at 20°c
From the supplier
CertificateCCC, CE
Cores Number1 2 3 4 5 3+1 3+2 4+1 cores
Conductor Cross Section2.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300 Squmm
Power Cable Description And Specification.rtf
1. Standard
IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)
2. Application
This cable is used for fixed installations, such as distrubution networks or industrial installations. It can be installed in cable duct, trench or directly buried in earth.
3. Product Description
1) Rated Voltage: 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV, 132KV
2) Max. working temperature: 90 °c
3) Max. temperature during short circuit (≤5S): 250 °c
4) Conductor: class 1, 2 copper or aluminum
5) Sectional area: 25 - 630mm2
6) Insulation: XLPE
7) No. of cores: 1, 2, 3, 4, 5, 3+1, 3+2, 4+1
8) Armor: steel wire or steel tape for 3 core cables and non-magnetic material for single core
9) Oversheath: PVC
10) Min. beding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones
11) Max. conductor DC resistance at 20°c
