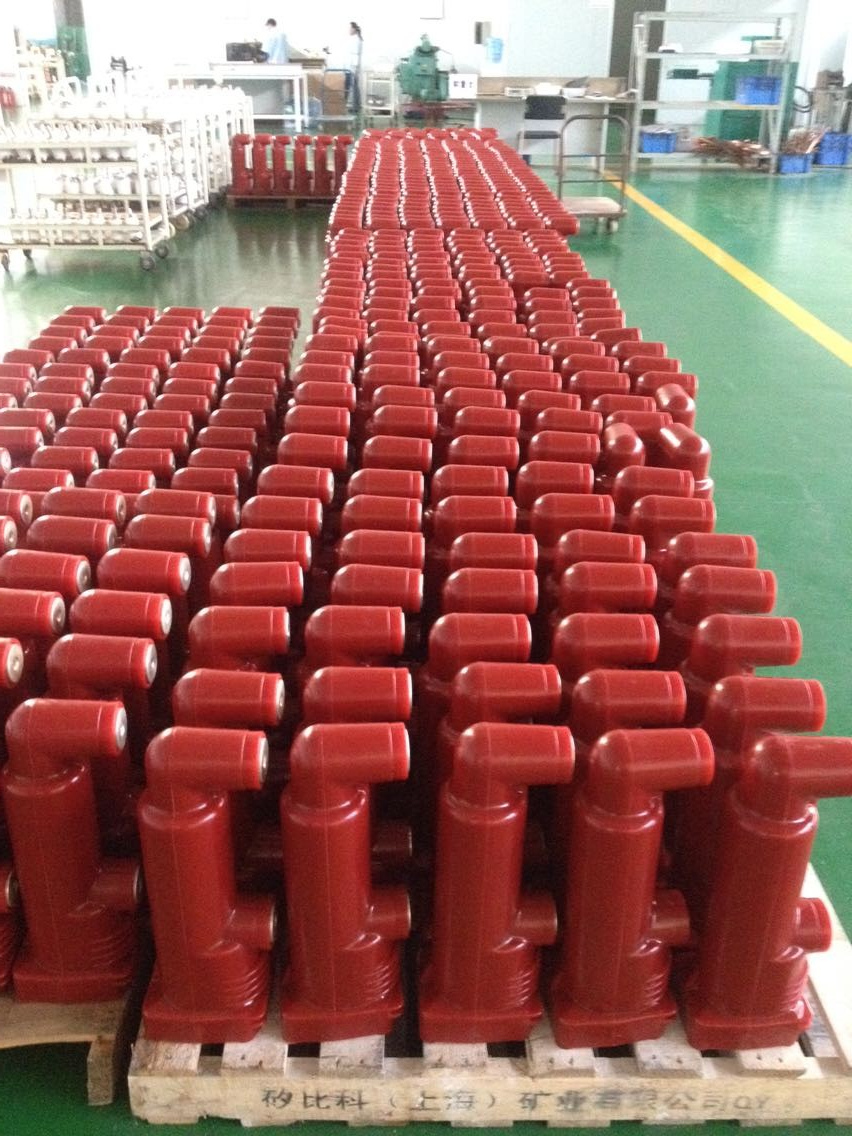

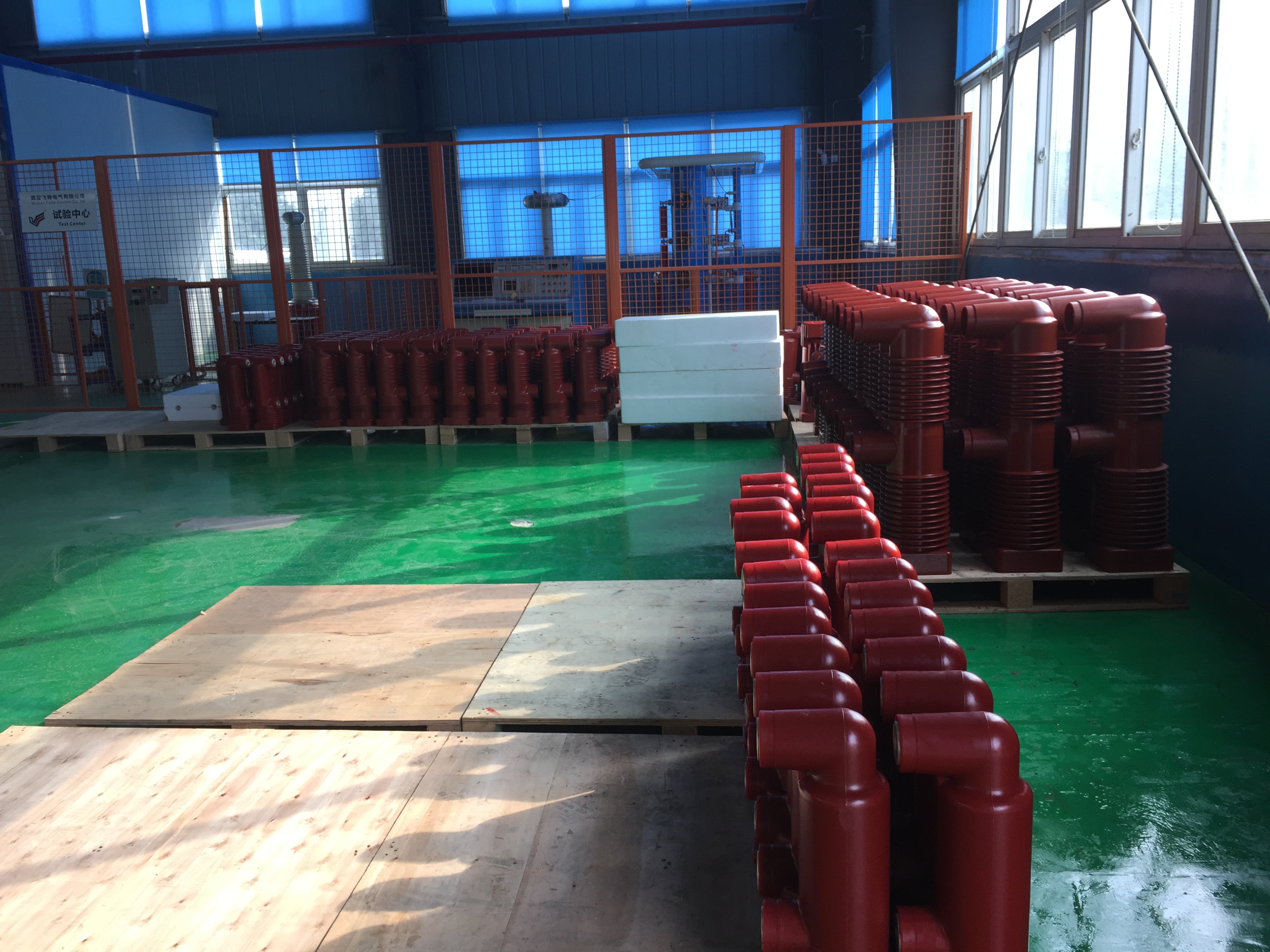

Vacuum arc extinguishing chamber embedded pole

The epoxy solid sealing pole (also known as the solid seal type vacuum arc extinguishing chamber) is a buffer material outside the vacuum switch tube and then a layer of epoxy resin. It replaces the insulation support and mechanical support of the original circuit breaker, greatly reducing the circuit breaker's parts and volume. With small size, more stable and reliable pressure advantages it realizes the integrated module,  and more easy for installation and free-maintenance.

Wuhan Feite brand solid sealed pole of the epoxy resin automatic pressure gel forming process (APG process) the vacuum arc quenching chamber and an upper and a lower outlet seat and current carrying components are encapsulated into a whole. Due to the adoption of the excellent performance epoxy resin material, greatly ensure the products’ mechanical, electrical and thermal aging performance, The embedded pole has good vacuum sealing performance. It is reliable and with good resistance to high and low temperature shock and mechanical shock resistance. It has the advantage of maintenance free, compact, easy to install. Epoxy solid sealed pole matching the corresponding indoor and outdoor vacuum circuit breaker or a vacuum distribution device, especially matching in frequency is 50Hz / 60Hz, rated voltage of 12kV, 17.5kV, 24kV, 27.5 kV and 40.5 kV electric power, machinery, chemical industry, metallurgy, mining and other departments operating condition operating frequently places.

Embedded poles for 24KV circuit breaker; VEP426A; VEP1250/24-25; VEP1250/24-31.5; VEP1600/24-31.5

Main Technical Data

ELECTRICAL RATINGS(3PHASE) SYMMETRICAL BASIS

1. Rated Voltage

24KV

2. Rated Current

3150A

3. Rated Frequency

50Hz

4. Rated Short-circuit Breaking Current

40KA

5. Rated Operations of Short-circuit Breaking Current Interruption

30times

6. Rated Short-circuit Making Current

100kA

7. Rated Short-time Withstand current(4s)

40KA

8. Rated Single Capacitor Bank Breaking Current*

630A

9. Rated back-to-back capacitor bank breaking current*

400A

10. Short-time(1min) power-frequency withstand voltage

79KV

11. Rated lighting impulse withstand voltage(peak)

145KV

12. Circuit resistance at rated contact force

≤20μΩ

13. Mechanical Life

10,000times

14. Contact Closing Force due to Bellow and Atmospheric

250±50N

15. Counterforce at rated contact force

330±50N

16. Contact Erosion Limit

3mm

17. Shelf Life

20Years

18. Part discharge

≤5pc

19. Rate operating sequence

O-0.3s-CO-180s-CO

MECHANICAL REQUIREMENTS(REF. VCB)

1. Contact Stroke

13±1 mm

2. Contact connection stroke

4±1 mm

3. Average opening speed

1.4±0.2m/Sec

4. Average closing speed

0.6±0.2m/Sec

5. Added contact force

4200±300N

6. Bounce duration of contact closing

≤2ms

7. Out of simultaneity of contact closing and opening

≤1ms

8. Max.overtravel

≤2mm

Notes:

1. Meets or exceeds the electrical endurance requirements of class E2 for auto reclosing duty per IEC 62271-100 and GB 8738-2003.

2. * Rated Characteristics to be given on request
