300meters depth crawler DTH water well drilling rig with air compressor and mud pump
QUZHOU SANROCK HEAVY INDUSTRY MACHINERY CO.,LTD10/10 fairsForeign Trade CompanyModel SR300
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
300meters depth crawler DTH water well drilling rig with air compressor and mud pump
QUZHOU SANROCK HEAVY INDUSTRY MACHINERY CO.,LTD10/10 fairsForeign Trade CompanyModel SR300
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Iron, Steel
- Size: 4100x2100x2500mm
- Color: Customized
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Zhejiang, China
About this product
- Materials: Iron, Steel
- Size: 4100x2100x2500mm
- Color: Customized
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Zhejiang, China
Product details
| Materials | Iron, Steel |
|---|---|
| Size | 4100x2100x2500mm |
| Color | Customized |
Product details
| Materials | Iron, Steel |
|---|---|
| Size | 4100x2100x2500mm |
| Color | Customized |
From the supplier
Main parameters
Parameters SR180 SR220 SR260 SR280 SR300 SR400 Drilling depth 180m 220m 260m 280m 300m 400m The hole diameter 130-254mm 130-254mm 130-305mm 130-305mm 130-325mm 130-325mm Drill pipe diameter Φ76 Φ89 Φ76 Φ89 Φ76 Φ89 Φ76 Φ89 Φ76 Φ89 Φ102 Φ76 Φ89 Φ102 Mast length 3.6m 3.6m 3.6m 6.6m 3.6m 6.6m Diesel engine Yunnei 60kw Yunnei 76kw Yuchai 73kw Yuchai 77kw Yuchai 85kw Yuchai 85kw Swing torque 4000-4600N.m 4500-4700N.m 4500-5000N.m 5500-6000N.m 6000-7500N.m 8500-9000N.m Swing speed 45-65rpm 45-65rpm 45-65rpm 45-65rpm 40-70rpm 55-115rpm Rig lifting force 15T 17T 17T 17T 18T 24T Using air pressure 1.7-2.5mpa 1.7-3.0mpa 1.7-3.0mpa 1.7-3.0mpa 1.7-3.0mpa 1.7-3.3mpa Air consumption 17-31m³/min 17-30m³/min 17-30m³/min 17-30m³/min 17-35m³/min 17-35m³/min Walking speed 2.5km/h 2.5km/h 2.5km/h 2.5km/h 2.5km/h 2.5km/h Climbing angles Max.30 Max.30 Max.30 Max.30 Max.30 Max.30 Dimension 3800x1700x2250 3900x1850x2350 3900x1850x2350 5200x1850x2350 4100x2100x2500 5300x2200x2800 Weight 4500kg 4800kg 6000kg 7000kg 7000kg 9000kgDescription
- It is an efficient and multifunctional groundwater drilling equipment, which can be used for drilling water wells, agricultural irrigation wells, geothermal wells and other wells. It is especially suitable for water intake projects in mountainous areas and rock formations.
- The machine can drill holes in different formations (rock layers, mud layers, sand layers), and the maximum aperture can reach 300mm.
- This machine adopts high-torque hydraulic motor power head and brand diesel oil, and the hydraulic control system adopts large-diameter hydraulic cylinder. The brand diesel is protected by a two-stage air filtration system, and the clean air from the air compressor can also be used directly.
- Unique bump design and centralized control operating system are easy to maintain and operate.
- This machine adopts excavator crawler chassis, which has high off-road performance and can also be installed on trucks, with stronger mobility.
- Two gear rotation and feed speed to make it work in soil and rock layers.
- Dual systems can be installed: 1. Air power system with air compressor 2. Mud pump system with mud pump.

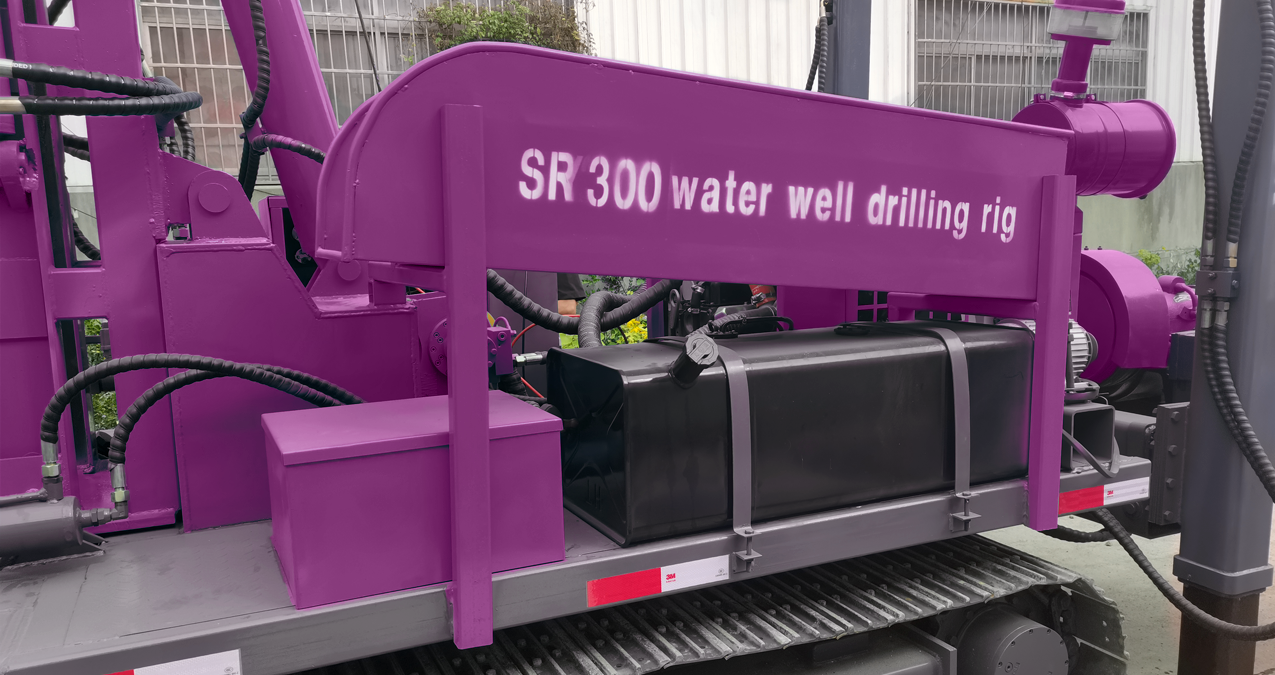

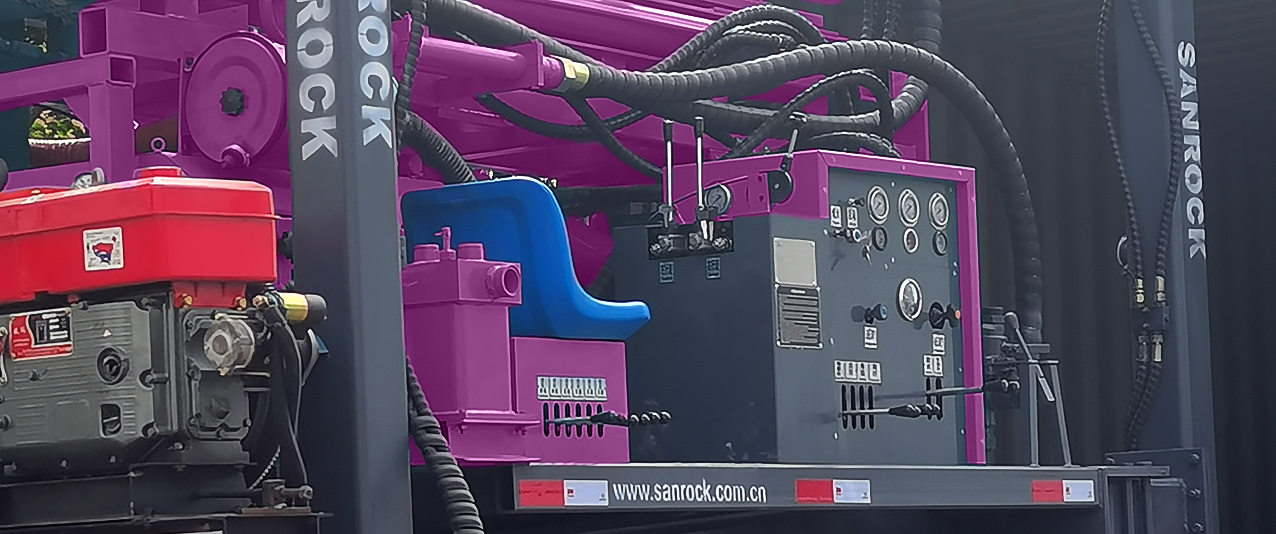

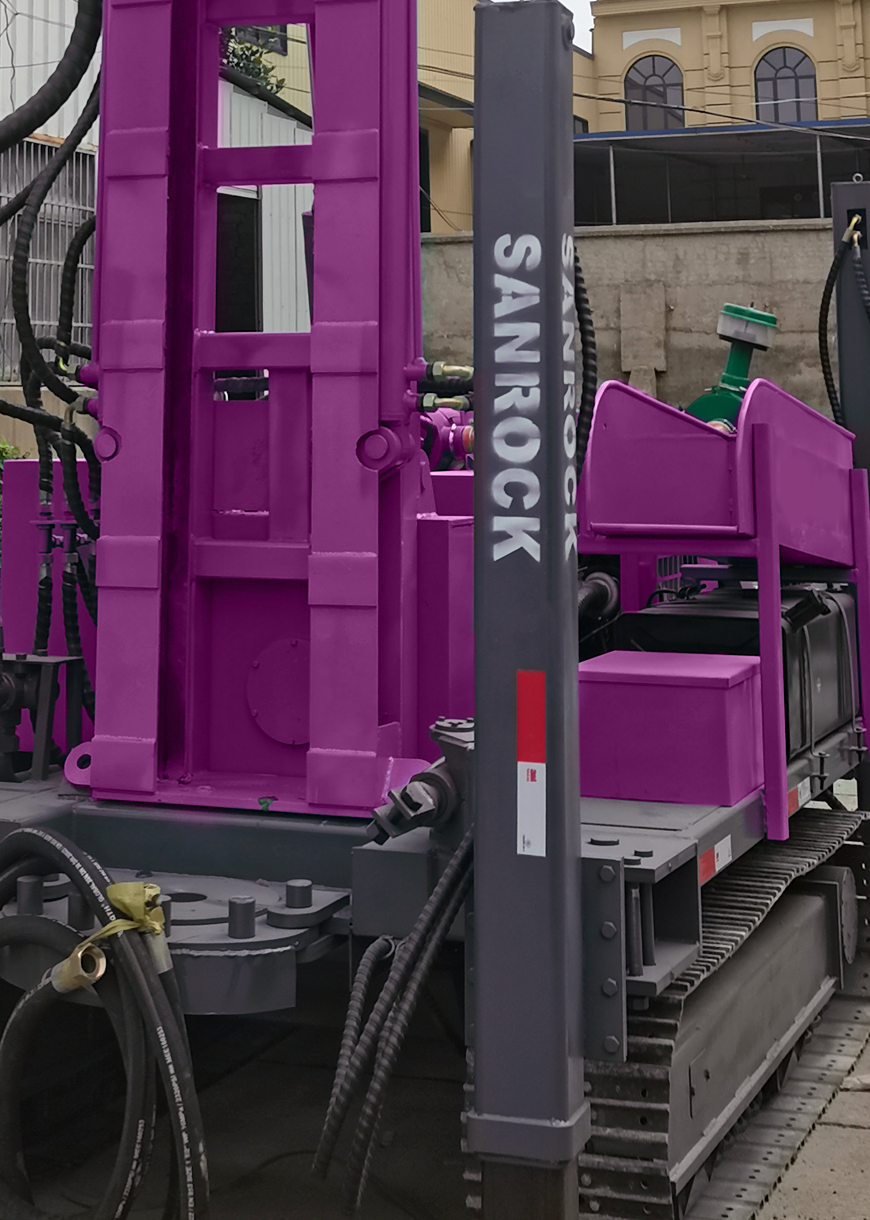

Photoes
From the supplier
Main parameters
Parameters SR180 SR220 SR260 SR280 SR300 SR400 Drilling depth 180m 220m 260m 280m 300m 400m The hole diameter 130-254mm 130-254mm 130-305mm 130-305mm 130-325mm 130-325mm Drill pipe diameter Φ76 Φ89 Φ76 Φ89 Φ76 Φ89 Φ76 Φ89 Φ76 Φ89 Φ102 Φ76 Φ89 Φ102 Mast length 3.6m 3.6m 3.6m 6.6m 3.6m 6.6m Diesel engine Yunnei 60kw Yunnei 76kw Yuchai 73kw Yuchai 77kw Yuchai 85kw Yuchai 85kw Swing torque 4000-4600N.m 4500-4700N.m 4500-5000N.m 5500-6000N.m 6000-7500N.m 8500-9000N.m Swing speed 45-65rpm 45-65rpm 45-65rpm 45-65rpm 40-70rpm 55-115rpm Rig lifting force 15T 17T 17T 17T 18T 24T Using air pressure 1.7-2.5mpa 1.7-3.0mpa 1.7-3.0mpa 1.7-3.0mpa 1.7-3.0mpa 1.7-3.3mpa Air consumption 17-31m³/min 17-30m³/min 17-30m³/min 17-30m³/min 17-35m³/min 17-35m³/min Walking speed 2.5km/h 2.5km/h 2.5km/h 2.5km/h 2.5km/h 2.5km/h Climbing angles Max.30 Max.30 Max.30 Max.30 Max.30 Max.30 Dimension 3800x1700x2250 3900x1850x2350 3900x1850x2350 5200x1850x2350 4100x2100x2500 5300x2200x2800 Weight 4500kg 4800kg 6000kg 7000kg 7000kg 9000kgDescription
- It is an efficient and multifunctional groundwater drilling equipment, which can be used for drilling water wells, agricultural irrigation wells, geothermal wells and other wells. It is especially suitable for water intake projects in mountainous areas and rock formations.
- The machine can drill holes in different formations (rock layers, mud layers, sand layers), and the maximum aperture can reach 300mm.
- This machine adopts high-torque hydraulic motor power head and brand diesel oil, and the hydraulic control system adopts large-diameter hydraulic cylinder. The brand diesel is protected by a two-stage air filtration system, and the clean air from the air compressor can also be used directly.
- Unique bump design and centralized control operating system are easy to maintain and operate.
- This machine adopts excavator crawler chassis, which has high off-road performance and can also be installed on trucks, with stronger mobility.
- Two gear rotation and feed speed to make it work in soil and rock layers.
- Dual systems can be installed: 1. Air power system with air compressor 2. Mud pump system with mud pump.
Photoes
