PRODUCT FEATURE:
• Min installation distance: 1.2m
• Max installation distance: 4m
• Measurement time: 12 seconds
• Measurement accuracy: 1'
• No affected from the unlevel of lift and the parking position of the vehicle.
• Database upgraded remotely and automatically.

CORE COMPONENT:
• 5 million pixel 3D camera technology, the display precision 0.01°.
• High precision target plate, made of imported materials, durable.

MEASUREMENT SPEED:
Sinomake:
pushing vehicle process : 12 seconds
calculation time: 2 seconds
measurement result value updated: every 0.18 seconds
Johnbean:
pushing vehicle process :42 seconds
calculation time: 6 seconds
measurement result value updated: every 0.64 seconds

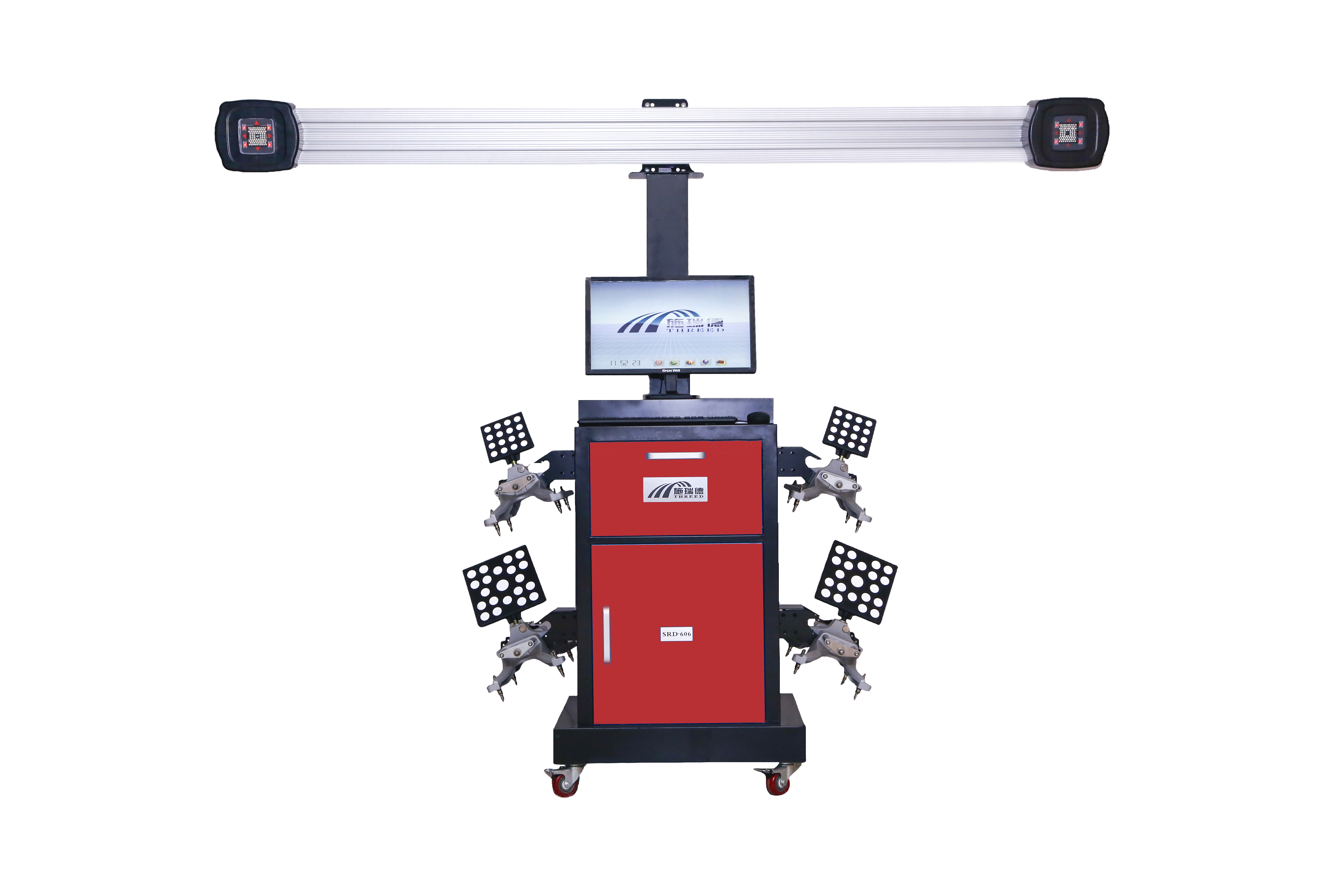

STANDARD CONFIGURATION:

 Part description SRD-606 Camera beam assy 1 set Software dongle 1 pc Mounting pole assy 1 set Trolley cabinet 1 set Target 1 set (4pcs) Wheel clamp 1 set (4pcs) Turntable 1 set (2pcs) Steering lock 1 pc Brake lock 1 pc Wheel chock 2 pc Computer 1 set 21’monitor 1 pc Mouse keyboard 1 set Electrical grounding stick 1 pc

MEASUREMENT PARAMETERS:

 ParametersAccuracyRange Front wheel total toe±1′±40° Front wheel single toe±1′±20° Rear wheel total toe±1′±40° Rear wheel single toe±1′±20° Front wheel camber±1′±20° Rear wheel camber±1′±20° Caster±1′±20° Kingpin inclination±1′±20° Thrust angle±1′±20° Steering forward angle±1′±20° Wheel base1mm1000-4000mm Wheel distance1mm800-2500mm Axle offset1mm≤50mm Computing cycle12 seconds Maintenance beat≤5 minutesQuality control

Pre-Exw incessant running program & camera for over 168 hours.



Precision machining and continuous quality improvement, ensure the stability and excellent product quality.

The machine's outstanding performance and stable quality is appreciated.

Packaging & Shipping

Export standard package, professional forwarder shipment, goods transportation safety.
Packing dimension: 2930*340*330 mm; 550*310*550 mm; 1170*680*770mm
Volume: 1.08CBM

Certifications

SINOMAKE possess a number of independent intellectual property rights, products have passed the CE certification of the EU.

Our customer

Sinomake 3D wheel alignment machine had exported to all over the world, including USA, EU, Russia, Brazil, India, South Africa, Korea, Middle East and ASEAN.

Company Information

GUILIN SINOMAKE SCI-TECHNOLOGY DEVELOPMENT CO., LTD
SINOMAKE is a professional manufacturer of 3D wheel alignment and other automobile maintenance equipment in china, with over 18 years manufacturing experience and servicing over 3000 end user all over the world.

Main products including:
-- Wheel alignment;
-- Car lifting machine;
-- Wheel balancer;
-- Tire changer;
-- Target;
and other vehicle equipment.
Our products are extensively used in automobile maintenance and repair industry,
With high quality supplier, advanced technology, and factory price.

FAQ

Q: How do you control your production quality?
A: We have an independent QC team. Our QC teams do inspections during each manufacture process, camera manufacture process, target manufacture process, and complete machine assemble process. Furthermore, we require 100% final inspection before each shipment.

Q: Can I have a visit to your company before placing an order?
A: Sure, welcome to visit Sinomake. Our factory lacates in Guilin, Guangxi province, a very beautiful landscape city, South China.

Q: What kind of support can I get if I am Sinomake agent?
A: Bottom price, free catalog and gift for marketing, on site training.

Q: May I know the Lead time?
A:The lead time of our machine is 7 to 15 days.

Q: What is your payment terms?
We accept Alibaba Trade Assurance, TT, LC, etc.

Q: How long is the warranty?
A: For the main parts, such as camera,target, we offer warranty 18 months, we will send free parts for replacement in warranty, supply spare parts for lifetime.

Q: Are you a manufacturer?
A: Of course, Sinomake is really manufacturer of 3d wheel aligner,with 18 years professional manufacturing experience in 4 wheel alignment, specializing in software R&D, we also offer OEM to wheel aligner factory both in domestic and oversea.
