3Ton Side Loader
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
3Ton Side Loader
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Steel
- Size: 4190*2000*2475mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Steel
- Size: 4190*2000*2475mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Steel |
|---|---|
| Size | 4190*2000*2475mm |
| Color | Yellow |
From the supplier

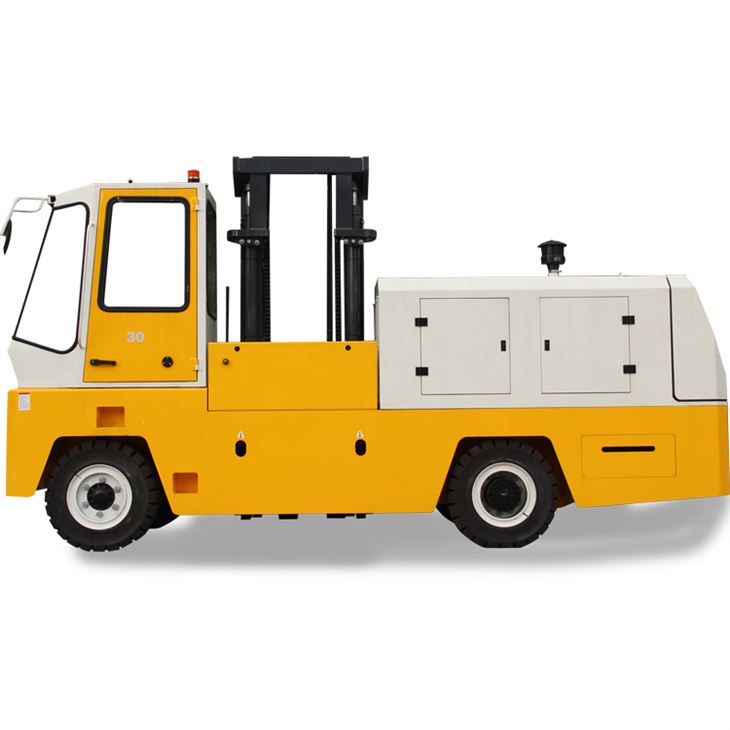

GS 3Ton Side Loader Forklift Details:
The new side-loader forklift with the load capacity ranging from 3.0t to 6.0t is specially developed to meet the load and unload requirements of long dimension loads such as pipes,logs.
It has patents with regard to cabin,dash-panel,parking brake and brake system.This ensures high working reliability.Apart from the superior performance and productivity in all applications.GSEQUIP sideloader also features convenient maintenance and servicing.
This sideloader forklift is available with the environment friendly XINCHAI engine,ISUZU engine or Chinese engines.As the truck engines meet related emission standards,so that customers can feel comfortable when use it,its noise level also reach EU standards.In addition,the spacious cabin provides comfortable driving experience for operator because of low vibration,low noise and good ventilation.What’s more.the sliding door together with the tilt chassis forks all contribute to easy operation.
Model
FDS30
FDS50
FDS60
Power Type
Diesel
Diesel
Diesel
Rated Capacity
kg
3000
5000
6000
Load Centre
mm
500
600
600
Lift Height
H
mm
3600
3600
3600
Fork Size(LxWxT)
L3
mm
1070x125x45
1220x150x60
1220x150x60
Mast Tilt Angle(F/R)
α/β
Deg
6/6
5/13
5/13
Front Overhang
L1
mm
700
700
700
Ground Clearance(Bottom of mast)
H3
mm
190
205
205
Overall Dimension
LxWxH
mm
4190x2000x2475
5140x2140x2660
5140x2140x2660
Platform Width
W
mm
1200
1300
1300
Platform Length
L
mm
4190
5140
5140
Overhead Guard Height
H2
mm
2475
2660
2660
Turning Radius(outside)
r
mm
4250
4300
4300
Speed
Travel(Full load)
km/h
17
Ⅰ/7 Ⅱ/18
Ⅰ/7 Ⅱ/18
Lifting(Full load)
mm/s
440
250
230
Max.Gradeability
%
20
20
20
Tire
Front
2x28x9-15-12PR
2x8.25-15-14PR
2x8.25-15-14PR
Rear
2x28x9-15-12PR
4x8.25-15-14PR
4x8.25-15-14PR
Wheelbase
L2
mm
2580
2800
2800
Service Weight
kg
5670
8300
8700
Battery(Voltage/Capacity)
V/Ah
12/18
（12/18）x2
（12/18）x2
Engine
Model
A498BPG-78
6BG1
6BG1
Manufacturers
XINCHAI
ISUZU
ISUZU
Rated output/r.p.m
kw
45/2500
82.3/2000
82.3/2000
Rated torque/r.p.m
N·m
193/1800
416/1400-1600
416/1400-1600
No.of Cylinder
4
6
6
Bore x Stroke
mm
98x105
105x125
105x125
Displacement
cc
3168
6494
6494
Fuel Tank Capacity
L
75
170
170
