Ⅰ. Product Overview

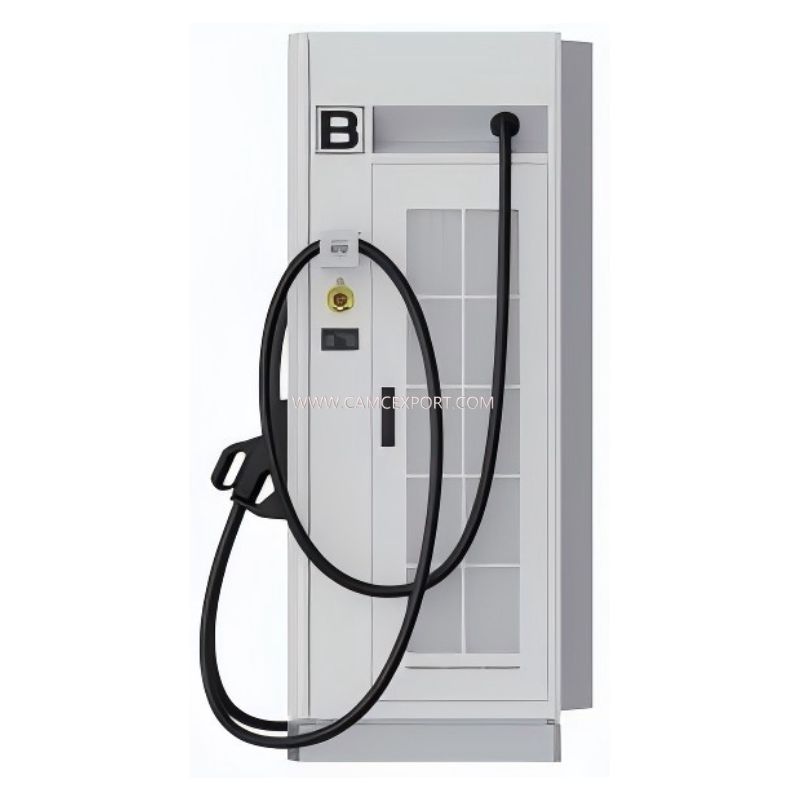

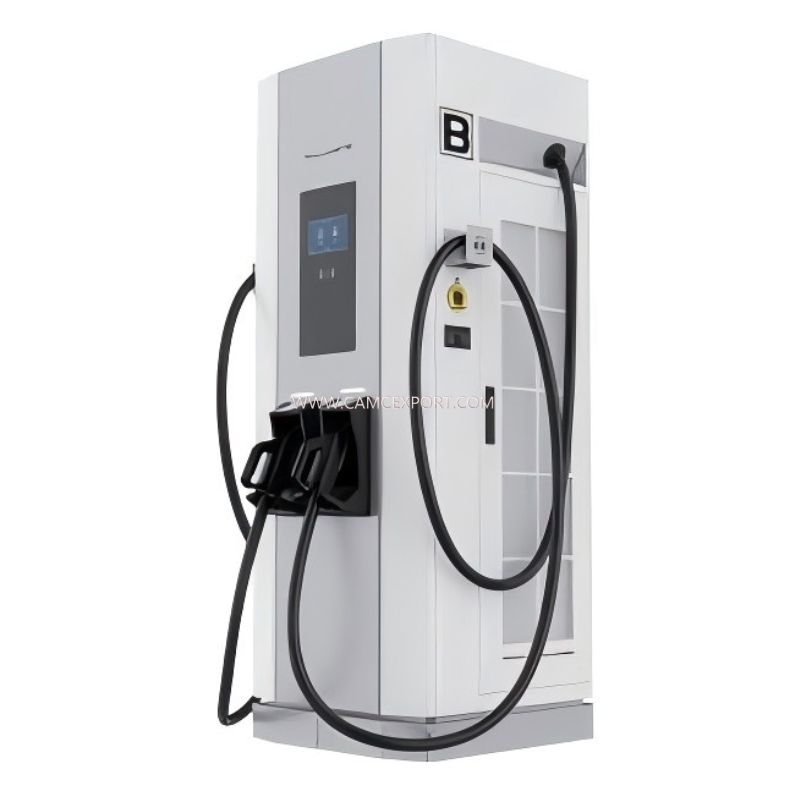

The 40-240kW Series DC EV Charger is a high-power fast charging solution designed for commercial scenarios, tailored for new energy vehicles. It features flexible power scalability, supporting expansion up to 320kW.

With a cabinet depth of only 600mm, it balances stability and space adaptability, fully meeting the customized requirements of the State Grid. The integrated screen design and 8 standard power modules ensure efficient and safe charging for all types of electric vehicles.

Ⅱ. Core Features & Advantages

Flexible Configuration for Diverse Scenarios

Supports single/dual connector charging modes and is compatible with CCS1, CCS2, CHAdeMO, GBT and other mainstream interfaces, adapting to most global EV models. Output power is configurable to meet the charging needs of both private and commercial vehicles.

Smart Interaction for Enhanced Experience

Equipped with a 7-inch touch LCD screen for intuitive operation. Built-in RFID reader with optional credit card reader supports multiple payment and authentication methods, improving operational efficiency.

Advanced Technology for High Efficiency

Supports V2G/V2L/V2H vehicle-grid interaction and parallel charging for optimal energy utilization. Boasts over 94% efficiency and a power factor >0.98, ensuring energy savings and grid-friendly performance.

Comprehensive Safety Protection

IP54 ingress protection and IK10 impact resistance make it suitable for harsh outdoor environments. Multiple safety mechanisms include overvoltage, undervoltage, overcurrent, ground fault protection, and an emergency stop button. Temperature sensors and short-circuit output shutdown provide full safety assurance.

Global Compliance & Compatibility

Complies with OCPP 1.6J communication protocol and international certifications such as CE and EMC. Supports Ethernet, 3G/4G communication for seamless integration with operation management platforms. FRU onboard diagnostics enable quick troubleshooting and maintenance.

Ⅲ. Technical Specifications

Input Voltage: 400VAC / 480VAC (3P+N+PE) 50/60Hz

Output Range: 200-1000VDC, 0-800A

Efficiency: ≥94% at nominal output power

Protection Class: IP54 | IK10

Operating Environment: -30°C to 55°C, Humidity ≤95%RH (Non-condensing)

Dimensions (L×W×H): 900×900×1975mm

Weight: 480kg

Ⅳ. Application Scenarios

Ideal for public charging stations, shopping mall parking lots, logistics parks, bus depots, and highway service areas, providing professional and reliable high-power fast charging for new energy vehicles.

Ⅴ. Customer Reviews

Public Charging Station Operator

“We installed 8 units of this model at our highway service area. The dual-gun design maximizes utilization, and expanding to 320kW meets the fast charging needs of heavy-duty trucks. It’s been running flawlessly for over six months with minimal maintenance costs.”

Logistics Park Manager

“This charger supports V2G, so we store electricity during off-peak hours at night and feed it back to the park during daytime peaks. We’ve saved nearly 30,000 RMB on electricity bills in six months—efficiency and stability have exceeded our expectations.”

EV Owner

“The touchscreen is smooth and supports contactless payment. A full charge only takes 20 minutes, twice as fast as my old charger. It works reliably even in rain, which is a big plus.”

Ⅵ. FAQ

Q1: Which vehicle charging interfaces does this charger support?

A: Compatible with CCS1, CCS2, CHAdeMO, GBT and other global mainstream interfaces, covering most new energy passenger and commercial vehicles on the market.

Q2: What is the maximum expandable power?

A: Standard with 8 power modules, supporting flexible expansion up to 320kW to meet future higher-power charging demands.

Q3: Can the device operate in extreme temperatures?

A: Operating temperature range is -30°C to 55°C, with a wide-temperature adaptive design for stable performance in harsh outdoor conditions.

Q4: How to perform maintenance and troubleshooting?

A: Supports FRU onboard diagnostics for real-time status monitoring and fault module localization. Modular design allows quick component replacement, significantly reducing downtime.

Q5: Does it support remote management and payment functions?

A: Complies with OCPP 1.6J protocol for seamless integration with operation platforms, enabling remote monitoring and upgrades. Built-in RFID reader with optional credit card payment module supports diverse payment methods.
