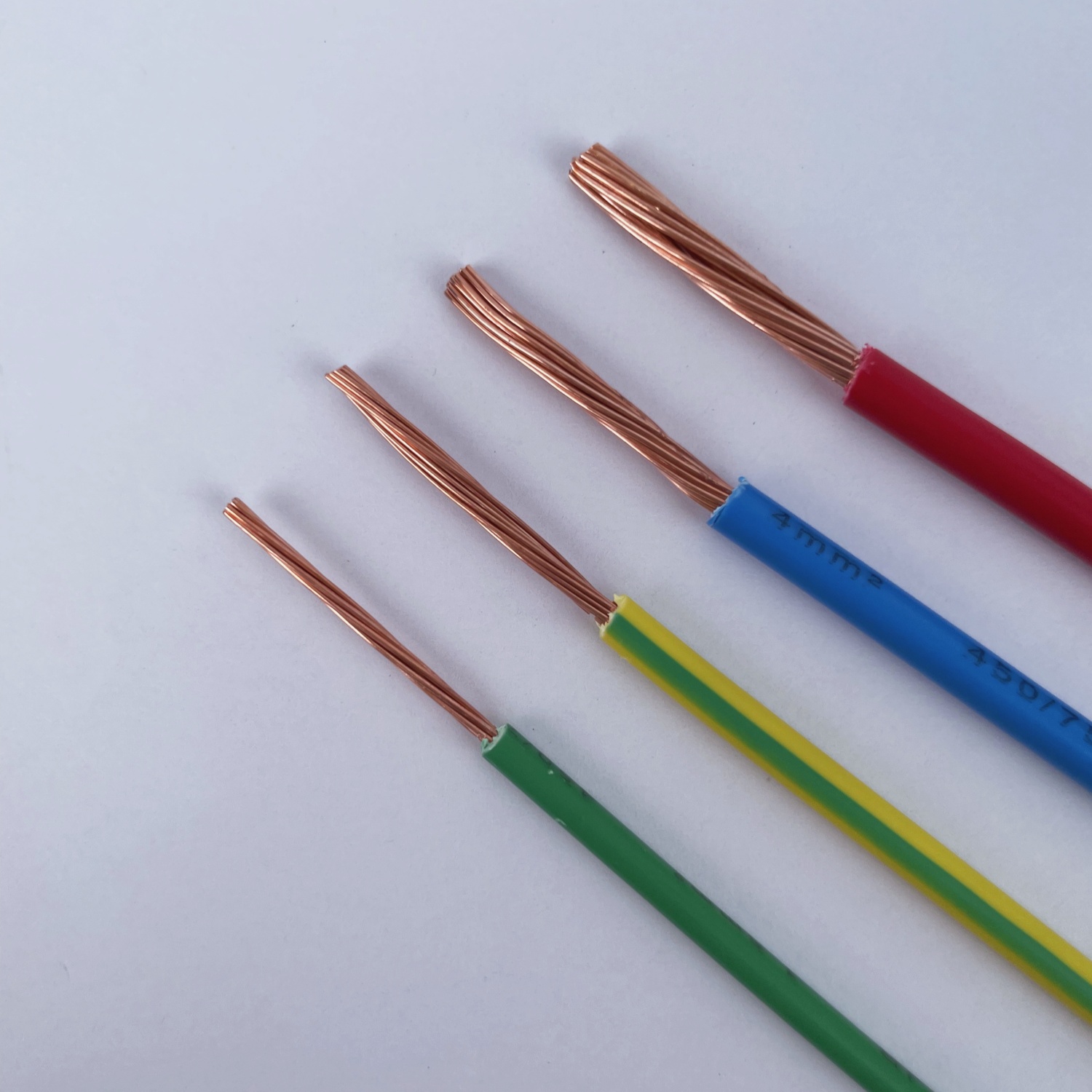

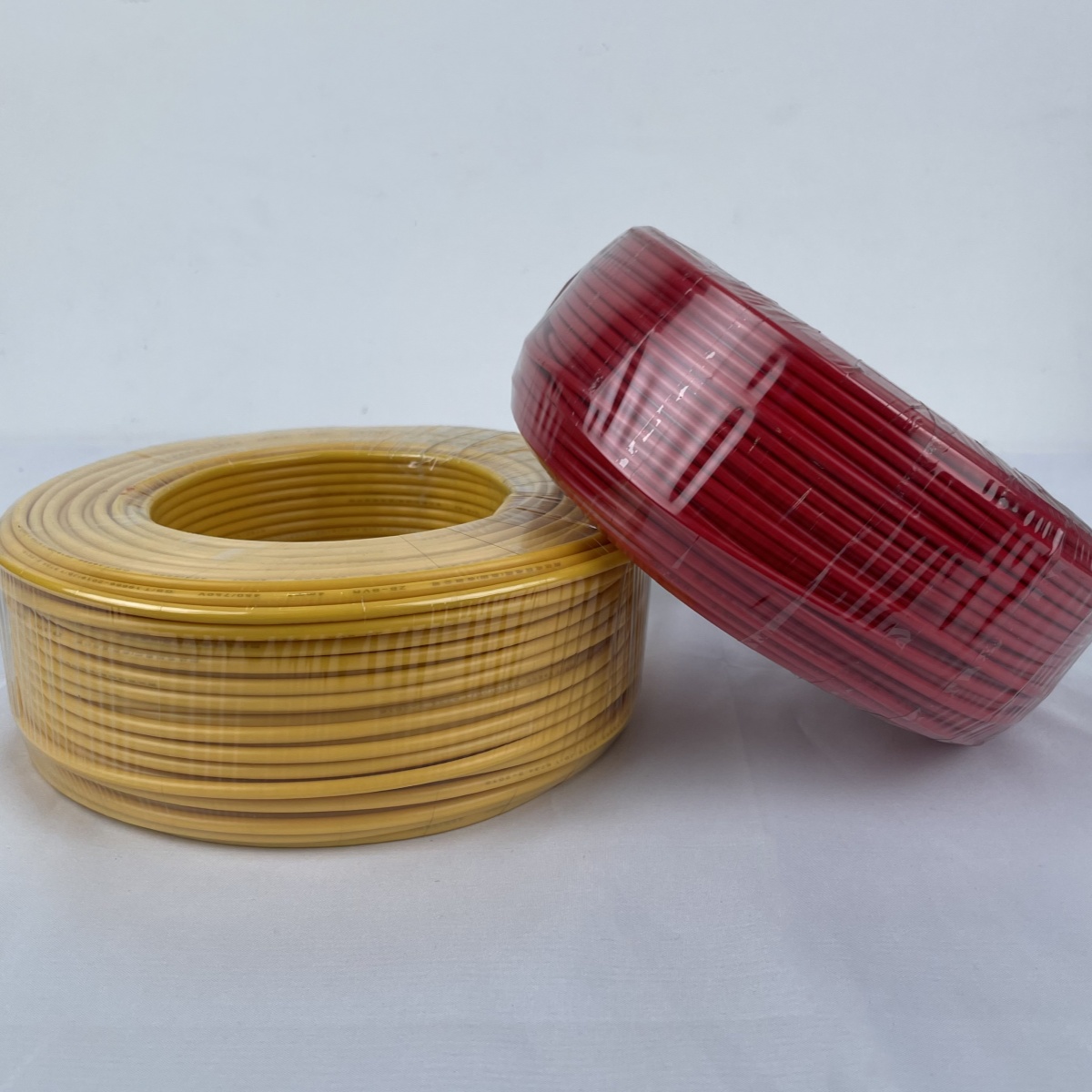

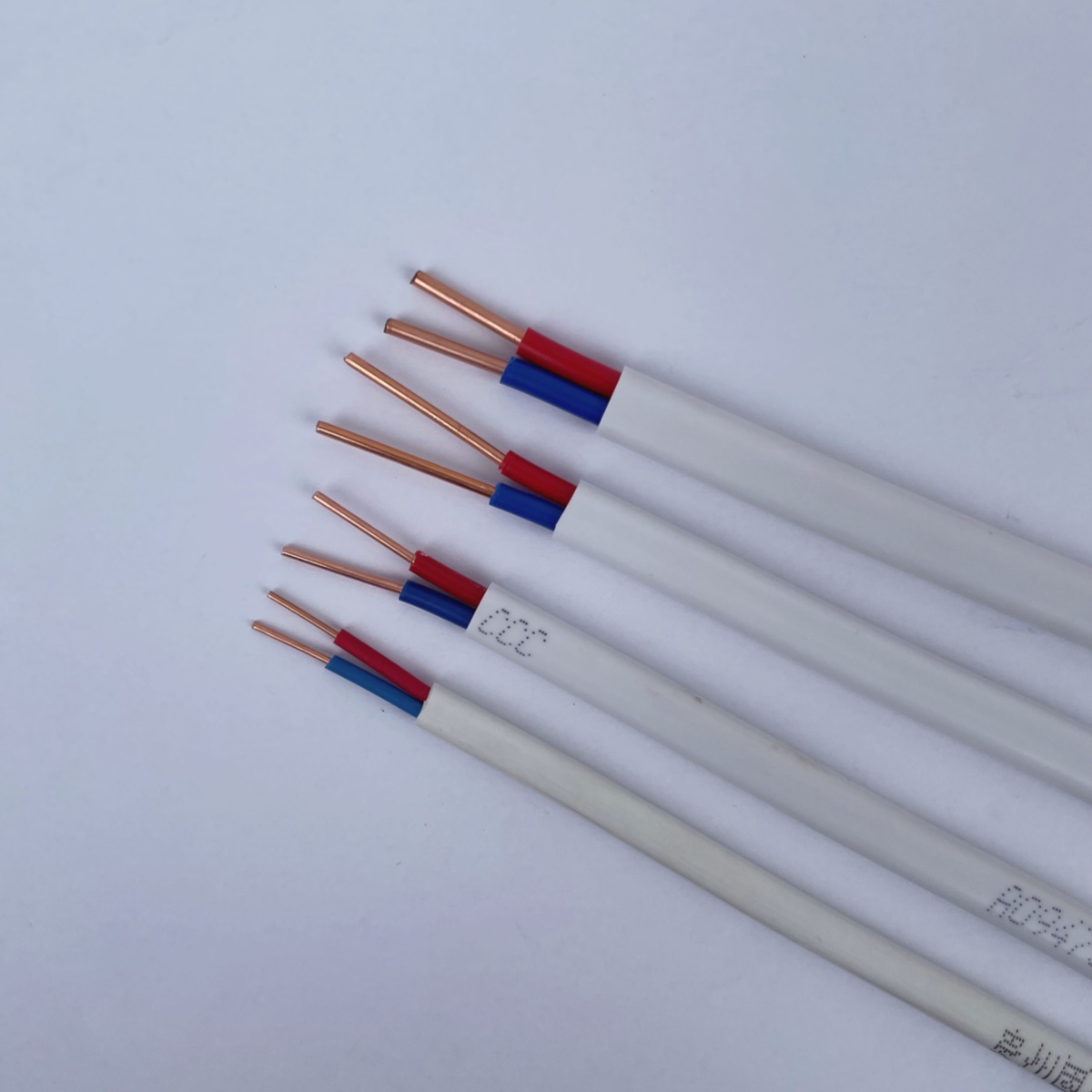

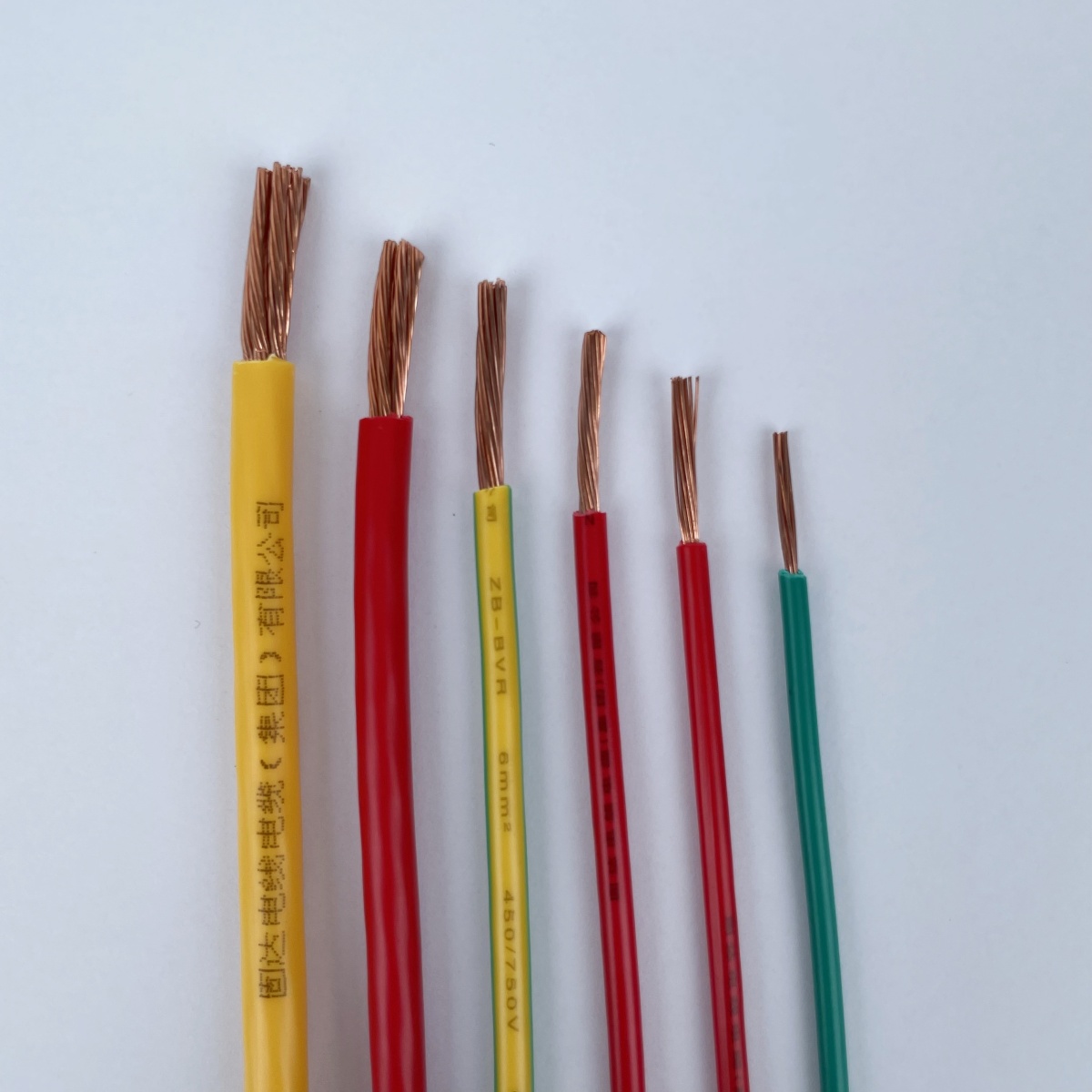

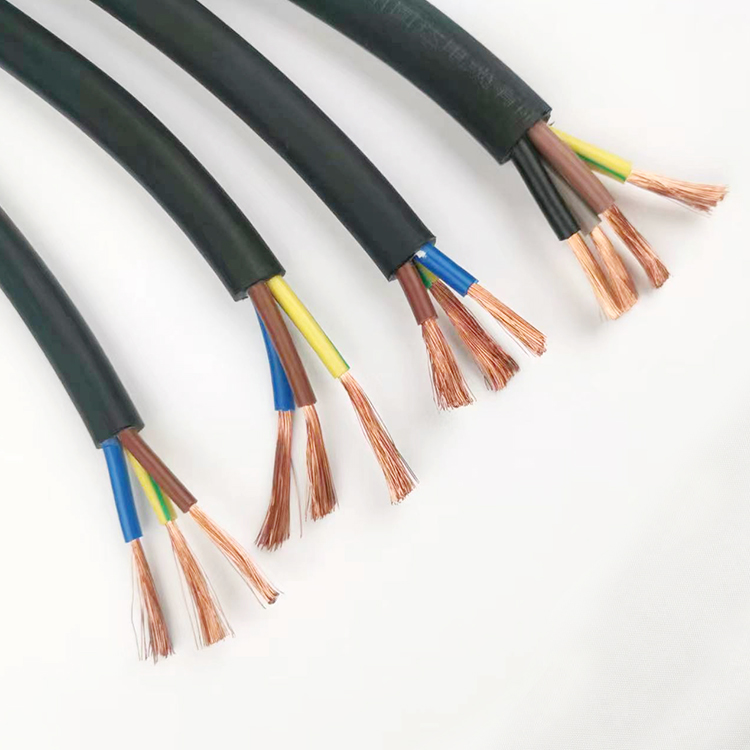

450/750V Low Voltage Home Electrical Wire
Guda Wire and Cable (group) Co., Ltd.
See what’s includedHide breakdown
- FOB goods (3,000)
- $11,340
- Ocean freight + handling (9.0 CBM)
- $1,780
- US duty (2.7%)
- $306
- Section 301 tariff (25.0%)
- $2,835
- Customs fees (MPF/HMF)
- $53
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (3,000)
- $11,340
- Ocean freight + handling (9.0 CBM)
- $1,780
- US duty (2.7%)
- $306
- Section 301 tariff (25.0%)
- $2,835
- Customs fees (MPF/HMF)
- $53
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
450/750V Low Voltage Home Electrical Wire
Guda Wire and Cable (group) Co., Ltd.See what’s includedHide breakdown
- FOB goods (3,000)
- $11,340
- Ocean freight + handling (9.0 CBM)
- $1,780
- US duty (2.7%)
- $306
- Section 301 tariff (25.0%)
- $2,835
- Customs fees (MPF/HMF)
- $53
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (3,000)
- $11,340
- Ocean freight + handling (9.0 CBM)
- $1,780
- US duty (2.7%)
- $306
- Section 301 tariff (25.0%)
- $2,835
- Customs fees (MPF/HMF)
- $53
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 1*1.5mm²-1*400mm²
- Color: red, blue, yellow, green, yellow/green
- Conductor material: Other
- Certification: CCCCERoHSISO9001Other
- Application: Other
- Insulation material: XLPEPVC
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 1*1.5mm²-1*400mm²
- Color: red, blue, yellow, green, yellow/green
- Conductor material: Other
- Certification: CCCCERoHSISO9001Other
- Application: Other
- Insulation material: XLPEPVC
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 1*1.5mm²-1*400mm² |
|---|---|
| Color | red, blue, yellow, green, yellow/green |
| Conductor material | Other |
| Certification | CCCCERoHSISO9001Other |
| Application | Other |
| Insulation material | XLPEPVC |
| Conductor type | SolidOther |
| Rangeof application | FlameRetardantLSOHOther |
| Material shape | RoundWire |
| Sheath material | CrosslinkingPVC |
| Brand | Other |
Product details
| Size | 1*1.5mm²-1*400mm² |
|---|---|
| Color | red, blue, yellow, green, yellow/green |
| Conductor material | Other |
| Certification | CCCCERoHSISO9001Other |
| Application | Other |
| Insulation material | XLPEPVC |
| Conductor type | SolidOther |
| Rangeof application | FlameRetardantLSOHOther |
| Material shape | RoundWire |
| Sheath material | CrosslinkingPVC |
| Brand | Other |
From the supplier
Product Application
Used for power devices, fixed wiring, and flexible connection appliances with rated voltage of 450/750V and below.
Characteristics
1. The rated voltages are: 450/750V, 300/500V, and 300/300V.
2. The maximum allowable long-term working temperature of cable conductors:
60227IEC07(BV-90)………………………………………………90℃
60227IEC08(BV-90)………………………………………………90℃
For other types ………………………………………………70℃
3. The ambient temperature during cable laying should not be lower than 0 ℃.
4. Cable bending radius:
When D≤25mm……………………≥4D
When D＞25mm…………………………≥6D（D is the Cable outer diameter
From the supplier
Product Application
Used for power devices, fixed wiring, and flexible connection appliances with rated voltage of 450/750V and below.
Characteristics
1. The rated voltages are: 450/750V, 300/500V, and 300/300V.
2. The maximum allowable long-term working temperature of cable conductors:
60227IEC07(BV-90)………………………………………………90℃
60227IEC08(BV-90)………………………………………………90℃
For other types ………………………………………………70℃
3. The ambient temperature during cable laying should not be lower than 0 ℃.
4. Cable bending radius:
When D≤25mm……………………≥4D
When D＞25mm…………………………≥6D（D is the Cable outer diameter
