Cutting wheel information:

Product Name

 Grinding wheel for metal

Abrasive

Aluminum oxide

Hardness

R Grade

Net Standard

Reinforced fiberglass

Max working speed

80 m/s

OEM Service

Acceptable

R.P.M

15300

Package

Kraft Carton and Pallet

Grit size

24#,30#,46#,60#

HS Code

68042210

Certificate

MPA EN12413,ISO9001

Lading Port

Tianjin or else

Our product covers 75mm~405mm with Thickness: 0.8mm~8mm for Metal/Inox/Stone series  already through German MPA EN12413 and ISO9001,ISO14001，OHSAS18001 certificates.

The wheel is consist of Metal ring, product lable, reinforced fiberglass net, abrasive grains, filling materials and resin(liquid and powder) and black paper for the back.

Safety standard:The max operating Speed is 80 m/s.

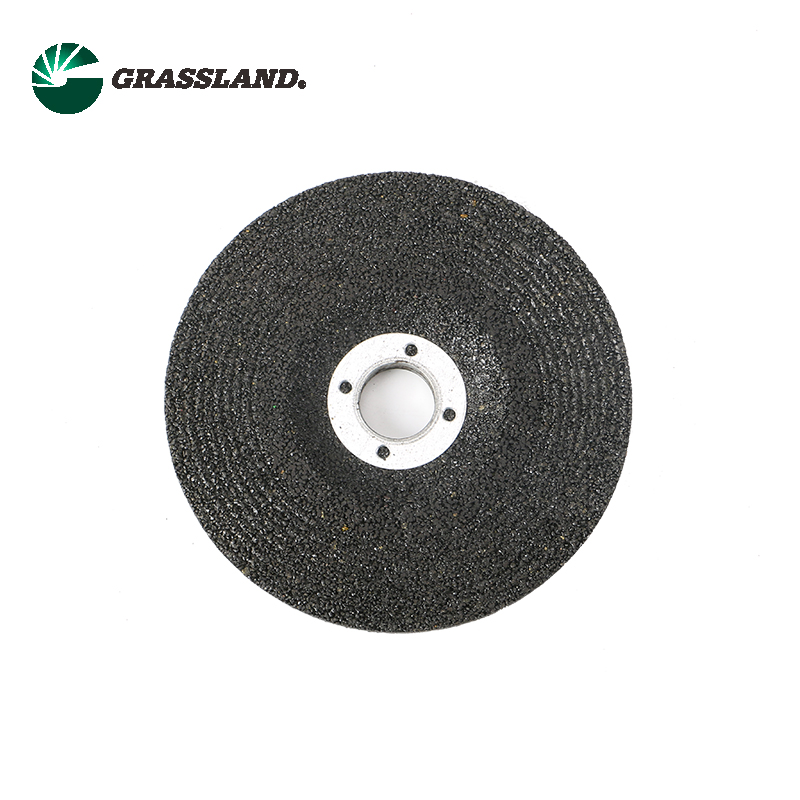

Type 27 Depressed Center Grinding Wheels are made for angle grinding applications including weld grinding, beveling, snagging, and other surface preparation jobs requiring moderate to heavy stock removal. Wheels are 1/4 " thick, with 3 full diameter high tensile fiberglass reinforcements for maximum safety. Choose from many formulations specifically engineered for your application.

For the flat cutting wheel,widely used for cutting metal and non ferrous.

The content of Iron,sulphur and chlorine less than 0.1%.

The flat cutting wheels can make maximum precision cut-outs,clean cutting edges and burr-free cutting,minimize the friction and increase sharpness. Under low stress load for the machine,remain high speed cutting. Due to reduce heat on the workpeice, would not easy to burn workpiece.

For the ultra/super thin disc,extremely fast cutting with sharpness ,minimal vibration for more comfortable working,

Type 42 depressed center cutting wheel, increase side strength and improve abrasive resistance, which get excellent durability and sharpness.

Grassland flap discs are available in a variety of specifications to meet the different needs and applications of market. The range offers aluminum oxide, zirconium oxide,ceramic products,with a fiberglass backing plate. The main type is available in two designs,

1-T27 flat shape for grinding and finishing at a small angle(up to 15°)

2-T29 conical shape for grinding at an angle of 15~25°,apply on curved and more difficult to access areas as well as face and surface grinding.

With reduced noise level, long lifetime, constant performance with fast stock removal, comfortable and cool grinding properties prevent thermal damages on workpiece.
