Aluminum Composite Panel
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Aluminum Composite Panel
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Aluminum / Plastic
- Size: 300*300*4
- Color: Antique Solid rosewood
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
About this product
- Materials: Aluminum / Plastic
- Size: 300*300*4
- Color: Antique Solid rosewood
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
Product details
| Materials | Aluminum / Plastic |
|---|---|
| Size | 300*300*4 |
| Color | Antique Solid rosewood |
From the supplier
Compared with other decorative materials, Aluminum Composite Panel is a new kind of adornment materials that has many incomparable advantages. One reason is that Aluminum Composite Panel is a kind of composite material. Through the compound, it gets many new performance that raw materials don't have. The other reason is that the Aluminum Composite Panel is a kind of high technology products. Whether production or application, it contains high technical content. Goodsense uses many advanced technology in the production to ensure the material performance fully, such as Roller coating technology and Continuous laminating technology.
Product Features
1. High rigidity, light weight, high strength, outstanding corrosion resistance, the PVDF paint can be up to 15 years that the color won't fade out.
2. Convenient installation, can be manufactured to some kinds of complicated geometry shapes, like plane, camber, etc.
3. Hard to pollute, Convenient to clean and maintain. PVDF membrane's non adhesiveness, difficult to adhere pollutants, and best clean performance.
4. Due to reuse, it is good for protect environment from pollution.
Aluminum composite panel for building curtain wall
The minimum thickness of the upper and lower aluminum plates is not less than 0.50mm, the total thickness should not be less than 4mm.The aluminum material should meet the requirements of GB / T 3880. Generally, aluminum alloy plates of 3003, 5005 and other series can be used. The coating should be fluorocarbon resin coating, and the core material should be fireproof. Domestically, it is mainly used for decoration of exterior walls of buildings under 50 meters.
Indonesia sports stadium exterior wall aluminum composite panel project
Gansu province toll station aluminum composite panel project
Thailand hospital building exterior wall aluminum composite panel project
The advantage of Aluminum composite panel
1. Light weight:about 5.5 KGS/SQM,much lighter than solid aluminum plate with same rigidity.
2. High rigidity:
3. Rich colors and strong decoration:
4. High surface smoothness:
5. Good durability:
6. Easy to install and maintain:
7. Excellent fire performance:B1,A2 fire rated comply with CTC and EN13501 standard
8. Widely used:curtain wall,facade,cladding,partition,ceiling,signaged,cabinet,shop decoration and more
Specification
Standard size
1220 * 2440 * 4mm
Panel Thickness
from 2mm to 6mm
Length Range
Less than 6000mm
Width available
1000mm~2000mm
Aluminum skin thickness
0.1mm~0.7mm

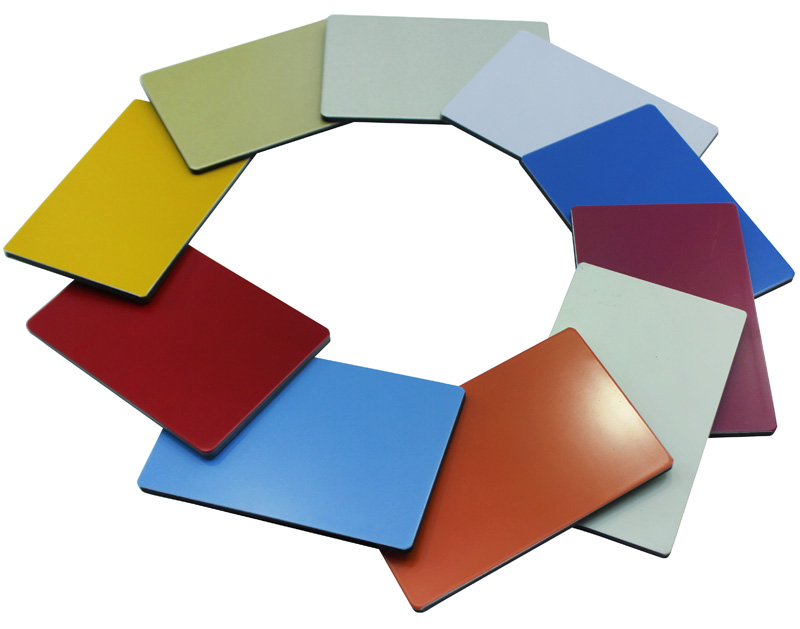

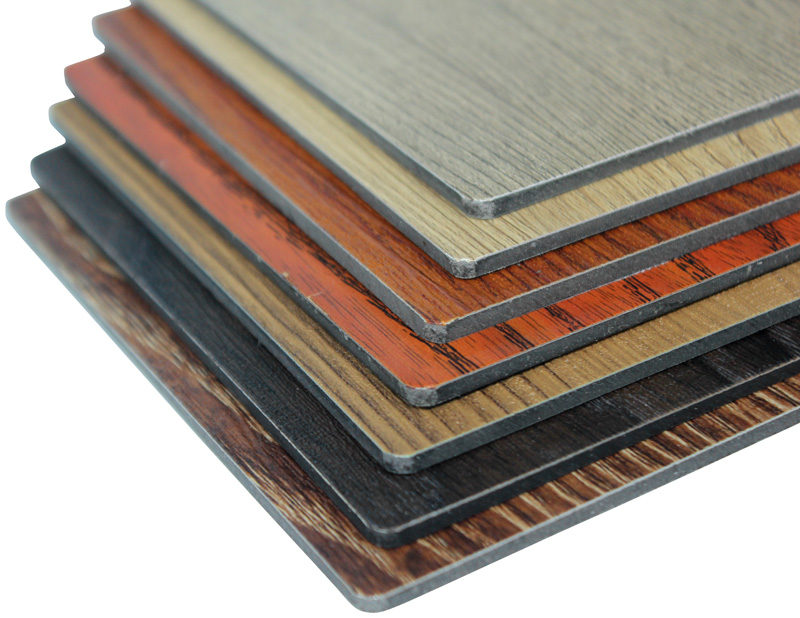

Colors
Normal Series, High Gross Series, Pearl Series, Brush Series, Mirror Series, 3D Series, Anti-scratch Series, Marble & Wood Series, Embossed Series, Solid Wood & Simulation Stone Series, Classic Series, Opal Fantastic Series, Spectra Series, Sparkled Series, Stainless steel Series, Peal & Silver Paste Series, Peal & laser Series, customized colors are acceptable
Coating
PE, PVDF,
packing
Wooden-box or in bulk
Delivery date
Within 15 or 20 days
MOQ
300 SQM
Payment
TT, L/C, D/P
Warranty
15 years
About the supplier
Main products: Synthetic aluminium plate, aluminium composite panel, aluminium-plastic panel
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2003
- ✓CF Award winner
- ✓Brand exhibitor
- ✓Green booth award
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2003
- CF Award winner
