Ball Check Valve
- FOB goods (100)
- $25,750
- Ocean freight + handling (0.3 CBM)
- $820
- US duty (3.0%)
- $773
- Section 301 tariff (25.0%)
- $6,438
- Customs fees (MPF/HMF)
- $121
Estimate in USD to a US port using category averages (HTS 7318/8302/8301), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Ball Check Valve
- FOB goods (100)
- $25,750
- Ocean freight + handling (0.3 CBM)
- $820
- US duty (3.0%)
- $773
- Section 301 tariff (25.0%)
- $6,438
- Customs fees (MPF/HMF)
- $121
Estimate in USD to a US port using category averages (HTS 7318/8302/8301), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Ductile Iron/Cast Iron/Gray Cast Iron
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Ductile Iron/Cast Iron/Gray Cast Iron
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Ductile Iron/Cast Iron/Gray Cast Iron |
|---|
From the supplier

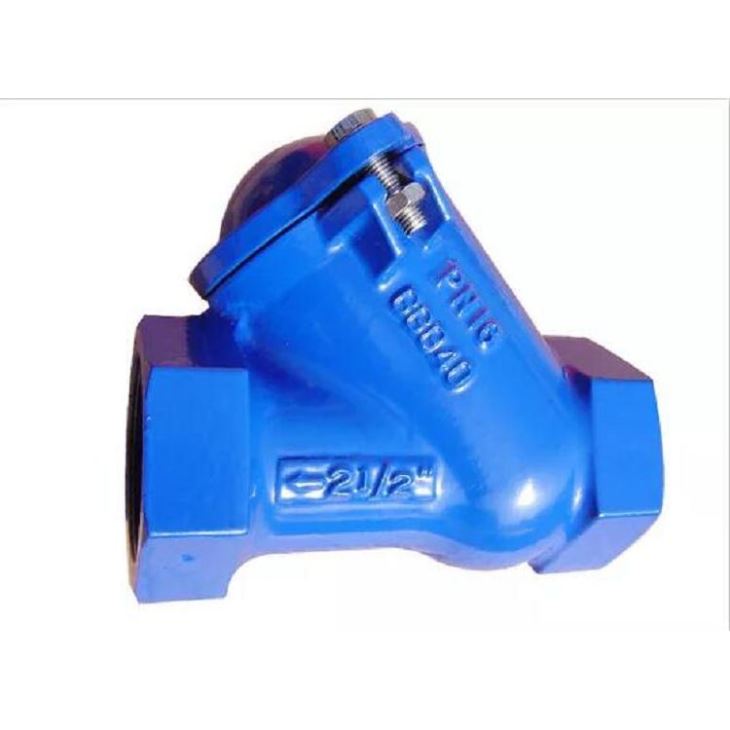

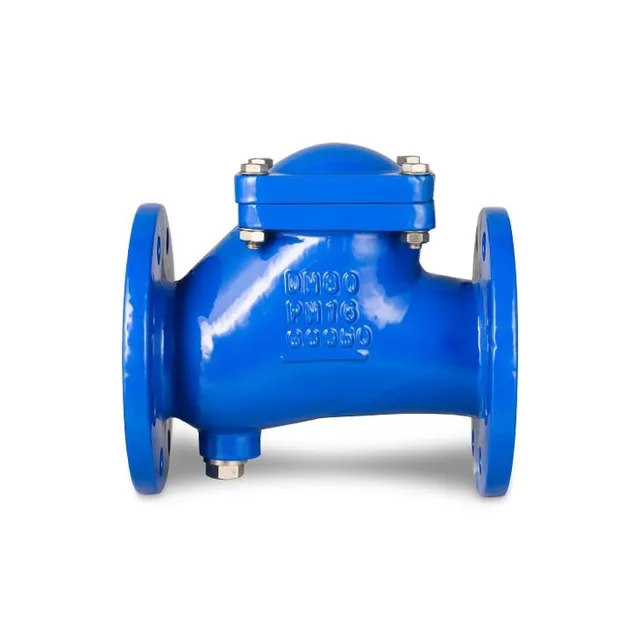

The valve features a loose ball inside. The body chamber is closed from the top by a ductile iron cover that is sealed with an o-ring and bolted to the body with the hex cap bolts which are flush with the valve cover seats. The ball in the valve before installation is located in the lowest valve body part, directly at the sealing seat and rests freely on the guides(or if valve installation orientation is horizontal, the ball sits in the valve seat.)
In the operation conditions, the ball is held at the top position(under the valve cover) by the dynamic force of the liquid system, or in the closed position when it seals off the valve seat under the back pressure. All inner and outer ductile iron surfaces of the valve are epoxy power coated. The anti-corrosion coating layer minimum thickness is 250 μm.
Material
Ductile Iron/Cast Iron/Gray Cast Iron
Design
EN14341 (EN12516)
Body
Ductile Iron/Cast Iron/Gray Cast Iron
Bonnet
Ductile Iron/Cast Iron/Gray Cast Iron
Cover
Ductile Iron/Cast Iron/Gray Cast Iron
Nuts
CARBON STEEL
Plug
CARBON STEEL
Gasket
Rubber
Pressure
PN10
Seat
NBR
Ball
NBR Coated Aluminium
Size
DN40 - DN300
Bolt
CARBON STEEL
Face to face
EN14341
Thrust Washer
CARBON STEEL
Color
Customer’s request
Application
Temperature: -10°C to 70°C
Ball check valves are often very small, simple, and cheap. They are commonly used in liquid or spray devices, some rubber bulbs for pumping air, etc., manual air pumps and some other pumps, and refillable dispensing syringes.
About the supplier
Main products: Butterfly valve,Induction cooker,Audio/video accessories,Holiday lighting,Down quilt,Shuttlecock,Notebooks,Other Trolley bag,Integrated beauty instruments,Other tableware products,Washer pump,PVC floor tile,UPVC profile
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 1979
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 1979
